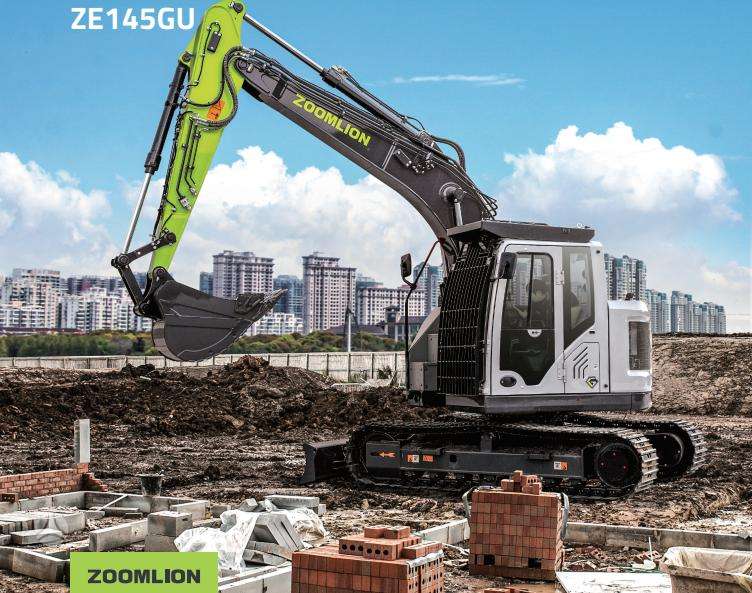

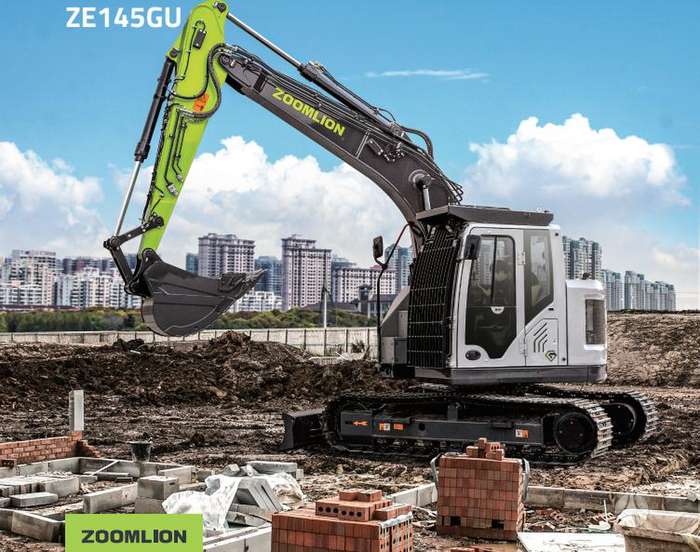

ZOOMLION ZE145GU – POWERFUL 15.8 TON CRAWLER EXCAVATOR!

High power, impressive digging force, and advanced technologies for professional work!

ZOOMLION ZE145GU – a modern mid-range crawler excavator designed for intensive construction, road building, infrastructure, and earthmoving projects. The powerful CUMMINS engine, advanced electro-hydraulic system, and compact design ensure high productivity, precise control, and efficient operation in various conditions.

KEY ADVANTAGES:

Reliable CUMMINS F3.8 diesel engine – 90 kW (122 HP).
Operating weight – 15,800 kg.
Zero Tail Swing design – reduced rear overhang and better maneuverability in tight spaces.
Advanced electro-hydraulic system with electronic control.
Two variable displacement piston hydraulic pumps.
High digging force – for efficient work in difficult conditions.
360° panoramic view camera (optional equipment).
ROPS/FOPS cabin with excellent visibility.
Pneumatic operator seat.
Air conditioning with heating and cooling functions.
Convenient maintenance – main service points are accessible from the ground.

TECHNICAL DATA:

Operating weight: 15,800 kg
Engine: CUMMINS F3.8
Engine power: 90 kW / 2,200 rpm (122 HP)
Engine displacement: 3.8 l
Emission standard: EU Stage V / Tier 4F
Standard bucket capacity: 0.6 m³
Available bucket capacity: 0.1–0.6 m³
Maximum digging depth: 5,505 mm
Maximum digging radius: 8,410 mm
Maximum digging height: 9,390 mm
Maximum dumping height: 6,760 mm
Bucket digging force: 108 kN
Arm digging force: 69 kN
Travel speed: 3.0 / 5.4 km/h
Swing speed: 12 rpm
Maximum traction force: 130 kN
Gradeability: 70 %
Hydraulic pump flow: 2 × 127.5 l/min.
Total hydraulic system flow: 255 l/min.

DIMENSIONS:

Total length: 7,395 mm
Total width: approx. 2,500 mm
Total height: 2,955 mm
Track gauge: 1,990 mm
Track length on ground: 2,920 mm
Rear swing radius: 1,490 mm
Boom length: 4,600 mm
Arm length: 2,500 mm

SUITABLE FOR VARIOUS TASKS:

Digging foundations and large trenches.
Road and infrastructure construction.
Installation of water supply, sewage, and other utilities.
Earthmoving and soil relocation work.
Demolition and construction work.
Quarrying and other demanding site work.

ZOOMLION ZE145GU – POWER AND PERFORMANCE WITHOUT COMPROMISE!

Reliable CUMMINS engine, high digging force, and advanced hydraulic system – an excellent choice for professionals who need efficient and versatile machinery.

Contact us for price, configuration, and additional equipment!

ZOOMLION – Your reliable partner in the world of machinery!

For more detailed information, price, leasing, and delivery terms, please contact us.
