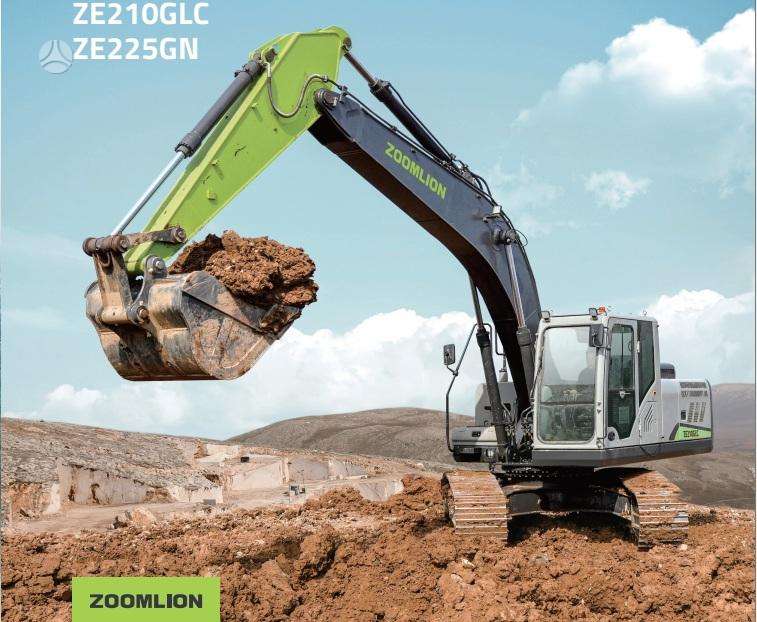

ZOOMLION ZE210GLC – POWERFUL AND RELIABLE 22-TON CLASS EXCAVATOR

ZOOMLION ZE210GLC – a powerful crawler excavator designed for intensive earthmoving, construction, road building, infrastructure, and quarry work. The reliable CUMMINS B6.7 engine, high-performance hydraulic system, and reinforced crawler undercarriage ensure excellent work productivity, stability, and reliability even in the most challenging working conditions.

MAIN TECHNICAL DATA

Engine – CUMMINS B6.7
Engine power – 129 kW (175 HP) / 2200 rpm
Engine displacement – 6.7 l
Emission standard – EU Stage V / Tier 4F
Operating weight – 22,700–23,600 kg
Bucket capacity – 0.85–1.2 m³
Maximum digging depth – 6,680 mm
Maximum digging reach – 9,920 mm
Maximum digging height – 9,820 mm
Maximum dumping height – 7,120 mm
Maximum travel speed – 5.5 / 3.5 km/h
Swing speed – 12 rpm
Maximum traction force – 210 kN
Bucket digging force – 150 kN
Arm digging force – 109 kN
Hydraulic pump capacity – 2 × 221 l/min.
Boom length – 5,700 mm
Arm length – 2,925 mm
Fuel tank capacity – 360 l

POWER AND WORK EFFICIENCY

Powerful CUMMINS B6.7 engine ensures an excellent ratio of performance and economy.
129 kW engine power allows for efficient execution of intensive digging and loading tasks.
Advanced electronically controlled Positive Flow Control hydraulic system.
High-performance hydraulic pumps – 2 × 221 l/min.
Bucket digging force – as much as 150 kN.
Arm digging force – 109 kN.
Optimized engine and hydraulic system operation helps reduce fuel consumption.
Maximum digging depth – 6,680 mm.
Maximum digging reach – 9,920 mm.

HYDRAULIC SYSTEM AND VERSATILITY

High-performance hydraulic system adapted for intensive work.
Possibility to use various work attachments.
Quick coupler system for work attachments.
Hydraulic system flow and pressure adjustment options.
Adapted for digging, crushing, cutting, milling, and other tasks.
Possibility to equip with a hydraulic hammer, sorting grab, and other attachments.

UNDERCARRIAGE AND RELIABILITY

Reinforced crawler undercarriage adapted for intensive operation.
Extended undercarriage design ensures greater stability.
9 track rollers on each side.
Reinforced construction ensures better load distribution.
Maximum traction force – 210 kN.
Excellent maneuverability and stability when working on uneven terrain.
Reliable construction adapted for difficult working conditions.

OPERATOR COMFORT AND SAFETY

Spacious and ergonomic ROPS/FOPS certified cabin.
Excellent visibility at the workplace.
Rear-view camera.
Comfortable operator workstation.
Large information display.
Comfortable suspension and vibration damping.
Lower noise level in the cabin.
Boom and arm hydraulic hose burst protection valves.

Additionally, a pneumatic operator seat with electric heating can be selected.

STANDARD EQUIPMENT

CUMMINS B6.7 engine.
129 kW engine power.
EU Stage V emission standard.
Crawler undercarriage.
5,700 mm long boom.
2,925 mm long arm.
9 track rollers on each side.
ROPS/FOPS certified cabin.
Rear-view camera.
Hydraulic hose burst protections.
Electronic hydraulic system control system.

OPTIONAL EQUIPMENT (UPON REQUEST)

Digging buckets of various capacities (0.85–1.2 m³).
Reinforced bucket for rock work.
Hydraulic hammer.
Quick coupler system for work attachments.
Sorting and demolition grabs.
Pneumatic operator seat with heating.
2D / 3D digging control and navigation systems.
Additional hydraulic lines for work attachments.

Other specialized work attachments.

ZOOMLION ZE210GLC – 129 kW POWER, 22-TON CLASS PERFORMANCE AND RELIABILITY IN EVERY JOB!

An excellent choice for construction, road building, earthmoving, and quarry companies looking for a powerful, economical, and versatile excavator for intensive daily work.

For more detailed information, price, leasing, and delivery conditions, please contact us.
