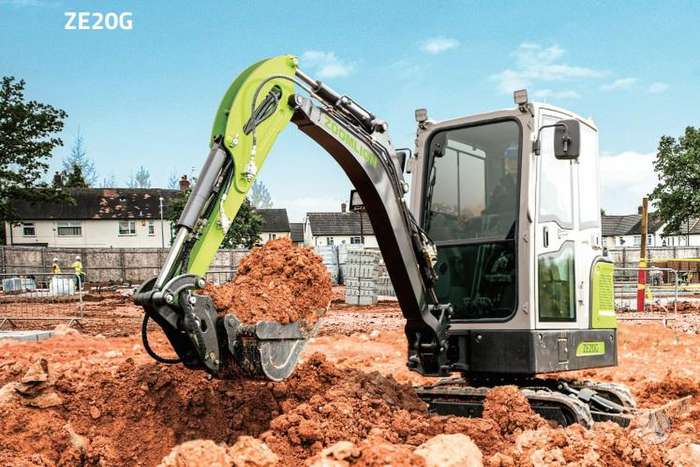

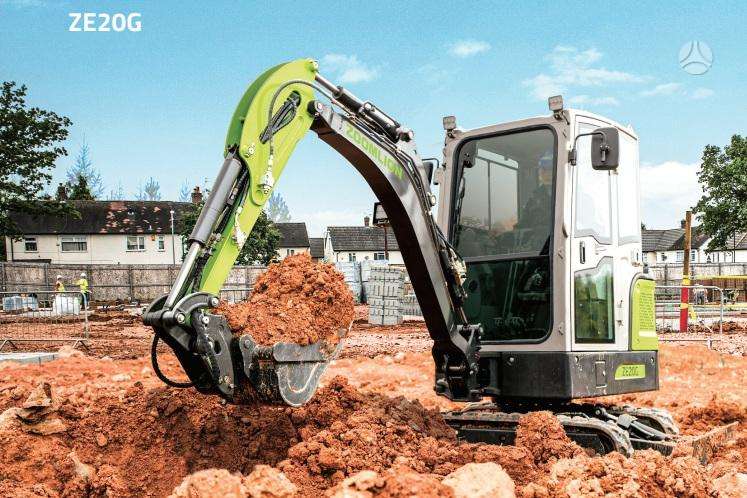

ZOOMLION ZE20G – COMPACT, POWERFUL AND VERSATILE MINI EXCAVATOR

ZOOMLION ZE20G – a modern, compact, and versatile mini excavator designed for work in construction, agriculture, landscaping, and infrastructure projects. The reliable KUBOTA engine, adjustable width crawler chassis, and swing boom allow for efficient operation even in very confined spaces. The comfortable cabin with an air conditioning system ensures comfort throughout the entire workday.

MAIN TECHNICAL DATA

Engine – KUBOTA D1105
Engine power – 15.4 kW (21 HP) / 2400 rpm
Emission standard – EU Stage V / Tier 4F
Operating weight – 1,970 kg
Bucket capacity – 0.04 m³
Maximum digging depth – 2,555 mm
Maximum digging height – 3,630 mm
Maximum digging reach – 4,130 mm
Maximum digging reach at ground level – 4,070 mm
Maximum dumping height – 2,550 mm
Maximum travel speed – 4.2 / 2.2 km/h
Swing speed – 9.5 rpm
Bucket digging force – 18.2 kN
Arm digging force – 8.5 kN
Overall length – 3,885 mm
Overall width – 980–1,300 mm
Overall height – 2,340 mm

POWER AND WORK EFFICIENCY

Reliable KUBOTA D1105 engine ensures efficient and economical operation.
Compact design allows for work in narrow spaces and hard-to-reach areas.
Boom swing function to the left and right allows for convenient digging near buildings, fences, and other obstacles.

CHASSIS AND VERSATILITY

Adjustable width crawler chassis allows for easy passage through narrow gates and entrances.
Extended chassis ensures greater stability during operation.
Swing boom allows for precise digging work in limited spaces.
Hydraulic system adapted for various work attachments.
Possibility to use different buckets, hydraulic hammer, and other attachments.

OPERATOR COMFORT AND SAFETY

Spacious and comfortable operator cabin.
Heating and air conditioning system.
Convenient controls and ergonomic workstation.
Excellent visibility during operation.
Easy access to maintenance points.
Convenient design ensures easy daily operation.

STANDARD EQUIPMENT

KUBOTA D1105 engine.
Adjustable width crawler chassis.
Swing boom (left and right).
Swing dozer blade.
0.04 m³ digging bucket.
Hydraulic system for work attachments.
Closed operator cabin.
Heating and cooling system (depending on configuration).
Convenient control panel.

OPTIONAL EQUIPMENT (UPON REQUEST)

Hydraulic quick coupler system.
Additional digging buckets.
Hydraulic hammer.
Drilling equipment.
Additional hydraulic lines.
Other hydraulic attachments required for work.

ZOOMLION ZE20G – SMALL DIMENSIONS, BIG POSSIBILITIES!

An excellent choice for those looking for a compact, maneuverable, and reliable mini excavator that ensures efficient work even in the most complex and narrowest jobsites.

For more detailed information, price, leasing, and delivery conditions, please contact us.
