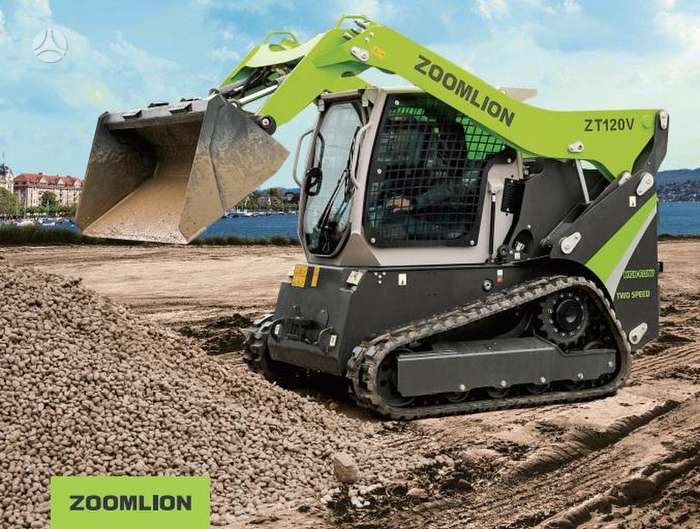

ZOOMLION ZT120V – POWERFUL TRACKED SKID STEER LOADER

ZOOMLION ZT120V – a powerful and versatile tracked skid steer loader designed for intensive work in construction, agriculture, warehousing, and infrastructure projects. The reliable KUBOTA engine, high lifting capacity, and vertical lift boom design ensure productive work, stability, and efficient loading and unloading of cargo.

MAIN TECHNICAL DATA

Engine – KUBOTA V3307
Engine power – 53.4 kW (72 HP) / 2400 rpm
Emission standard – EU Stage V
Operating weight – 4,350 kg
Rated operating capacity – 1,210 kg
Tipping load – 3,457 kg
Bucket capacity – 0.6 m³
Maximum travel speed – 14 km/h
Bucket breakout force – 25.9 kN
Lift arm breakout force – 23.1 kN
Maximum operating height – 4,131 mm
Maximum dump height – 2,510 mm
Maximum dump reach – 980 mm
Ground clearance – 230 mm

POWER AND WORK EFFICIENCY

Reliable KUBOTA V3307 engine, characterized by efficient operation and economy.
Vertical lift boom design ensures higher dump height and more convenient cargo loading.
High rated operating capacity – 1,210 kg.
Powerful hydraulic system allows the use of various work attachments.
Tracked chassis ensures excellent off-road capability, stability, and surface traction.
Compact design allows for efficient work in confined spaces.
Reinforced bucket adapted for intensive digging and loading tasks.

OPERATOR COMFORT AND SAFETY
Spacious, panoramic ROPS/FOPS certified cabin.
Excellent visibility during work.
Comfortable suspension operator seat.
Heating and air conditioning system.
Modern operator control and information system.
Rear-view camera.
Convenient access to maintenance points.
Sturdy cabin construction ensures operator protection.

STANDARD EQUIPMENT
KUBOTA V3307 engine.
0.6 m³ bucket.
Tracked chassis.
Vertical lift boom design.
ROPS/FOPS certified cabin.
Hydraulic system for work attachments.
Automatic bucket leveling function.
Two-speed travel system.
Rear-view camera.
Mechanical suspension seat.
Air conditioner.
Reverse alarm.
Emergency stop switch.
Warning beacon.

OPTIONAL EQUIPMENT (UPON REQUEST)

Hydraulic quick coupler for attachments.
Automatic bucket leveling (if not included in standard equipment).
Additional cabin side protection.
450 mm wide tracks.
Bucket with teeth.
Snow blade.
GPS system.
Additional control wiring for work attachments.

ZOOMLION ZT120V – more power, better off-road capability, and versatility in every job!

An excellent choice for those looking for a powerful tracked loader capable of working on construction sites, farms, or in difficult ground conditions.

For more detailed information, price, leasing, and delivery terms, please contact us.
