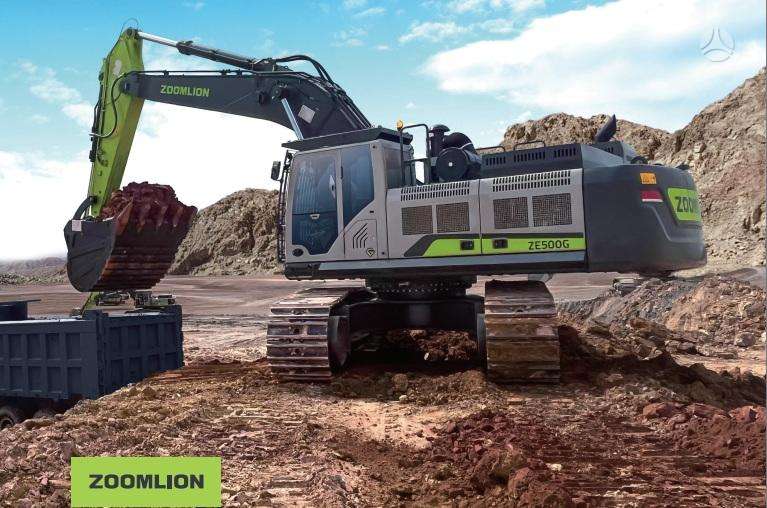

ZOOMLION ZE500G – 51-TON POWER AND PERFORMANCE HEAVY-DUTY EXCAVATOR

ZOOMLION ZE500G – a heavy-duty crawler excavator designed for large-scale earthmoving, quarrying, mining, road construction, and intensive construction work. The powerful CUMMINS X12 engine, advanced electronically controlled hydraulic system, and reinforced structure ensure exceptional productivity, high digging force, and reliability even in the most demanding conditions.

MAIN TECHNICAL DATA

Engine – CUMMINS X12
Engine power – 298 kW (405 HP) / 2100 rpm
Engine displacement – 11.8 l
Emission standard – EU Stage V
Operating weight – 51,000 kg
Standard bucket capacity – 2.65 m³ (HD rock bucket)
Available bucket capacity – 2.65–3.3 m³
Maximum digging depth – 6,495 mm
Maximum digging reach – 10,765 mm
Maximum digging height – 10,055 mm
Maximum travel speed – 5.5 / 3.3 km/h
Swing speed – 9.2 rpm
Maximum traction force – 404 kN
Bucket digging force – 329 kN
Arm digging force – 271 kN
Main hydraulic pump flow – 2 × 372 l/min.
Maximum hydraulic system pressure – 34.3 MPa
Overall length – 11,785 mm
Overall width – 3,610 mm
Overall height – 4,015 mm
Track gauge width – 2,750 mm
Track length on ground – 4,400 mm
Fuel tank capacity – 820 l

POWER AND WORK EFFICIENCY

Powerful 6-cylinder CUMMINS X12 engine with a displacement of 11.8 l.
298 kW engine power ensures excellent performance during intensive digging operations.
High-performance hydraulic system with two variable displacement piston pumps.
Total main hydraulic pump flow – as much as 744 l/min.
Bucket digging force – as much as 329 kN.
Arm digging force – 271 kN.
Maximum traction force – 404 kN.
Advanced ZOOMLION E-COT hydraulic control system optimizes engine and hydraulic performance.
Three-level engine speed control helps reduce fuel consumption.
High hydraulic system performance ensures fast and smooth work cycles.

HYDRAULIC SYSTEM AND VERSATILITY

Two high-performance variable displacement hydraulic pumps.
Total maximum pump flow – 744 l/min.
Large diameter main hydraulic valve.
Double high-performance swing motor.
Maximum working hydraulic pressure – 34.3 MPa.
Ability to use various heavy-duty attachments.
Adapted for work with hydraulic hammers, demolition, and sorting grapples.
Option to equip with buckets of different capacities.

CHASSIS AND RELIABILITY

Reinforced crawler chassis adapted for work in quarries and difficult conditions.
9 track rollers on each side.
2 carrier rollers on each side.
Track gauge width – 2,750 mm.
Track length on ground – 4,400 mm.
Maximum traction force – 404 kN.
Gradeability – up to 70%.
Reinforced structural parts adapted for high loads.
Additional front lower and upper protection for work in harsh environments.

OPERATOR COMFORT AND SAFETY

Spacious, pressurized, and noise-insulating operator cabin.
ROPS standard compliant cabin structure.
Large touchscreen information display.
Suspension operator seat.
Ergonomic layout of control elements.
Excellent visibility during operation.
Two standard cameras – rear and right-side view.
Safety valves for boom and arm hydraulic hoses.
Convenient access to maintenance points.
Lower noise and vibration levels in the cabin.

STANDARD EQUIPMENT

CUMMINS X12 engine.
298 kW engine power.
EU Stage V emission standard.
2.65 m³ reinforced HD rock bucket.
6,500 mm long boom.
3,000 mm long arm.
Reinforced crawler chassis.
E-COT hydraulic control system.
Pressurized operator cabin.
Large touchscreen.
Suspension operator seat.
Rear and right-side view cameras.
Hydraulic hose burst safety valves.
Front lower and upper protection.

OPTIONAL EQUIPMENT (UPON REQUEST)

3.1 m³ reinforced bucket.
3.3 m³ earthmoving bucket.
Specialized buckets for rock work.
Hydraulic hammer.
Hydraulic quick coupler system.
Sorting and demolition grapples.
2D / 3D digging control systems.
Additional hydraulic lines.
Other specialized work attachments.

ZOOMLION ZE500G – 298 kW POWER, 51 TONS WEIGHT, AND 329 kN DIGGING FORCE!

A true productivity solution for large construction projects, quarries, and mining companies. Designed for those who prioritize power, performance, reliability, and efficiency when working with large volumes of earth and rock.
