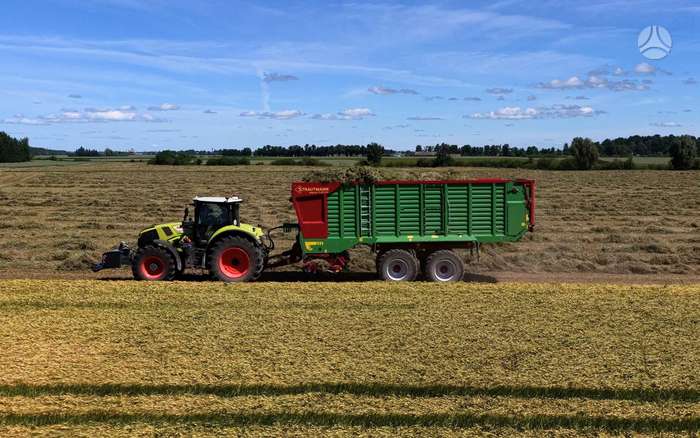

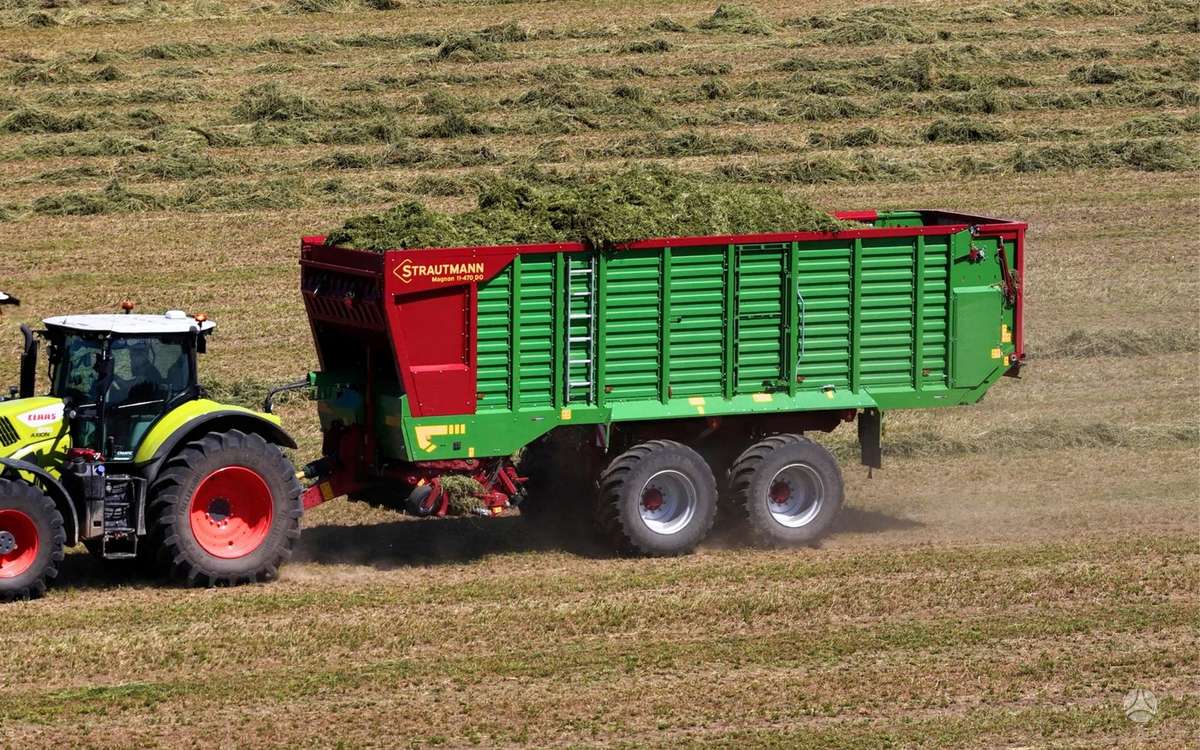

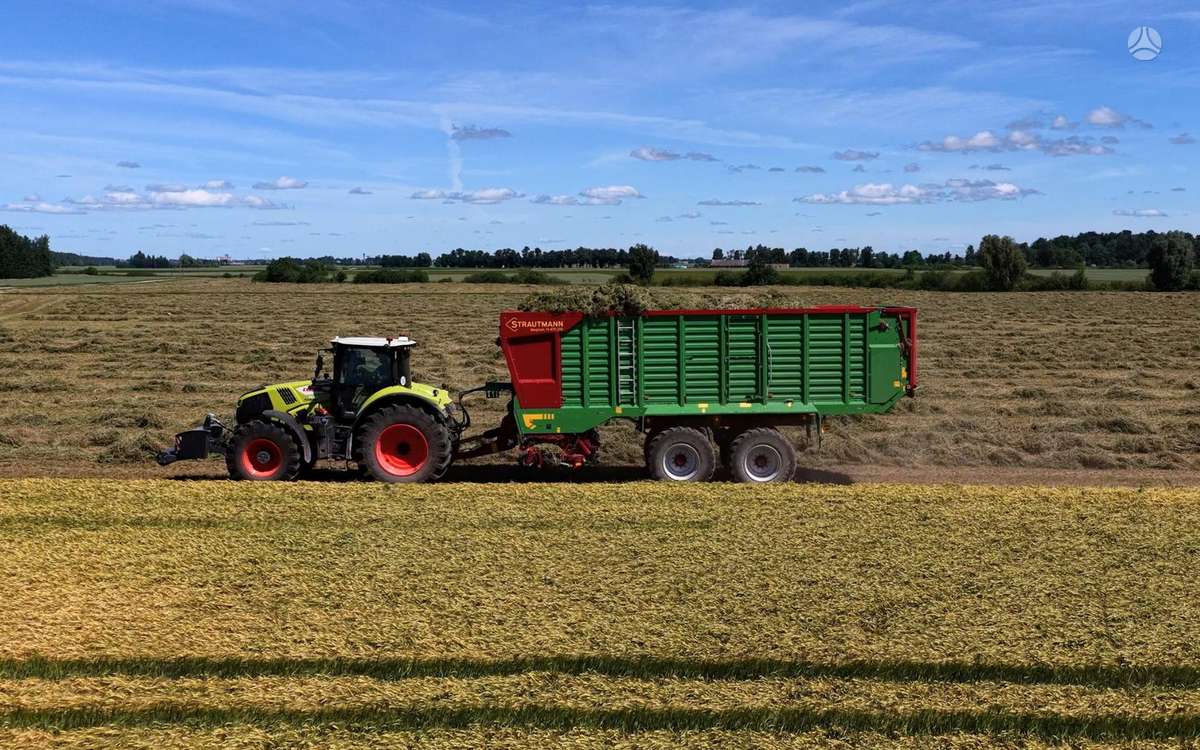

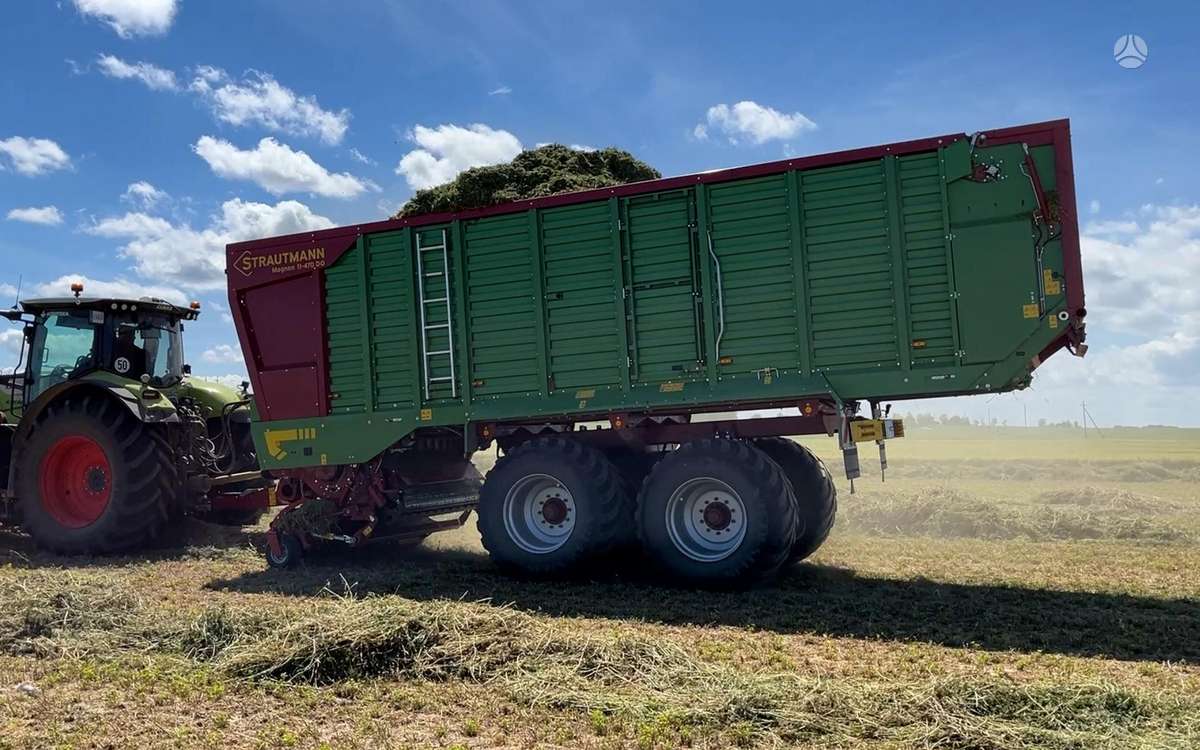

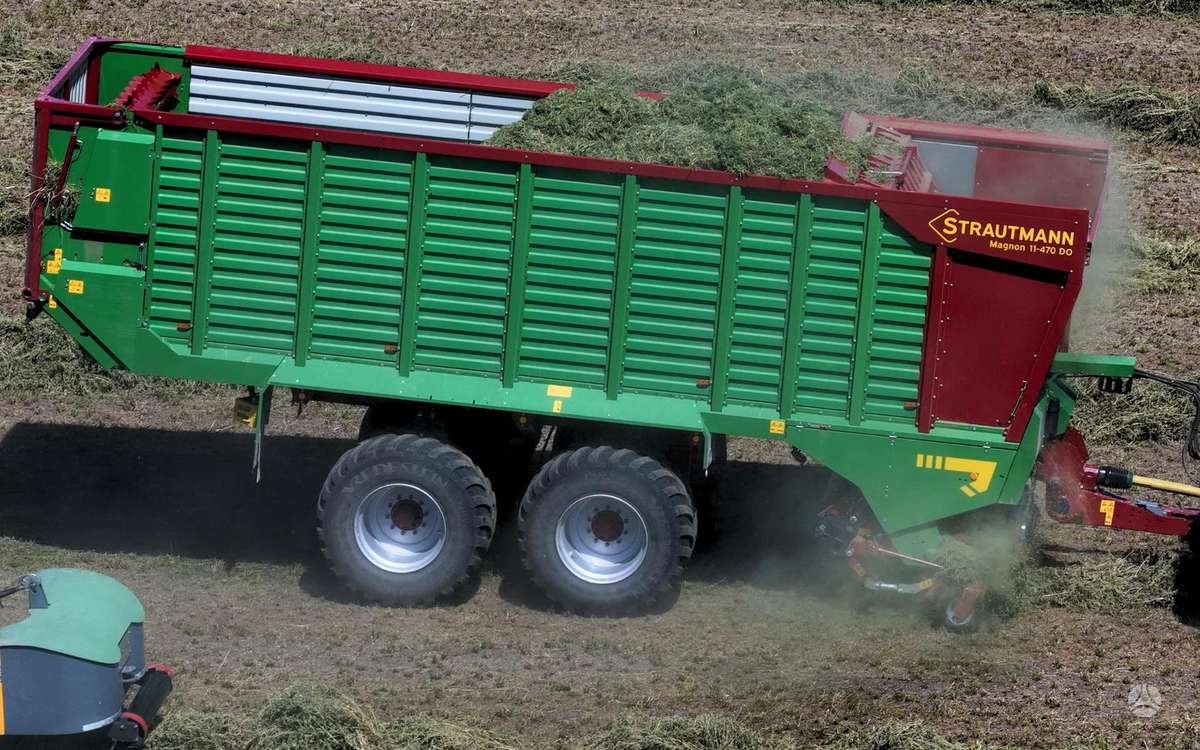

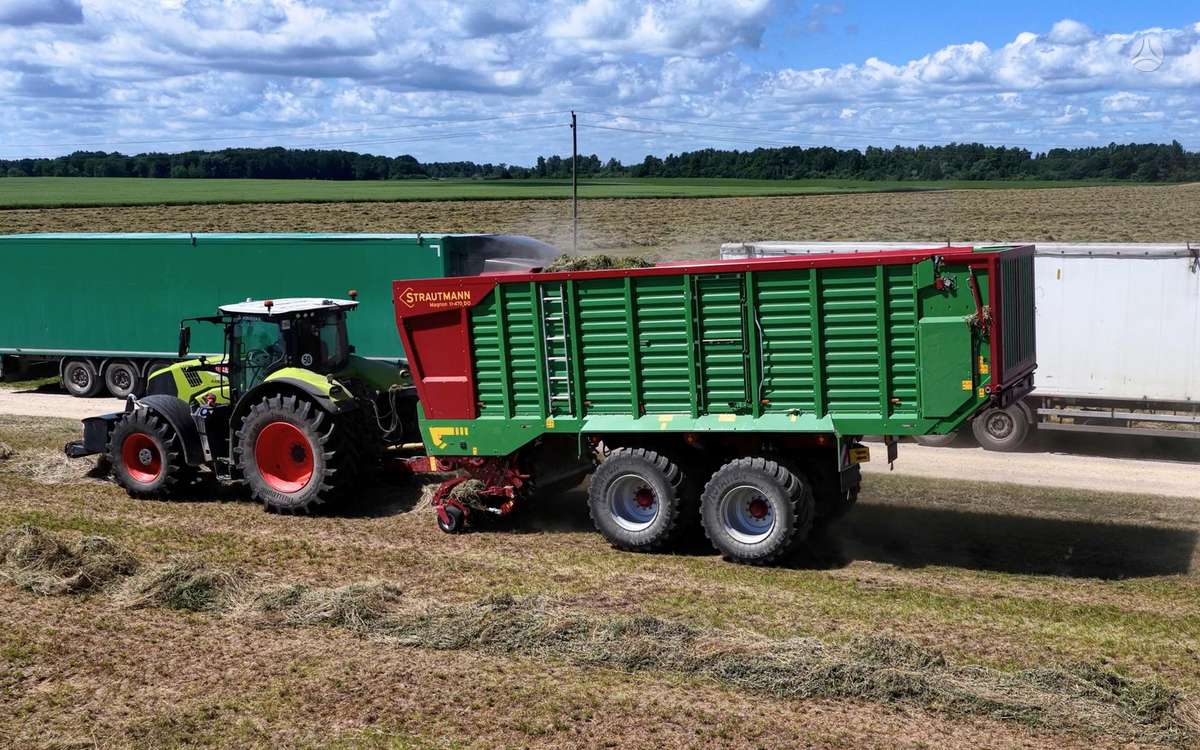

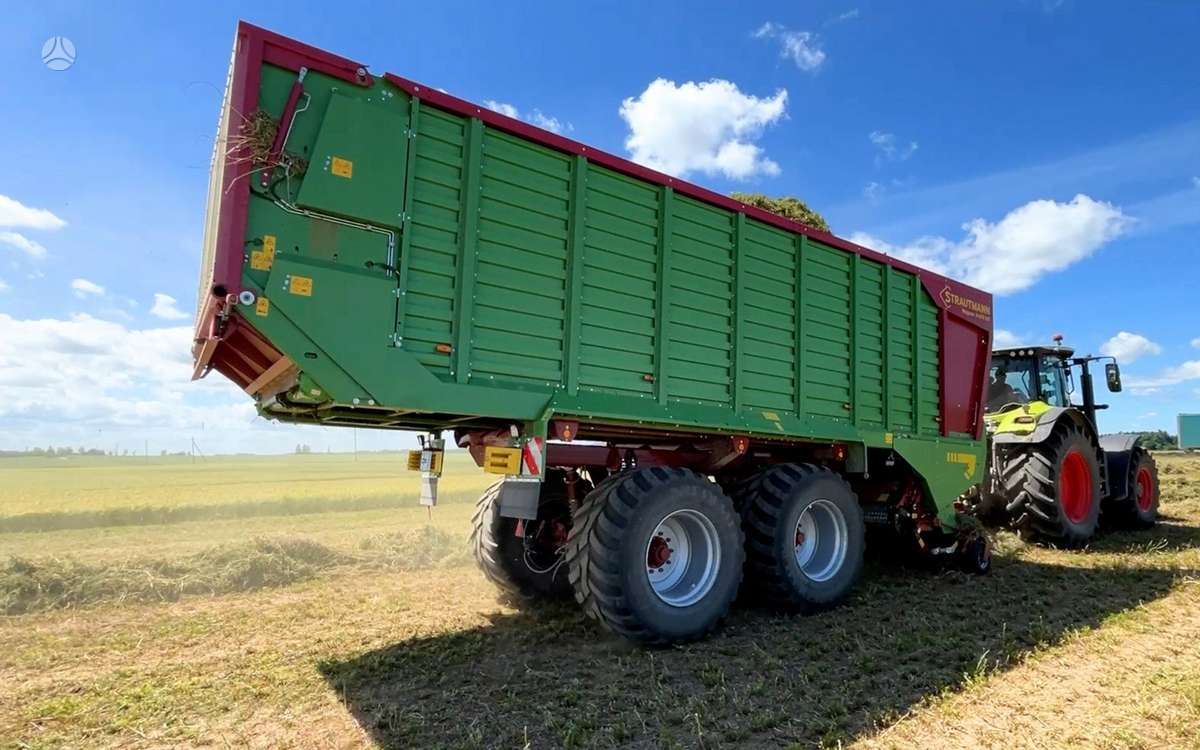

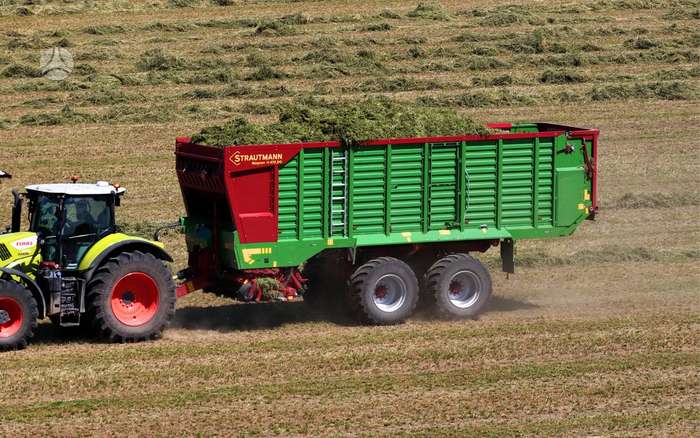

For sale: a used STRAUTMANN MAGNON CFS 11-470 DO forage wagon in excellent condition.

This is a high-class forage wagon capable of ensuring an extremely short theoretical cut length of just 22 mm and high-quality prepared fodder.

Year of manufacture – 2026. The machinery has been used minimally and is therefore in impeccable condition.

Technical specification:
▪ Loading capacity: 44 m³
▪ Loading capacity, calculating medium compressed mass: 82 m³
▪ Required tractor power: from 250 HP
▪ PTO speed: 1,000 rpm
▪ Length: 10.53 m
▪ Body width: 2.25 m
▪ Total width across outer wheel edges: 2.81 m
▪ Height: 3.90 m
▪ Curb weight: 12,100 kg
▪ Maximum permissible gross weight: 24,000 kg

Equipment:
▪ Body with three dosing-discharge rollers
▪ BPW hydraulic tandem chassis with passive steering, permissible speed – 40 km/h
▪ 4 wheels – 800/45 R 30.5 176D ET-50, 10 holes, Vredestein Flotation Trac tires
▪ Pneumatic braking system
▪ Wide-angle PTO shaft with guards
▪ Automatic steering axle locking when reversing, controlled via ISOBUS
▪ Bottom hitch with suspension and hitch eye
▪ Load Sensing hydraulic system connection
▪ Additional pickup tracking roller
▪ ISOBUS control system
▪ LED work lights
▪ Rear view camera

Technological units:

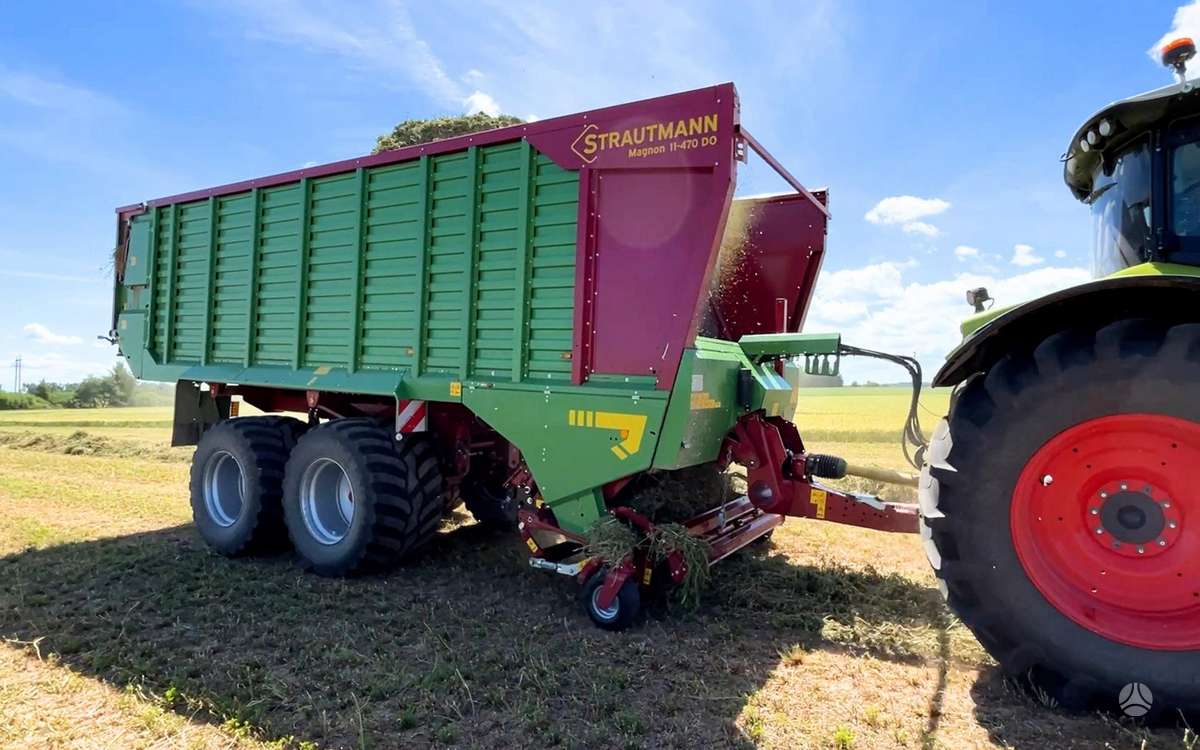

▪ 2.25 m wide STRAUTMANN Flex-Load camless pickup
▪ Two crop press rollers
▪ CFS (Continuous Flow System) crop leveling and even feeding system
▪ New design 2.10 m wide rotor with side guides
▪ 84 double-sided reversible chopping knives, theoretical cut length – 22 mm
▪ Individual protection system for each knife with quick knife change function
▪ Robust body, also adapted for transporting chopped maize mass
▪ Metal floor
▪ Floor conveyor with 4 chain rows
▪ Hydraulically controlled front body wall, ensuring optimal mass compression and efficient use of body volume
▪ Hydraulically controlled tailgate with several opening positions and mechanical locking
▪ LED work and transport lights

You can inspect the machinery at our equipment park:
Perspektyvos g. 32, Kaunas
