Since 2017, the MULTILOADER and SWEDTRAC brands have successfully established themselves in the Scandinavian market. All MULTILOADER and SWEDTRAC machinery is designed with the specific needs of Scandinavian businesses in mind and is constantly being improved to meet high quality standards while maintaining an attractive price.

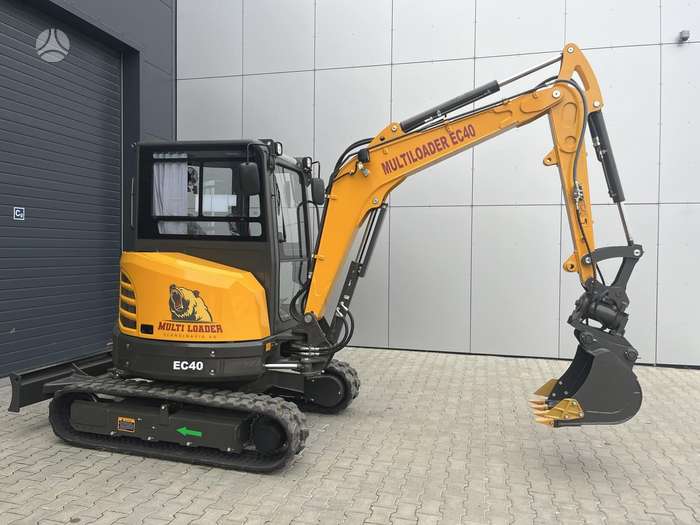

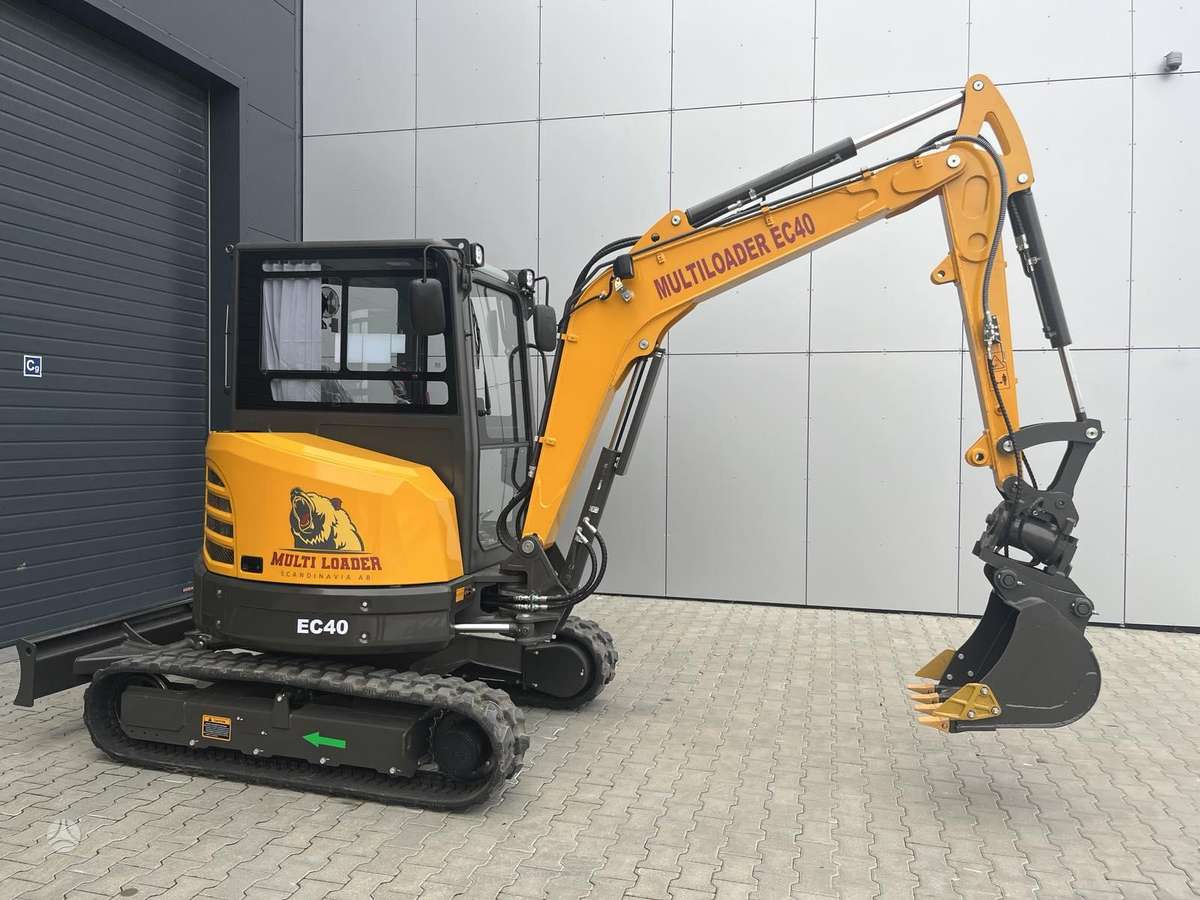

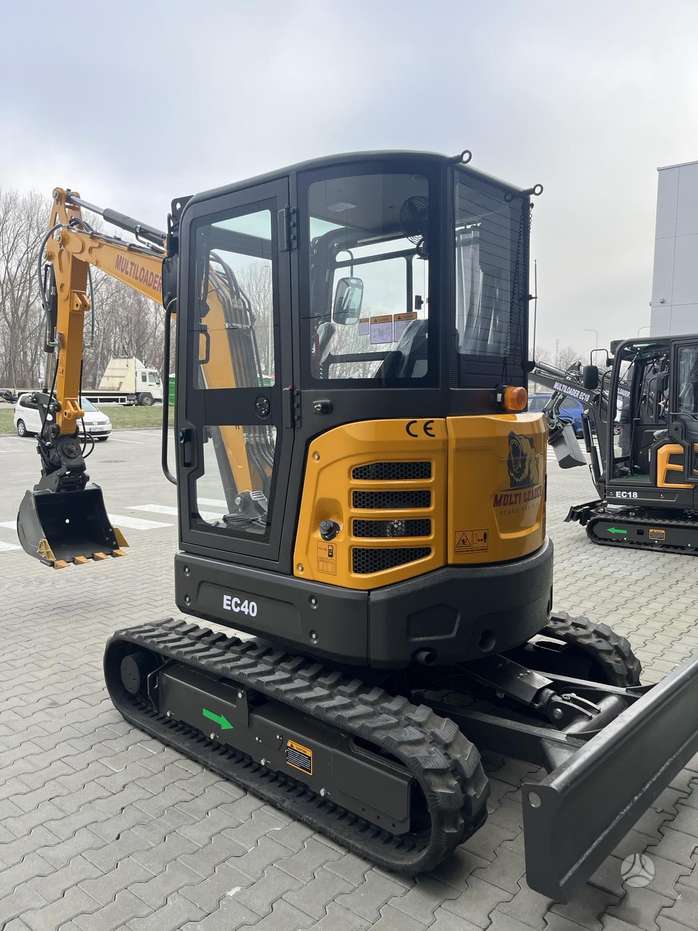

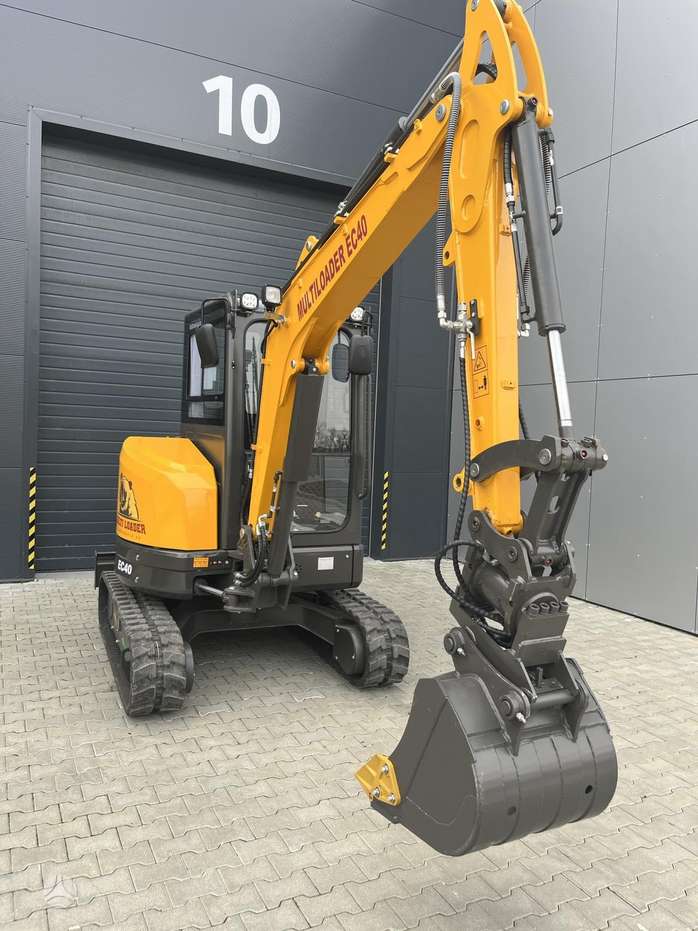

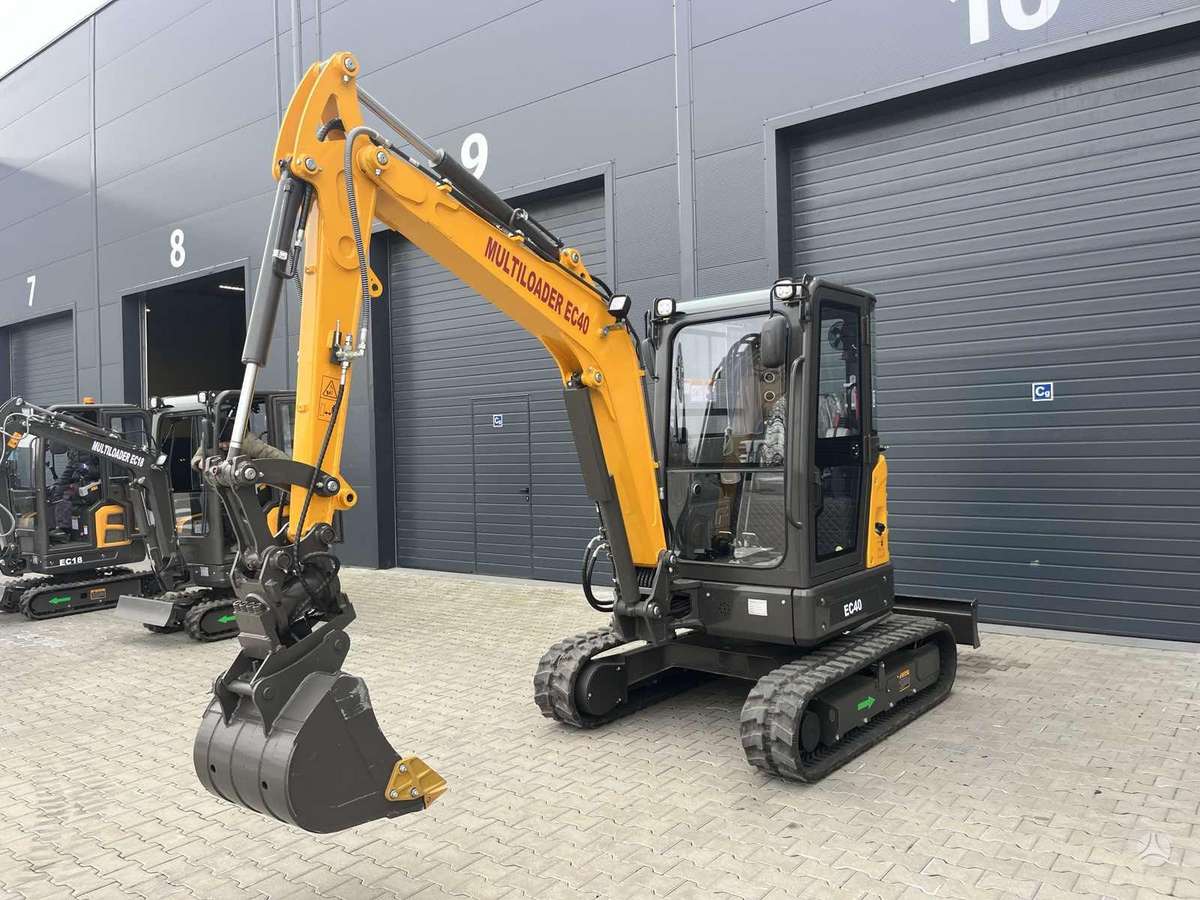

Mini excavator MULTILOADER EC40

Engine:
Emission standard - Euro 5
Engine / Model - Kubota / D1703
Power - 18.5kW
Maximum speed - 2.4/4.4 km/h
Rubber track width / metal - 300 / 350 mm

Operating parameters:
Standard bucket capacity - 0.12 m³
Bucket width - 570 mm
Swing speed - 12 rpm
Max. climbing gradient - 58%/30°
Max. bucket digging force - 30.4 KN
Max. arm digging force - 18.2 KN
Ground pressure - 32 kPa
Hydraulic pressure - 22.5 Mpa
Hydraulic pump flow - 61.6 L/min
Machine weight - 3900 kg
Fuel tank capacity - 40 L
Hydraulic oil tank capacity - 44 L

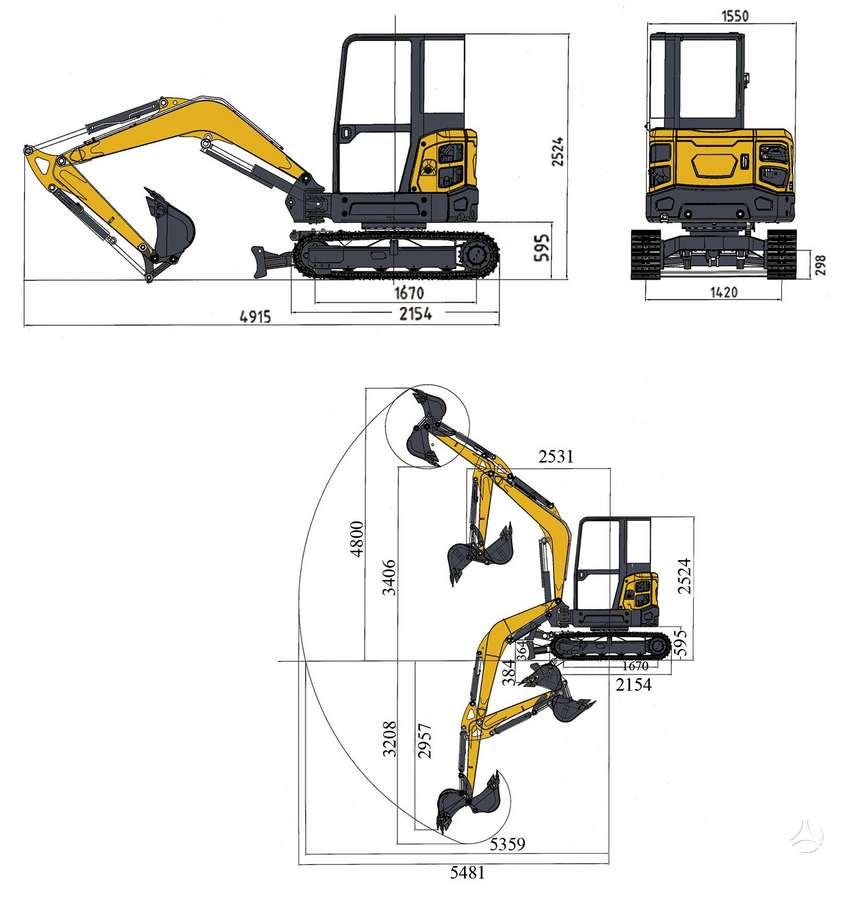

Dimensions:
Length x width x height - 4915 x 1720 x 2525 mm
Rubber track length - 2154 mm
Distance between tracks - 1420 mm
Ground clearance - 295 mm
Rear swing radius - 860 mm
Front swing radius - 2530 mm

Working range:
Max. lifting height - 4800 mm
Max. dumping height - 3406 mm
Max. digging depth - 3208 mm
Max. digging radius - 5480 mm
Min. swing radius - 2530 mm
Boom swing angle (left/right) - 55°/65°

Standard equipment includes 1 bucket

Warranty: 12 months. Technical maintenance at your location

Price excluding VAT: 27.950 EUR
