Since 2017, the MULTILOADER and SWEDTRAC brands have successfully established themselves in the Scandinavian market. All MULTILOADER and SWEDTRAC machinery is designed with the specific needs of Scandinavian businesses in mind and is constantly being improved to meet high quality standards while maintaining an attractive price.

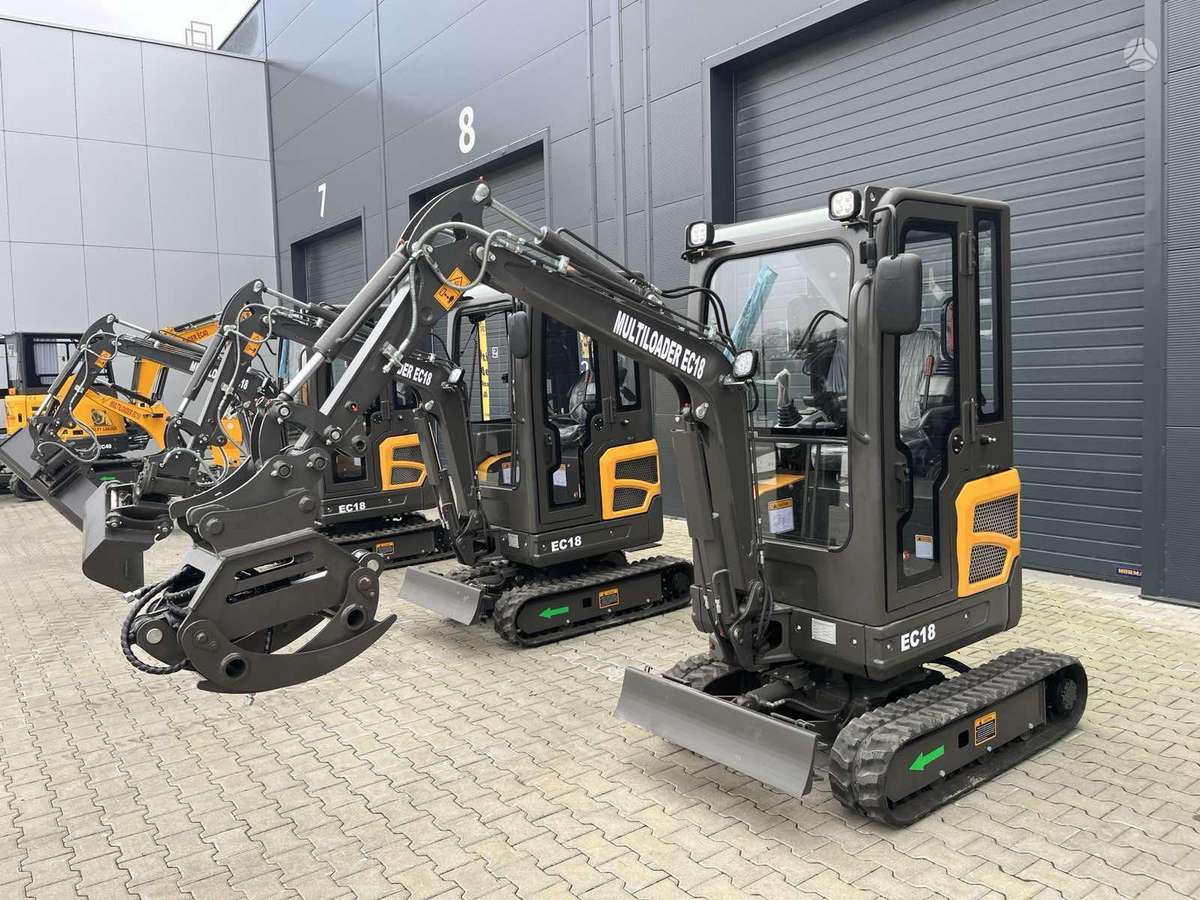

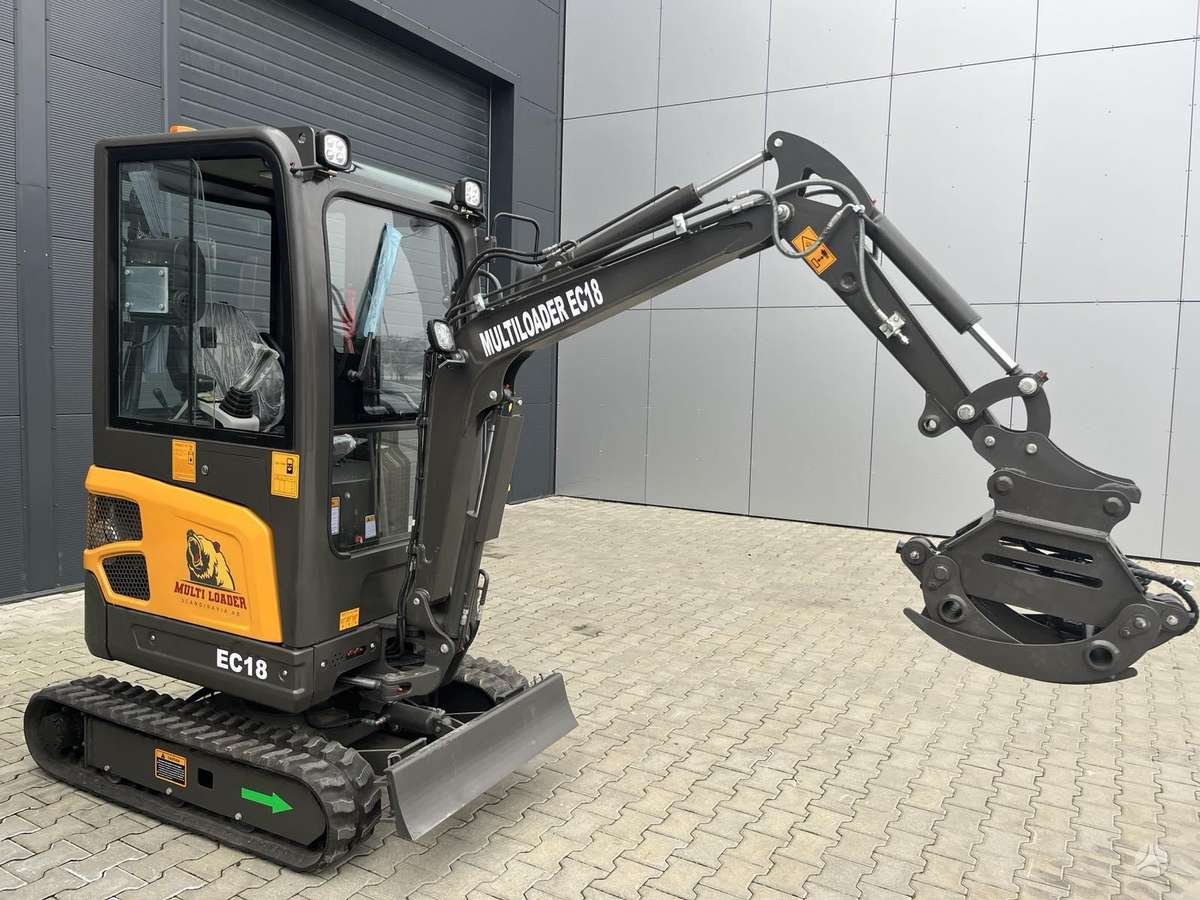

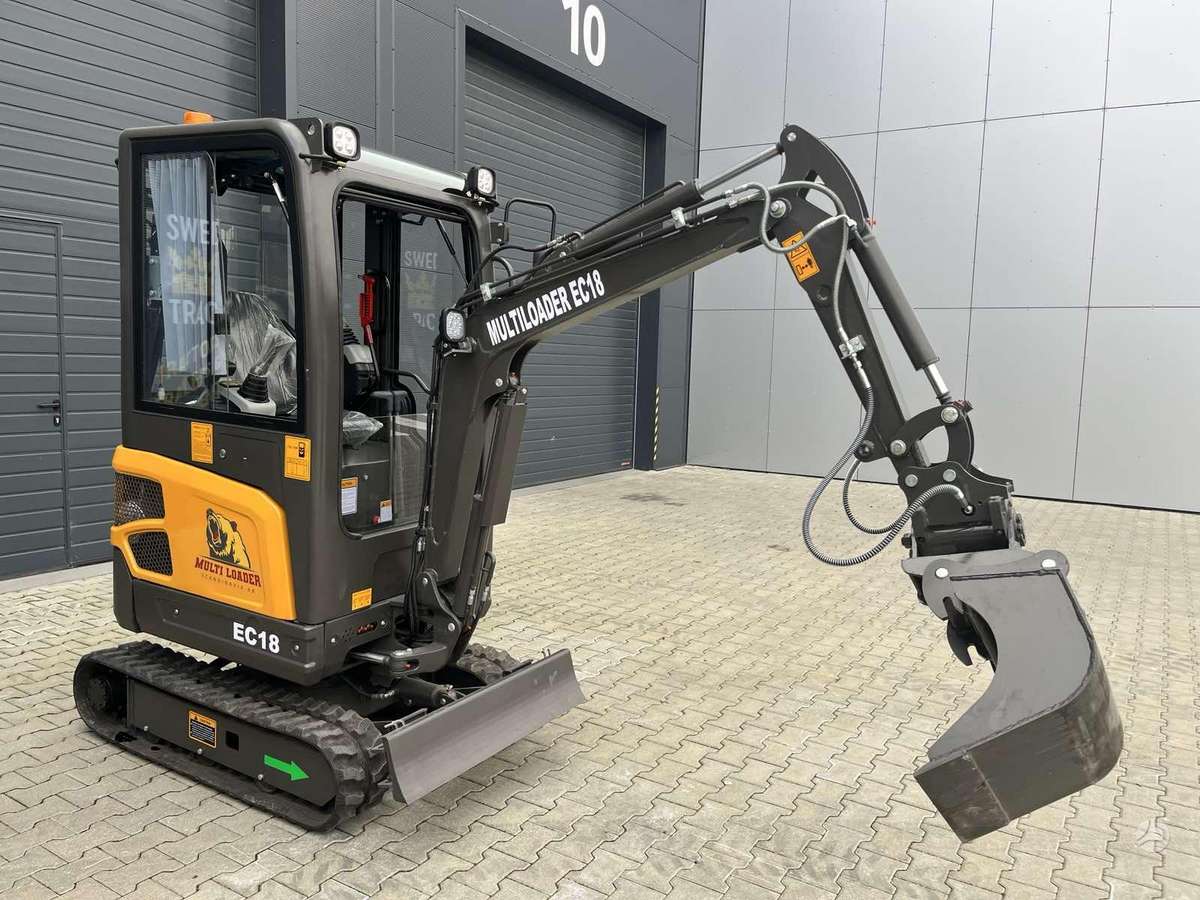

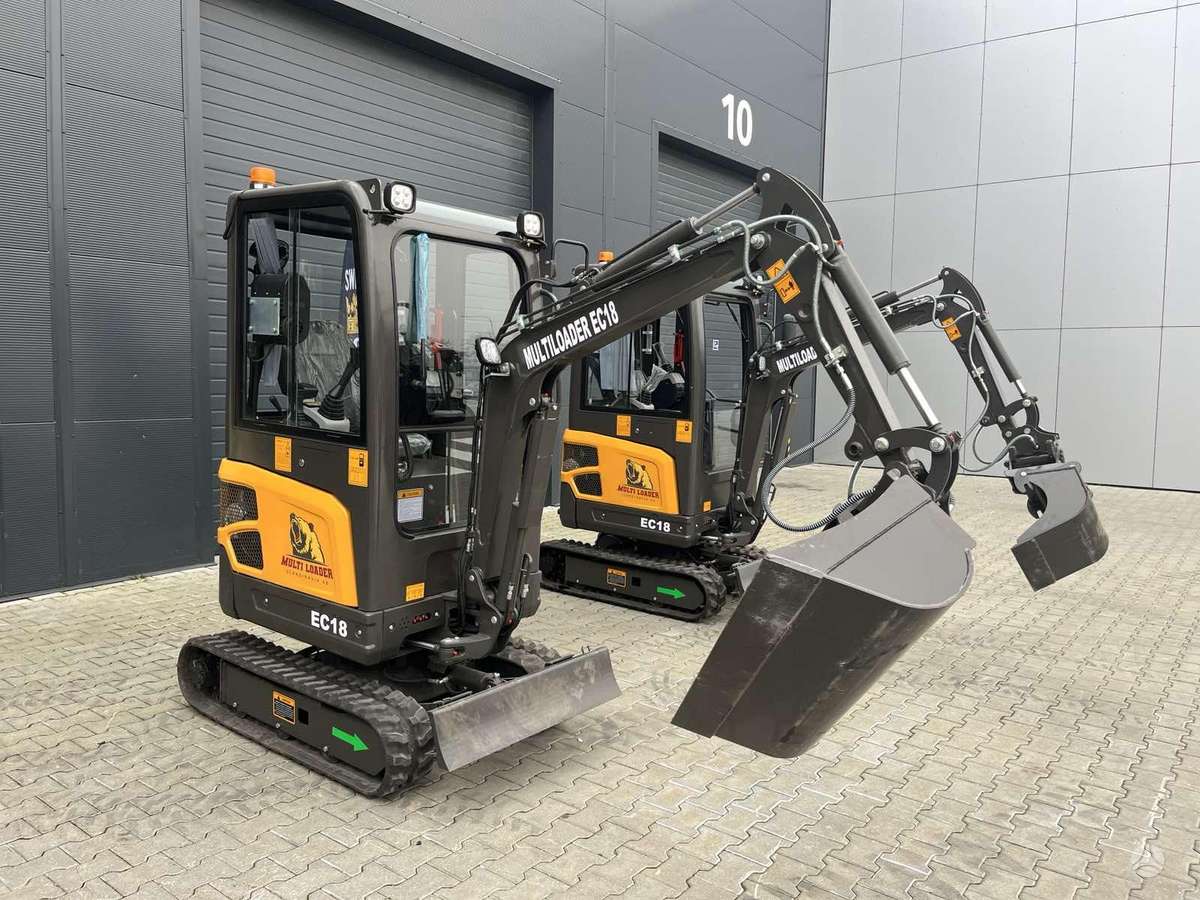

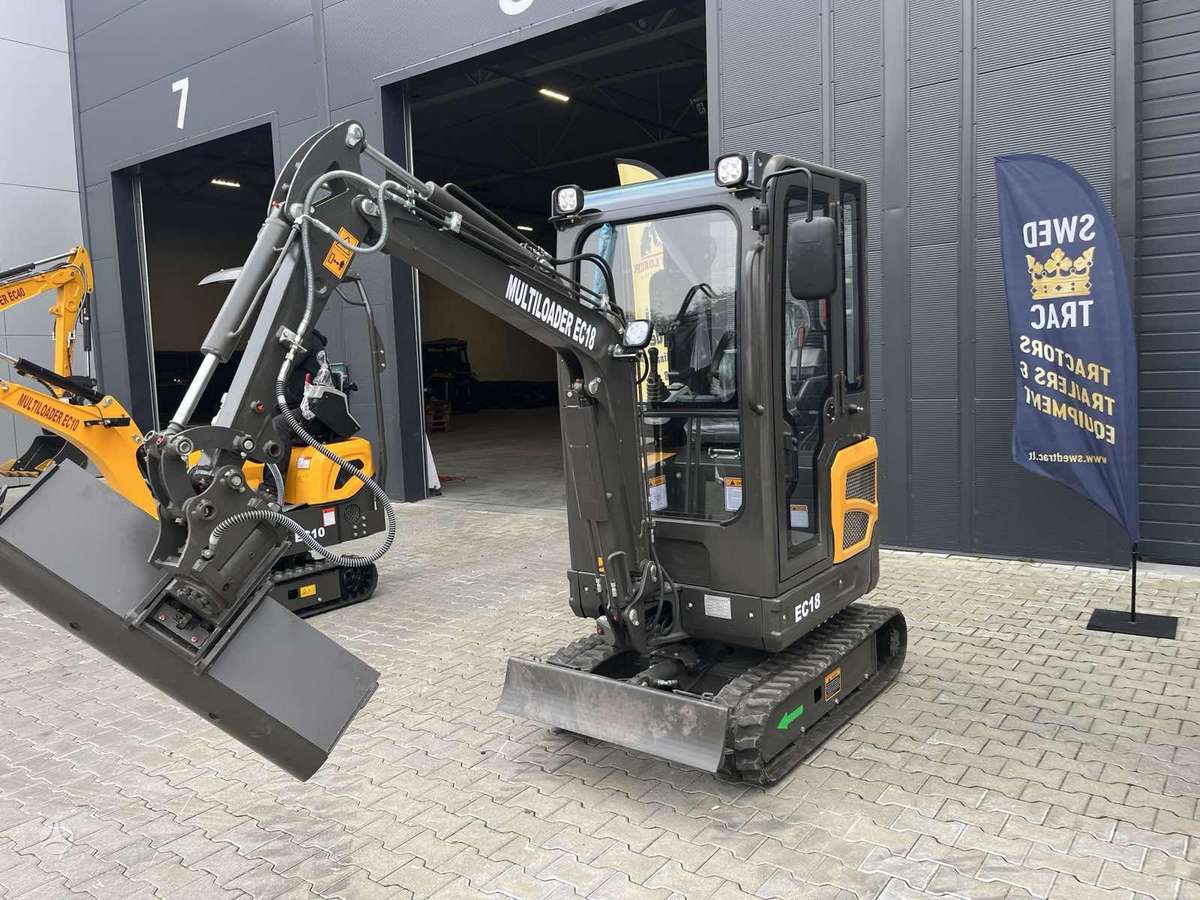

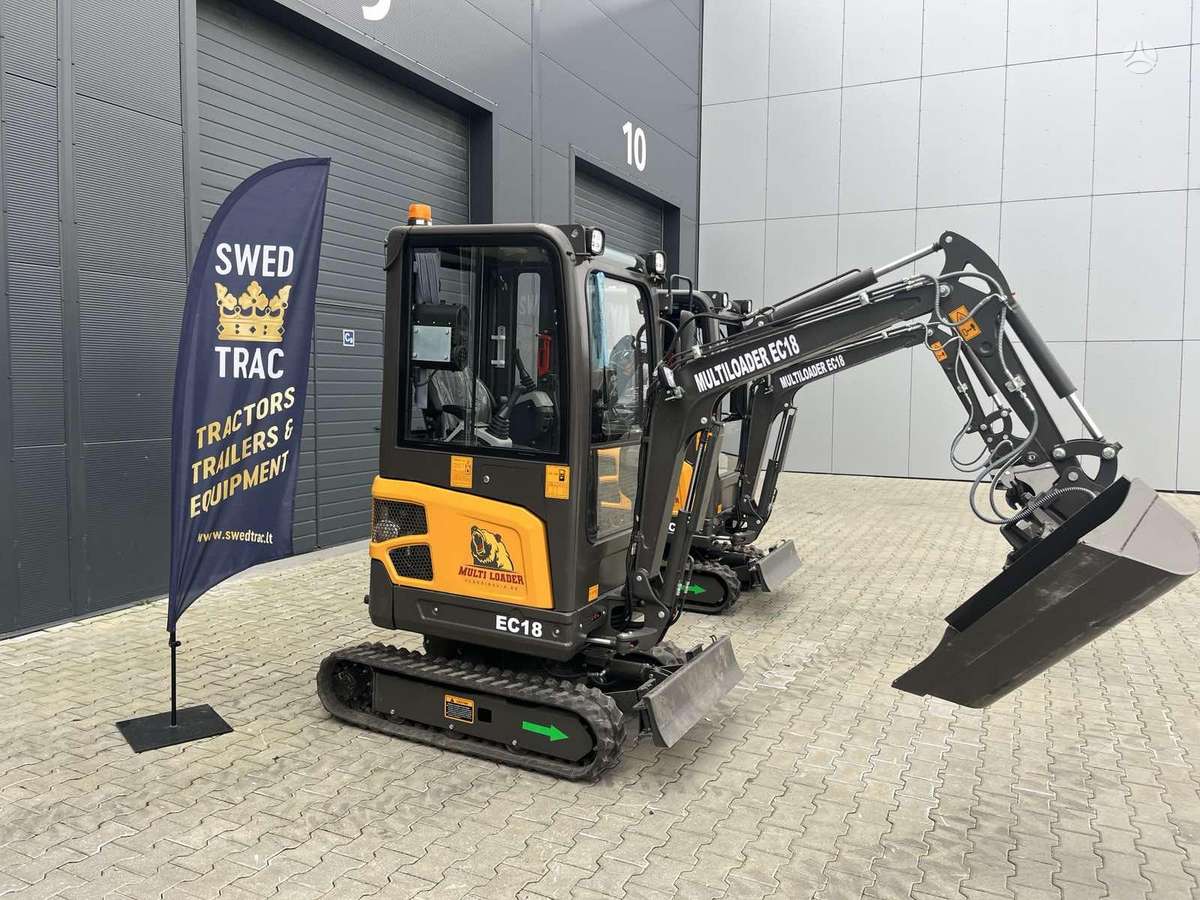

Mini excavator MULTILOADER EC18

Engine:
Emission standard - Euro 5
Engine / Model - LAIDONG / LL385BT
Power / RPM - 18.8kW@2400rpm
Number of cylinders - 3
Maximum speed - 2.1 km/h
Track width - 230 mm

Operating parameters:
Standard bucket capacity - 0.025 m³
Swing speed - 12~13 rpm
Max. climbing gradient - 58% (30°)
Max. bucket digging force - 9 KN
Max. arm digging force - 5.5 KN
Hydraulic pressure - 20 Mpa
Hydraulic pump flow - 23.5 L/min
Machine weight - 1765 kg
Boom length - 1700 mm
Arm length - 800 mm
Fuel tank capacity - 14.5 L
Hydraulic oil tank capacity - 14.5 L

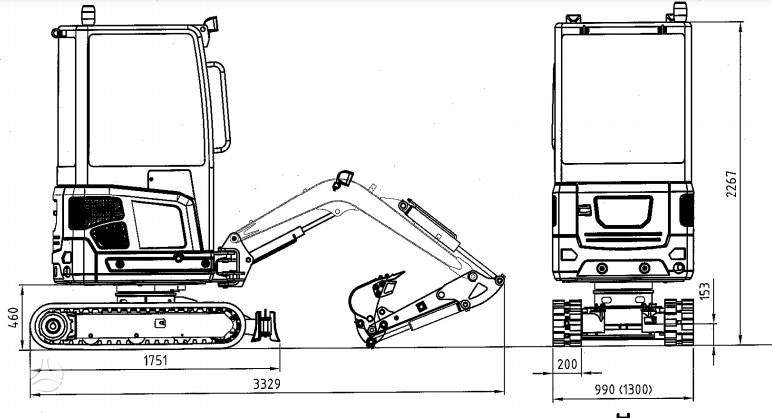

Dimensions:
Length x width x height - 3329 x 790/1100 x 2267 mm
Wheelbase - 1190 mm
Rubber track length - 1600 mm
Distance between tracks - 790/1100 mm
Min. ground clearance - 153 mm
Rear swing radius - 655 mm
Front swing radius - 1812 mm

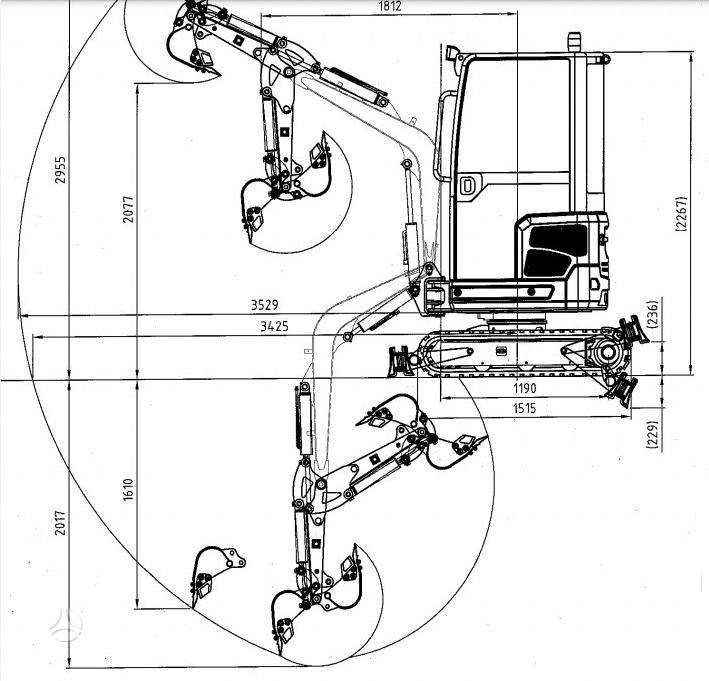

Working range:
Max. lifting height - 2955 mm
Max. dumping height - 2077 mm
Max. digging depth - 2017 mm
Max. vertical digging depth - 1610 mm
Maximum digging distance - 3529 mm

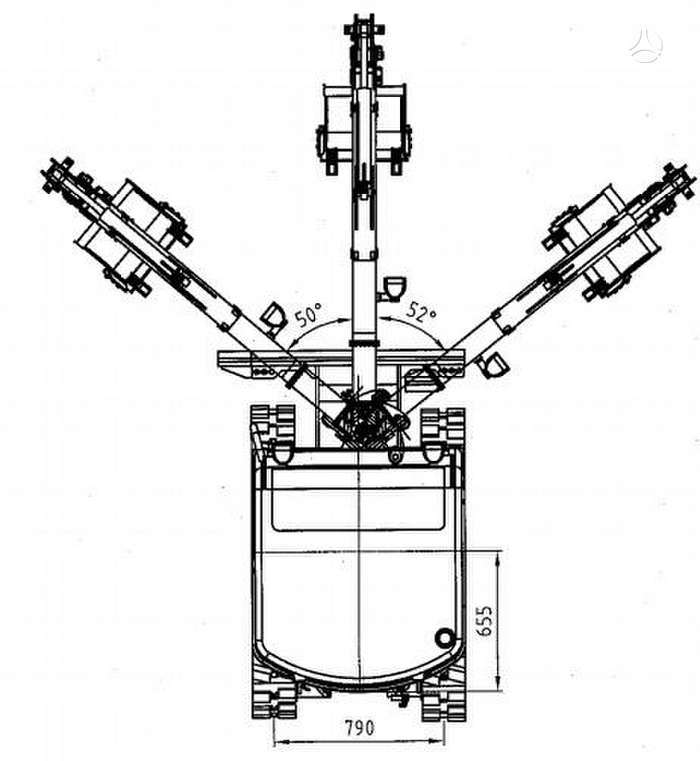

Boom swing angle (left/right) - 50°/52°

Standard equipment includes 1 bucket

Warranty: 12 months. Technical service at your location

Price excluding VAT: 13.500 EUR
