Main information - ORDER FOR PRODUCTION

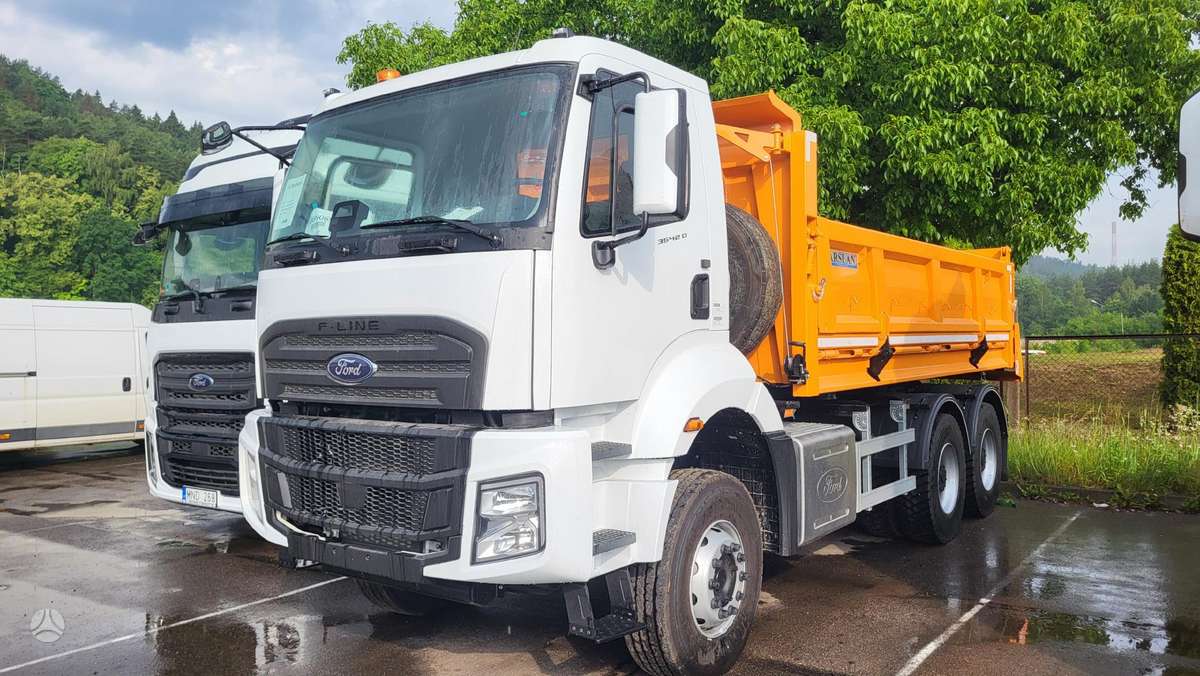

Model: Ford 3545D
Cab: day cab, without sleeping berth
Cab color: White „Frozen White“
Seats: 2 (driver + 1 passenger)
Gross weight (legal): 26 000 kg
Technically permissible weight: 34 000 kg
Curb weight, kg: ~10.000 + 4100 kg
Axle configuration: 6x4
Wheelbase: 3800 mm

Engine:
Type: Ford Ecotorq 12,7L
Fuel type: Diesel
Displacement: 12740 cc
Power: 450 HP (331 kW) @ 1 800 rpm.
Torque: 2 150 Nm @ 1 000-1 300 rpm.
Emission standard: Euro 6

Gearbox:
Automated, 16-speed Ecotorq 16S 2600 OD (14,107 - 0,823) (+3300 EUR) Chassis:
Frame thickness: 10 mm, reinforced
Frame strength: 500 MPa
Suspension (front / rear): 90 mm parabolic leaf springs / 100 mm parabolic tandem
Tyres: 315/80 R 22,5, steel rims 22,5 x 9
Front axle load: 8 t

Other:
Brakes: drum, 410 mm x 200 mm – Z-Cam, air system with integrated
Engine brake: max. 320 kW (at engine level)
Battery: 225 Ah
Alternator: 130 A, 6,5 kW
Fuel tank: 315 l, steel
AdBlue tank: 55 l

Standard equipment:
Air conditioning

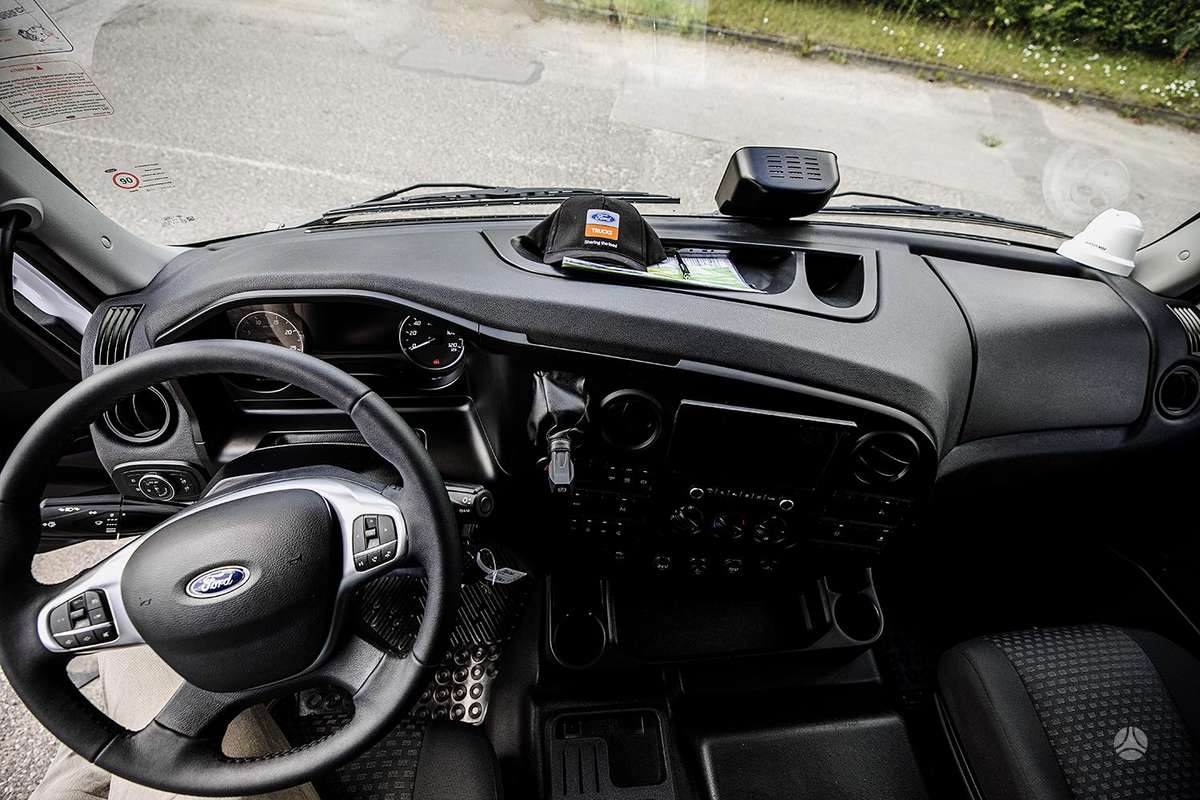

Multimedia system with 9‘‘ touch screen, navigation, BT, USB, Apple CarPlay, Android Auto
4-point independent pneumatic cab suspension
Gearbox power take-off with in-cab control (PTO)
Cruise control
Engine brake
Drum brakes
Electric windows
Electrically adjustable and heated main side mirrors
Electrically adjustable low beam height
Adjustable steering column (height + depth)
Pneumatic, heated driver's seat with adjustable lumbar support
Spare wheel
Reverse alarm
Rear differential lock
Switchable air compressor (for fuel economy)
Front axle stabilizer
Anti-lock braking system (ABS)
Brake pad wear indicator
Immobilizer
Digital smart tachograph
Front towing hooks
Oil sump guard
Short bumper
ADAS system (rear view camera, blind spot indicators, tyre pressure sensors, emergency braking signaling, preparation for breathalyzer, traffic sign recognition, lane departure warning)
Electronic braking system (EBS)
Electronic stability program (ESP)
Automatic traction control (ATC)
Jack and wheel replacement tools

Additional included equipment:
Rear window
Orange beacons
Automated transmission

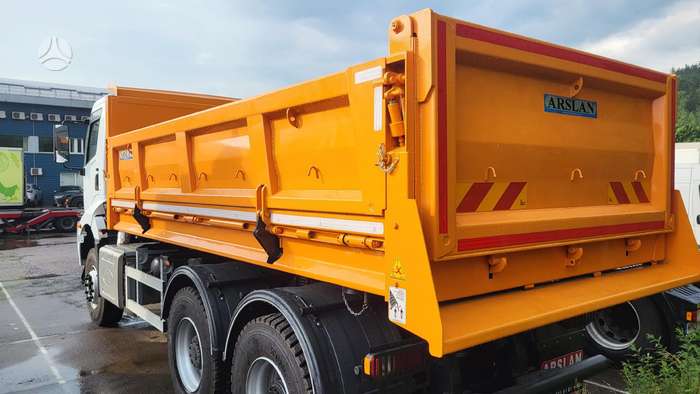

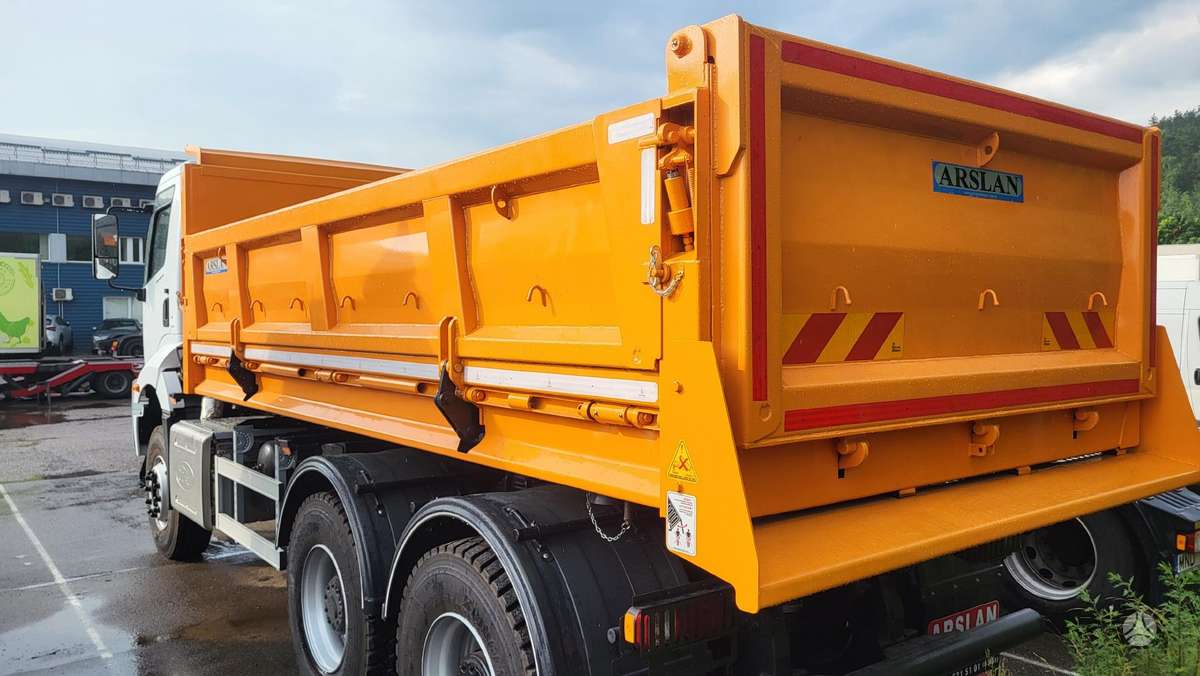

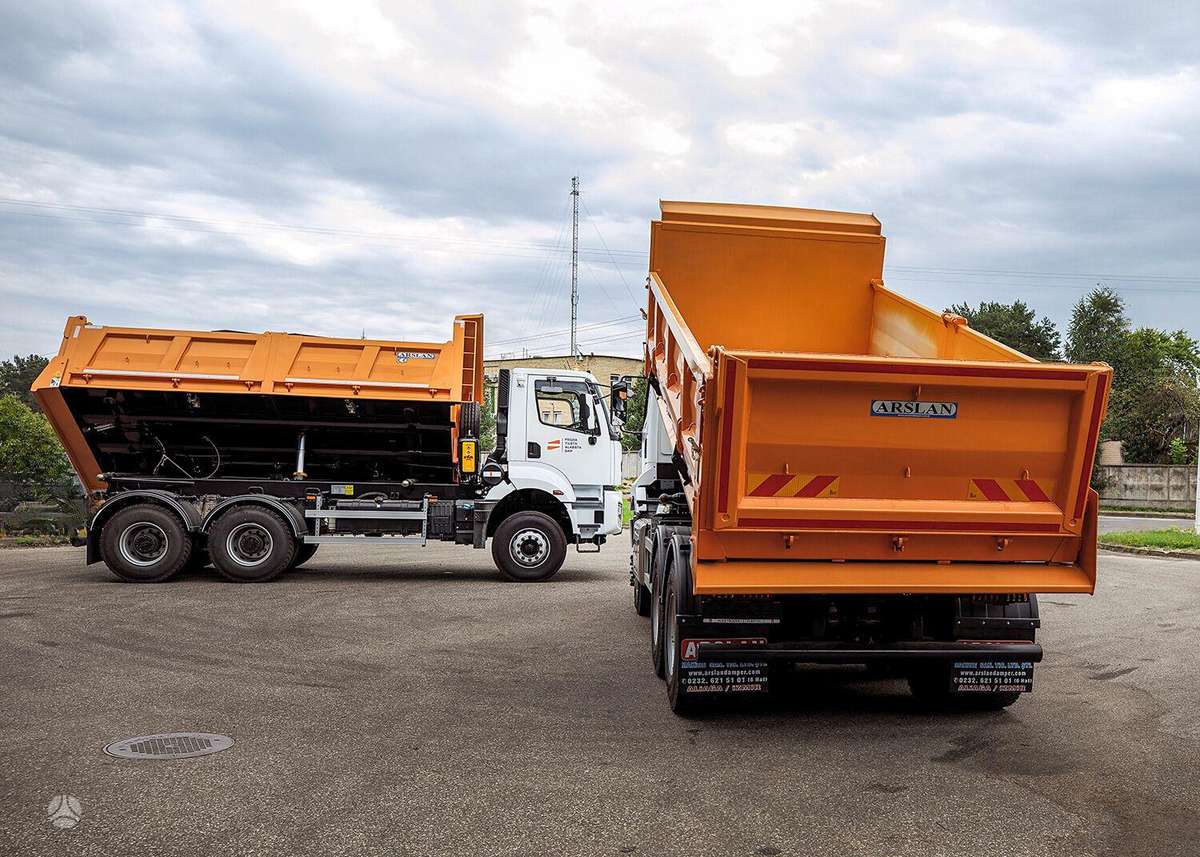

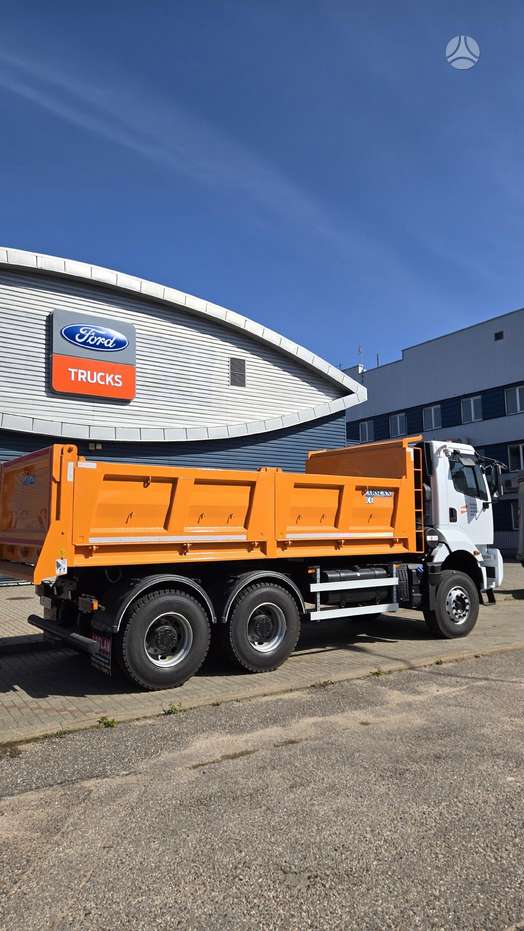

Three-way tipper superstructure
Type: Rear, two-way / Three-way tipping (Boardmatic available if required)
Volume: approx. 10-14 m3.
Dimensions:
length 5 200 mm;
depth 830 mm;
width 2 330 mm.
Body material: SSAB Swedish Hardox 450 steel
Steel thickness:
floor – 6 mm;
cab guard, front, rear and side boards – 4 mm.
Side boards: left side – automatic opening „Boardmatic“, right side opens mechanically.
Rear board: pendulum (swinging) opening, mechanical.
Hydraulic system:
hydraulic cylinder with safety valve;
hydraulic pump;
oil tank;
hydraulic hoses
control: remote control system installed in the driver's cab.

Standard equipment:
Mudguards over rear axles
Toolbox
Reflector on the tailgate according to standards
Side protection rails

Price is much lower without Boardmatic!!!
