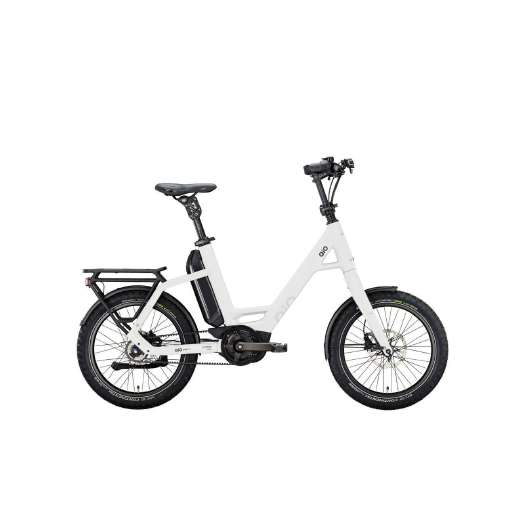

Qio Compact P5

Frame: QIO Compact, Bosch Gen. 4, BES3, aluminum, 48 cm
Dropout: Slider dropout, suitable for P5, PX5+
Fork: Aluminum, tapered 1 1/4" - 1.5"
Headset: ACROS ZS66/31.75 OD74 / ZS66/46/OD72, blocklock
Crank arm: PROWHEEL "EB03", 170 mm
Chain ring / belt ring: Gates "CDC Fin Line", 46 teeth, belt line 45.5 mm
Bottom Bracket: BOSCH
Bremse V.R.: MAGURA "MT A2"
Bremse H.R.: MAGURA "MT A2"
Front rotor: MAGURA "MDR-A", 180 mm
Rear rotor: MAGURA "MDR-A", 180 mm
Shifting lever: SHIMANO "Nexus SL-C7000-5"
Cassette / belt sprocket: Gates "CDX:BLACK Fin Line", 28 teeth
Drive unit: BOSCH "Performance Line" engine, max. 75 Nm
Battery: BOSCH "PowerPack 545", 545 Wh
Charger: BOSCH 4 A
Display: BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help
Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor
Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
Spokes: 2,0 mm, Niro, schwarz
Front hub: SHIMANO "HB-TC500", 12 x 100 mm, Center Lock, Steckachse
Rear hub: SHIMANO "Nexus SG-C7000-5D", 5-speed, Center Lock
Front tires: CONTINENTAL "eContact Plus", 62-406, Reflex
Rear tires: CONTINENTAL "eContact Plus", 62-406, Reflex
Handle bar: ergotec "Lady Town", 620 mm, 31.8 mm, 30 backsweep
Stem: ergotec "Sepia Ahead XL", 80 mm long, adjustable, level 5
Grips: HERRMANS "Clik Original DD37"
Saddle: Selle Royal "On", Moderate Wide
Seat post: by,schulz "R.3 P-QR", 34.9 mm, 400 mm long, 25 mm offset
Chain guard: SKS "Chainblade"
Mud Guards: SKS "A 69 R"
Carrier: "MIK HD 2.0" for MIK Side
Front light: Busch + Müller "Briq-S E", 60 lux
Tail light: Busch + Müller "Dart E Brex "
Battery Lock: ABUS Battery Lock
Kickstand: URSUS "Invisible Mount", 20"
Pedals: MARWI "SP-157" Faltpedale
Technical data
Category: Compact bike
E-bike: yes
Bosch Smart System: yes
Drive system: BOSCH Performance Line
Drive version: middle motor
Battery capacity: 545 Wh
Support: till 25km/h
Sex: unisex
Frame shape: unisex
Frame height: 48 cm
Wheel size: 20"
Shifting type: hub gear
Gears: 5-speed
Circuit brand: Shimano
Shifting model: Nexus
Brake system: hydraulic disc brake
Features: system carrier, chain guard, electronic sliding aid, fender
Zulässiges Systemgewicht: 180 kg
Material: aluminium
Colour: grey
Colour designation: lead metal
Weight: 26,90 kg
