AVANT firewood processor A446852 – cutting and splitting with one device (adapted for use with Avant 500 series loaders and up)

An efficient solution for fast and convenient firewood preparation! The AVANT A446852 combines a hydraulic chainsaw, firewood splitter, feed, and discharge conveyors into a single unit.

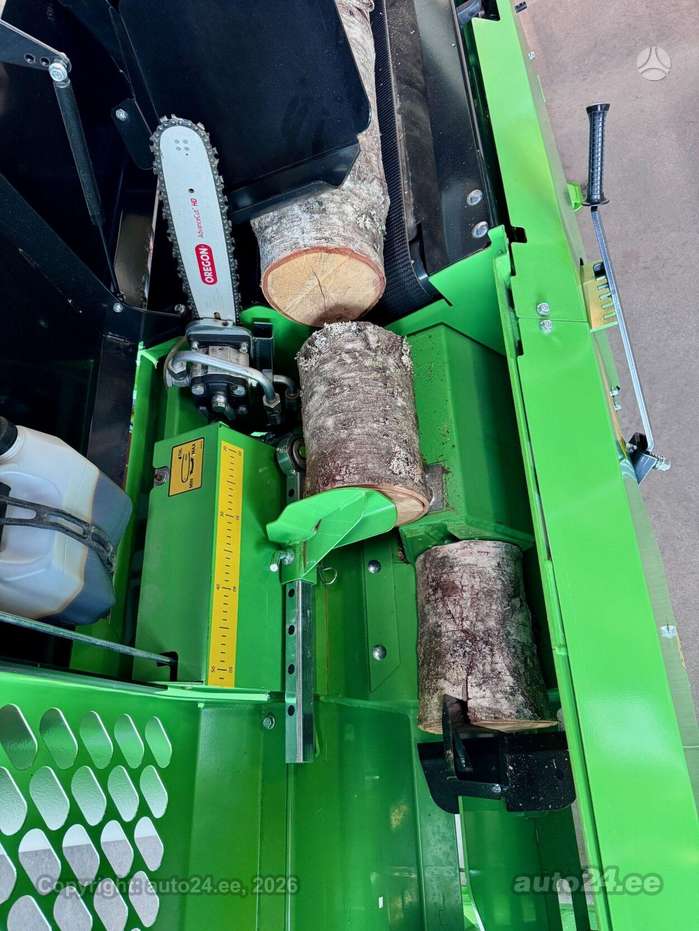

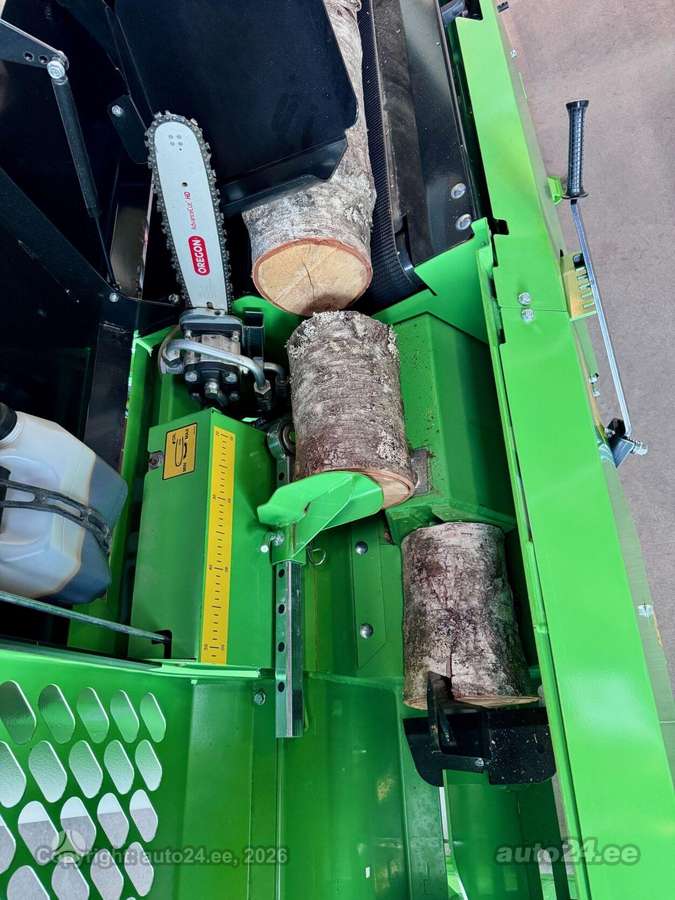

The hydraulic saw cuts the log, which automatically falls onto the splitting table. Then, a powerful hydraulic cylinder pushes the wood into the splitting wedge. The height of the wedge is easily adjustable according to the diameter of the log.

Main advantages:

Log feeding, cutting, splitting, and discharge of prepared firewood are performed with one device

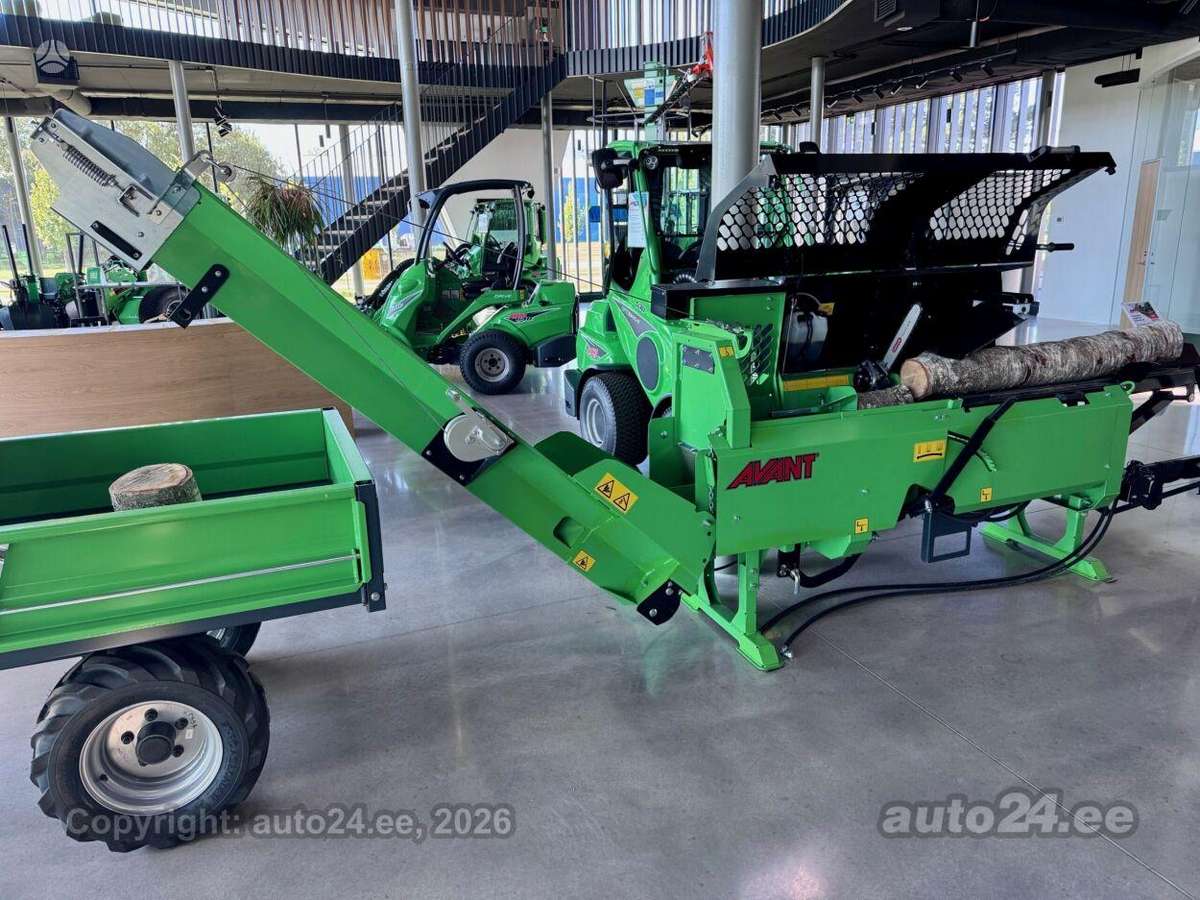

Hydraulic feed and 2.3 m long discharge conveyors
Automatic chainsaw lubrication system with a separate oil tank
Height-adjustable four-way splitting wedge
Can be additionally equipped with a six-way wedge and a hydraulic log lifter
Safety-compliant guards stop the mechanisms if they are not fully closed

Technical data:

Maximum log diameter – 310 mm
Maximum log length – 500 mm
Saw bar length – 13 inches
Maximum splitting force – 5.6 t
Discharge conveyor length – 2.3 m
Weight with conveyor – 488 kg
Weight with conveyor and log lifter – 533 kg
Product number – A446852
