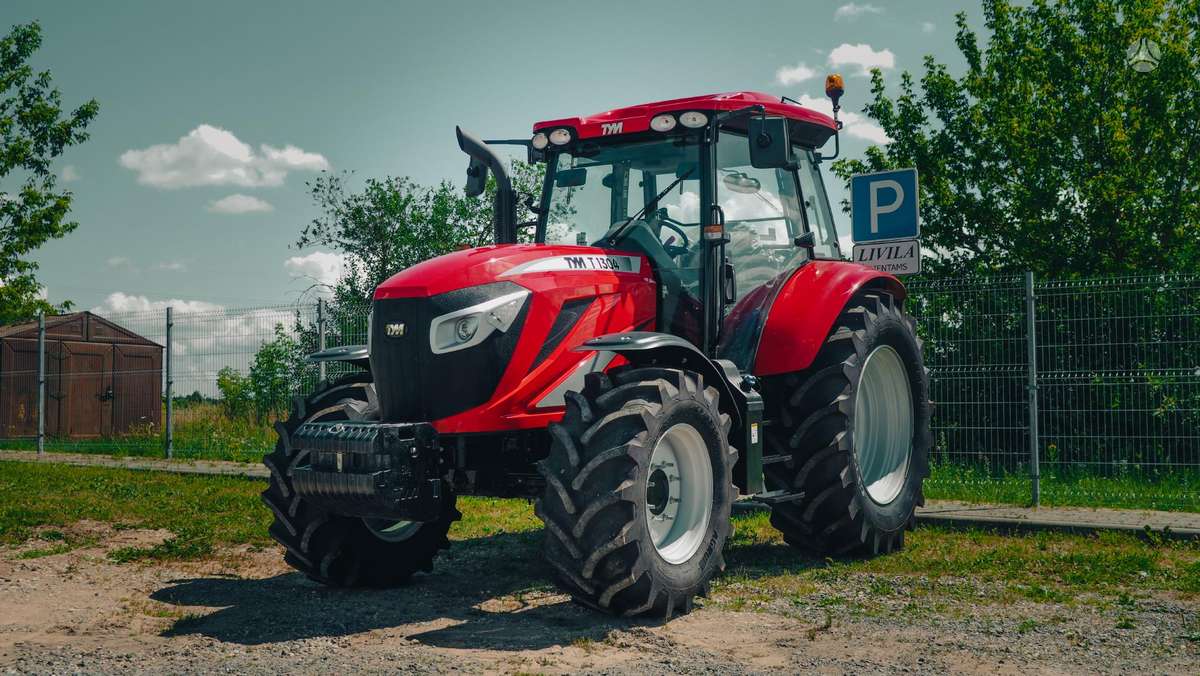

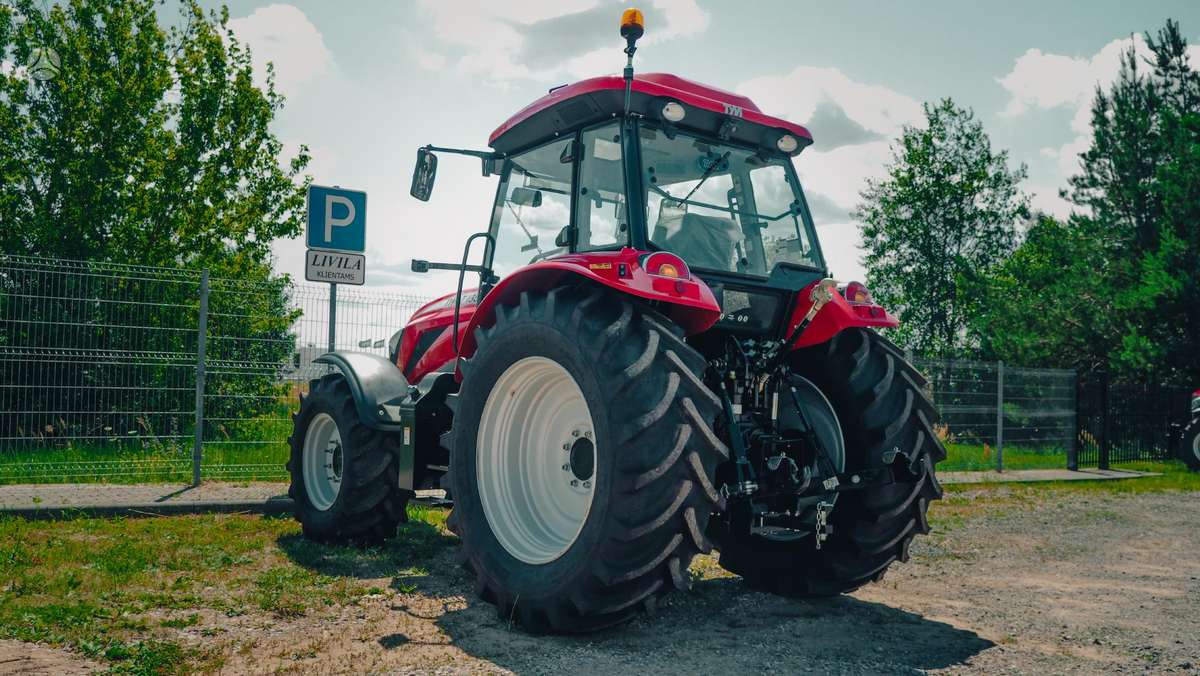

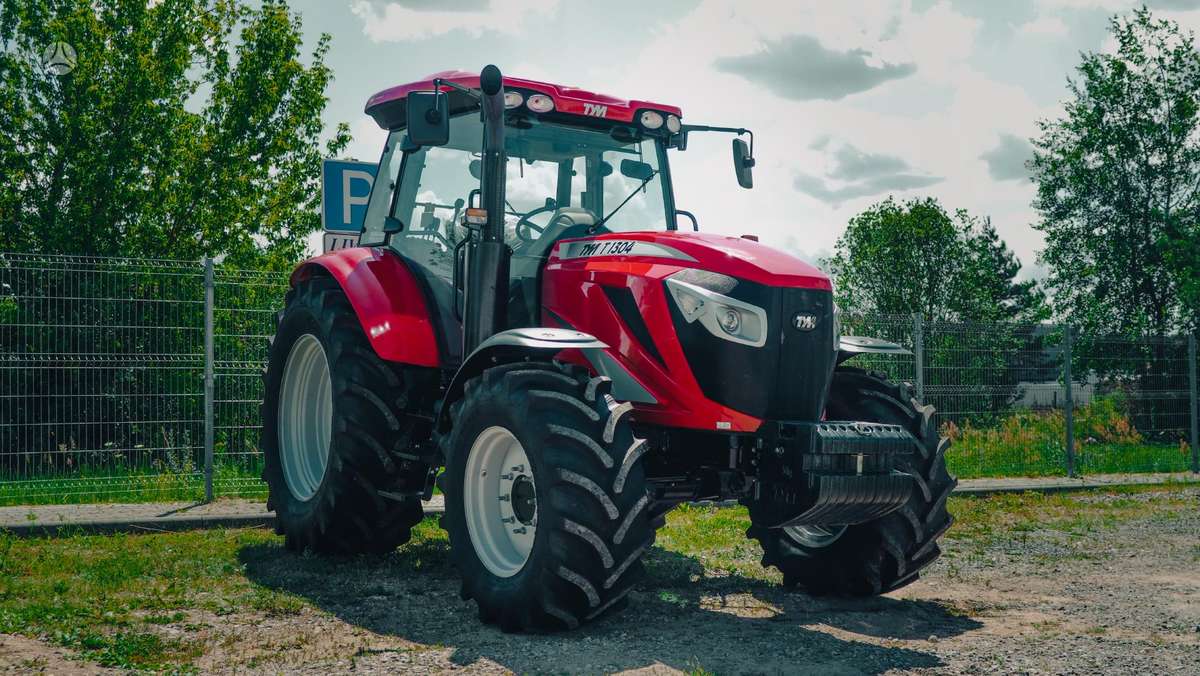

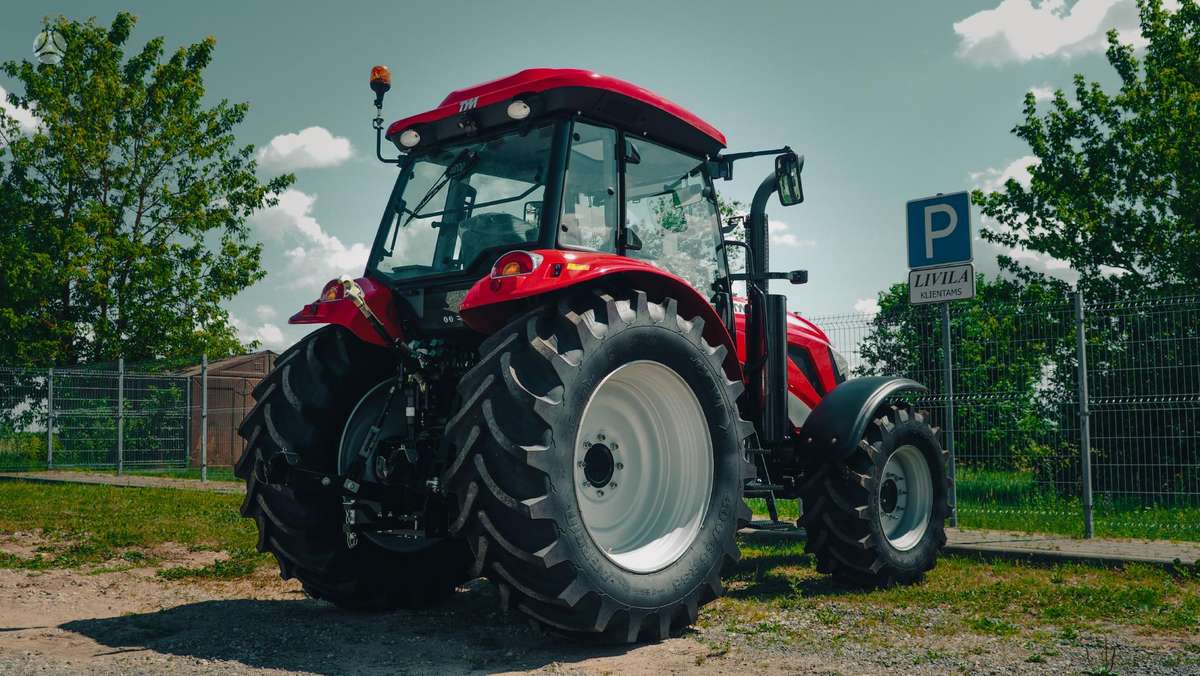

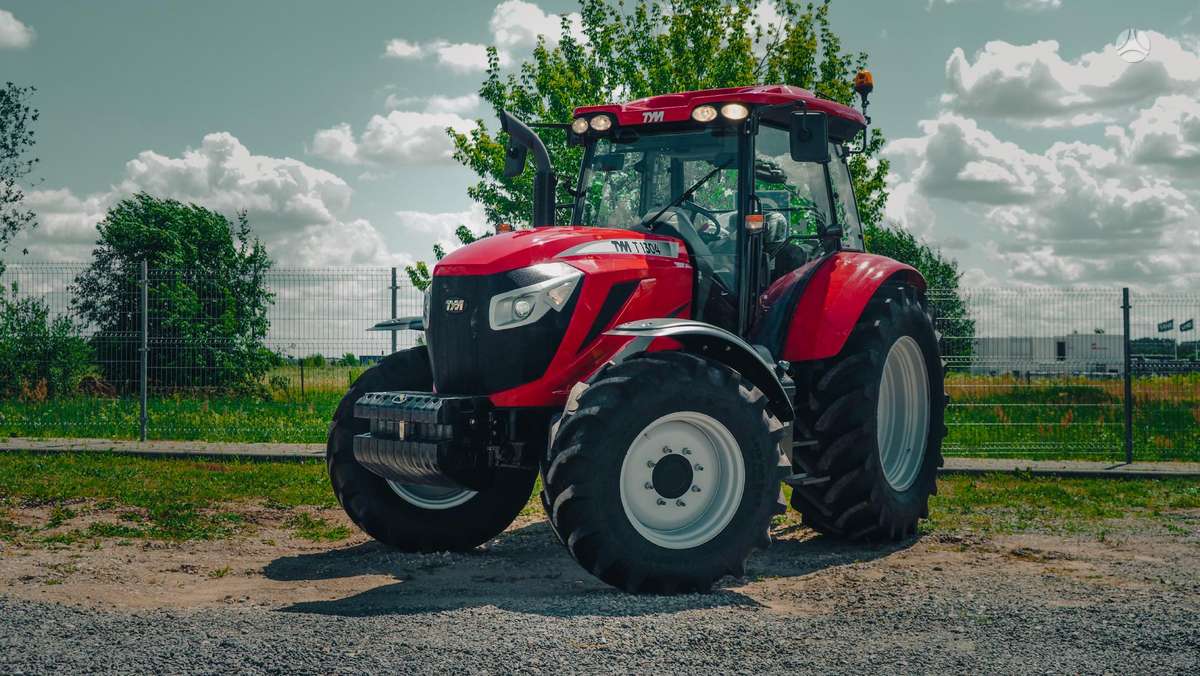

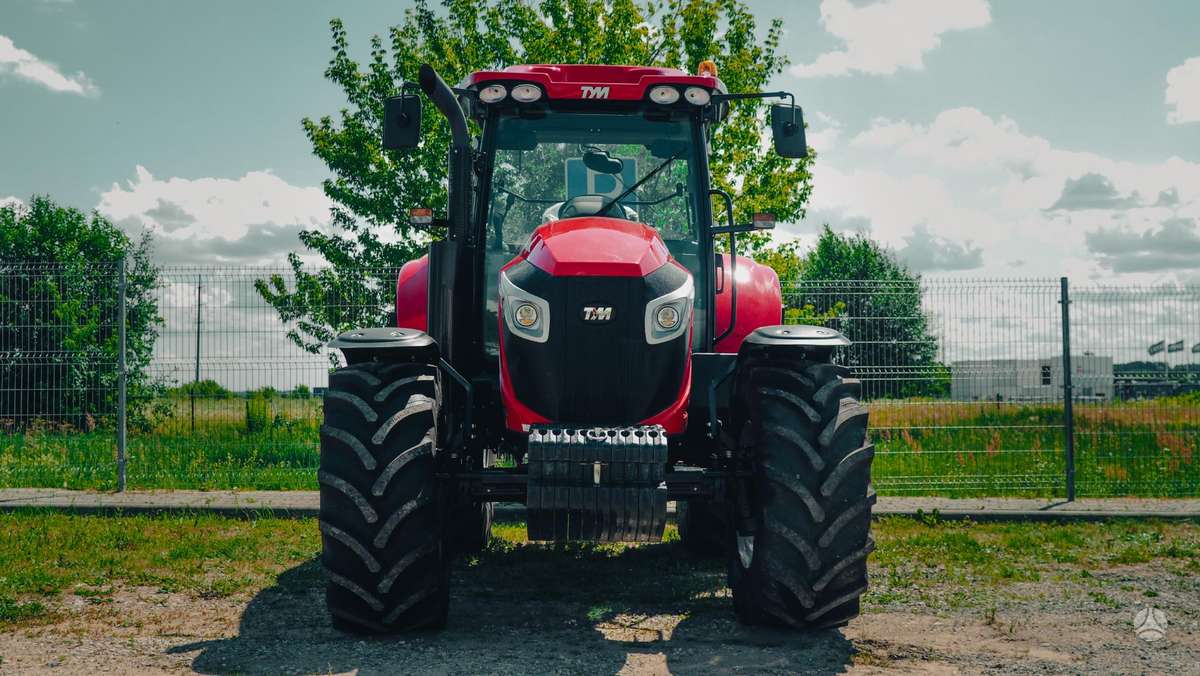

Technical specification of the TYM T1304 tractor:

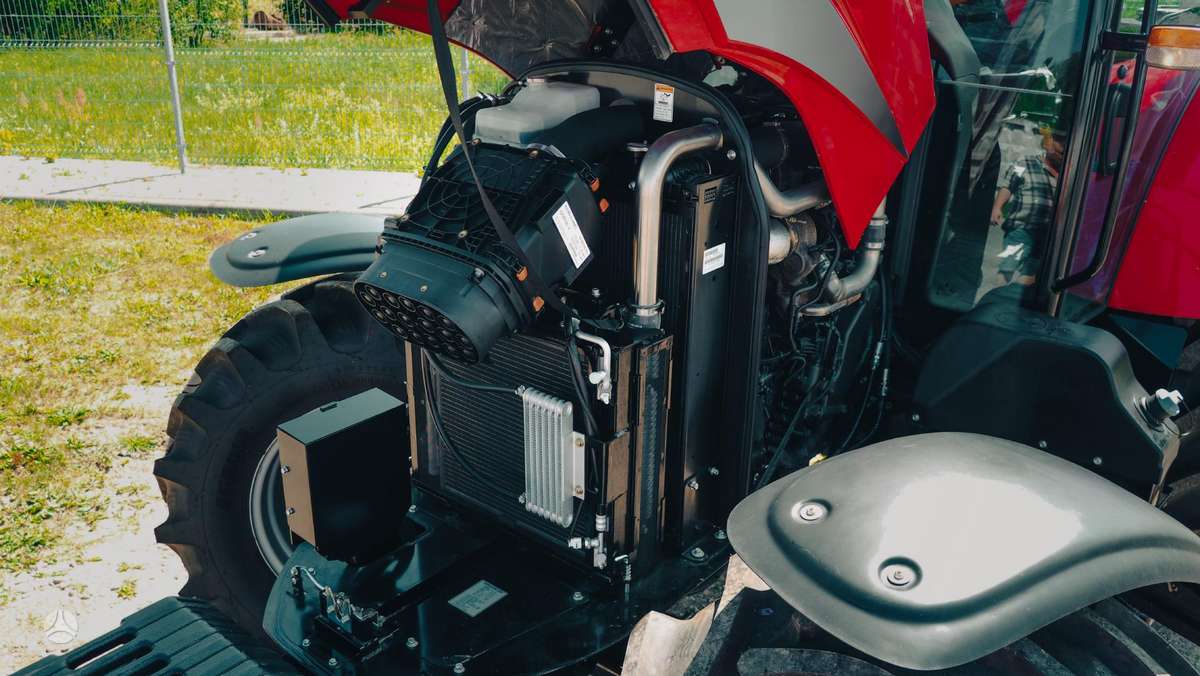

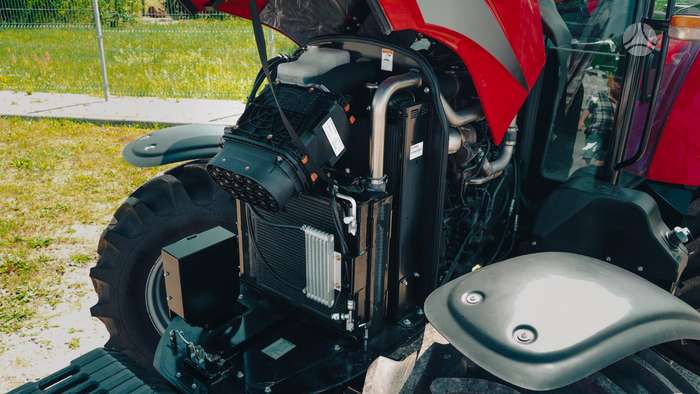

Engine: Deutz

The DEUTZ brand has been known for more than 150 years and holds a significant place in engine manufacturing. This German company is considered one of the first independent engine manufacturers in the world. DEUTZ engines and parts manufactured by the company are widely used in various fields: agriculture, industry, railways, and ships. Professional engines used in specialized spheres help ensure work efficiency and productivity, while the supply of original spare parts or remanufactured engines ensures an uninterrupted work process.

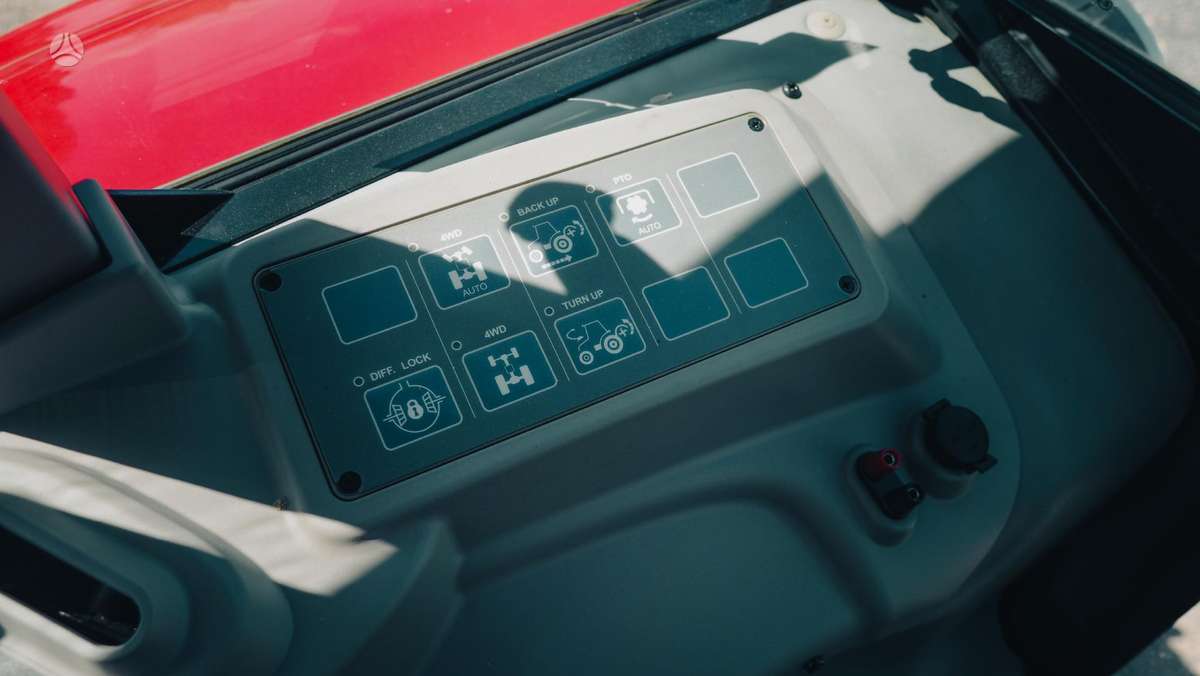

Electronic control:

Easily switchable automatic and manual modes.
Reduced number of operations and increased labor productivity.

Bosch control system:

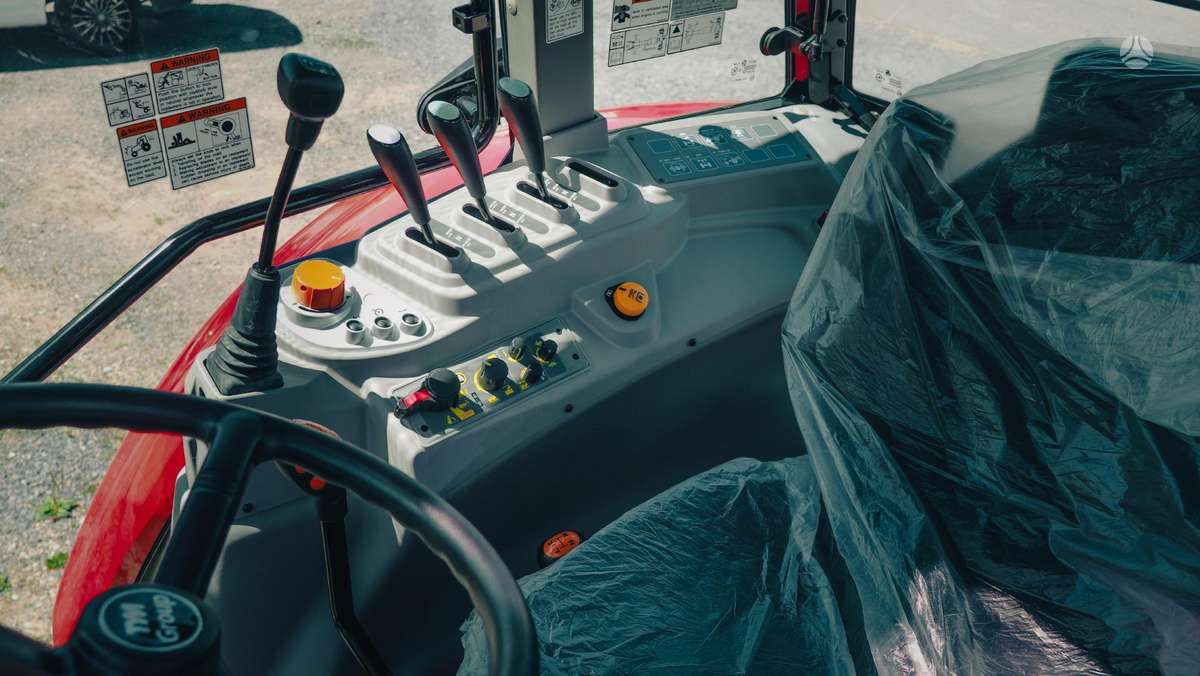

Easy electro-hydraulic implement control increases work productivity.

Reverse "POWER SHIFT" system:

Electro-hydraulic reverse provides the ability to change driving direction without using the clutch.
The Powershift function allows for the selection of 32 forward and 32 reverse gears.

Engine power: 127 AG
Number of cylinders: 4
Air cleaner: double, dry type

Transmission:

Type: Reverse "POWER SHIFT"
Number of gears forward/reverse: 32 / 32
Brakes: Disc, wet type
Maximum driving speed of 40km/h.

Hydraulic system

Type: dual pump system
HS hydraulic pump capacity: 76.2 l/min.
Steering system hydraulic pump capacity: 34.4 l/min.
Maximum oil flow: 111.4 l/min.

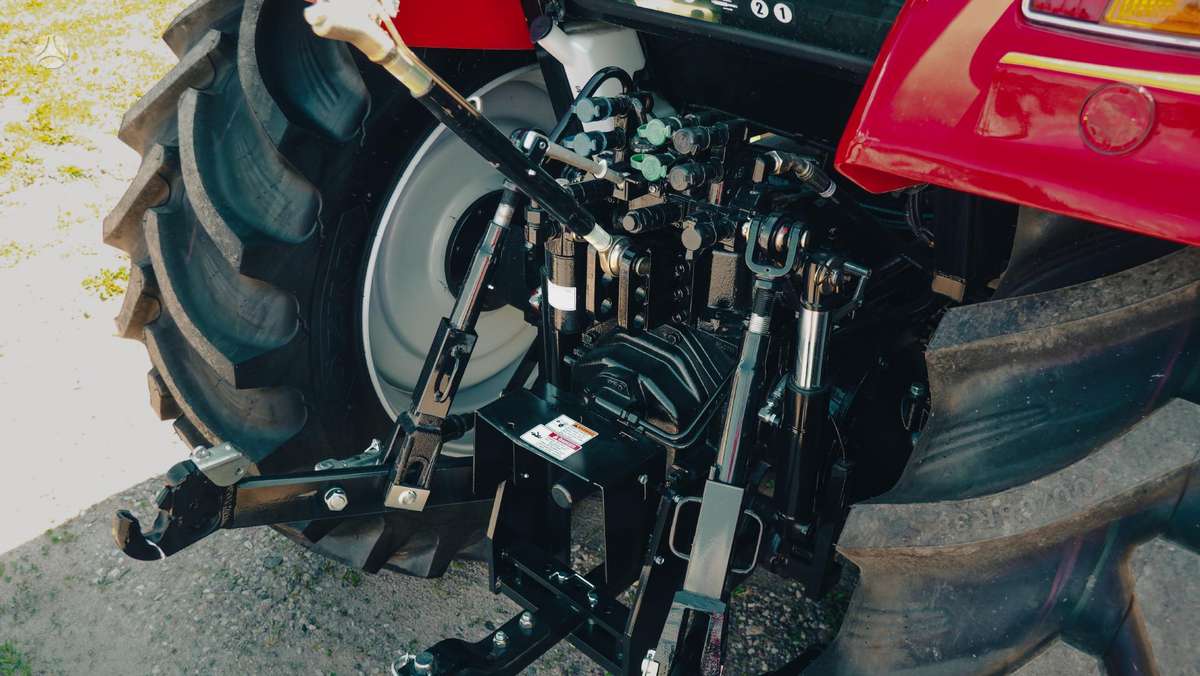

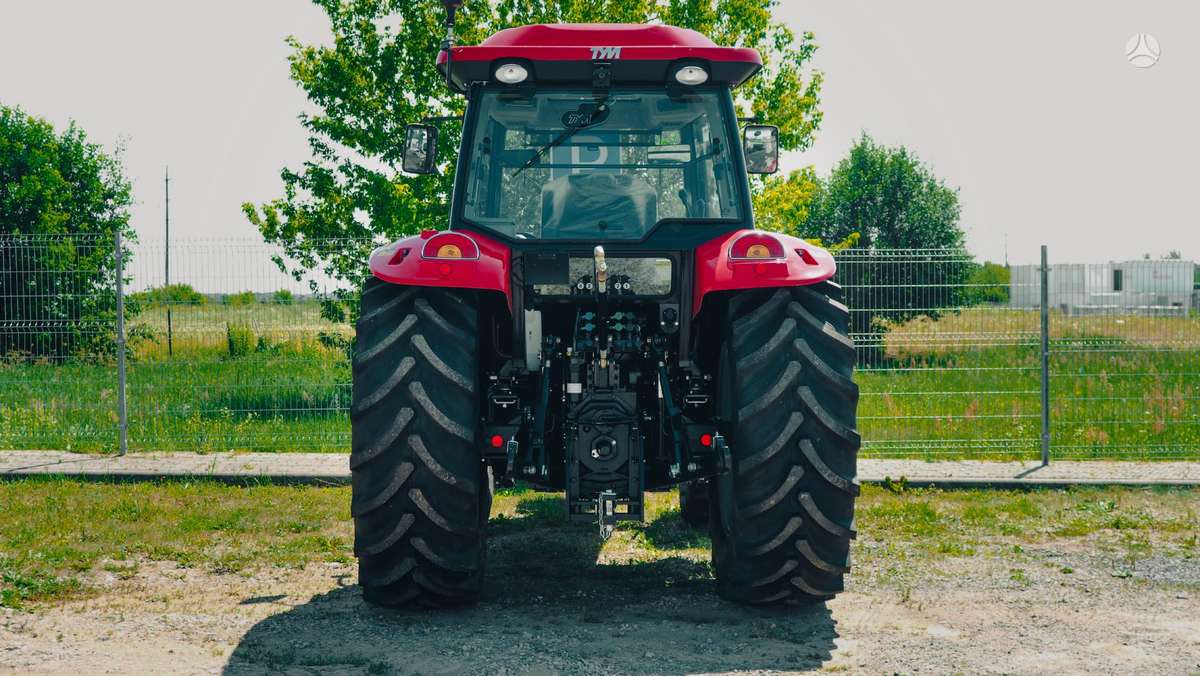

Hitch system lifting capacity: 6.49 t.

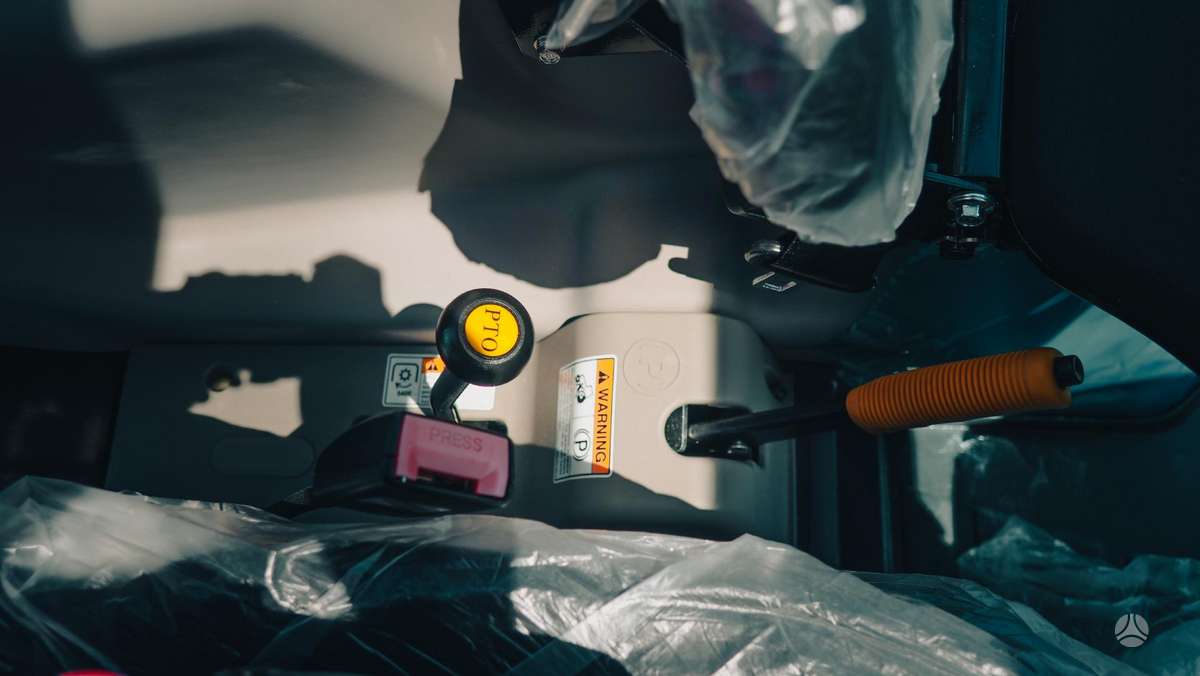

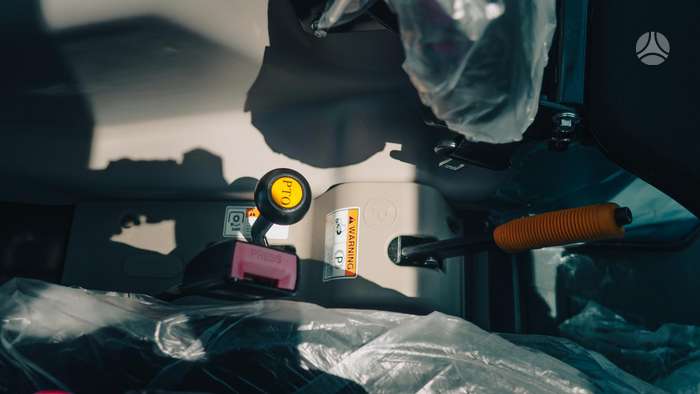

PTO
Independent
Rear PTO: 540/750/1000 rpm.

Dimensions:

Total length: 4.4 m.
Total width: 2.3 m.
Total height: 3.0 m.
Ground clearance: 48 cm.
Turning radius: 4.3 m.

Other

Total tractor weight: 4.9 t.

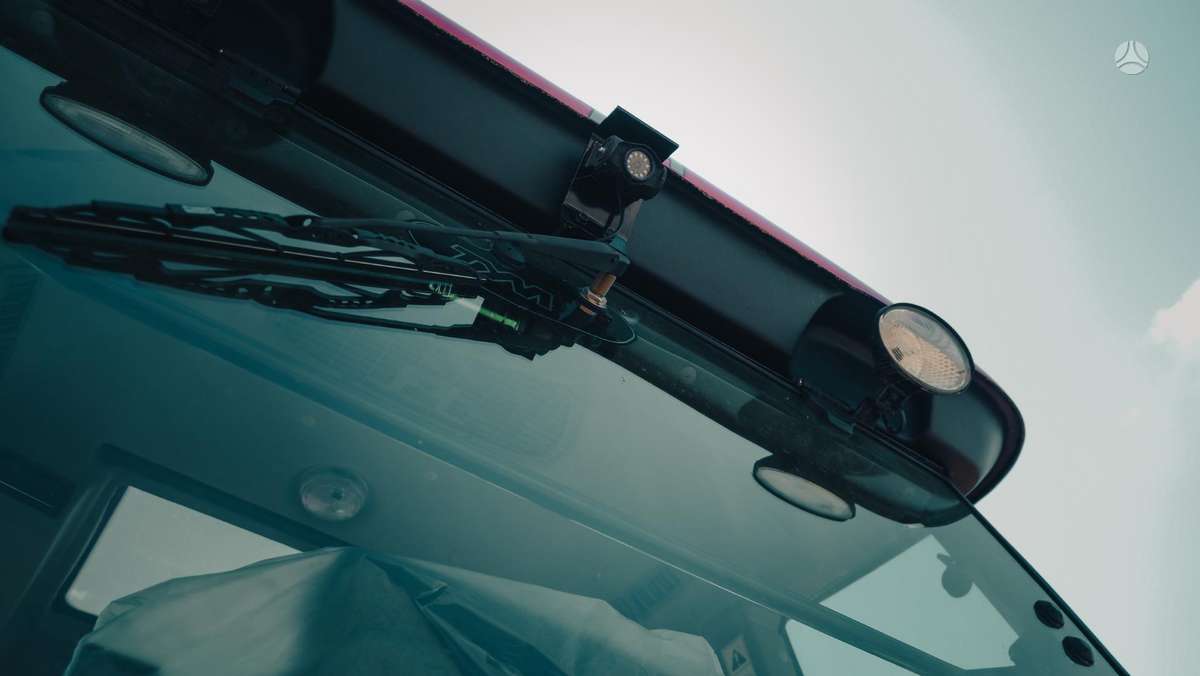

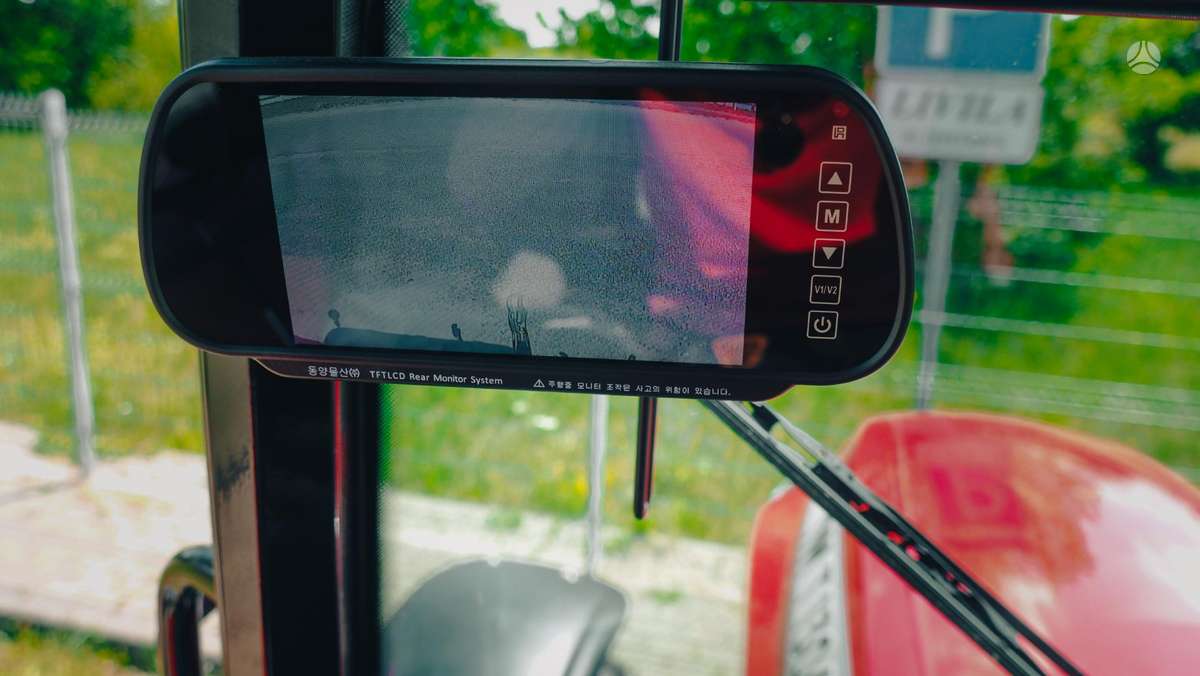

Video camera with night vision mode

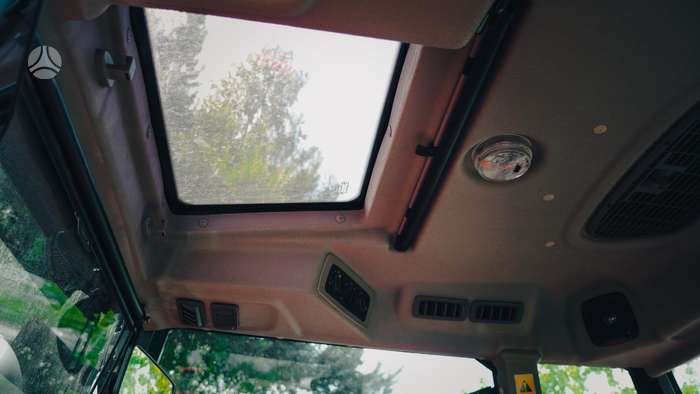

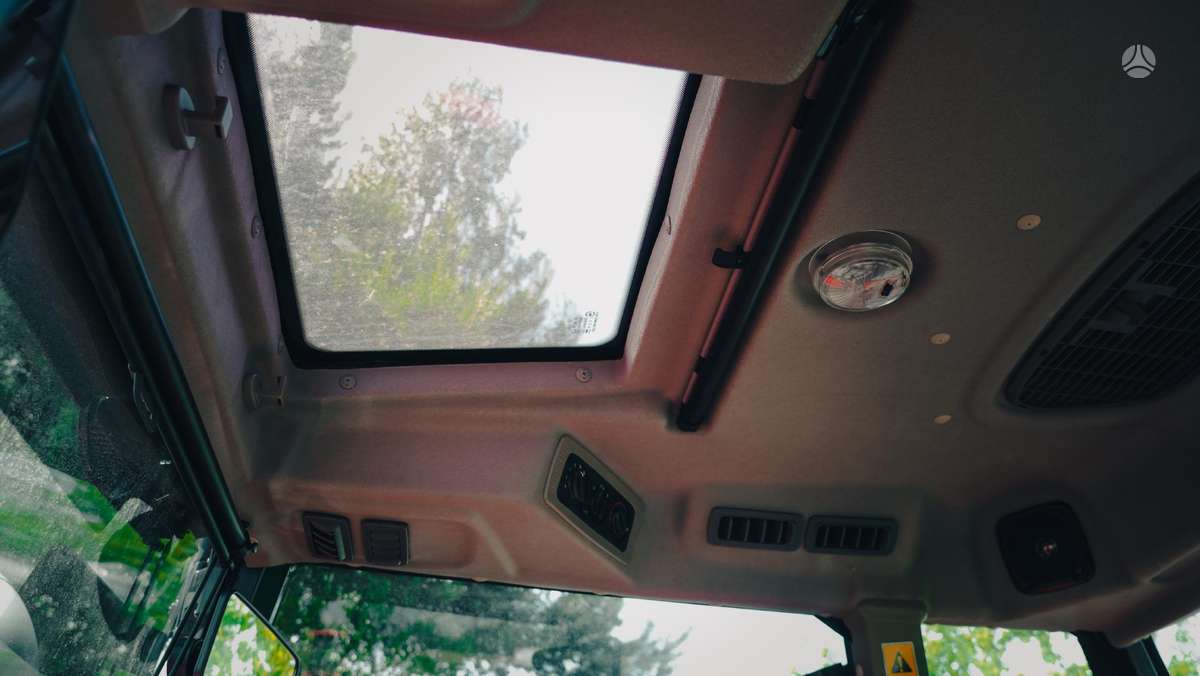

Sunroof

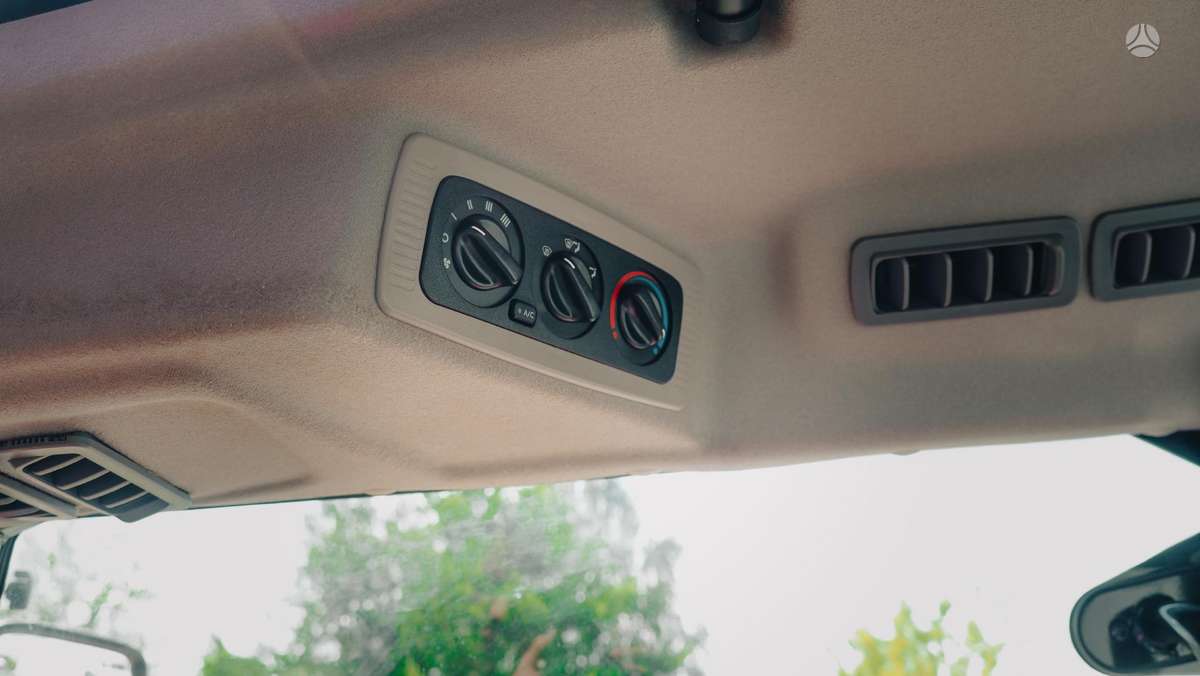

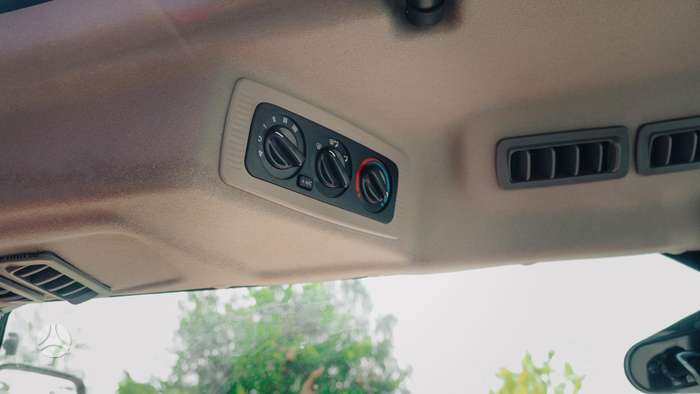

Air conditioning/heating
2 telescopic rearview mirrors
Internal sun blind
Radio/CD receiver with speakers
Front window wiper with washer
Rear window wiper with washer
Pneumatic system for implements and trailers

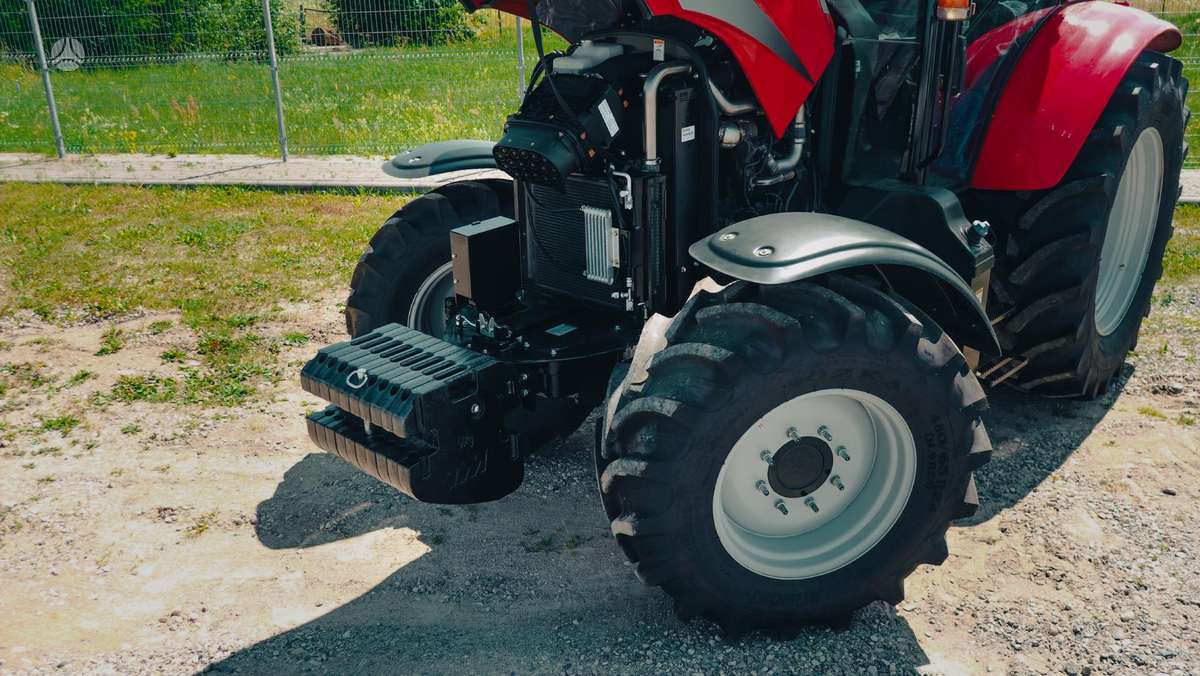

A reinforced front axle with increased steering angle allows for efficient work in horticulture, livestock farming, and other farm tasks.

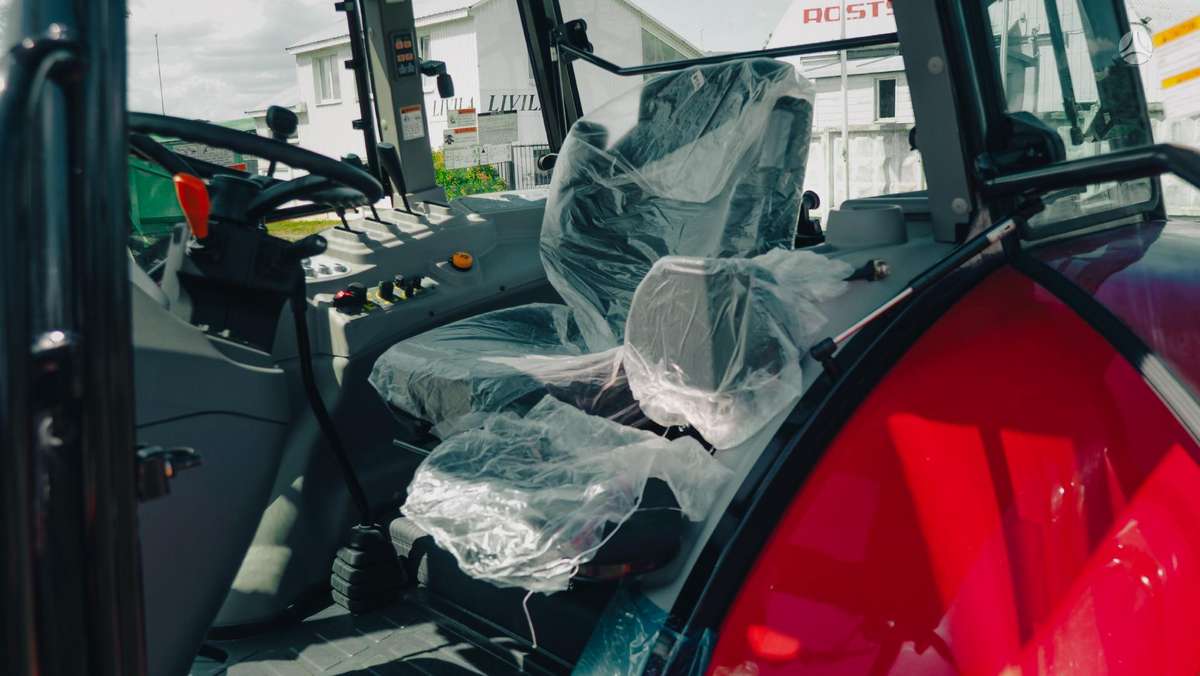

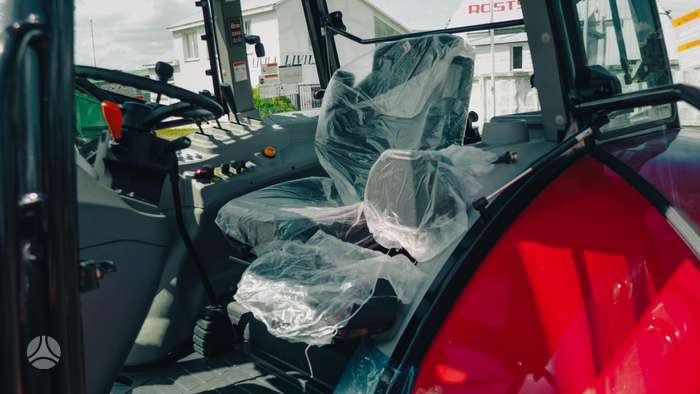

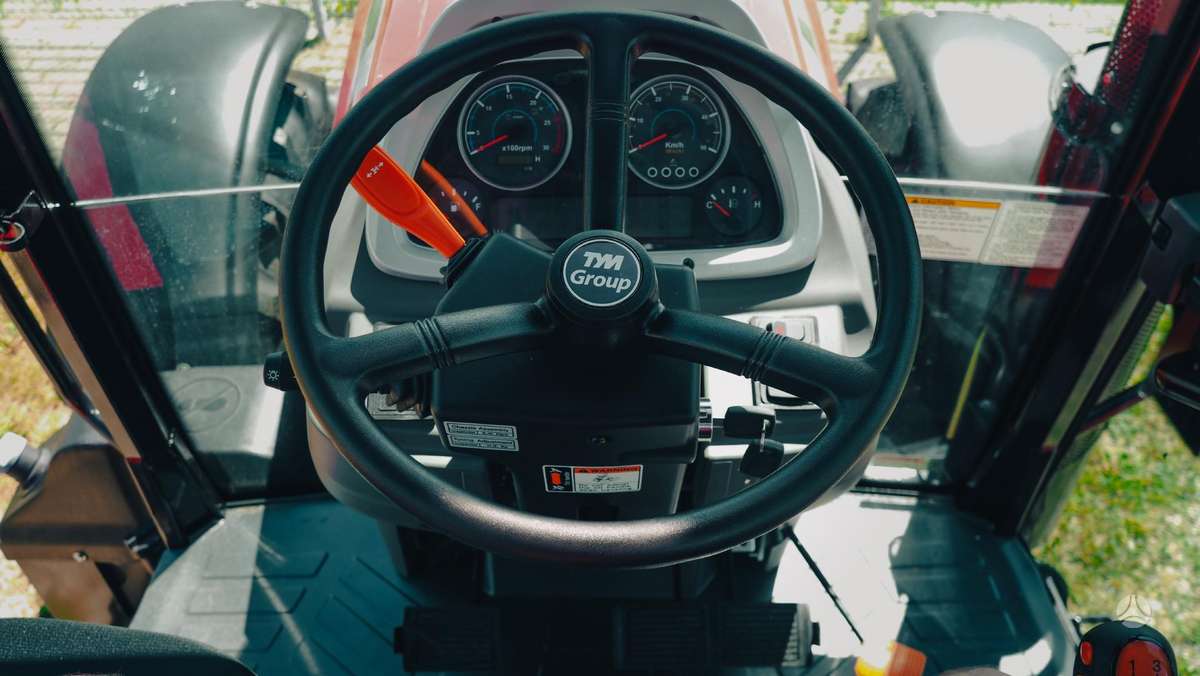

Spacious and ergonomic cabin, wide-opening doors, opening windows, and a sunroof.
The TYM tractor factory was established in 1960 and has more than 50 years of experience in designing, manufacturing, and selling high-quality tractors worldwide.
The TYM factory offers a wide range of products. Currently, tractors are manufactured from 23 to 127 AG. Tractors can be equipped with a heated cabin, air conditioning, with Power shuttle and Power shift or hydrostatic transmission. Also, front loaders, front hitches, and other accessories can be mounted on all tractors.

TYM tractors are fitted with diesel engines from famous manufacturers such as DOOSAN, MITSUBISHI, DEUTZ, or PERKINS, which guarantee smooth and productive work with their quality.

Since 2007, TYM tractor sales in Europe have started to grow rapidly, and today their sales network already covers all of Europe.

Inquiries by phone: +370 686 55250
