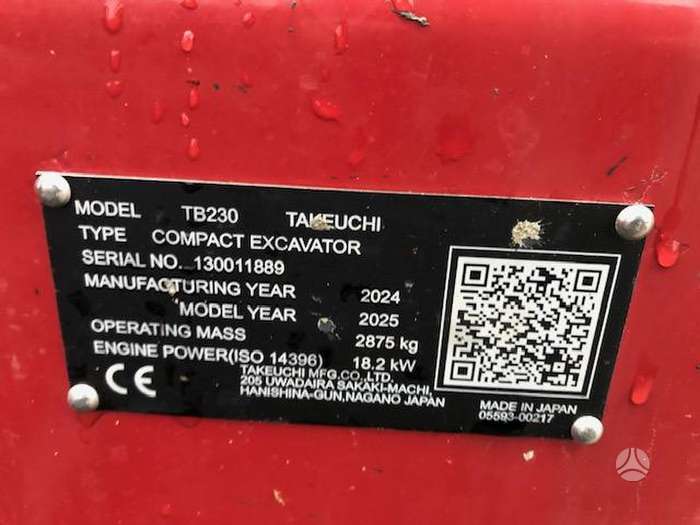

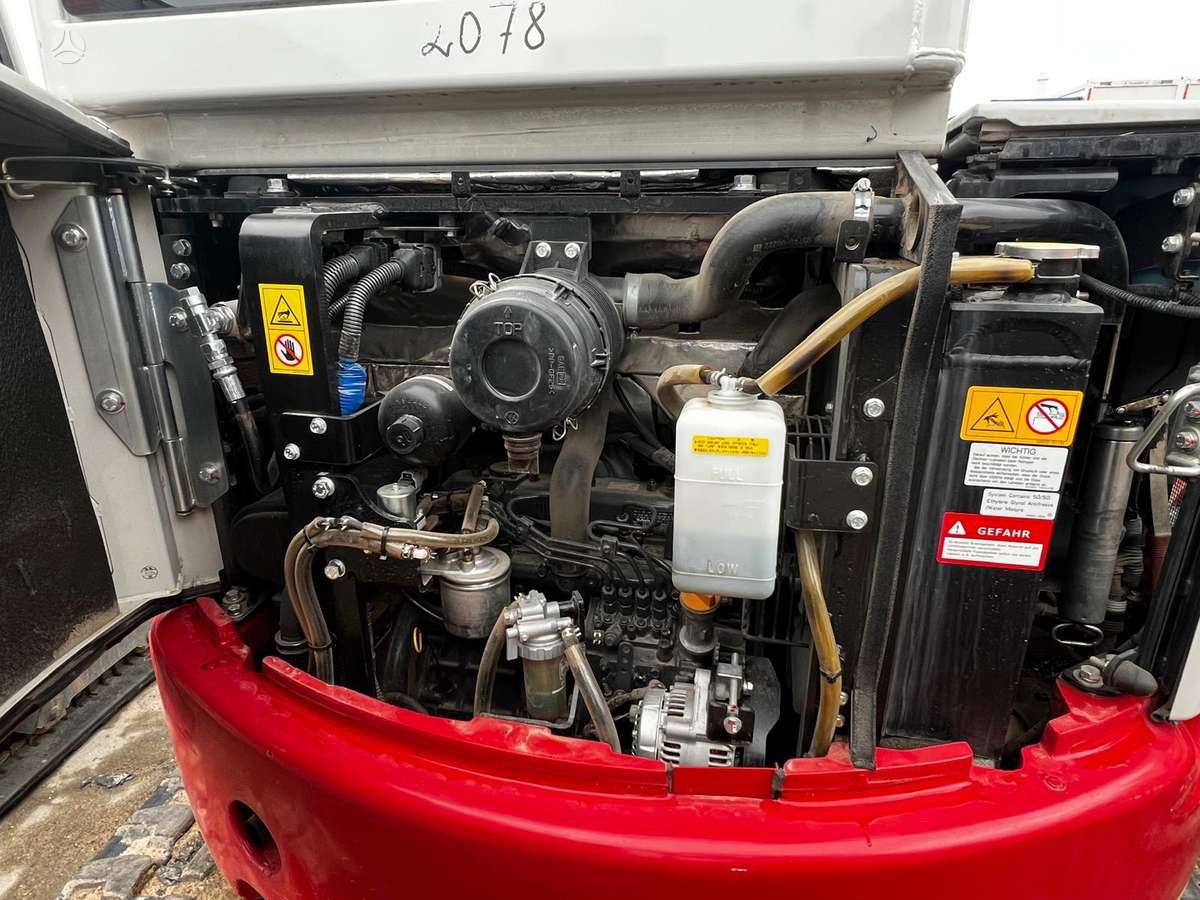

Engine: Yanmarr 3TNV88, 18.2kW / 24.7HP

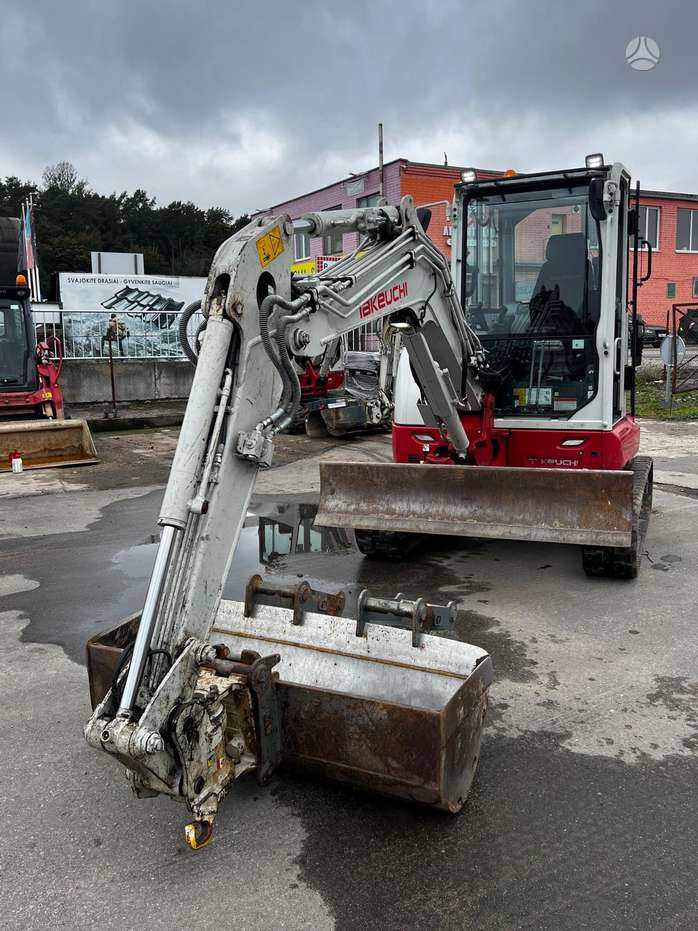

Two-piece boom. 1st line - proportionally controlled hydraulic outlets + AB. + 2nd line - proportionally controlled hydraulic outlets. 3rd line - hydraulic outlets for hydraulic quick coupler. 4th line - proportionally controlled hydraulic outlets (potentially for Powertilt system).
Engine RPM adjustment via "Joystick"

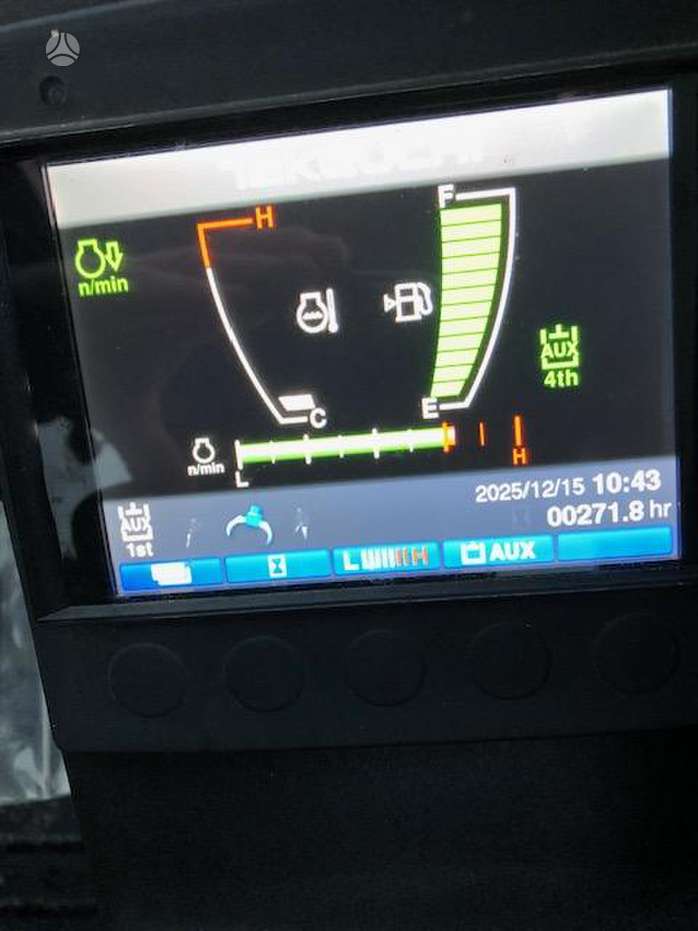

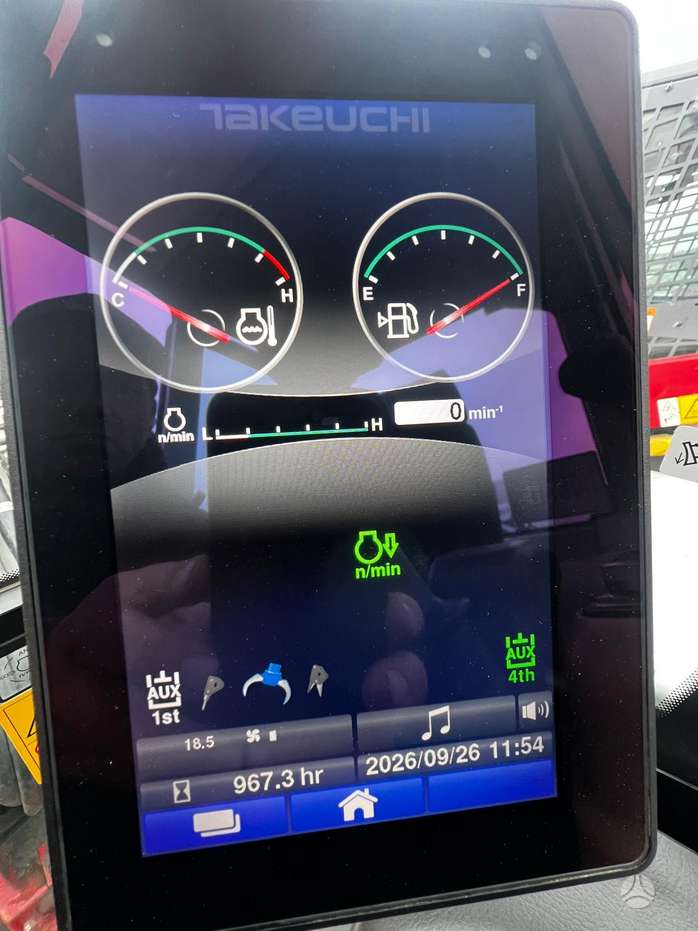

Fuel gauge on the fuel tank + instrument panel. Exhaust pipe routed through the top of the hood
Automatic fuel system "bleeding"
Boom swing angle (L/R): 79° / 58°

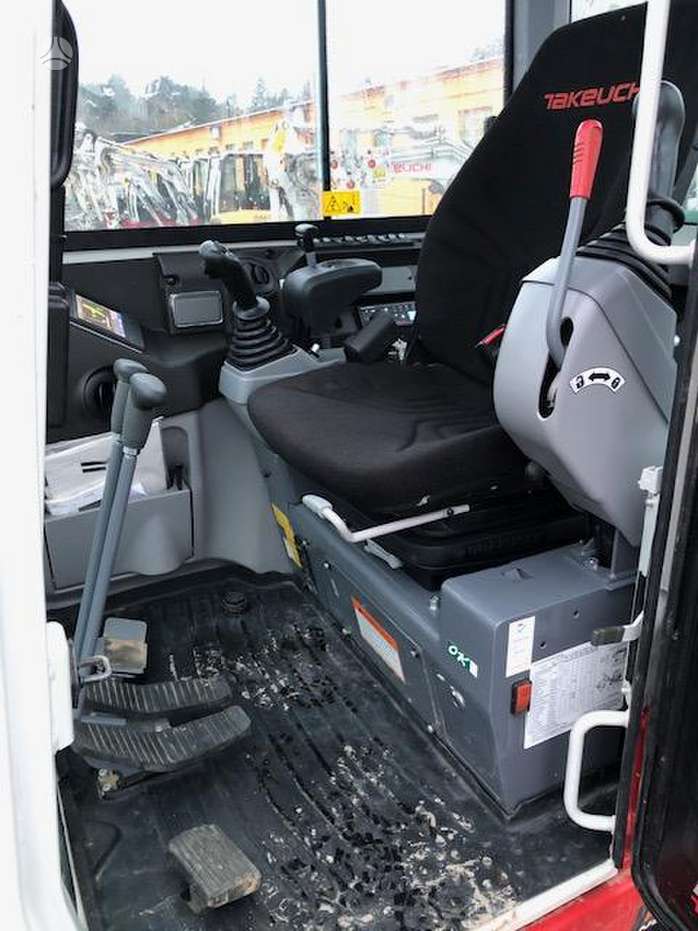

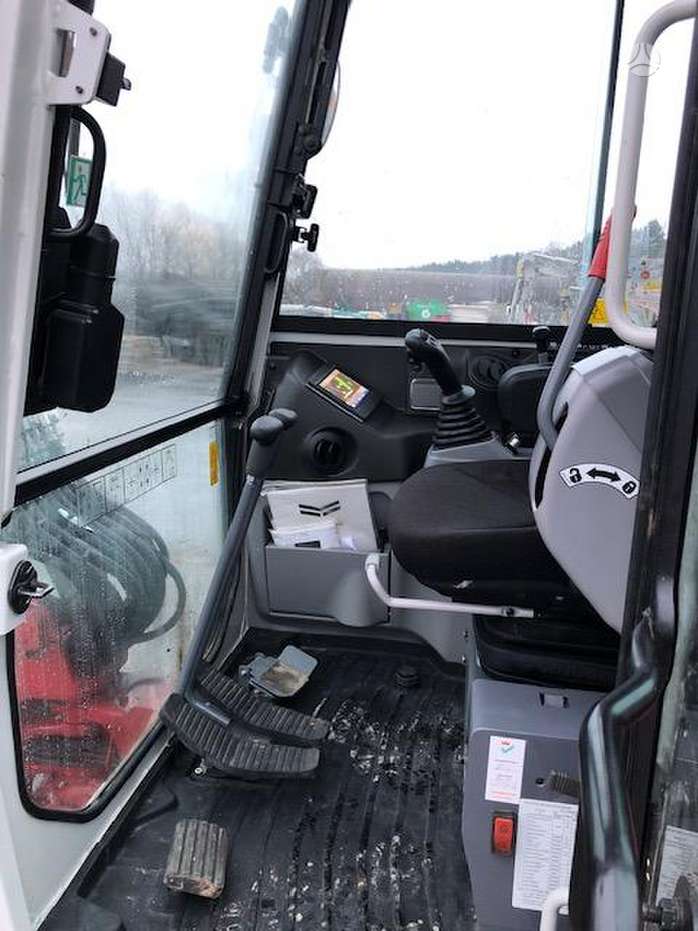

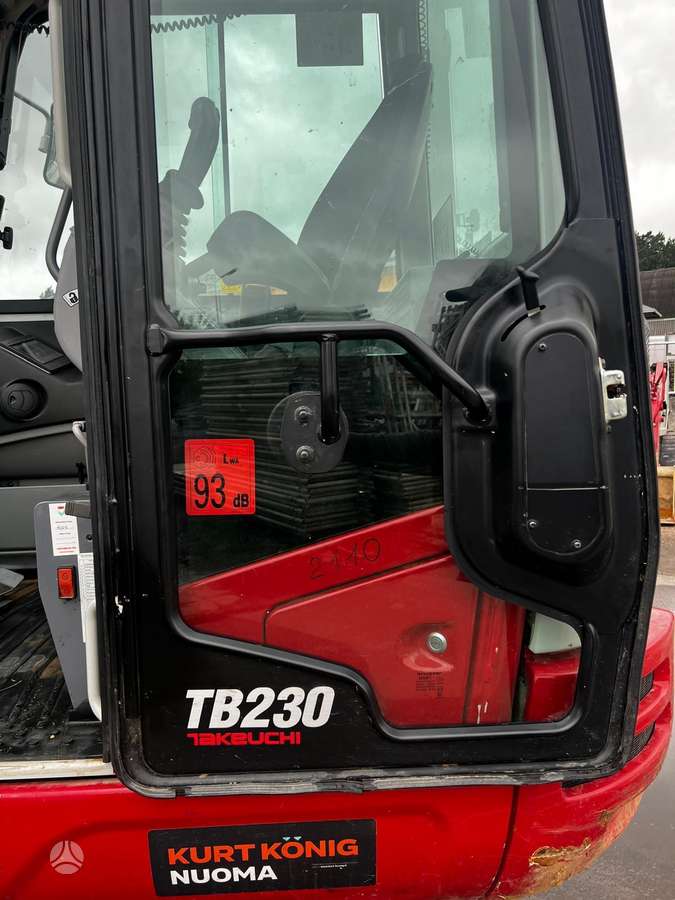

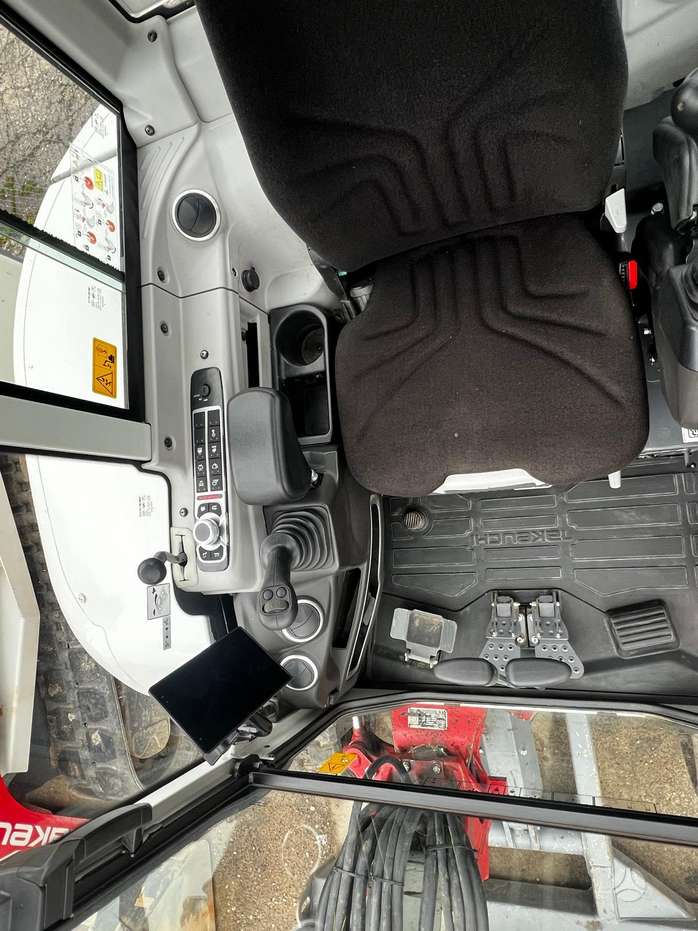

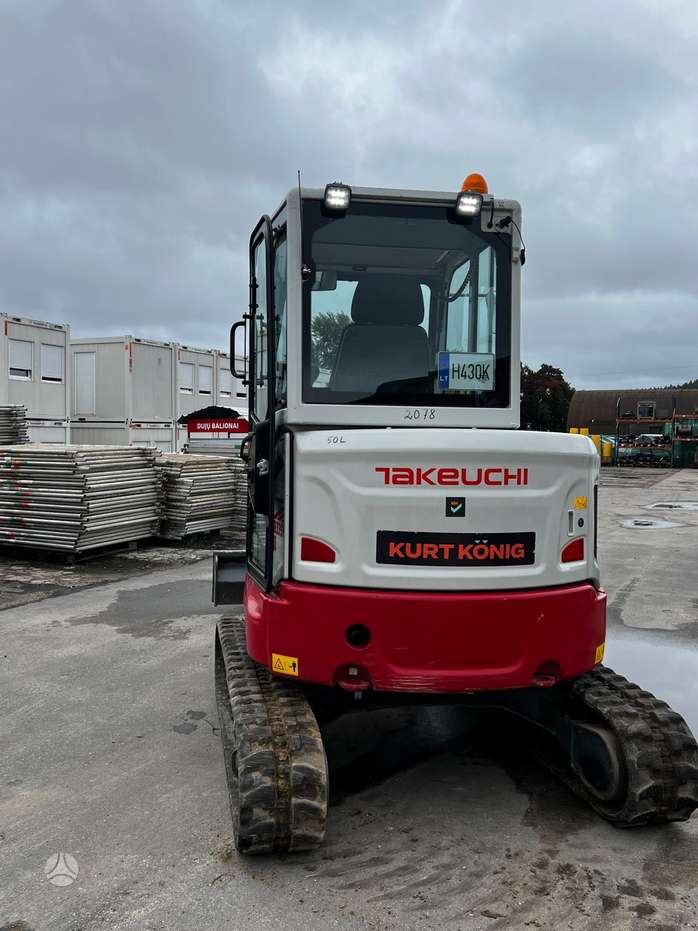

Comfortable ROPS cabin, Radio; Working lights: 4 units (1 on the boom, 2/1 on the front/rear of the cabin); Rear warning lights (red): 2 units; Separate 12V power socket in the cabin roof; One key for all excavator compartments
4 hydraulic pumps for direct function control. Automatic hydraulic system "bleeding". Adaptive hydraulic flows for hydraulic outlets. "Servo" (hydraulic) control
Automatic gear switching rabbit/turtle/rabbit depending on load. 2-speed drive
Automatic "tower" locking

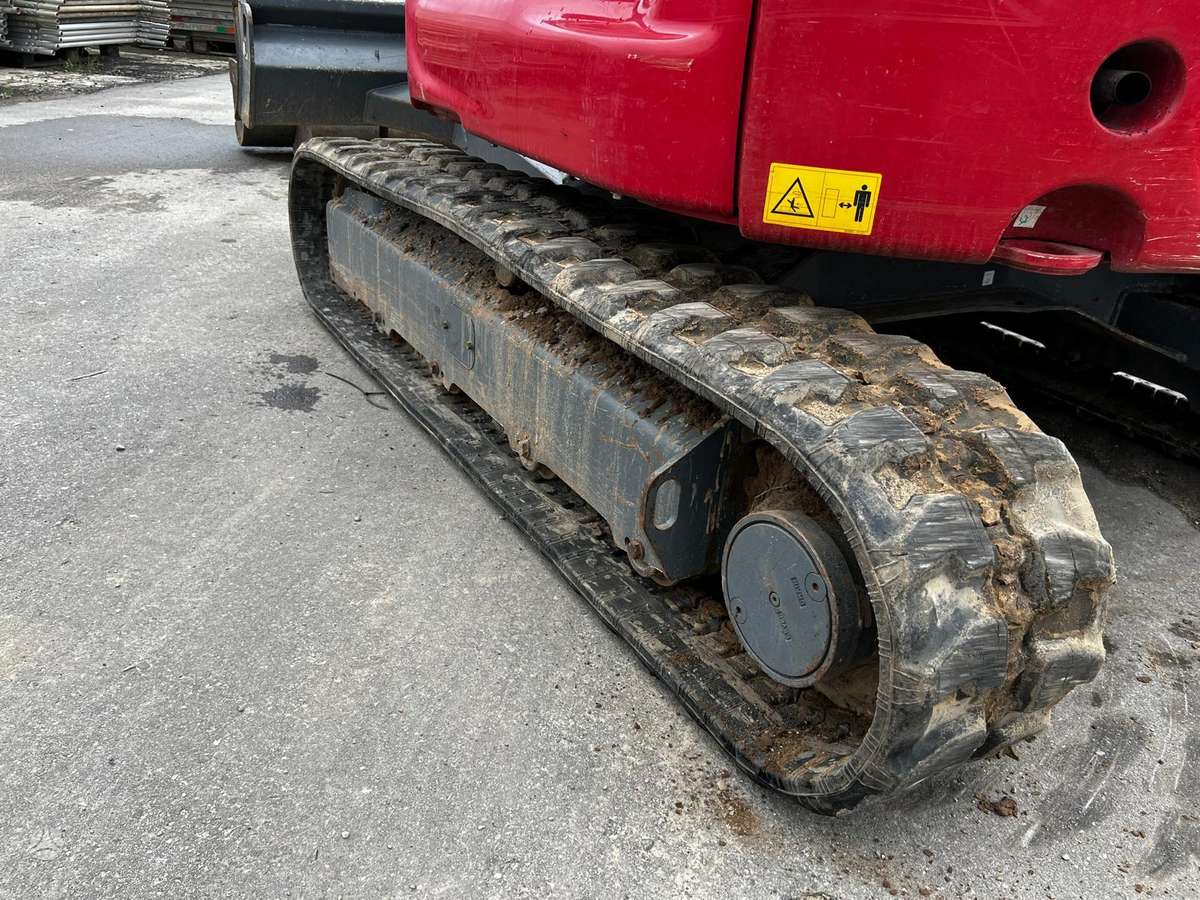

Automatically braked drive motor. Chassis tensioning – via grease point (hydraulically). Rubber tracks. Track width 300mm
Reinforced cabin counterweight
Toolbox with tools
6 attachment points for transport securing
Bulldozer blade (W/H): 1450 mm / 355 mm
The machinery complies with EU directives, TÜV, BG-Bau, StVZO and has CE certificates.
Boom arm length – 1290mm
Auto idle system - automatic engine shutdown.
Fuel filling pump (electric) with automatic shut-off.
Emergency shut-off valve in case of overload on the boom + cylinder.
Overload warning device + emergency shut-off (according to EU standard EN474-5).
Pressure relief valve and "accumulator" for the hydraulic line. Automatic pressure relief system for hydraulic lines 1, 2, and 4.
Adjustment valve – for returning excess hydraulic oil to the tank when using hydraulic hammer functions.

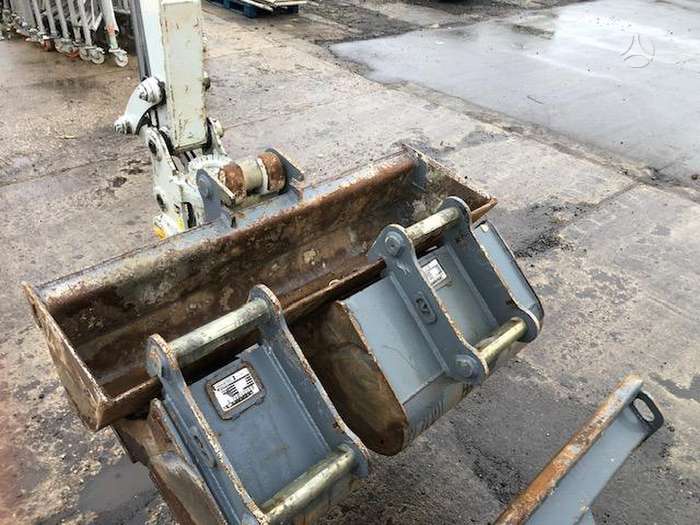

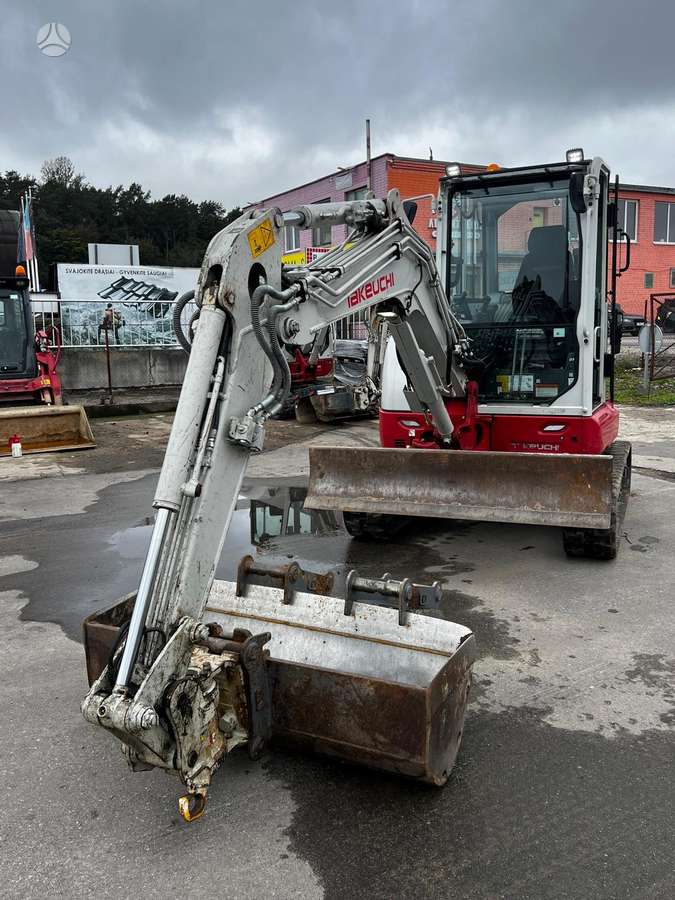

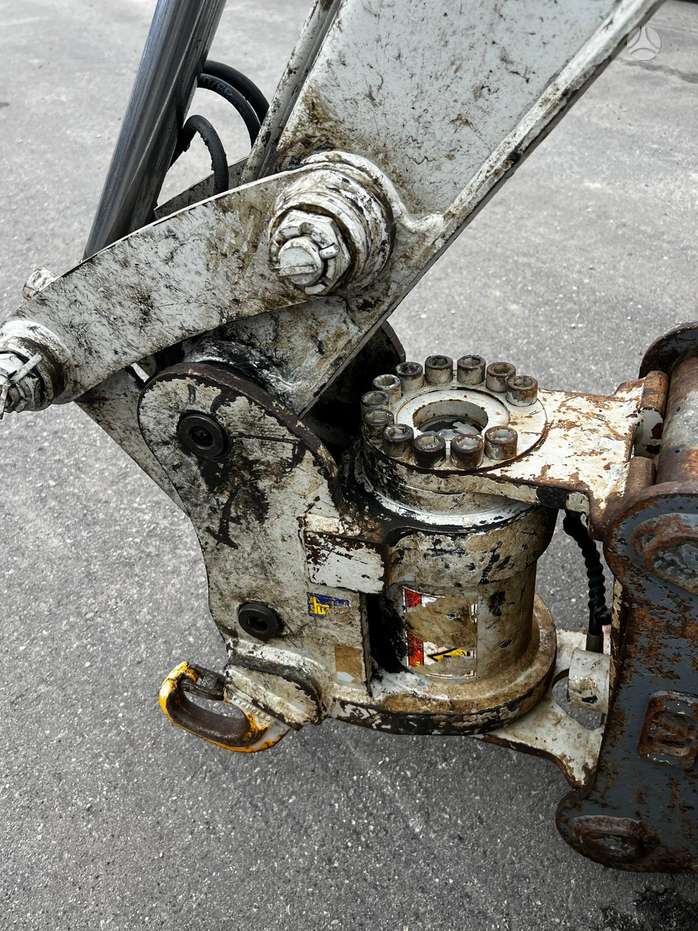

Lehnhoff HS03 hydraulic quick coupler + Powertilt 1740 system with loading hook. Digging bucket and grading bucket optional in the configuration.
Code TAKE2110
