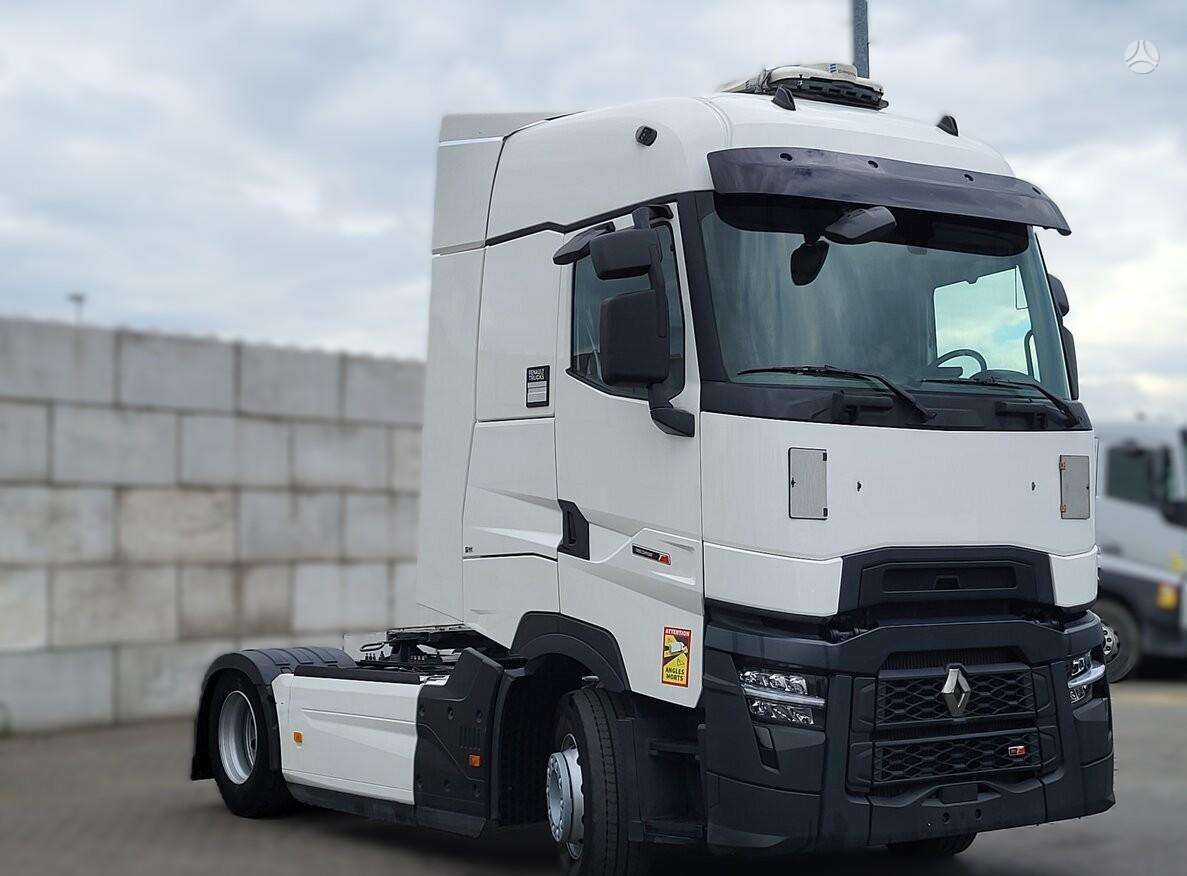

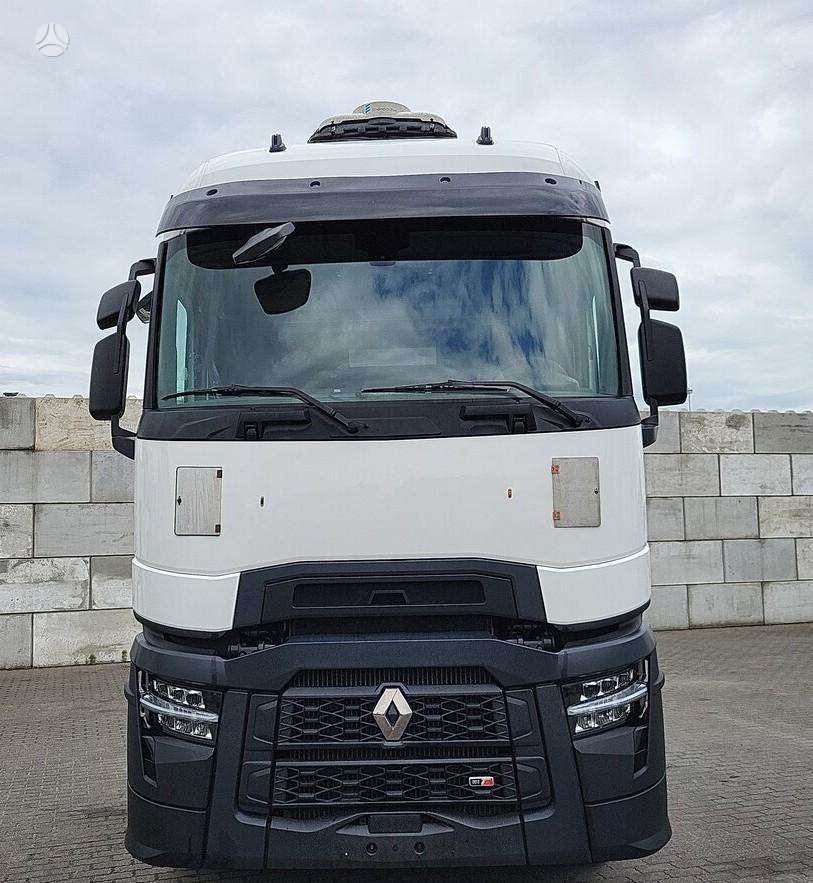

Renault T HIGH 480 T4X2 13L E6

DE13TC ENGINE
Max. power: 353 kW from 1404 to 1800 rpm
Max. torque: 2400 Nm from 950 rpm to 1404 rpm
6-cylinder in-line diesel engine:
Common rail high-pressure fuel-injection (2000 bar)
24 valves - overhead camshaft, rear-mounted timing
High pressure provided by three pumps on injector bodies.
Bore 131 mm - stroke 158 mm - Capacity 12.8 L
Electronically-controlled fan
Turbocharger
Engine adapted to sulphur diesel
EEC EURO VI pollution control level
Compact after-treatment system (catalytic converter, DPF, SCR)
Cooling liquid. Automatic regeneration of particulate filter

ENGINE EQUIPMENT
Power mode inhibited after passing the 'hard spot' of the accelerator pedal
Partial gas recycling (semi-closed circuit)
Intake air preheating cold starting device
Electronic speed limiter (90 km/h).

GEARBOX
Optidriver AT 2612F gearbox (14.94 - 1)
Automatic clutch aluminium housing.
Max. torque 2550 Nm, 12 forwards and 3 reverse gears.
Steering wheel-mounted operating mode selection
(automatic/manual) via gear shift selector.
Optivision Map Based gear shift strategy for FUEL ECO
(anticipation of topography and centralised data storage).
Gearbox rear intermediate housing in aluminium
Gearbox oil cooler, oil/water heat exchanger

OPTIBRAKE + ENGINE BRAKE (power rating 382 kW at 2300 rpm):
combination of the exhaust brake
valve compression braking, coupled to service brake

CAB

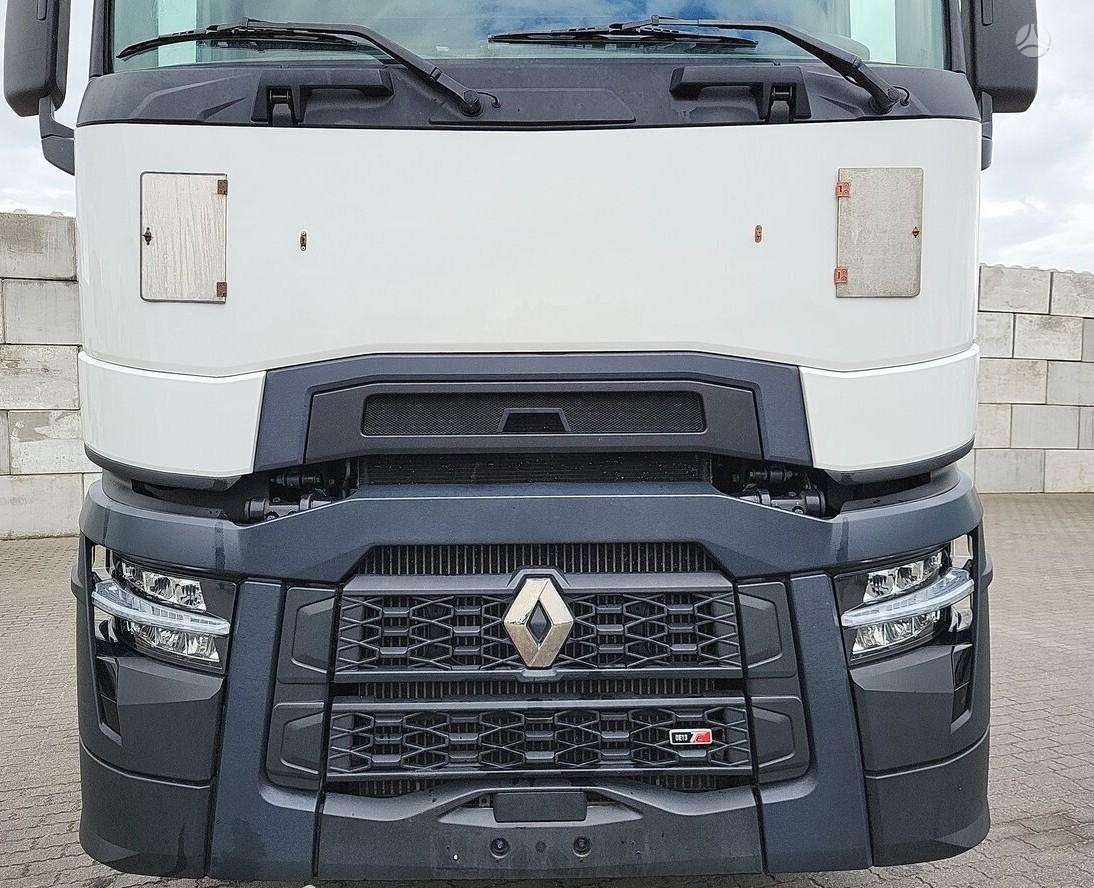

Cab exterior:
High Sleeper cab
All steel Cab, electro-zinc plated and cataphoretic paint
treatment.
Cab paint colour: White ekla
Technical code: 09350
Red badge. Aerodynamic dirt deflectors on the headlamps
4-point cab air suspension with ride-height control system
Four side storage compartments
2 heated, remote control rear view mirrors.
Air horn
Spray suppression on front wings

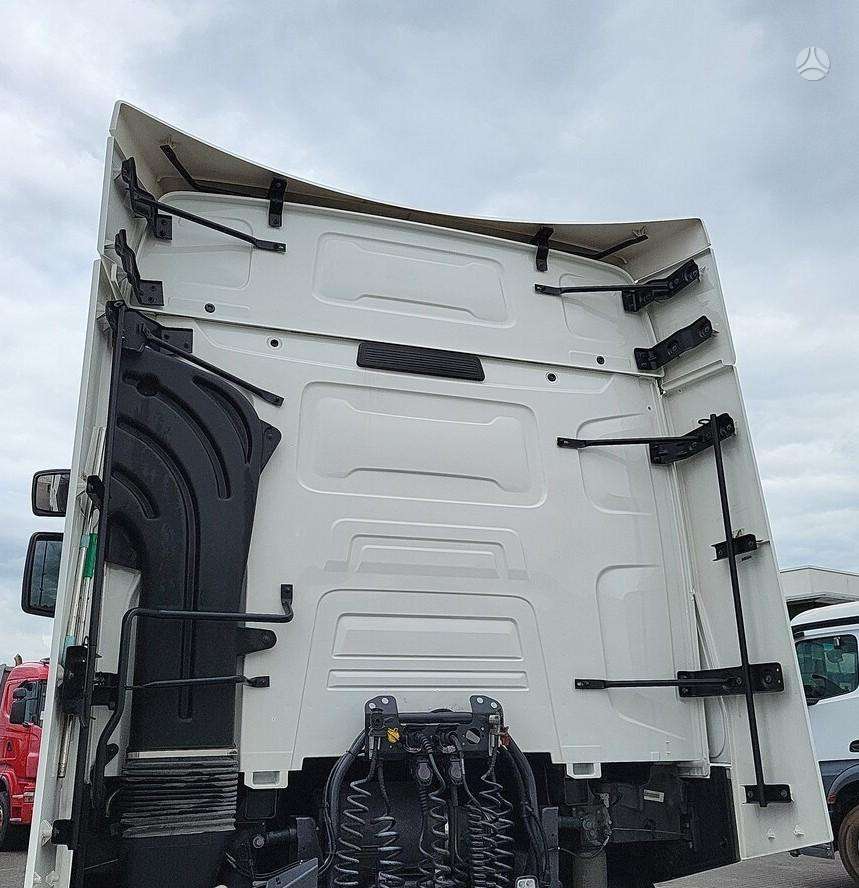

Fixed roof deflector
Side deflectors (left-hand opening panel)
Door extensions (step cover)
Exterior parts finished in cab colour
Wide external sun visor.

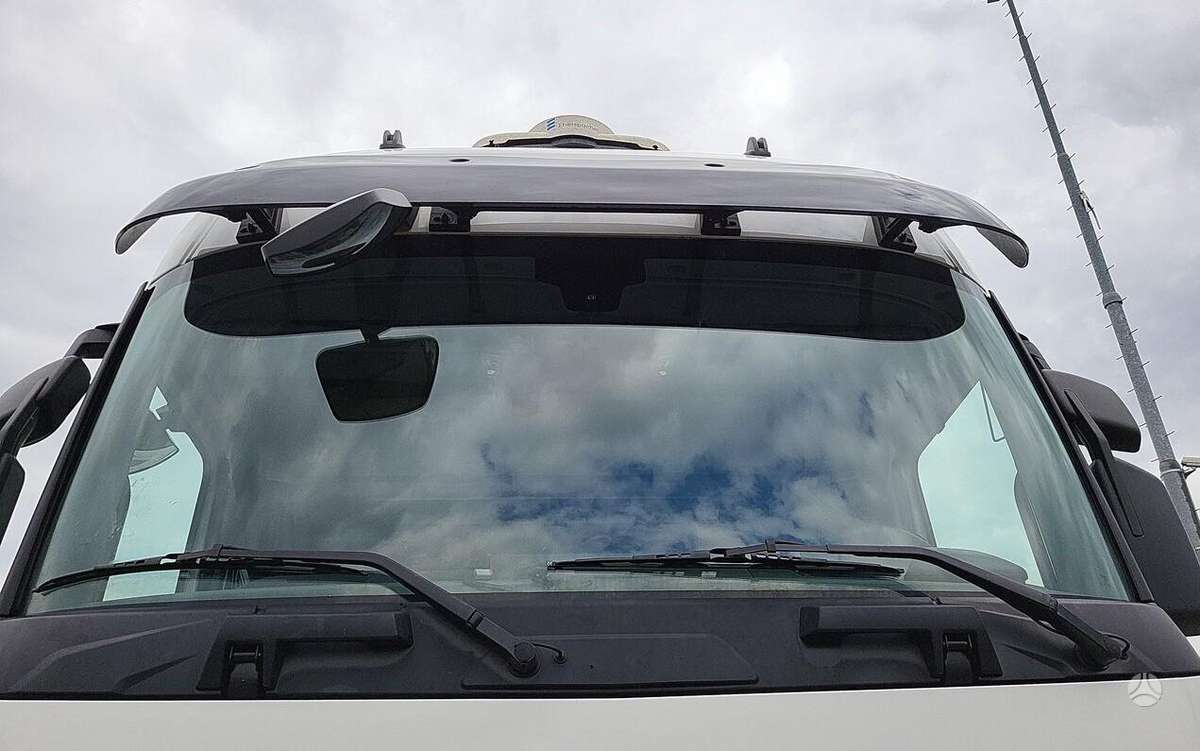

Tinted, laminated windscreen.

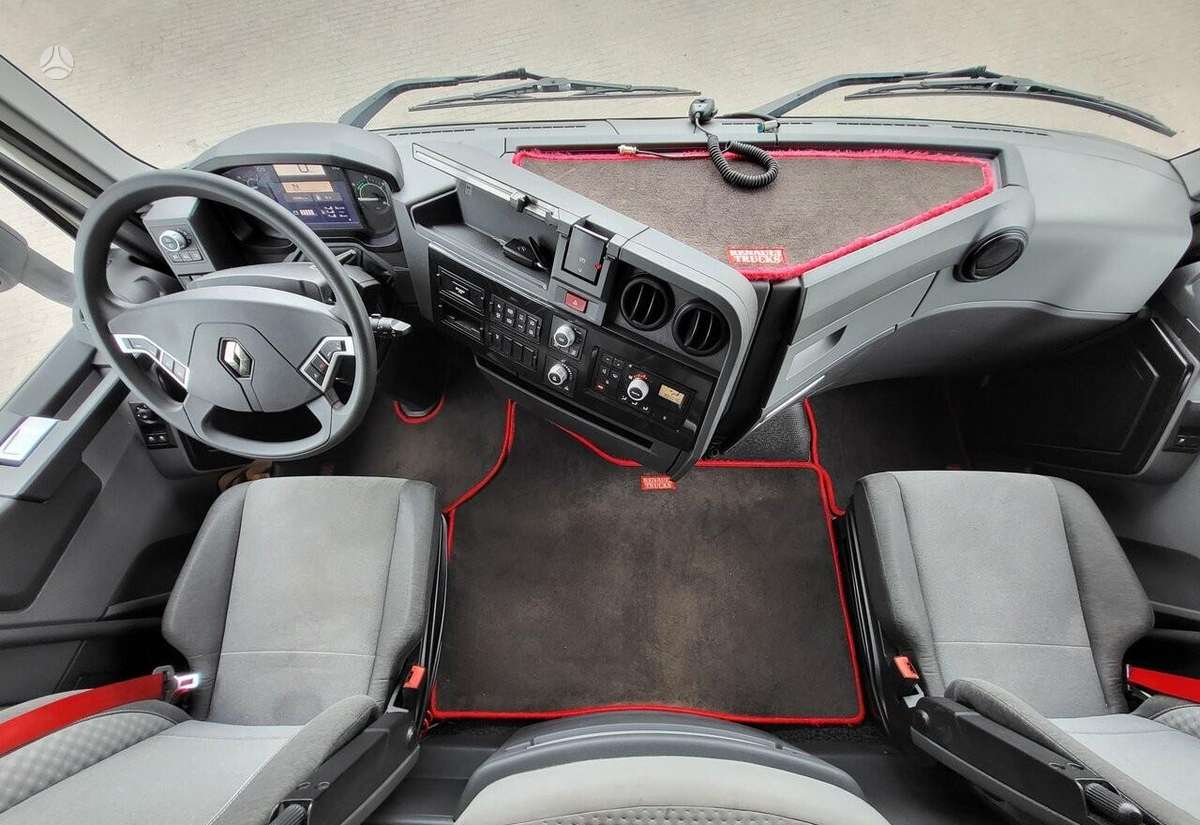

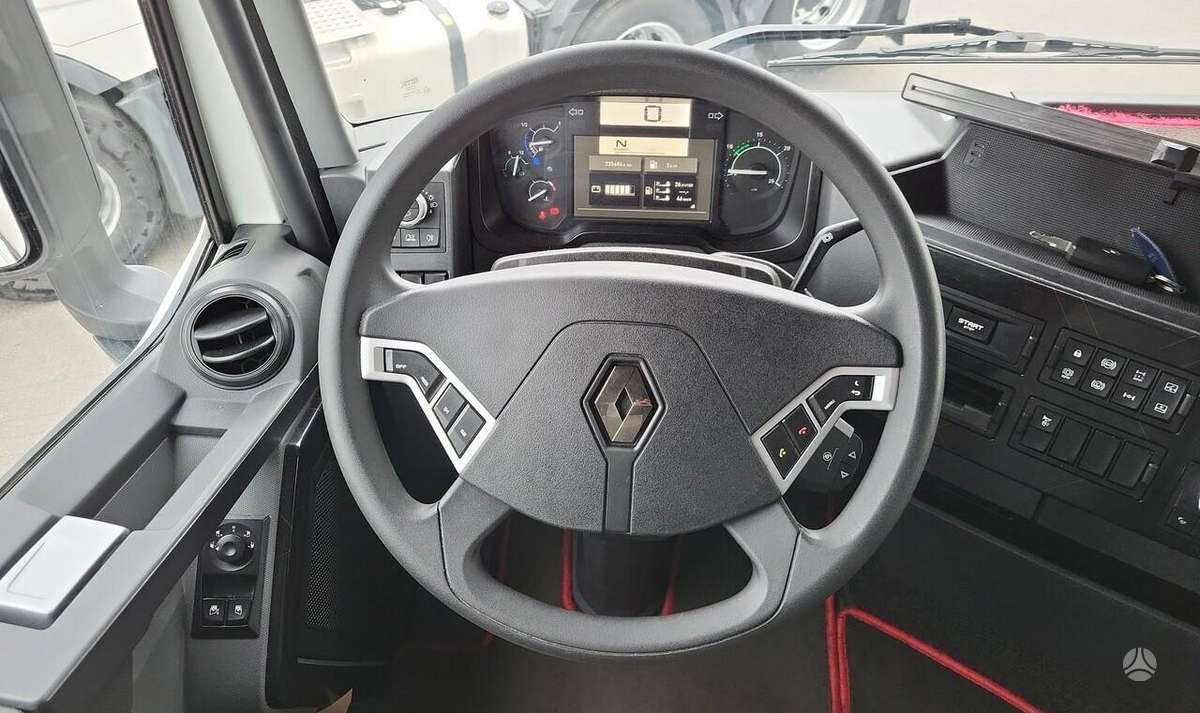

Instrument panel:
PANORAMIC dashboard 7" HD colour information display
12 V + 24 V socket on dashboard, for accessories.
Start button
Customer speed +5 km/h downhill
ECO Cruise control with Optiroll
Power mode inhibited after passing the 'hard spot' of the
accelerator pedal

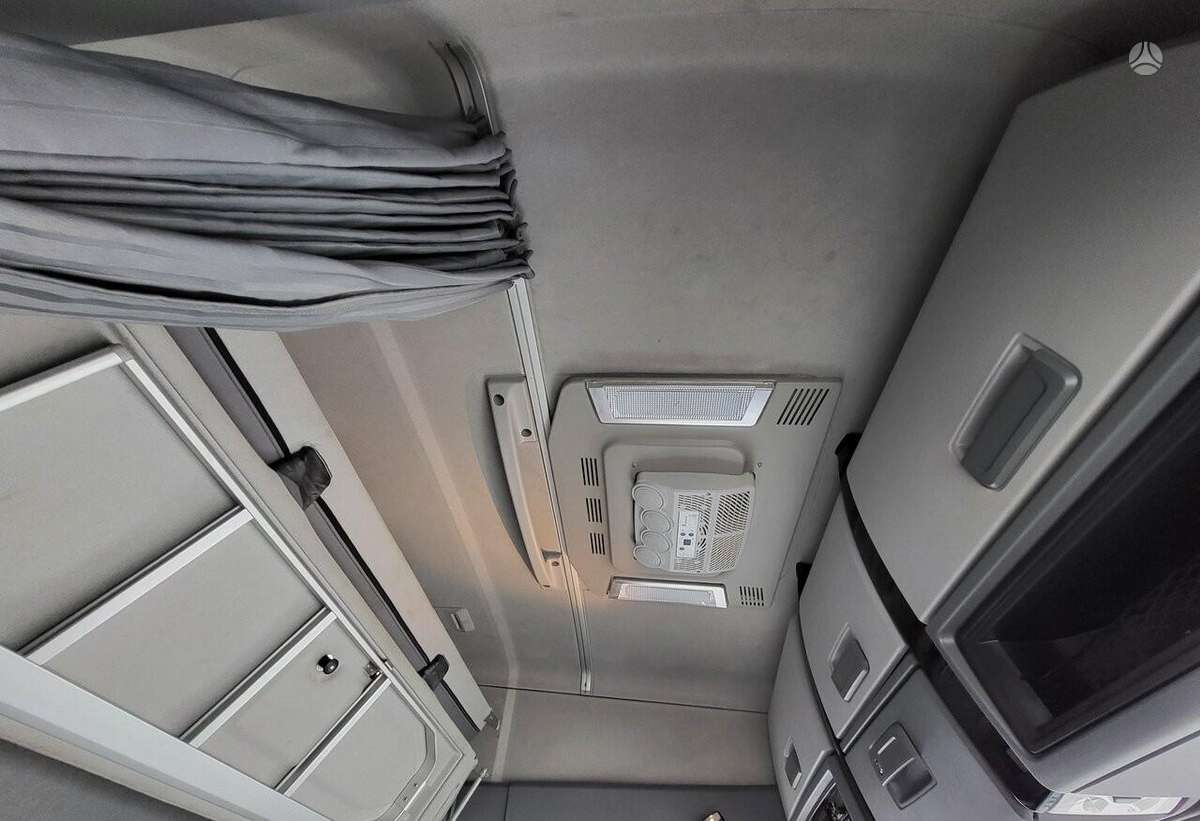

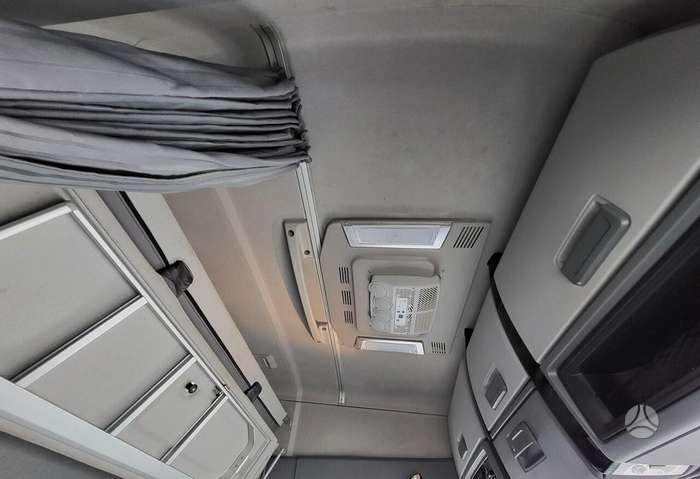

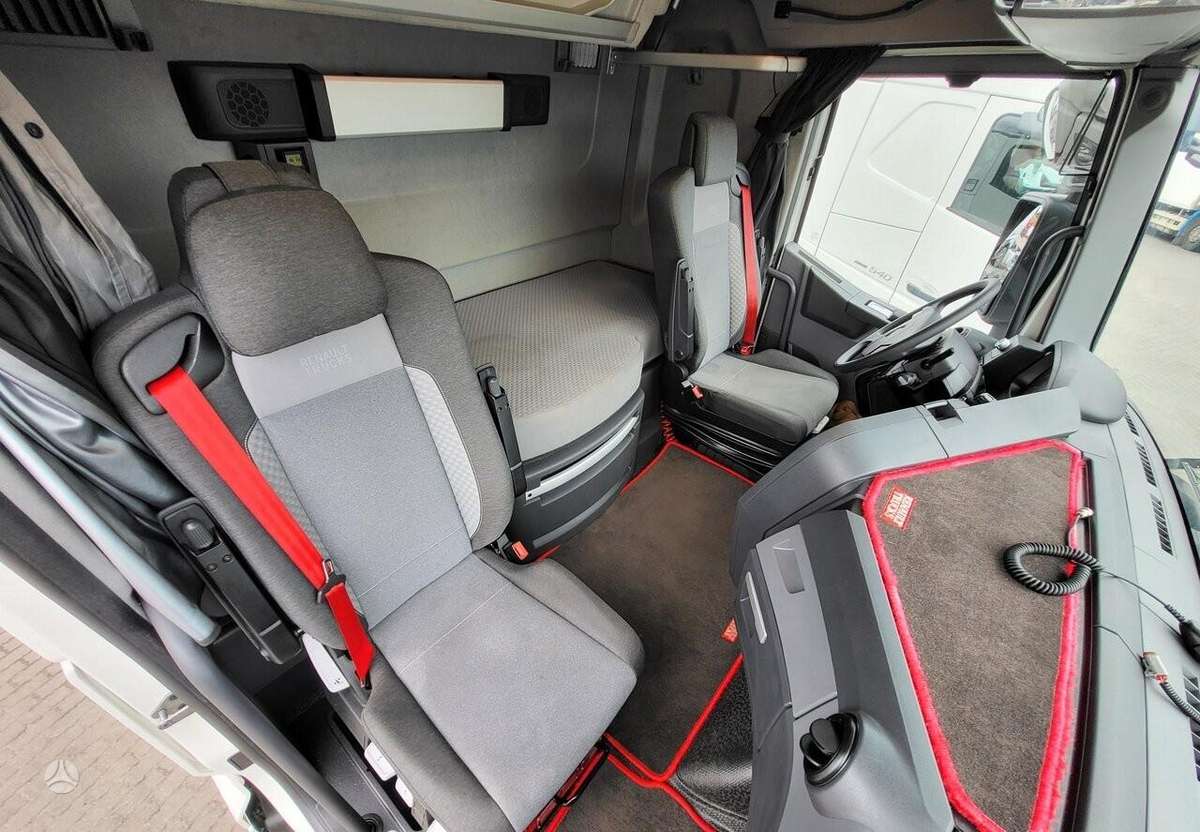

Cab interior:
Cab interior finish - Anthracite

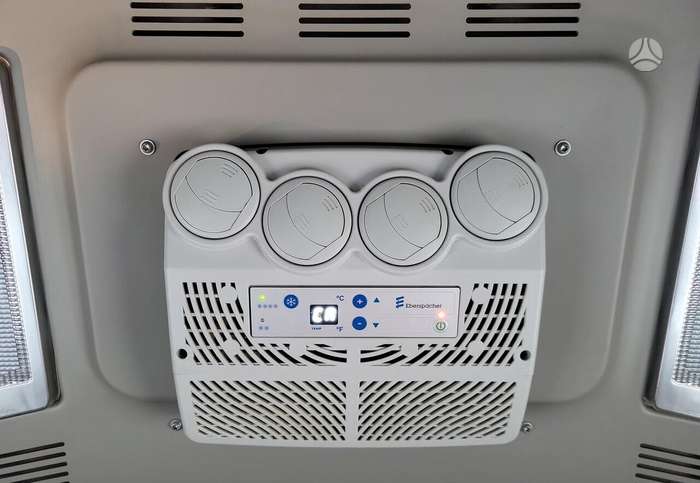

Performance roof console
DTCO 4.0 digital chronotachograph
Offset 24 V socket

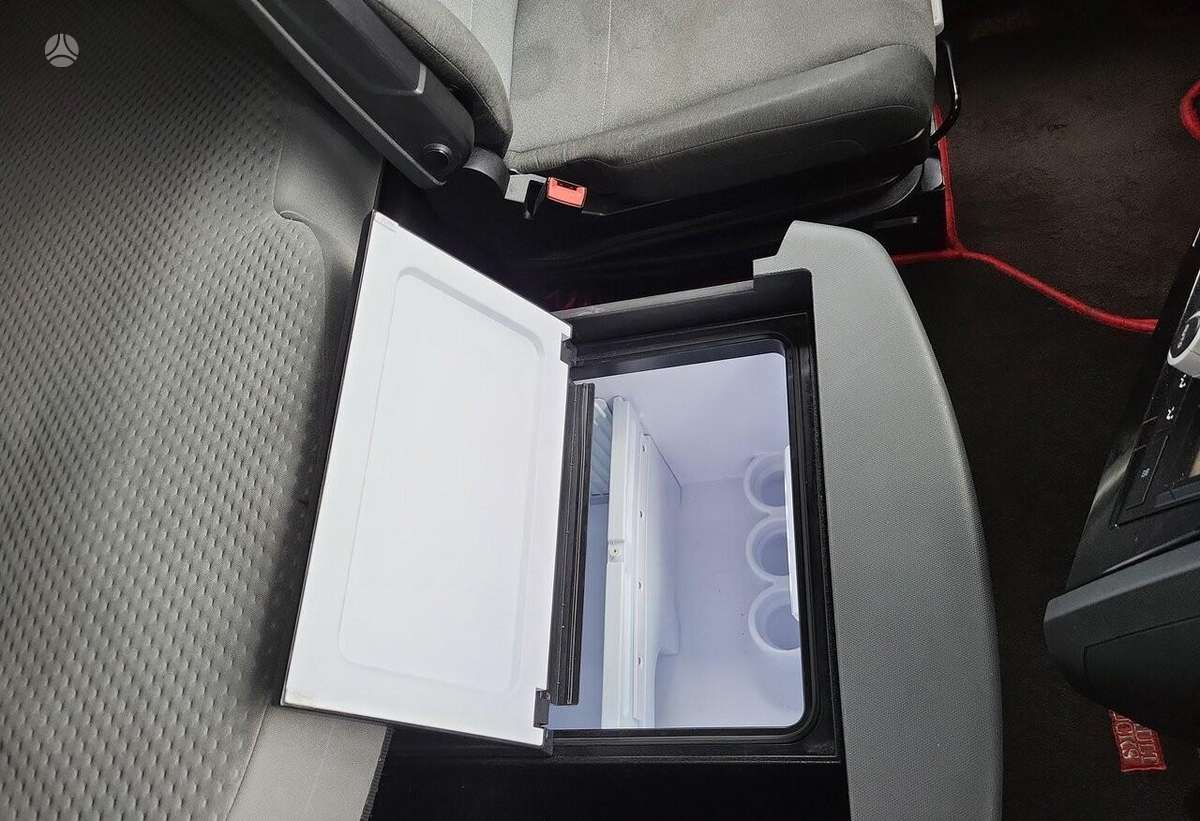

40L refrigerator in central storage under bench, quiet with
thermostat and vehicle battery management

ELECTRONIC EQUIPMENT:
English and Lithuanian Russian language display
SAE cab socket for vehicle data extraction
Load per axle indicator
Toll Collect pre-equipment
FMS Gateway fleet management interface 3.0
Assistance button for geolocation via the 24/7 platform
Lane Departure Warning System (LDWS)
Advanced emergency braking system (AEBS)

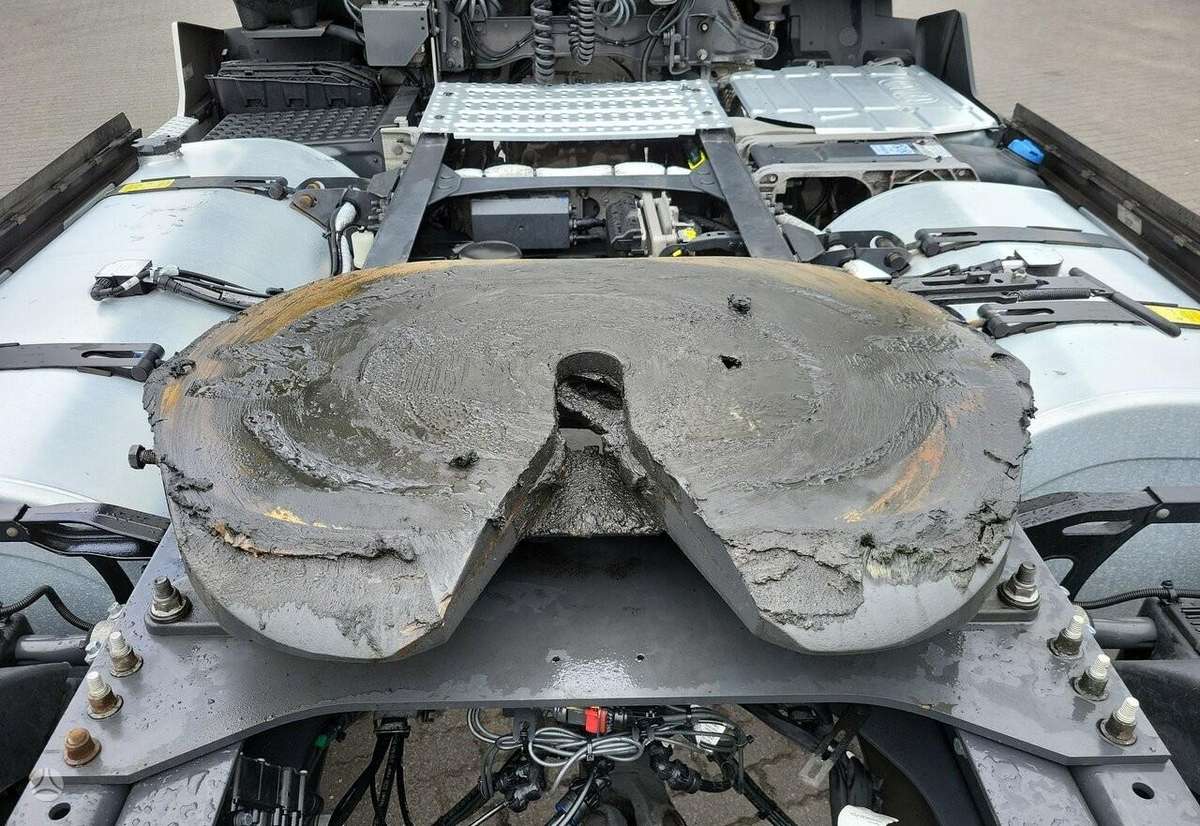

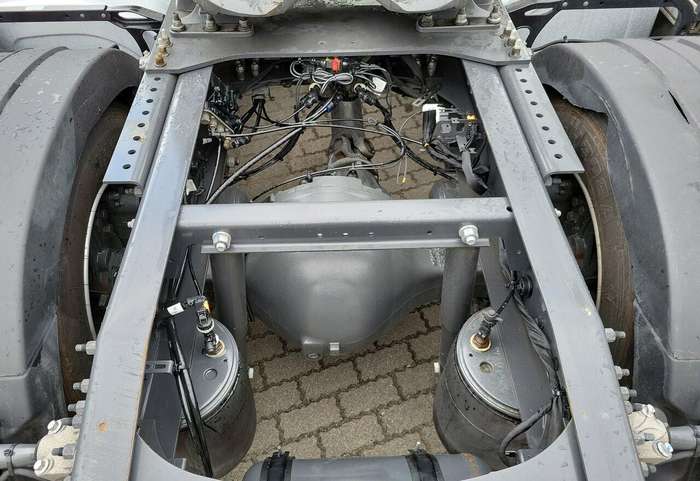

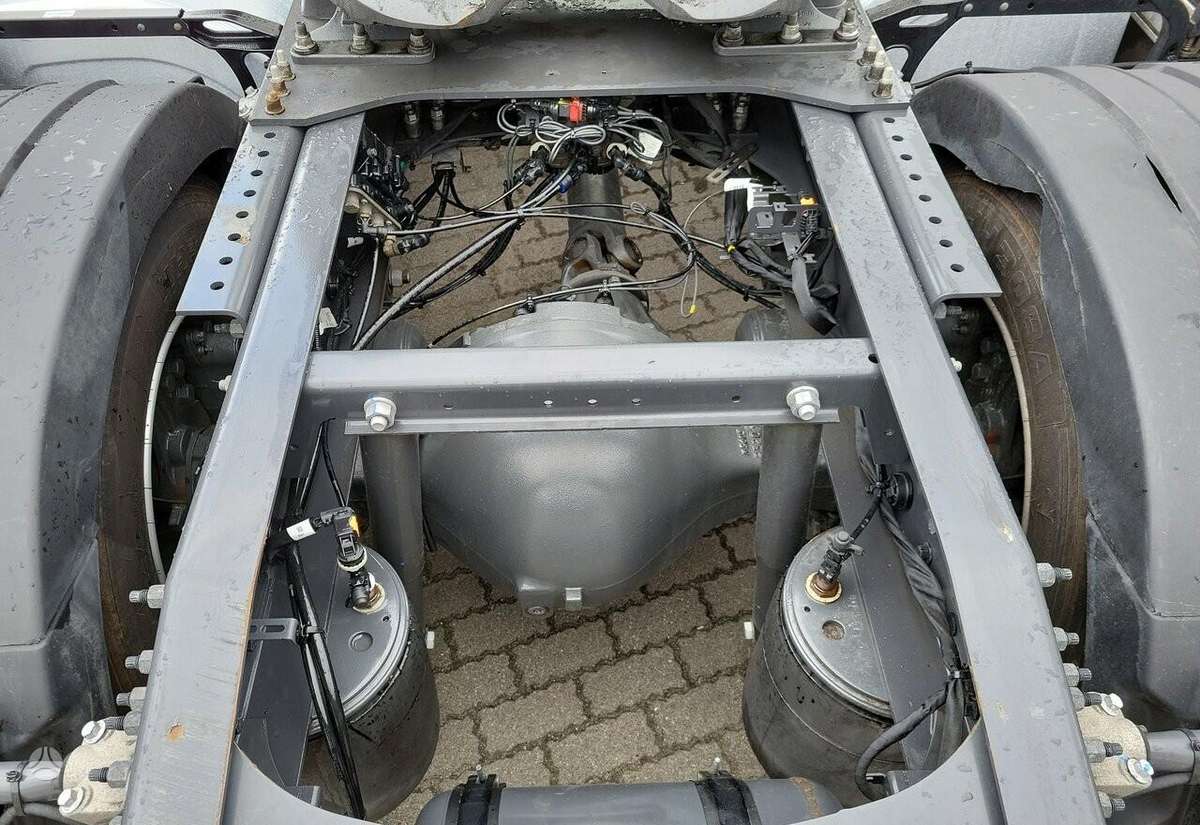

CHASSIS
Chassis protective paintwork, mineral grey colour
technical code: 03650

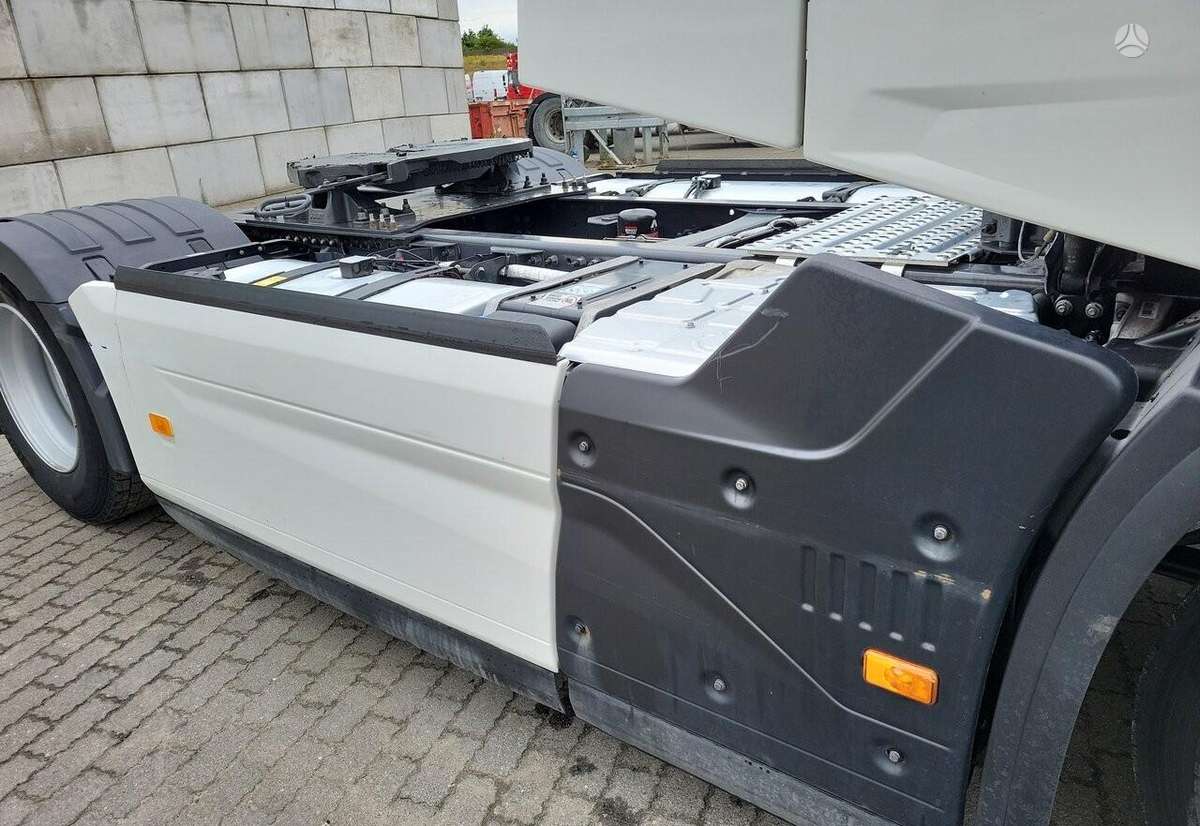

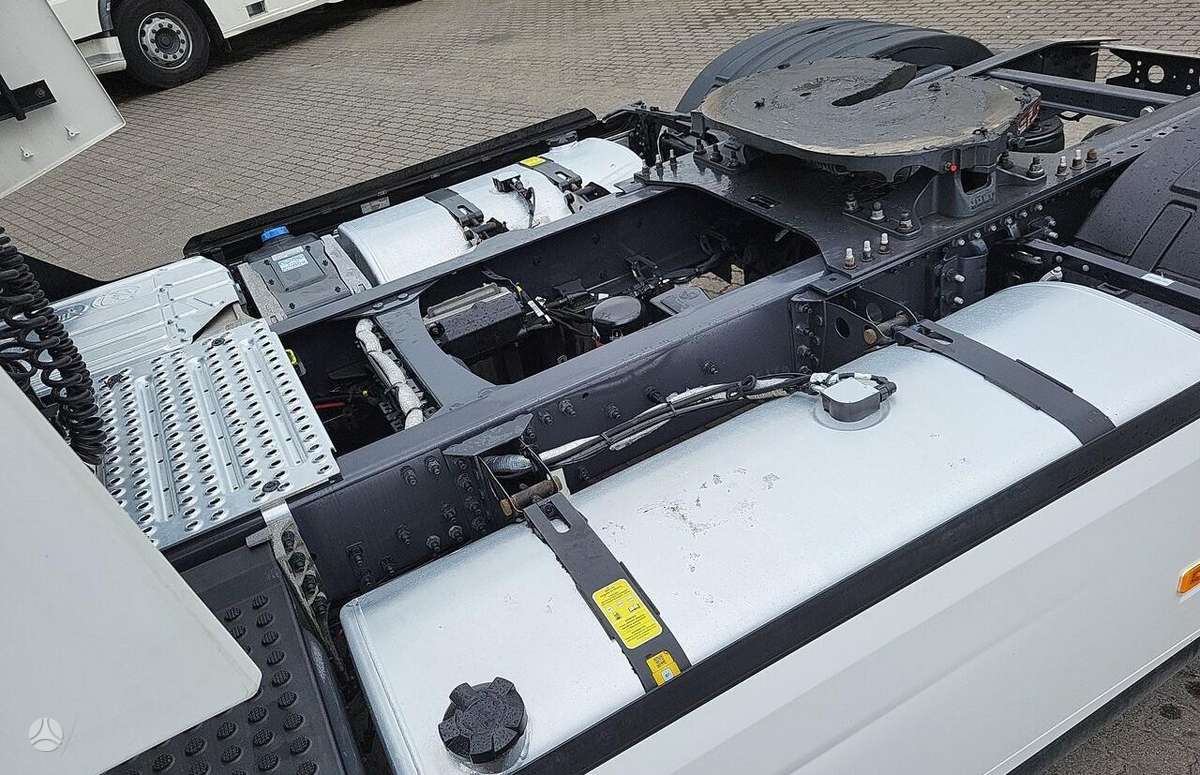

FUEL TANK
Main and additional aluminium tanks.
Main fuel tank: 405 litres capacity D710 profile on right
Main fuel tank: 650 litres capacity D710 profile on left

AdBlue
100-litre AdBlue tank on the right
