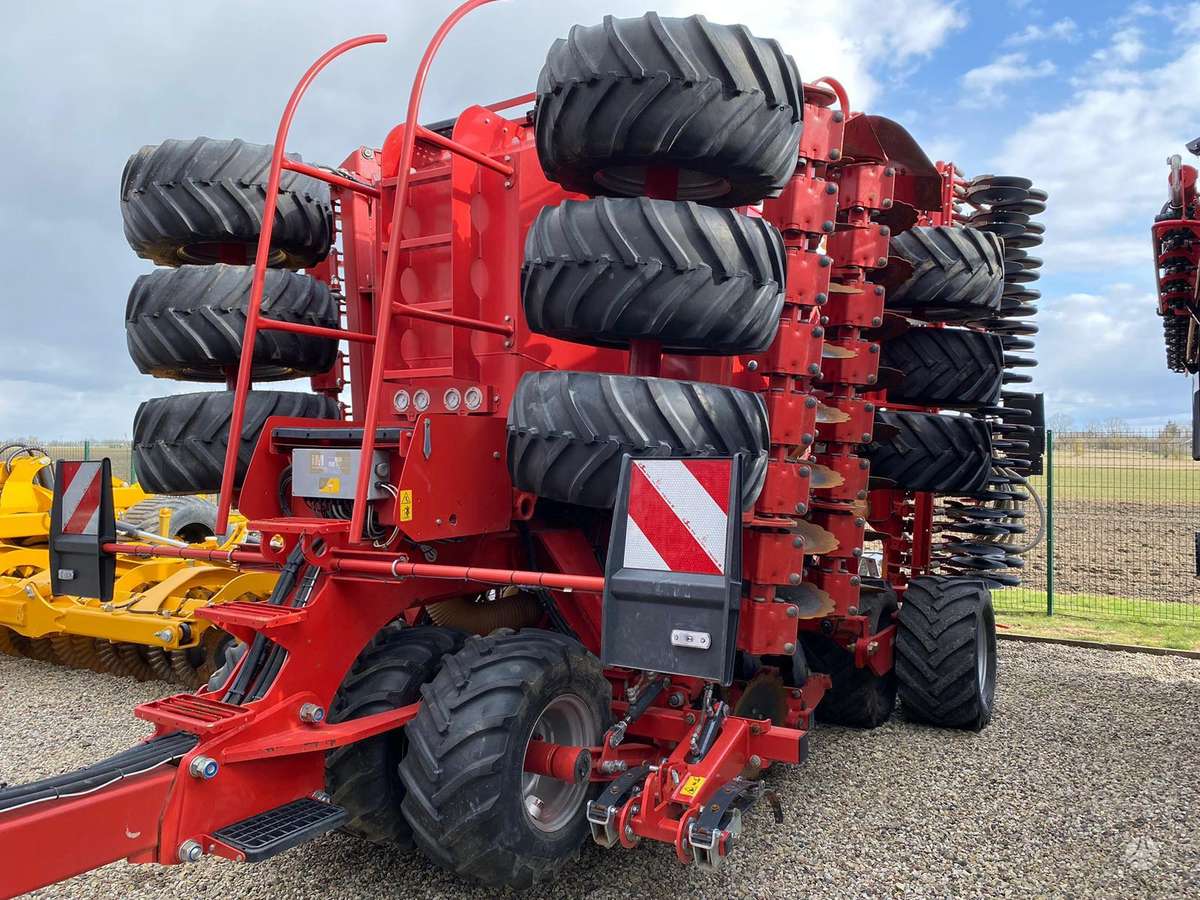

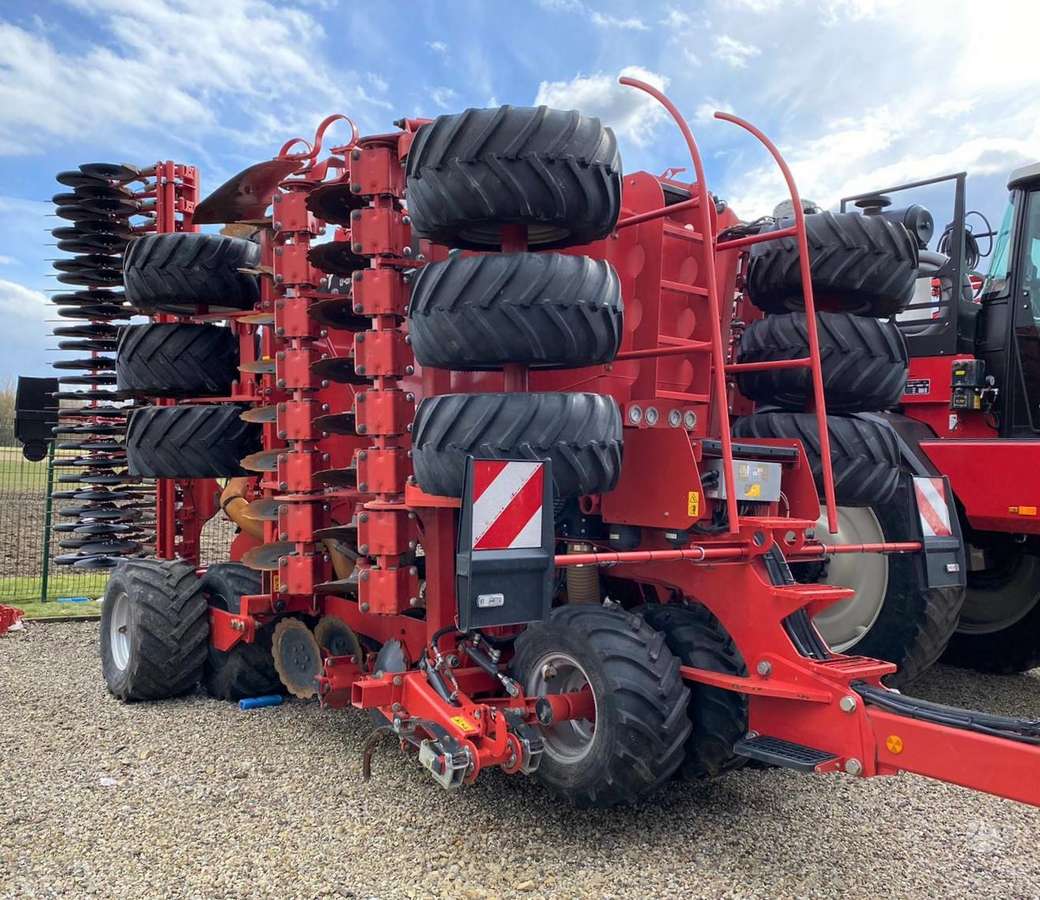

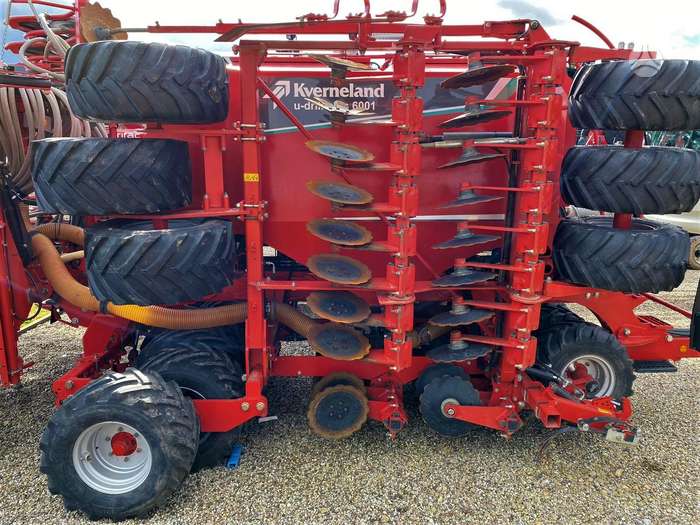

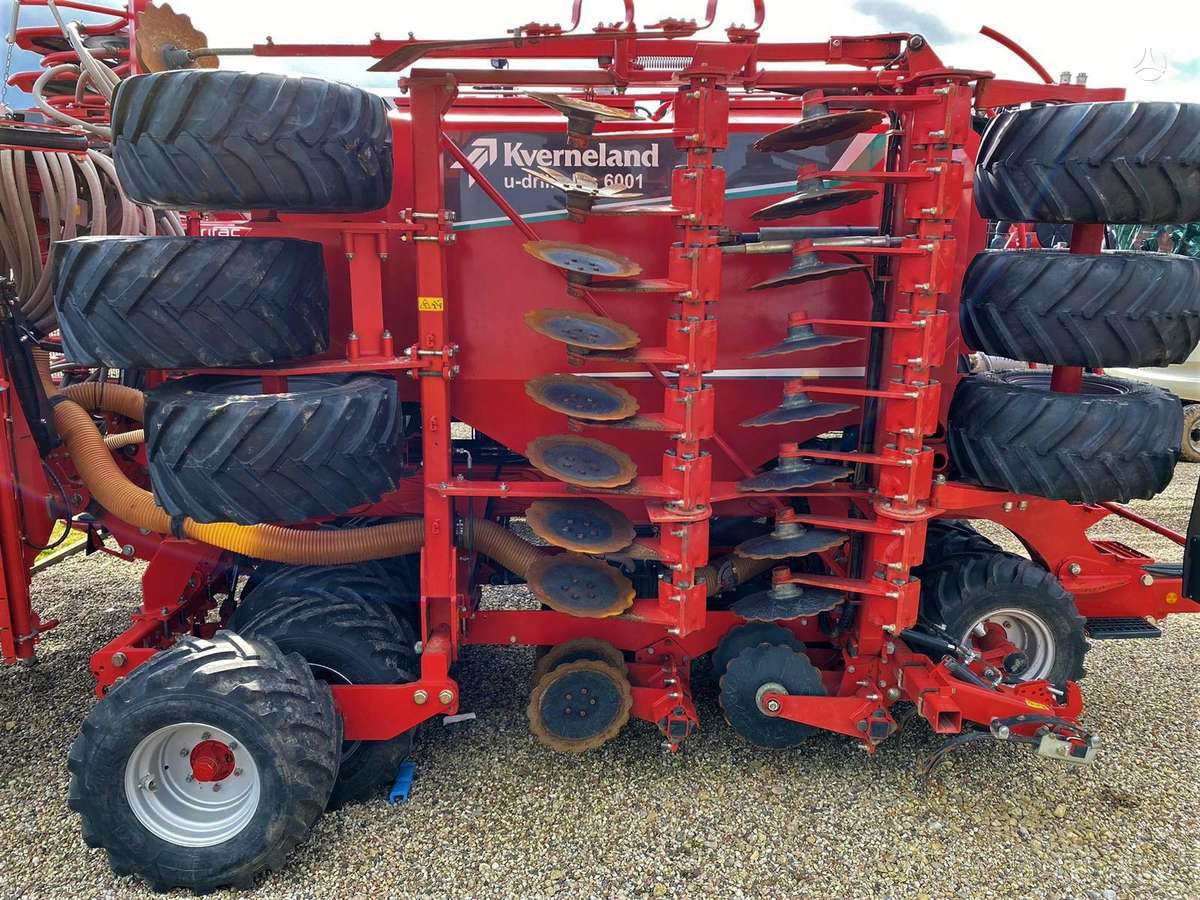

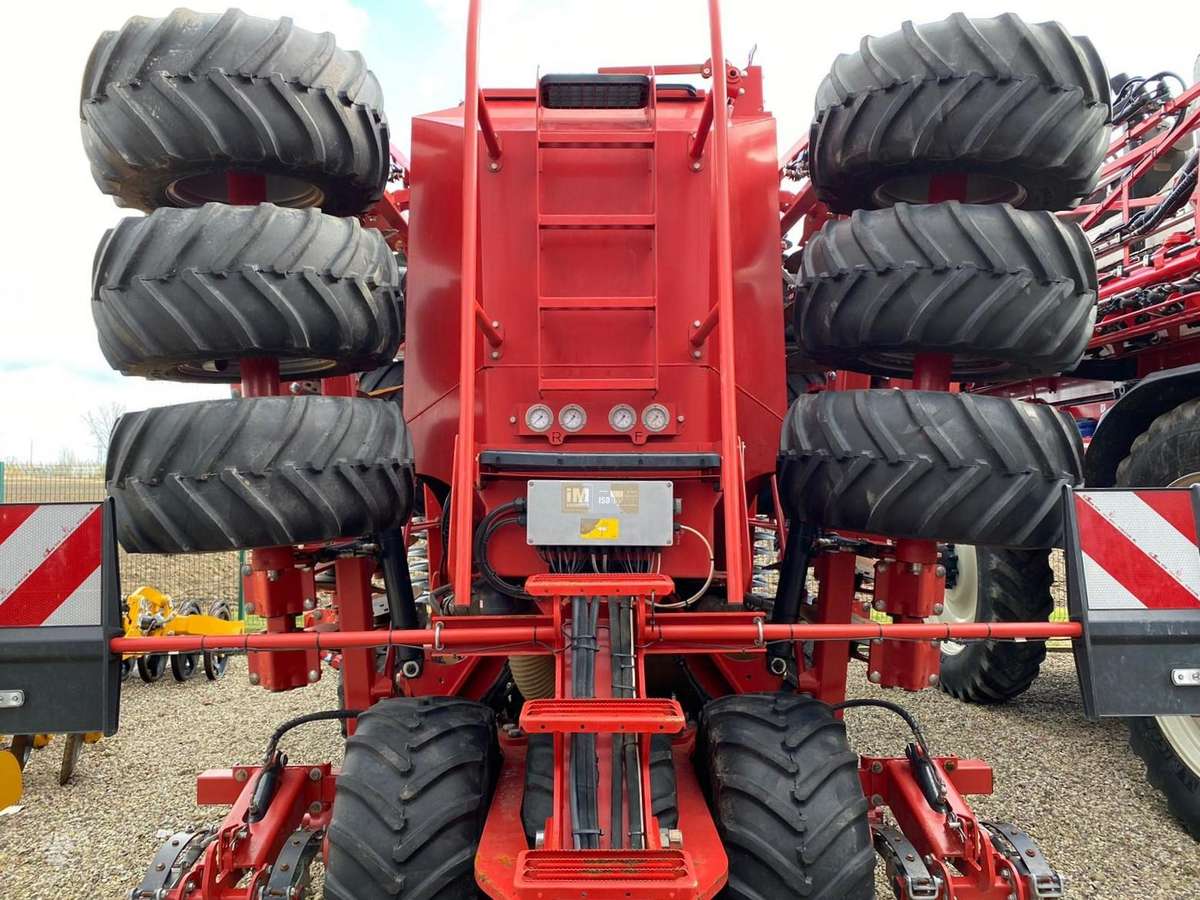

Universal combined seed drill KVERNELAND U-DRILL PLUS 6001

• working width - 6.0 m;
• hopper capacity 4200 l;
• row spacing 12.5 cm;

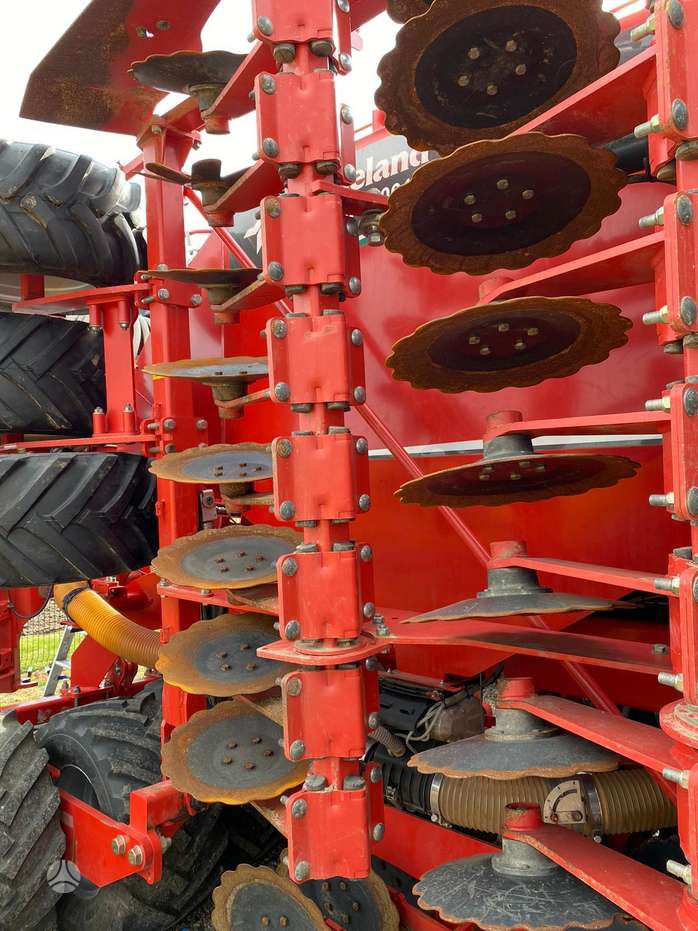

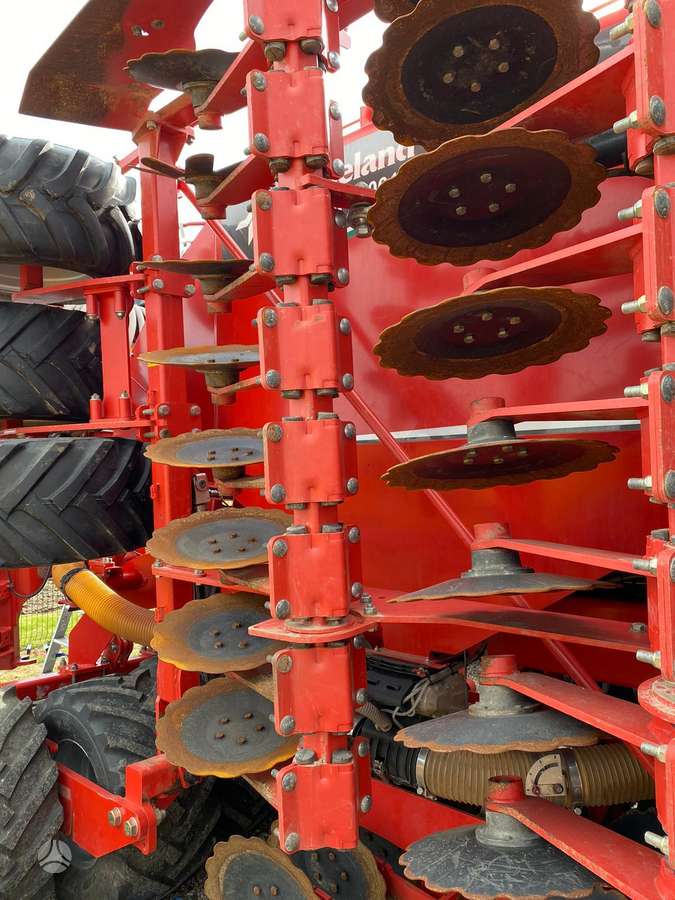

• disc soil cultivation section (two rows of discs);
• disc diameter – ø 460 mm;
• disc shape – conical;
• hydraulically foldable frame;
• front support wheels across the entire width of the drill ø 800 mm (9 pcs);

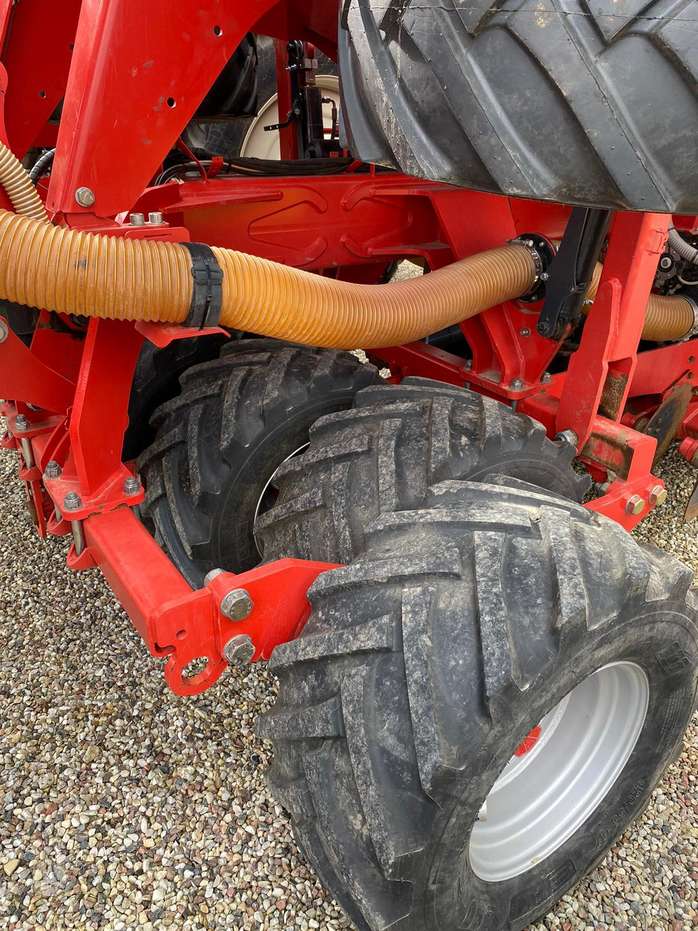

• rear wheels for soil compaction ø 900 mm with 250 mm offset;

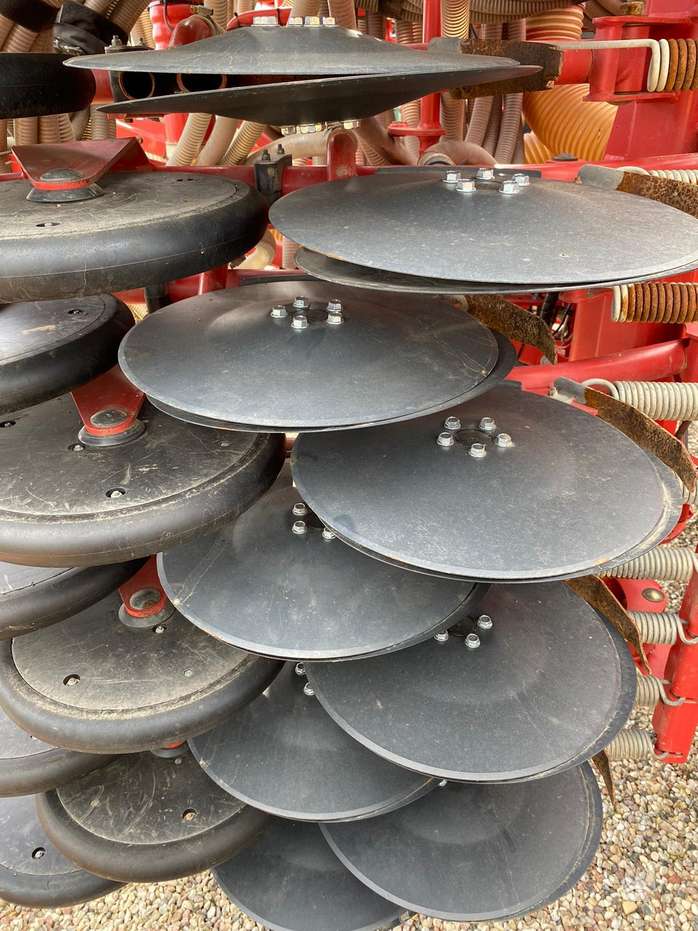

• disc sowing coulters (coulter pressure on the soil up to 100 kg);
• double steel disc system;
• press wheels ø 380x50 mm;
• stepless depth adjustment;
• spring-loaded harrow tines;
• electric drive for the seed metering unit with interchangeable rollers;
• electric drive for the fertilizer metering unit with interchangeable rollers;
• pneumatic seed distribution system above the disc coulter section;
• pneumatic fertilizer distribution system above the disc coulter section;
• fertilizer placement at the sowing discs;
• hydraulically operated disc markers;
• side plates;
• seed level sensor in the hopper;
• tractor track eradicators;
• lighting equipment;
• transport width 3.0 m;
• calibration kit;
• required tractor power – 220-300 HP;
• tramline valves (6 units);

Sown 3000 ha
