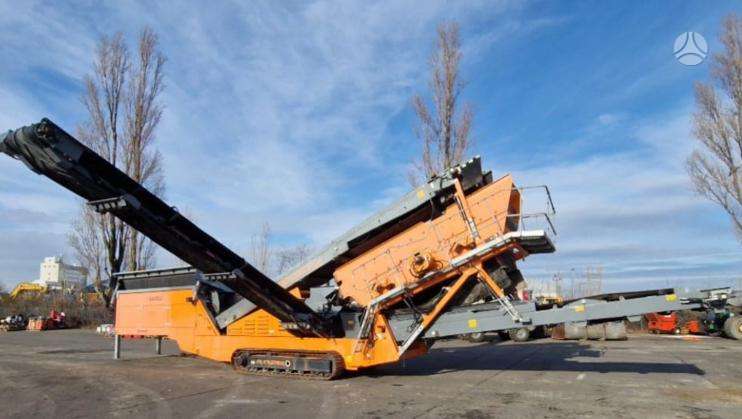

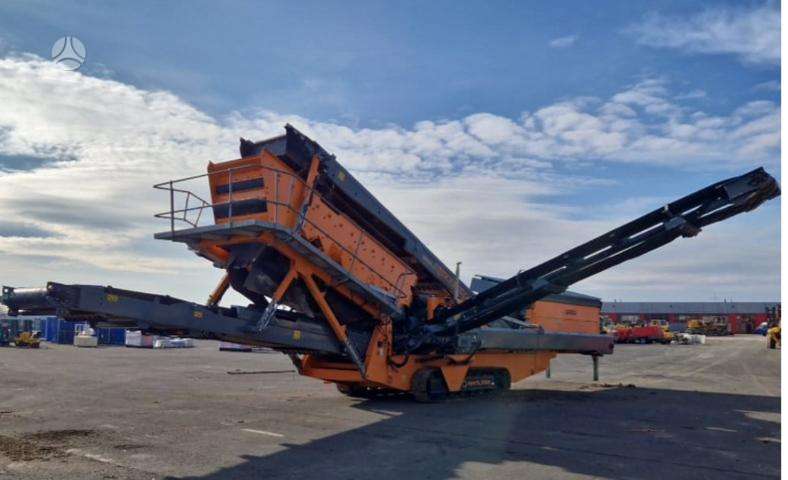

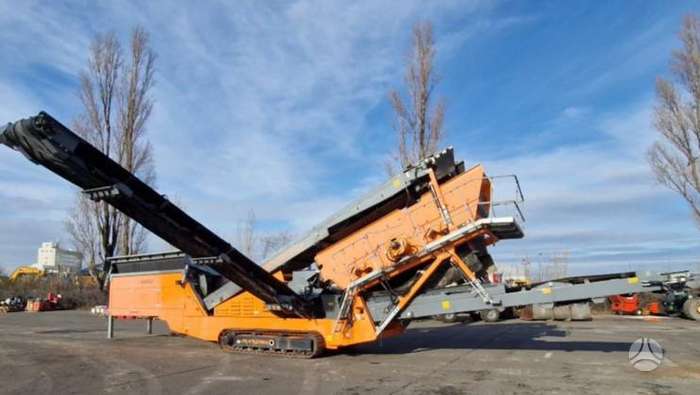

Screener with washing equipment

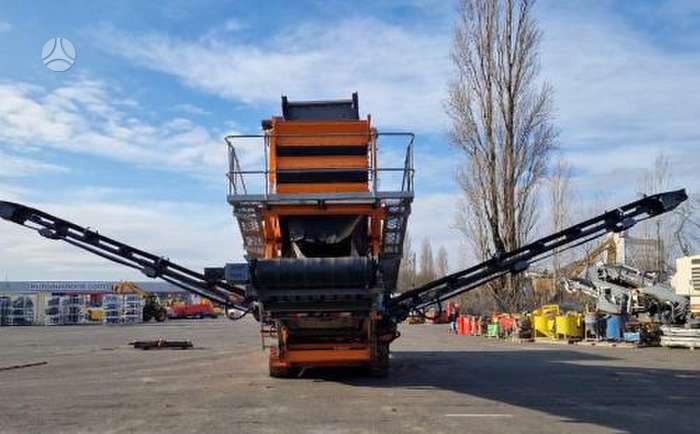

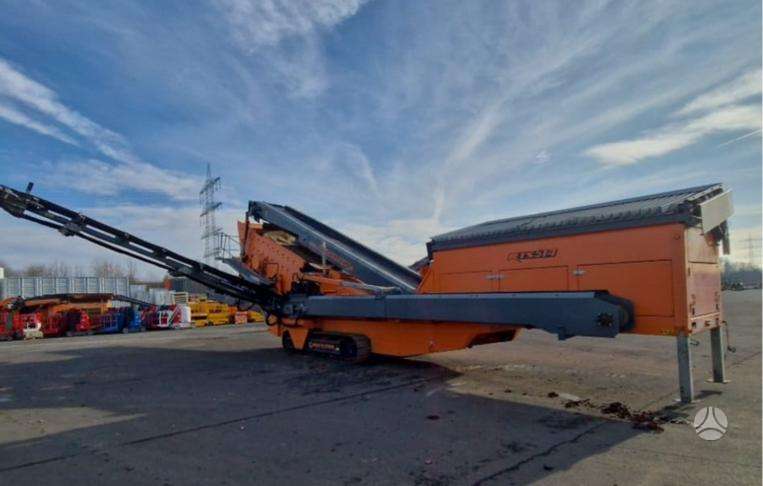

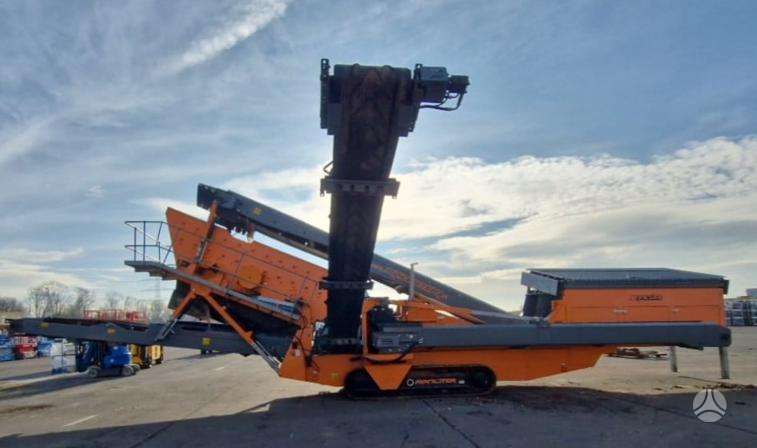

Rockster RTS514 – technical characteristics
Indicator Data
Screening decks 3
Capacity up to 350 t/h
Max. feed size 125 mm
Top deck 4.30 × 1.52 m
Middle deck 4.30 × 1.52 m
Bottom deck 3.60 × 1.52 m
Screen angle 22–34°

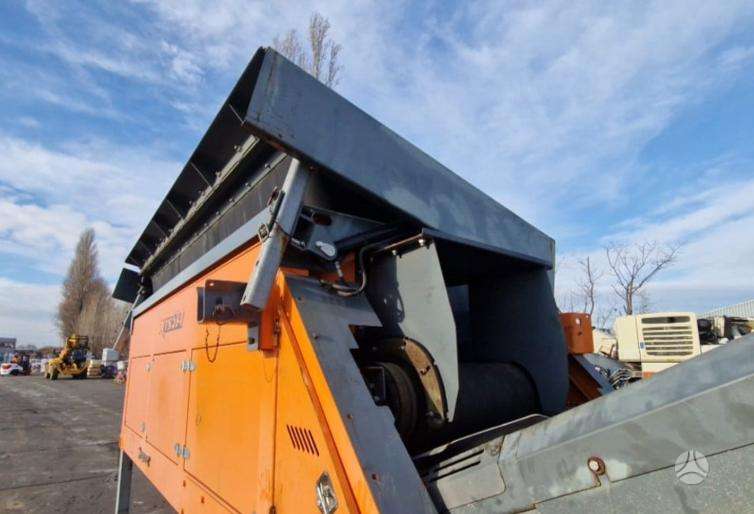

Hopper 8.0 m³

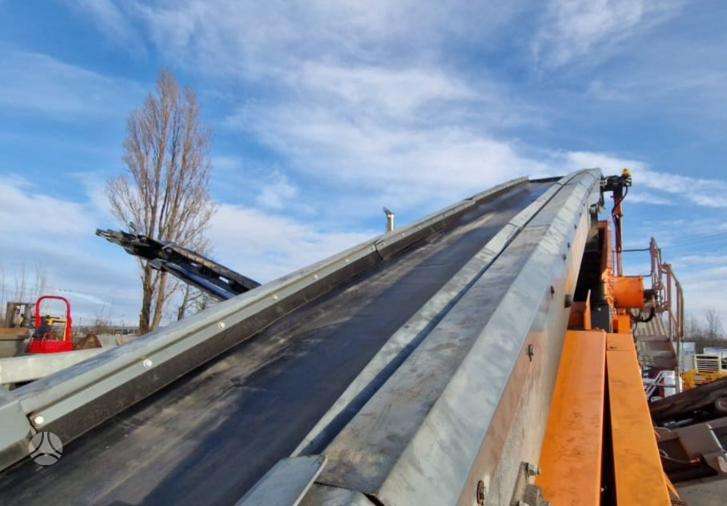

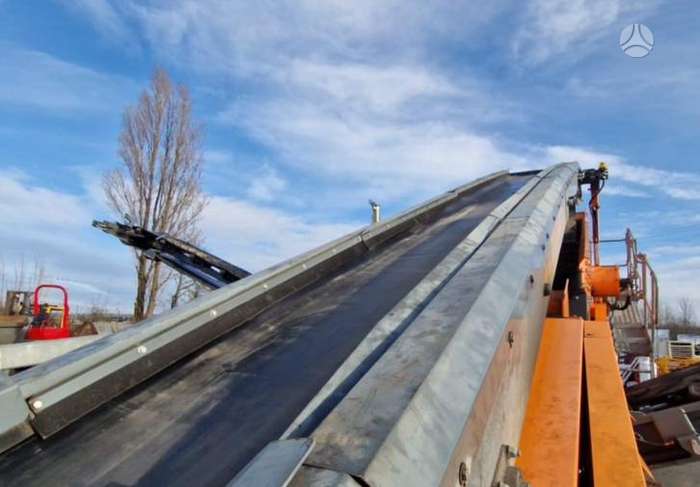

Feed conveyor width 1,050 mm
Fine fraction conveyor 1,200 mm
Middle fraction conveyor 650 mm
Coarse fraction conveyor 650 mm

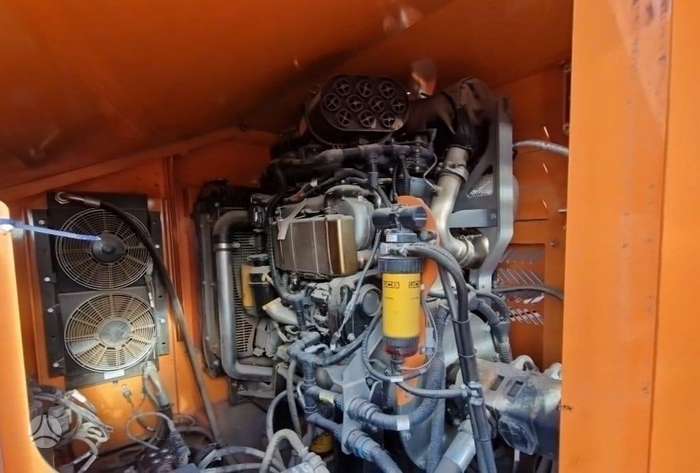

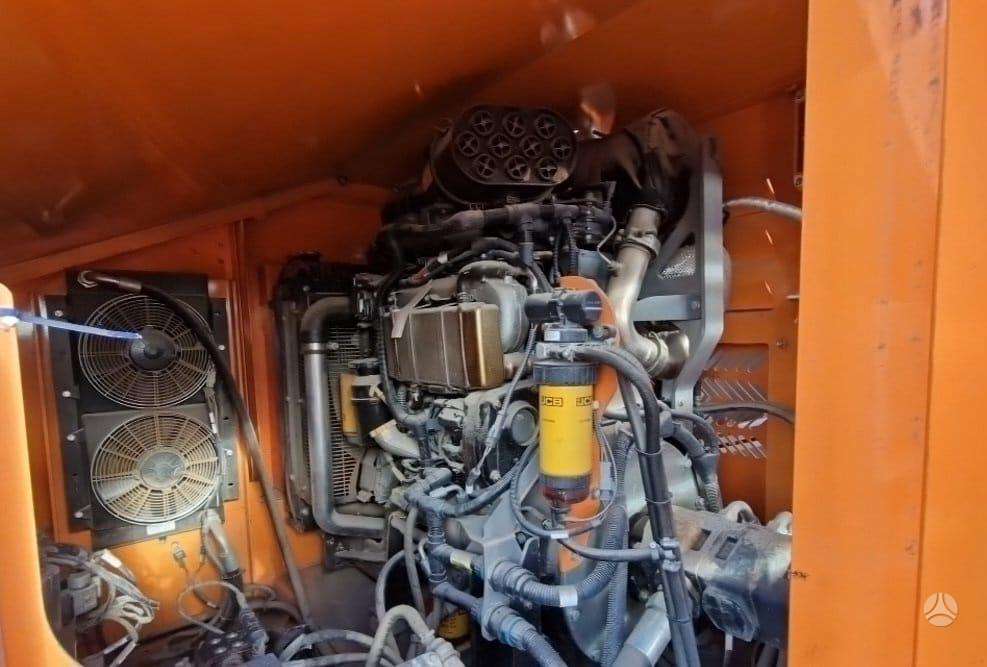

Engine JCB 444 / 93 kW, Stage V
Fuel tank capacity 465 l
Hydraulic oil tank 550 l

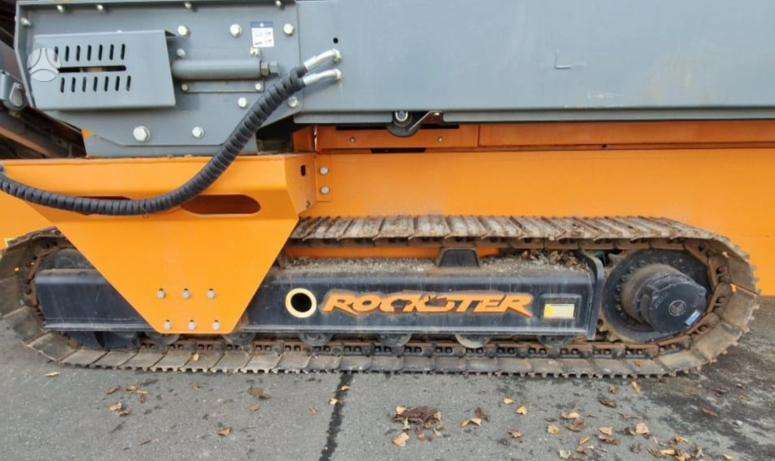

Track width 400 mm
Transport weight approx. 28.5 t
Transport length 16.15 m
Transport width 3.15 m
Transport height 3.48 m
Working length 17.50 m
Working width 15.60 m
Working height 5.50 m
