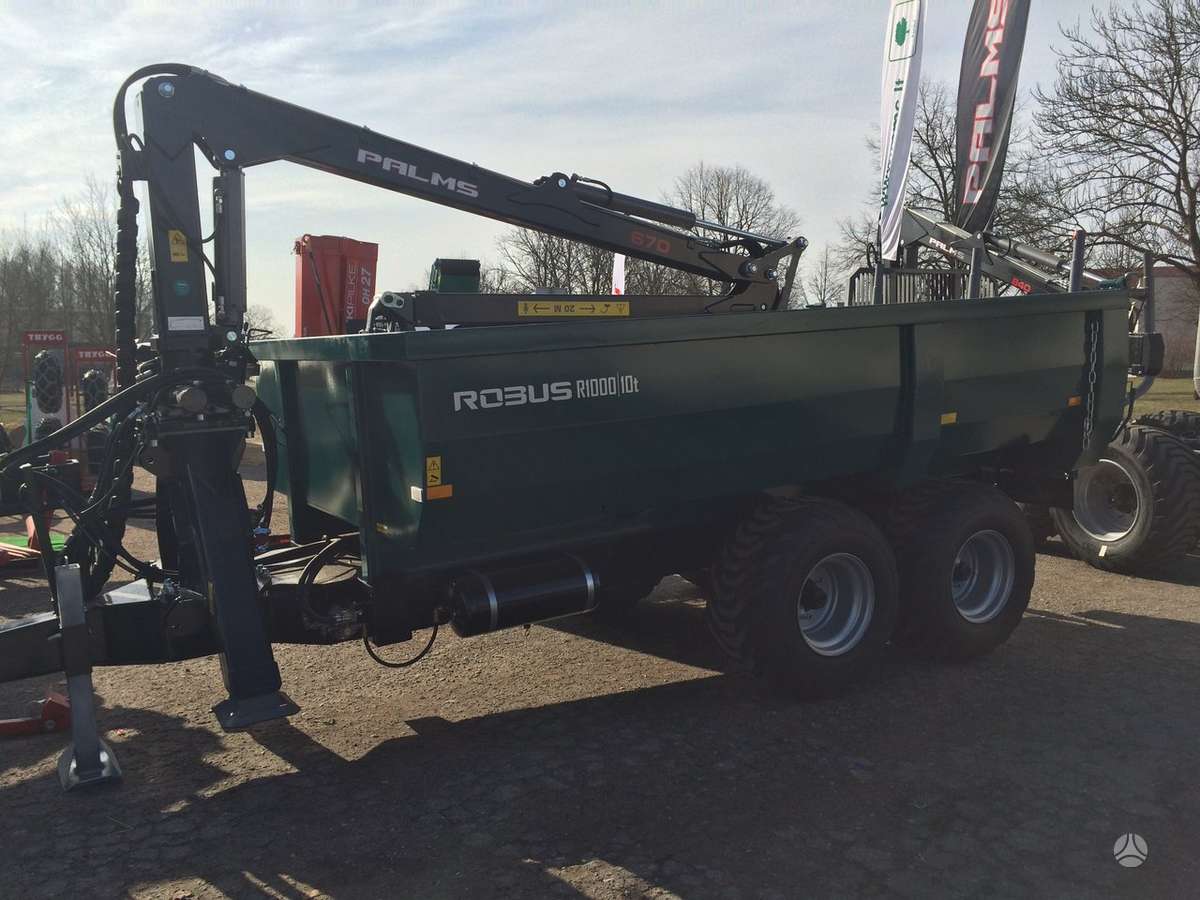

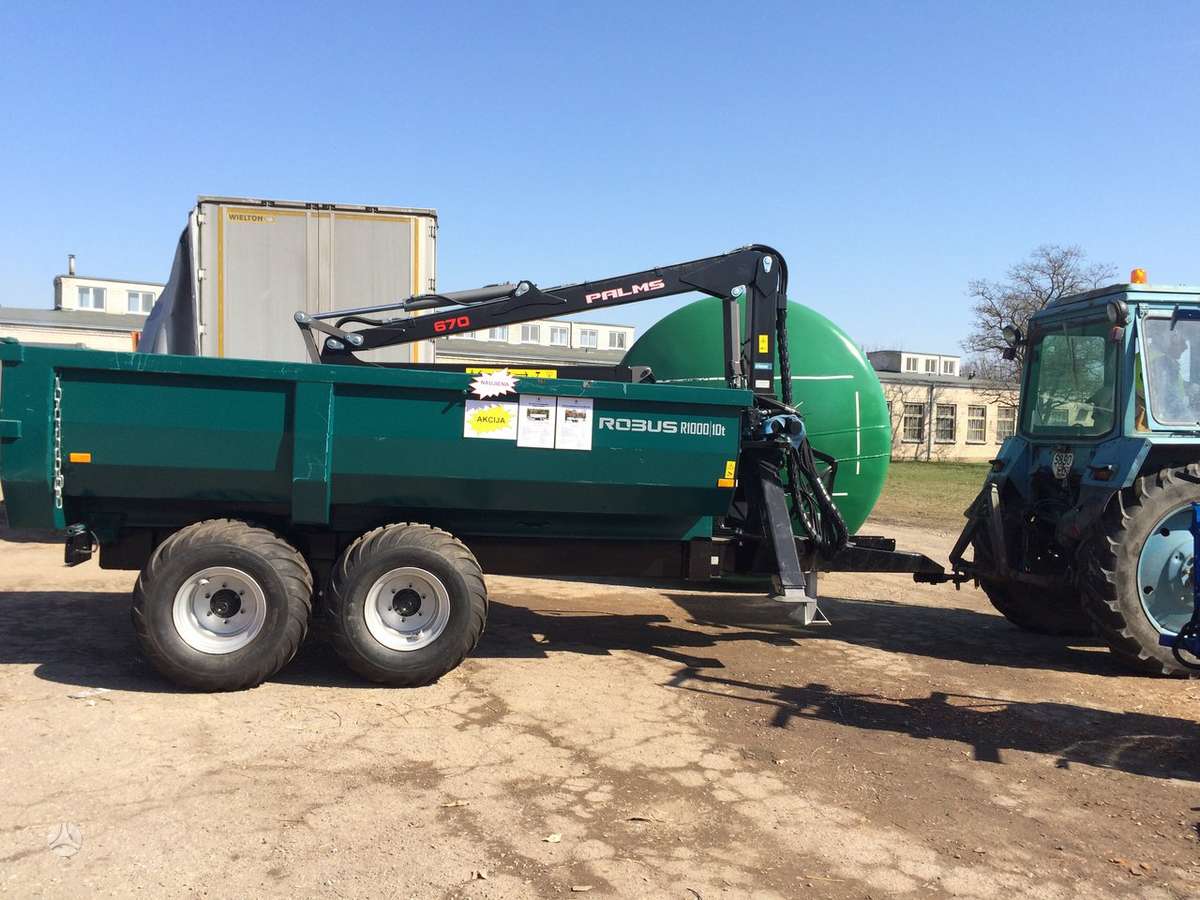

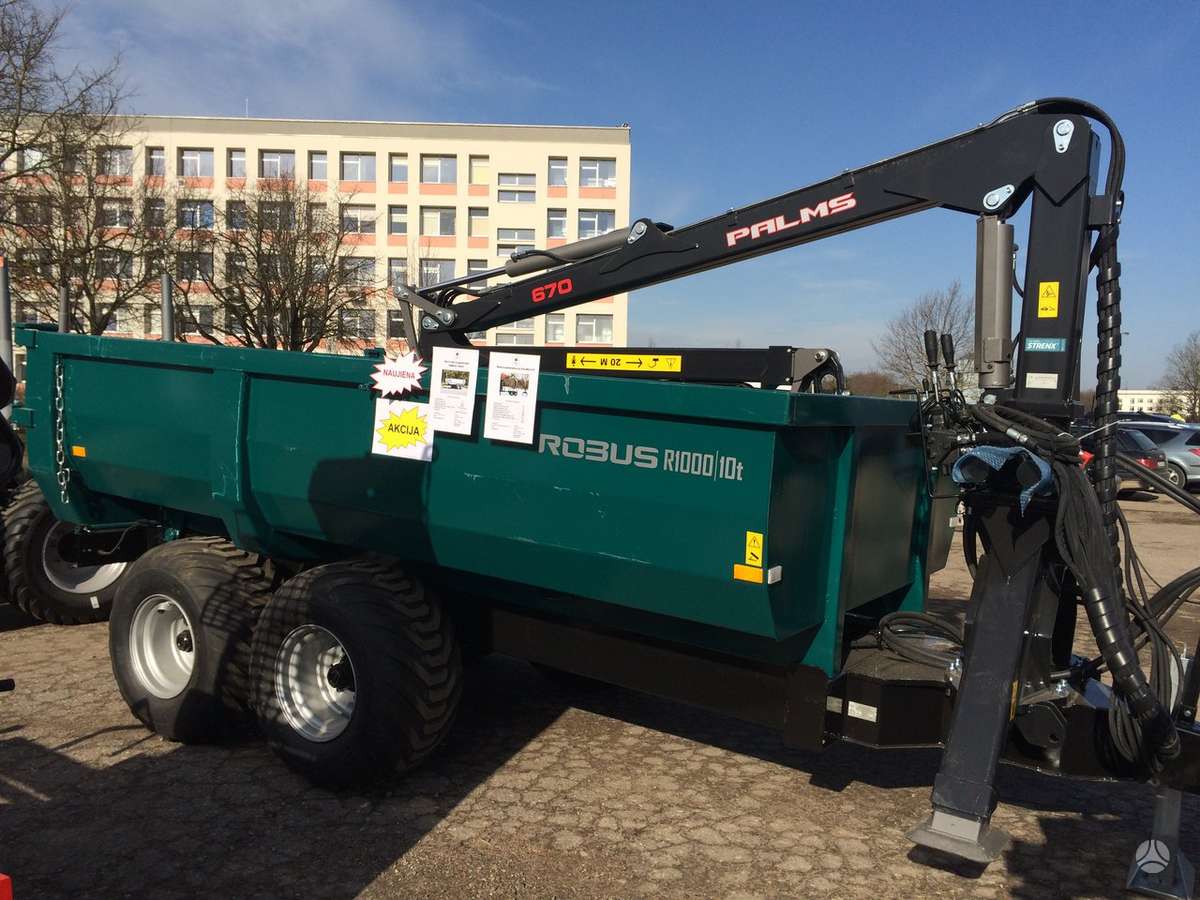

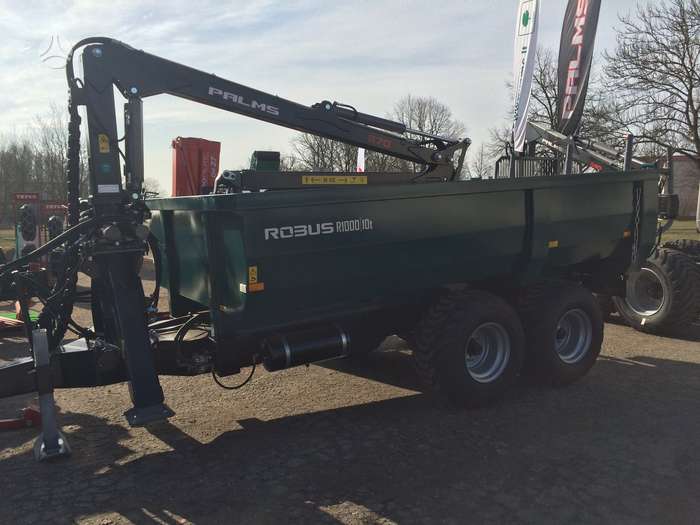

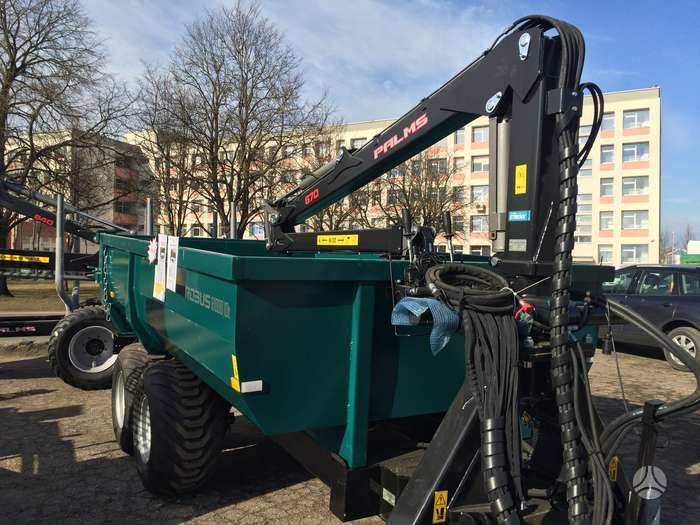

We offer for purchase an Estonian-made universal self-loading tipping dropside trailer ROBUS R1000T with a PALMS 3.67 hydraulic manipulator.

Technical data and specification:
Trailer R1000T
Lifting capacity, kg 10000
Trailer weight, kg 2350
Trailer height, mm 1891
Trailer width, mm 2550
Trailer length, mm 5685
Side wall height, mm 800
Platform dimensions, mm 3970x2310x800
Capacity, m³ 7.4
Hitch load, kg 1800
Permissible axle load, kg 5275
Number of axles 2
Brakes None
Tipping cylinder NAS 4

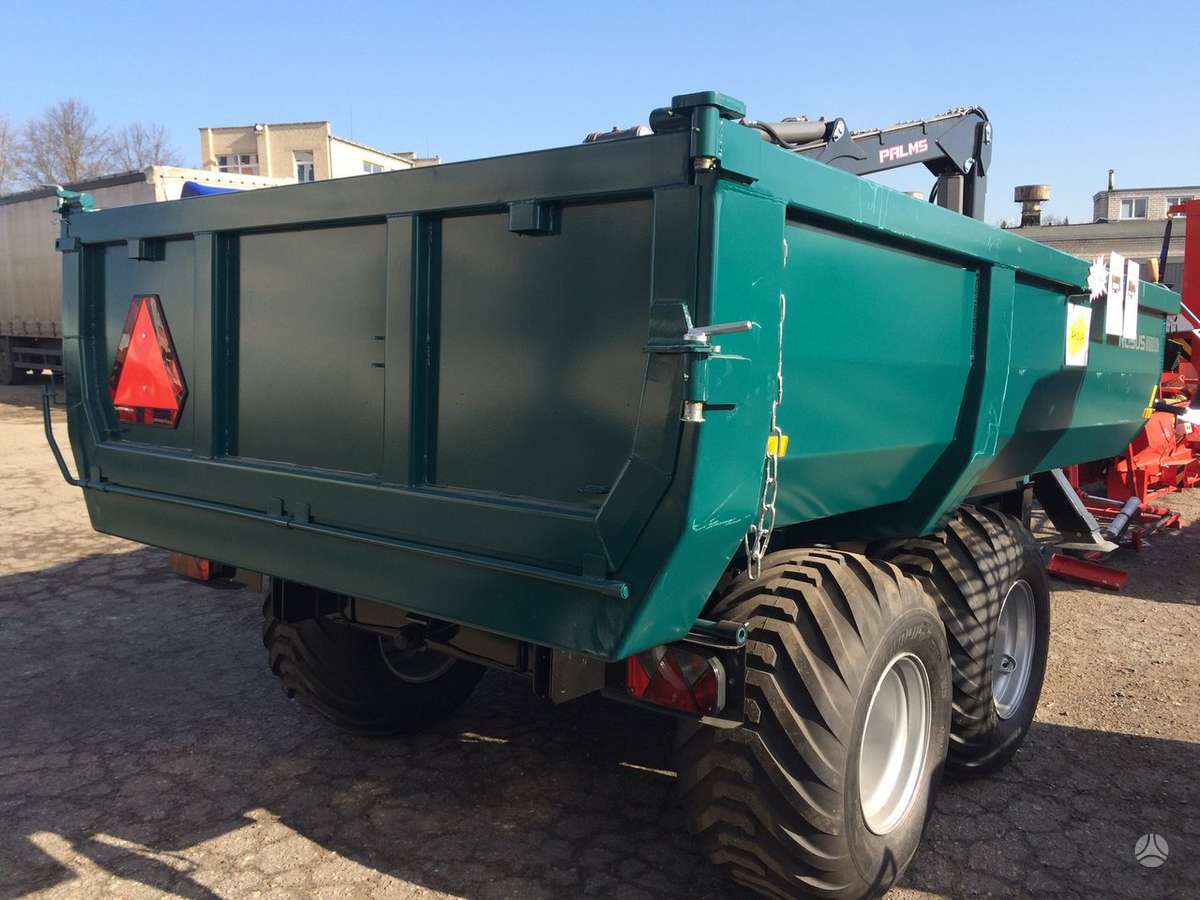

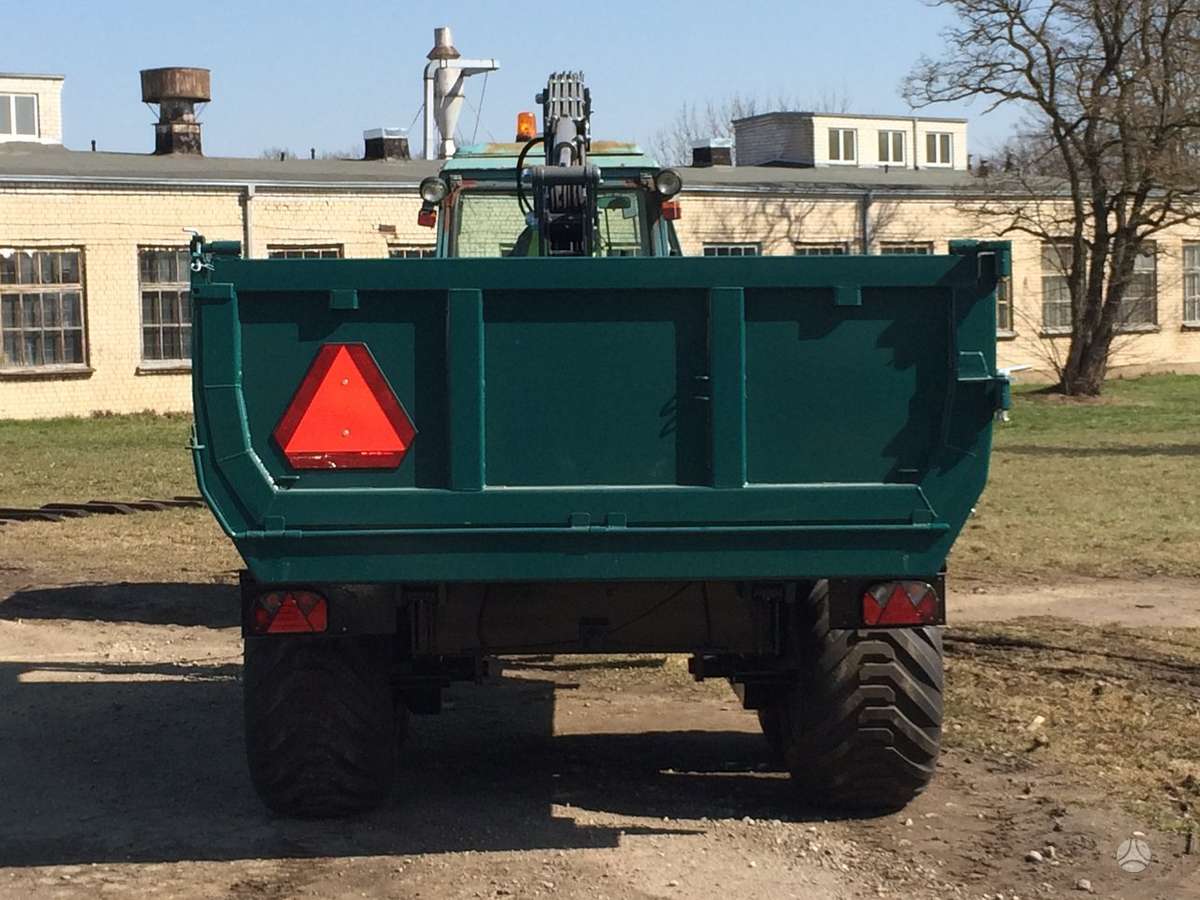

Hanging rear tailgate Yes
Hydraulic system operating pressure, bar 180
Axle/number of nuts 70x70/6
Maximum speed, km/h 40
Wheels 400/60-15.5

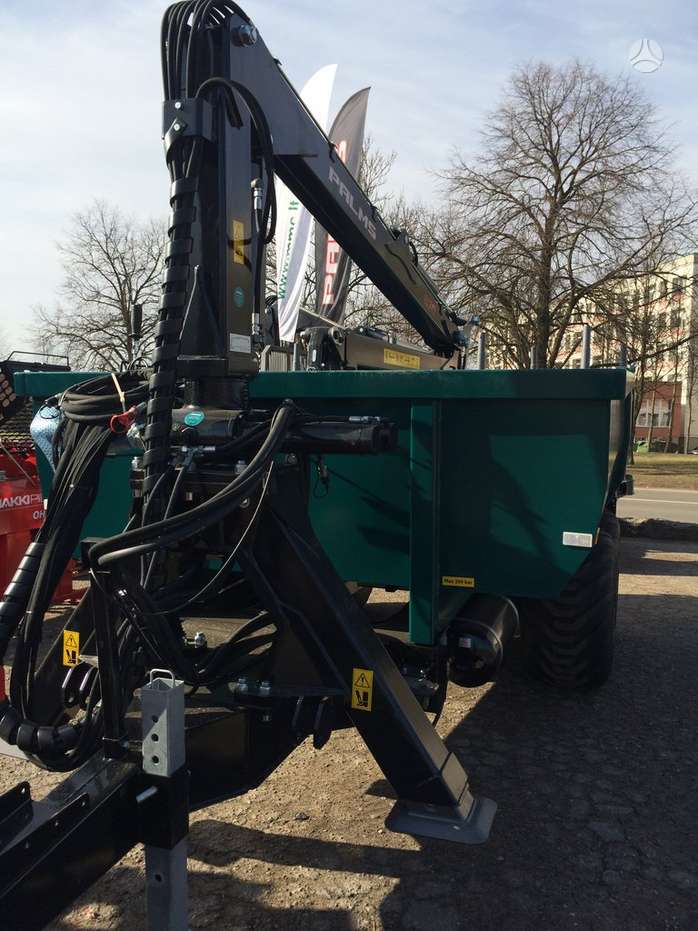

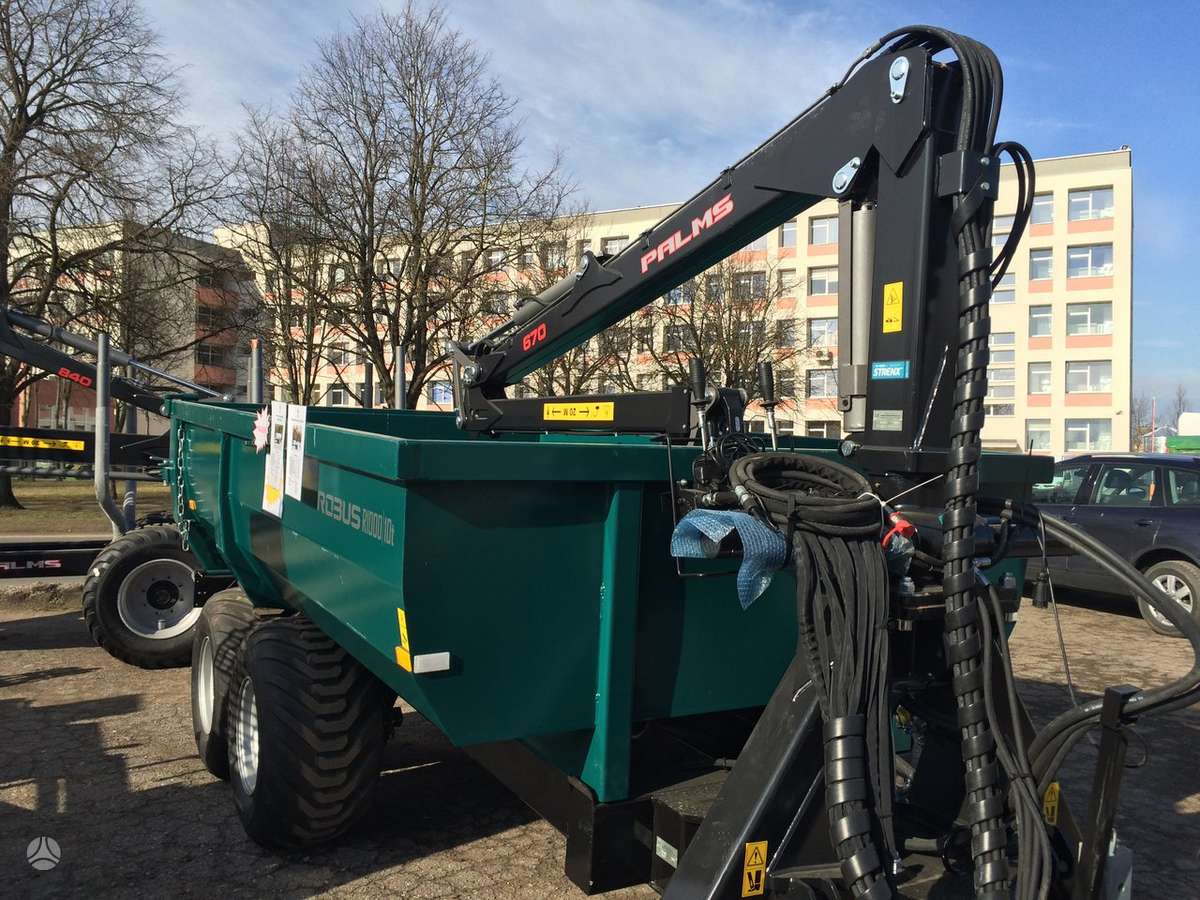

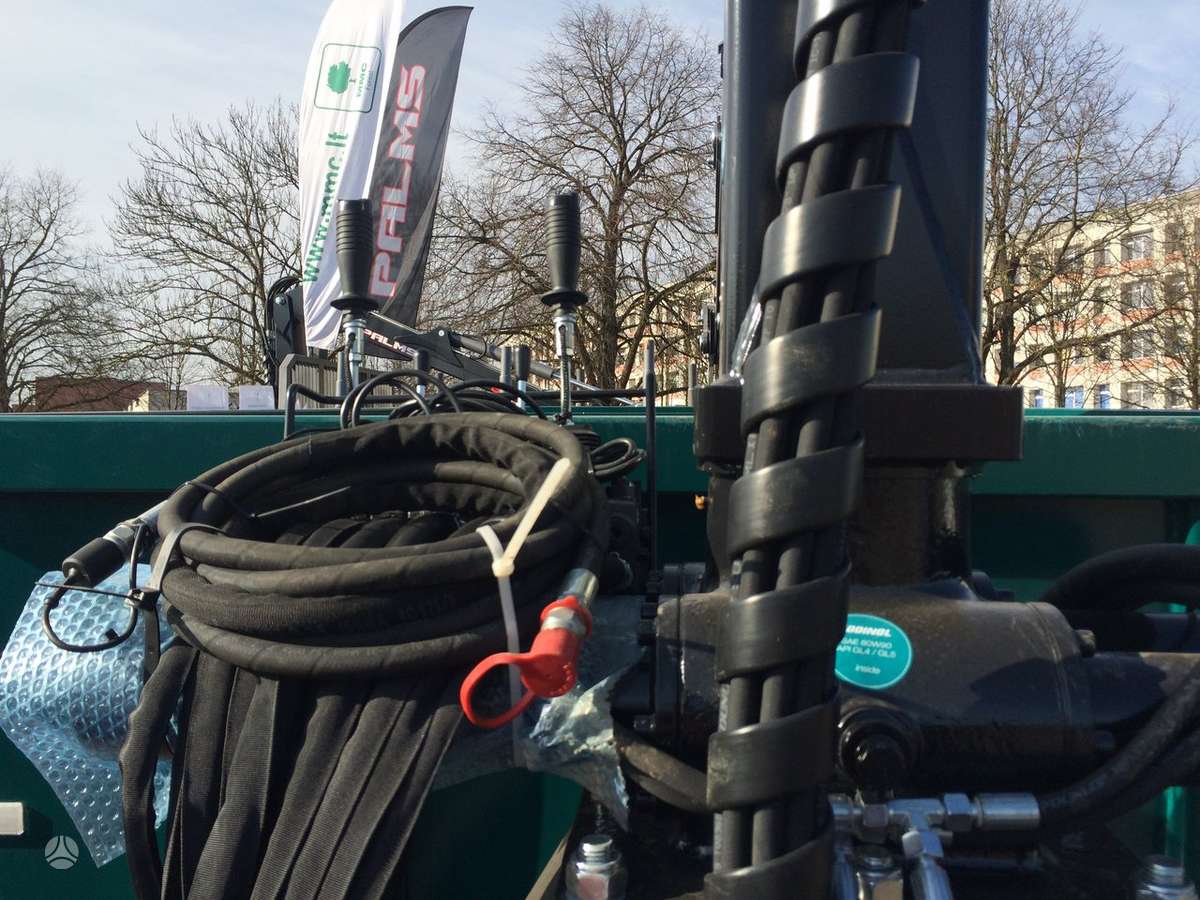

Hydraulic manipulator PALMS 3.67
Boom reach, m 6.7
Lifting torque, kNm 42
Required min hydraulic oil pump capacity, l/min. 40
Hydraulic system operating pressure, bar 180
Grapple 0.21
Boom slewing cylinders, pcs. 4
Boom slewing angle, ° 360
Rotator rotation angle, degrees unlimited
Lifting capacity at 4 m, kg 840
Lifting capacity at full reach, kg 480
Control valve HC 4/8 XY+el. on/off
Support legs A-type

Trailer price without hydraulic manipulator from - 13000 EUR + VAT

A larger or smaller hydraulic manipulator can be chosen.

Possibility to buy on installment without bank services.
