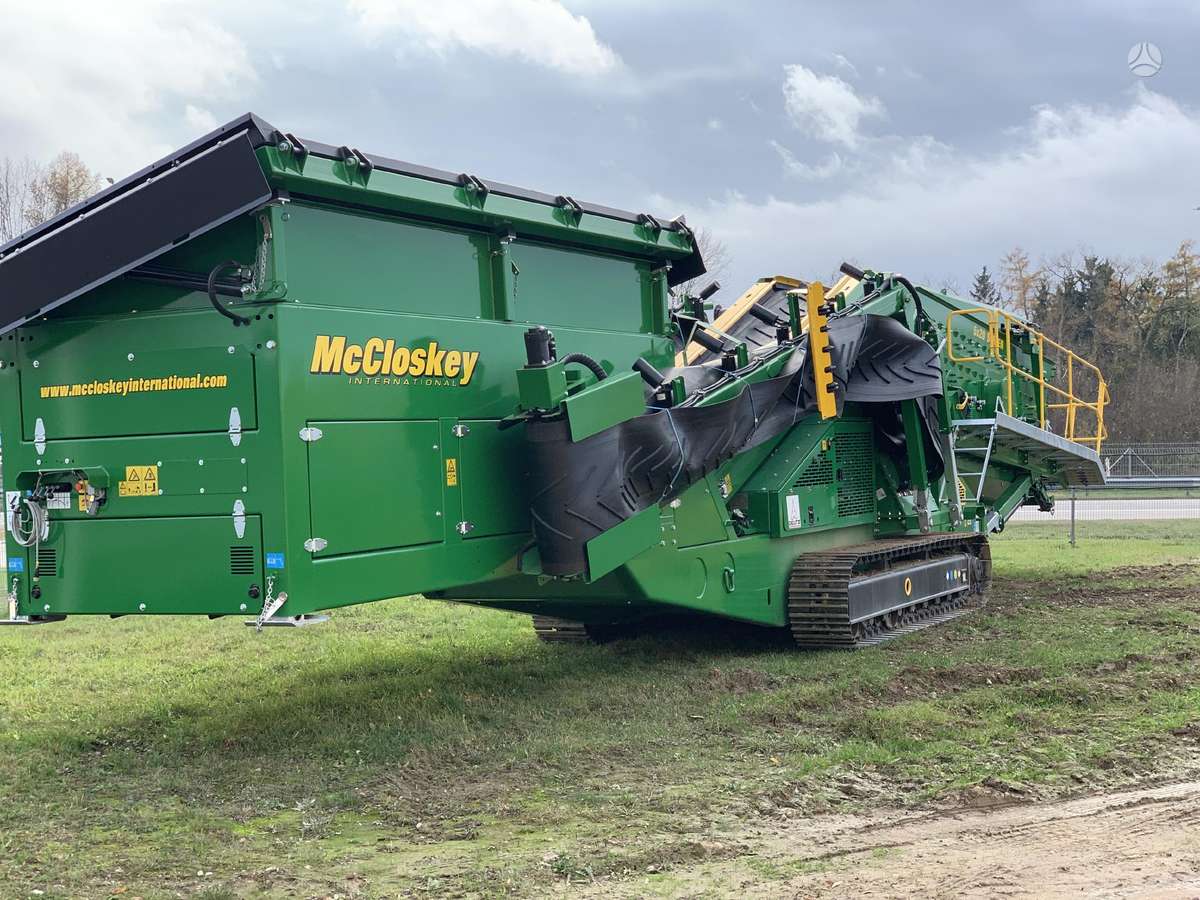

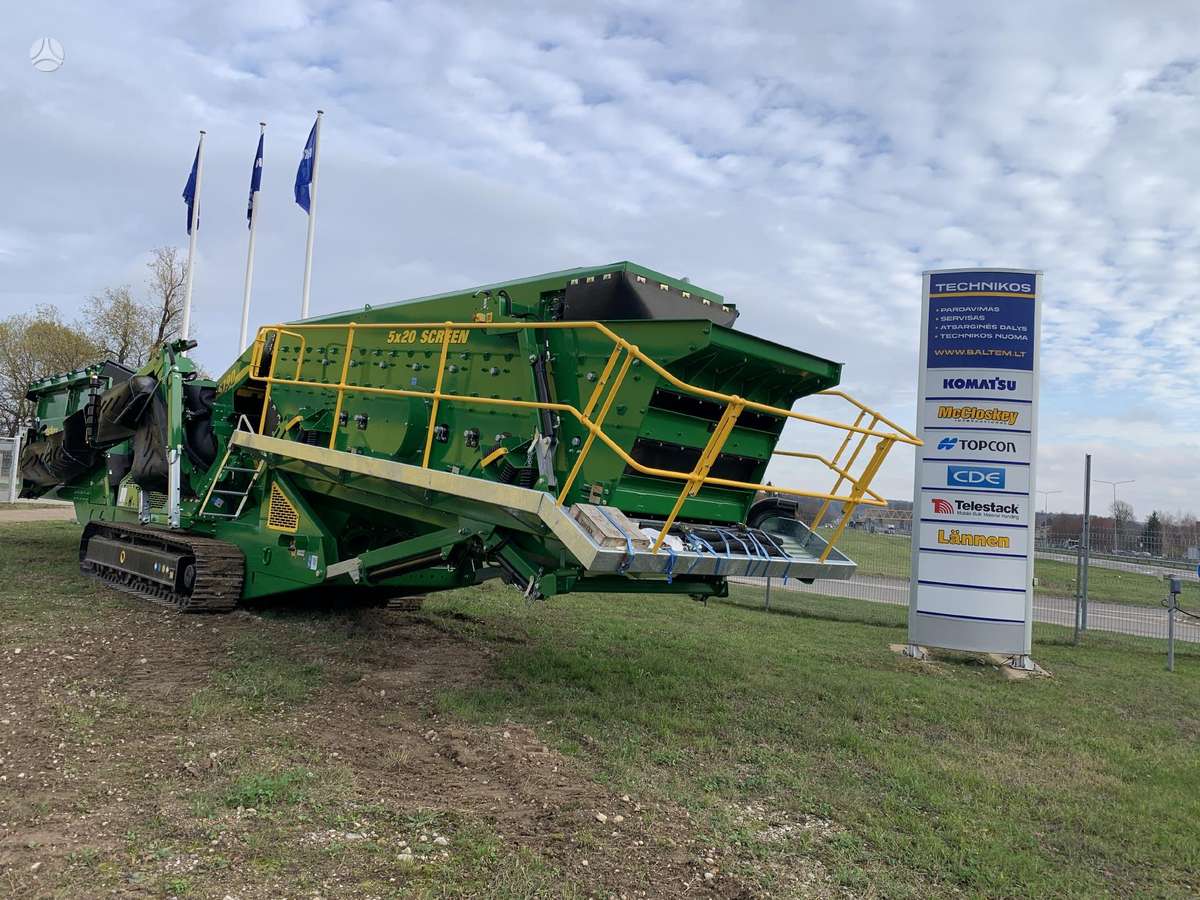

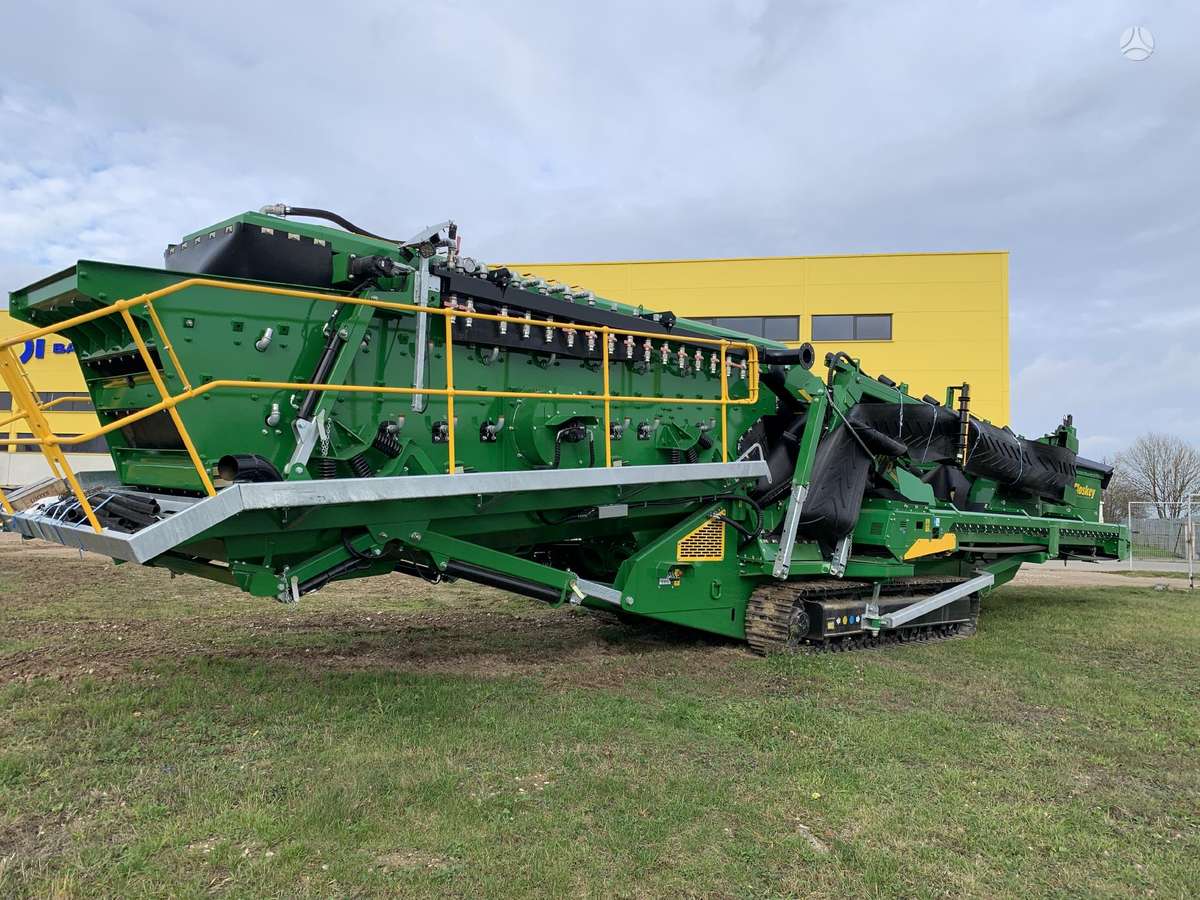

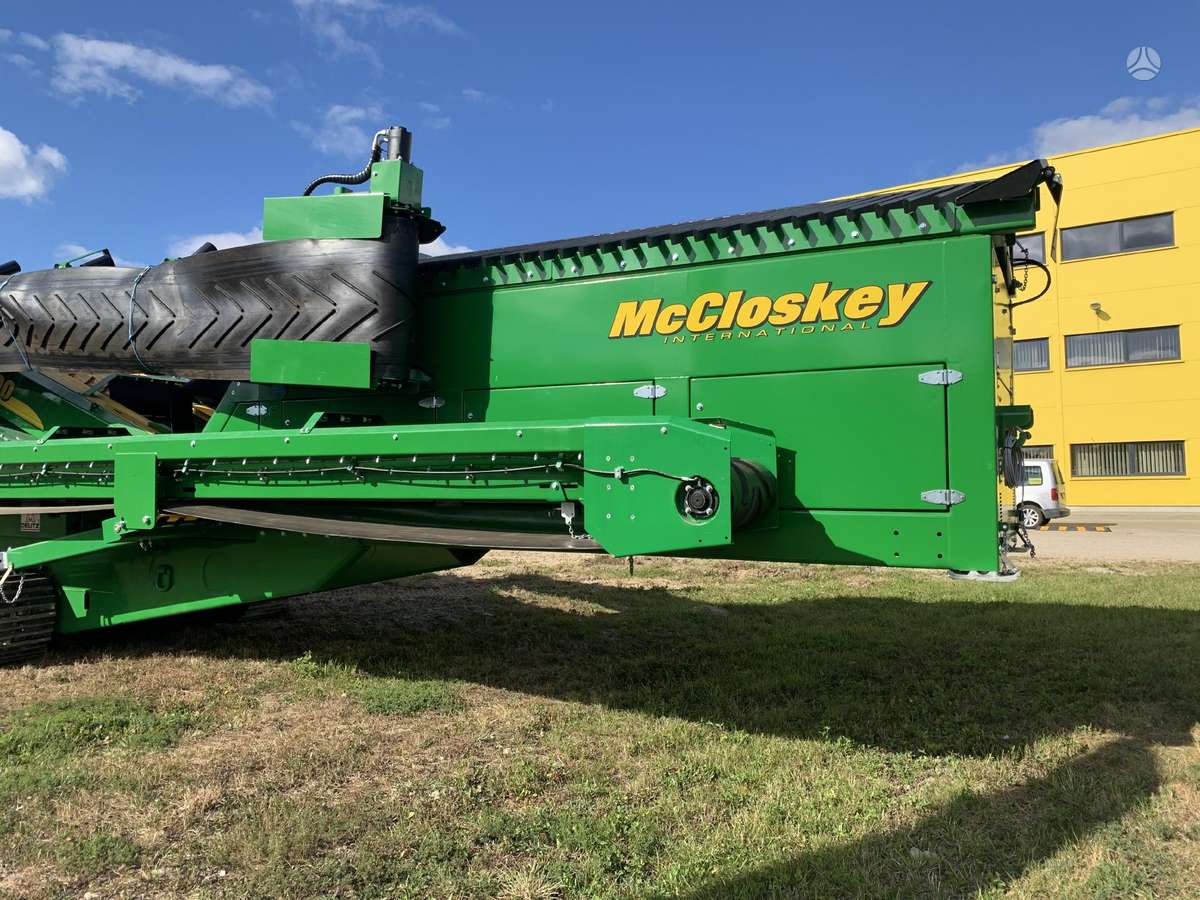

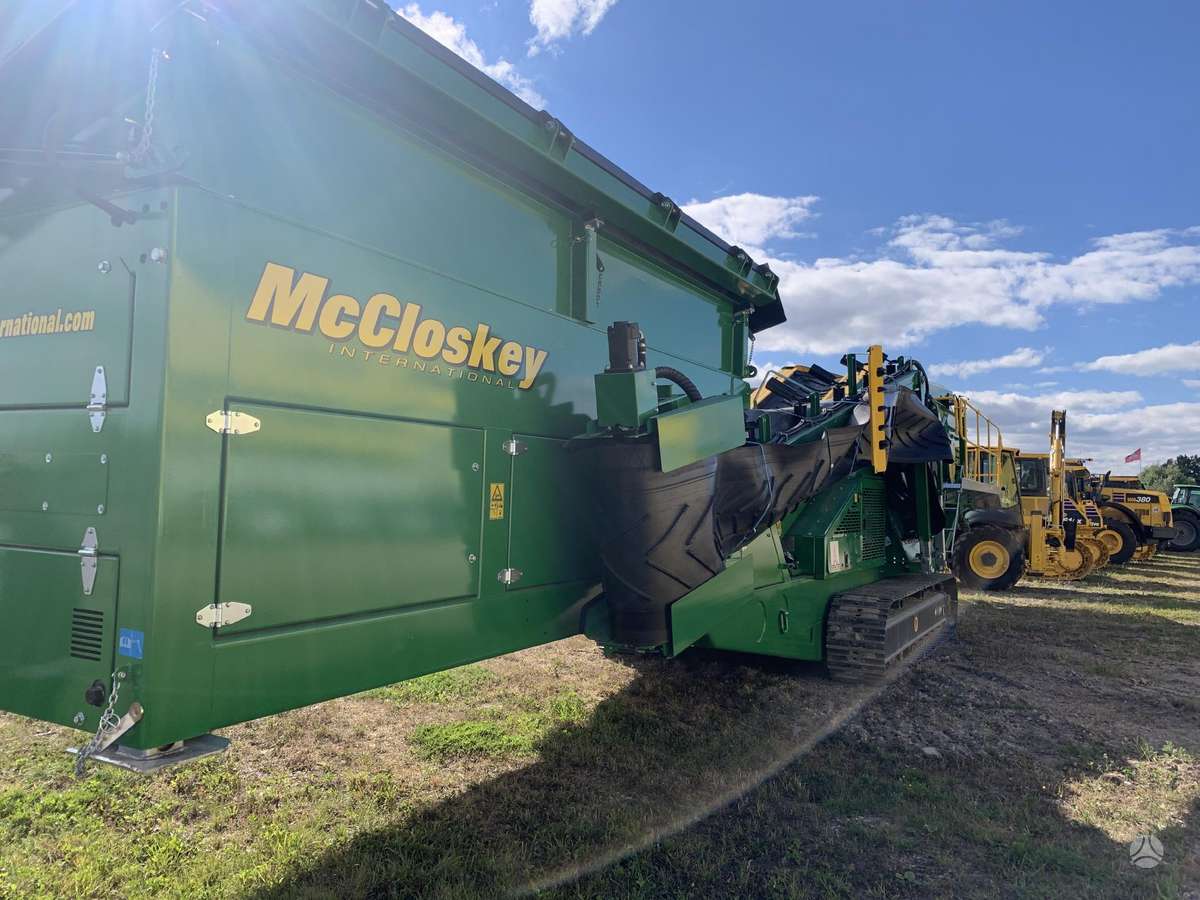

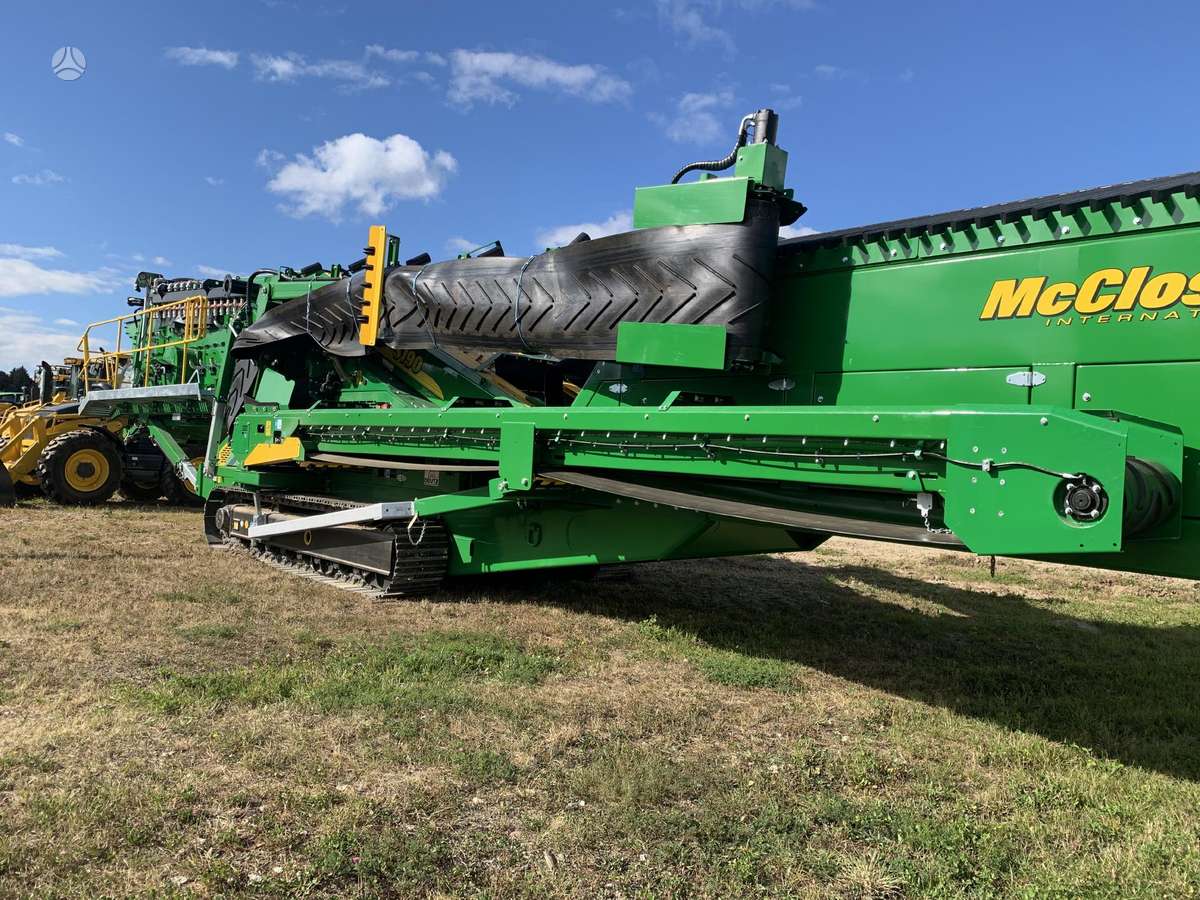

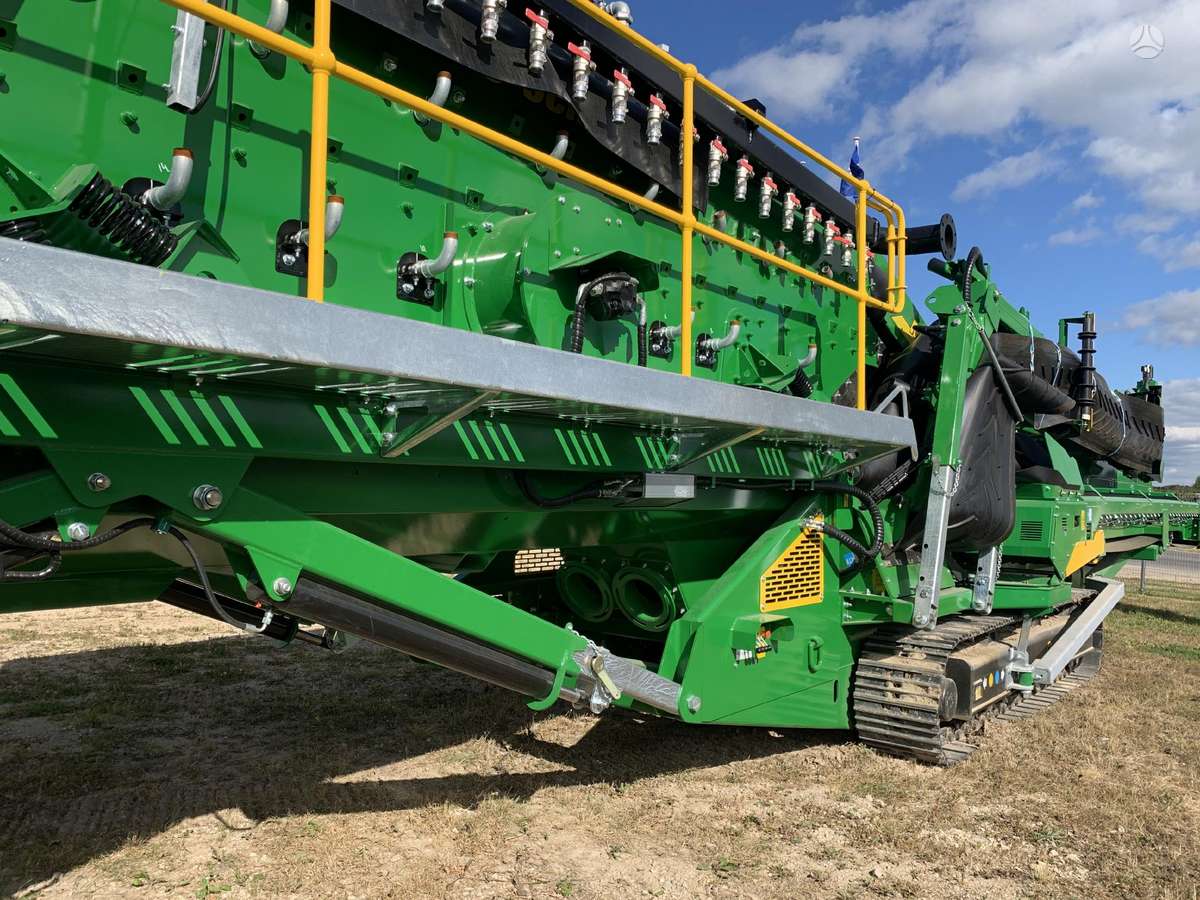

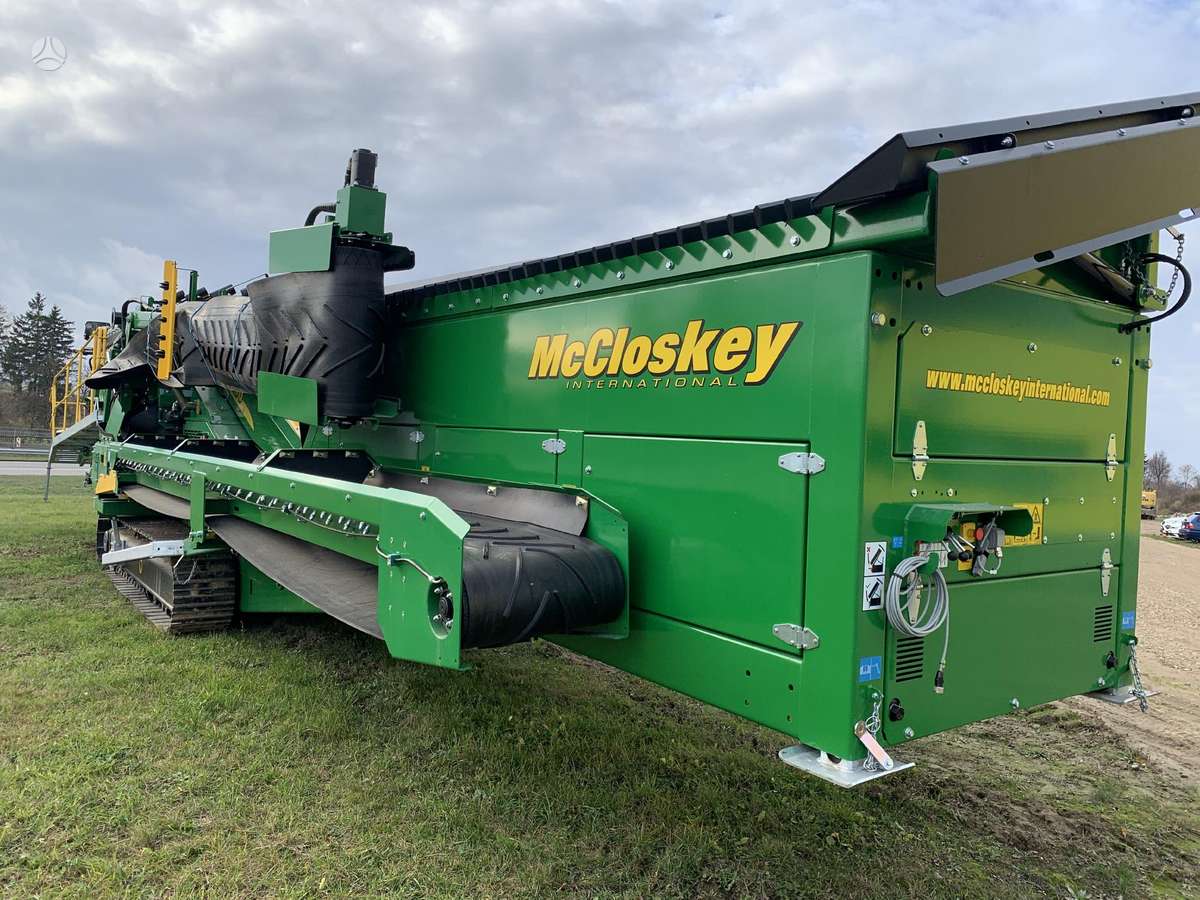

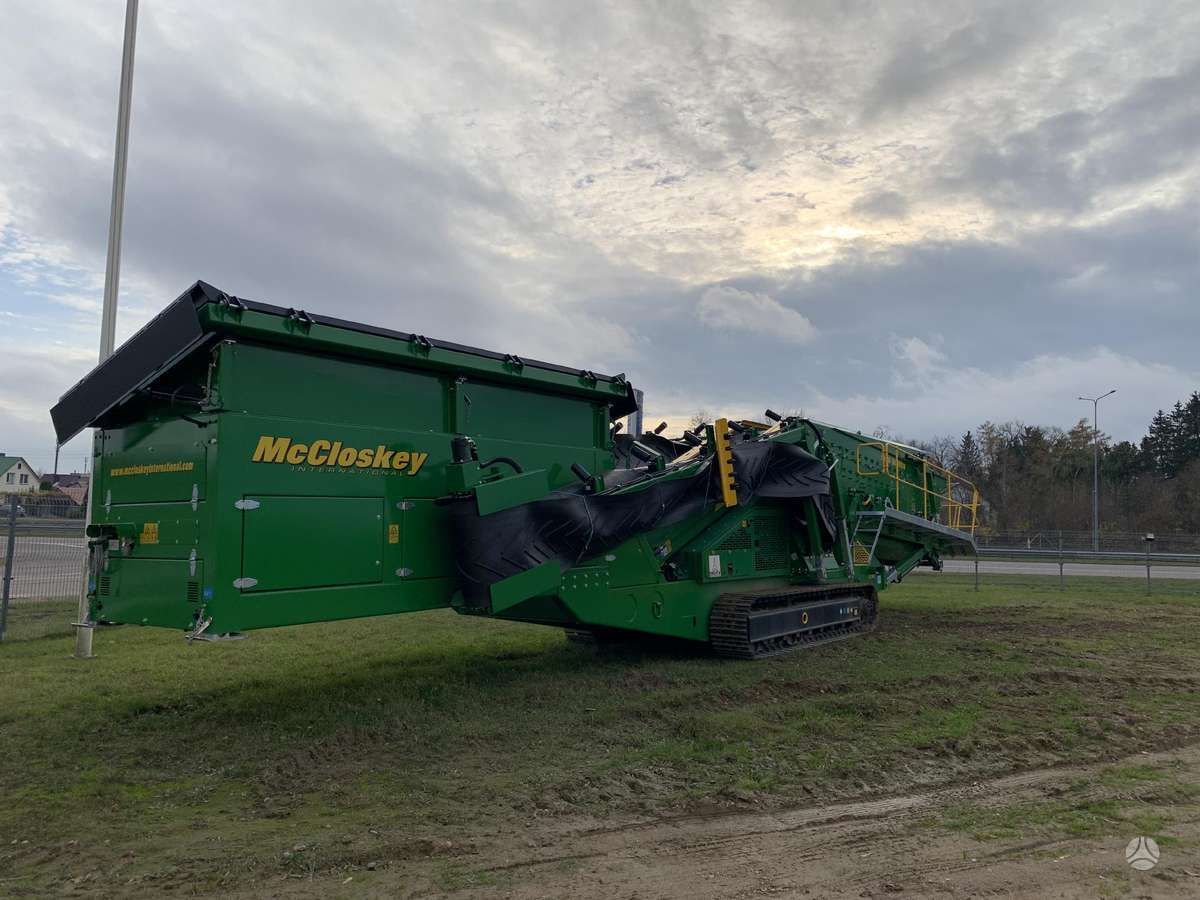

The Dual Power and two or three-deck S190 model improves industry performance standards and outperforms competitors with the most advanced and innovative 20 x 5 ft mobile vibrating screening plant currently in use. The S190 high-energy screener clearly demonstrates McCloskey's commitment to integrating customer-focused features as standard equipment.

The adjustable screen box angle allows the unit to be adapted for work with a wide variety of materials, including quarrying, mining, sand and gravel, coal screening, topsoil, and wood chips. The top-spec S190 screener with quality components easily takes first place with its high productivity, quality, and value. The S190 three-deck model has the largest total actual screening area (including all decks), and with the addition of high screening energy, McCloskey S-series models become the best choice for material screening.

Features
Dual Power available

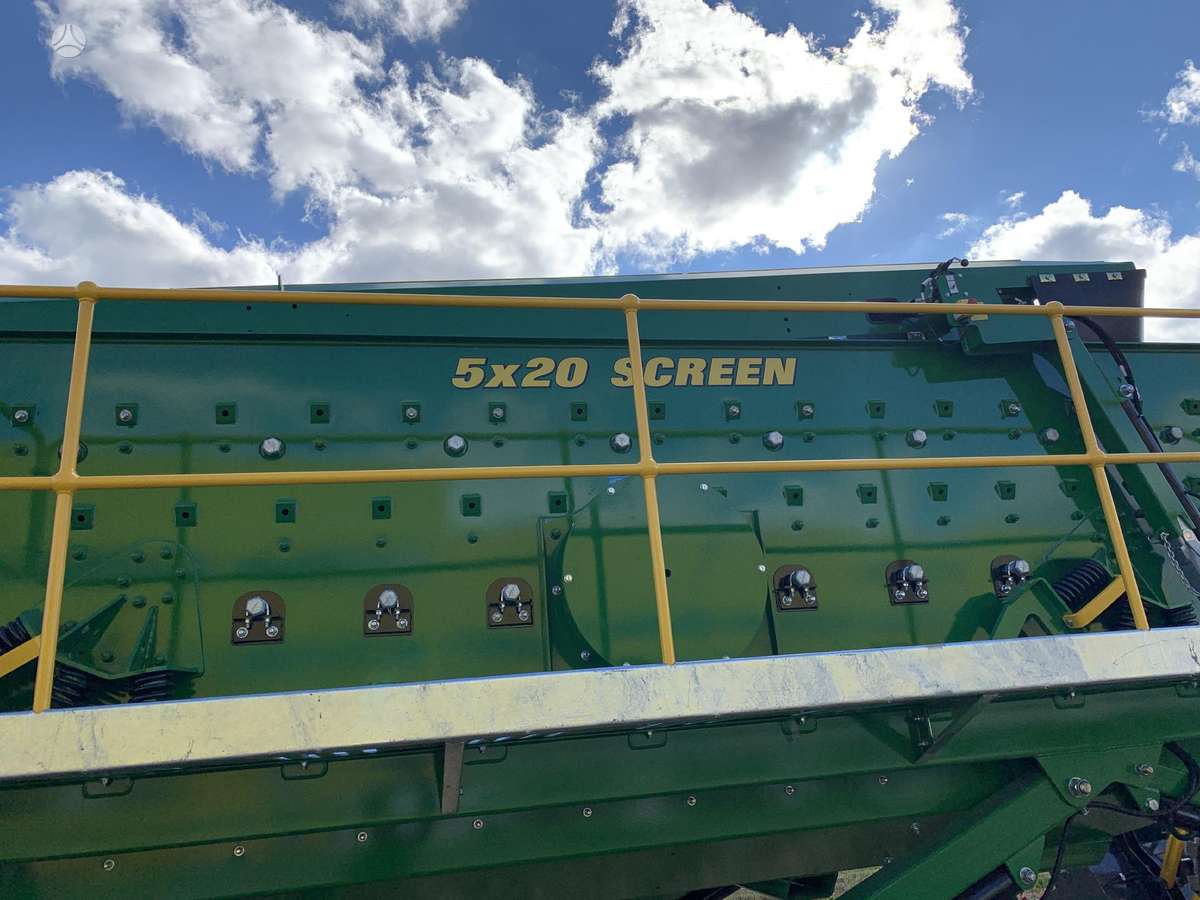

The most advanced 6100 mm x 1524 mm (20 x 5 ft) unit in use
12 ft hopper capacity 8.01 m³ (10.48 yd³) or 15 ft hopper capacity 10.01 m³ (13.09 yd³)
1200 mm (48 in.) feed conveyor
Remote-controlled tipping grid
Set up for work in 10 minutes.

SPECIFICATIONS (track model)
S190 two-deck
Engine*
130 HP (98 kw)
Screen box top deck
5 x 4 ft, side tension – from 5
Screen box bottom deck
5 x 6 ft, end tension – from 3
Main conveyor belt width
1050 mm (42 in.)
Tail conveyor discharge height
4638 mm (15 ft 3 in.)
Side conveyor discharge height
5100 mm (16 ft 9 in.)
