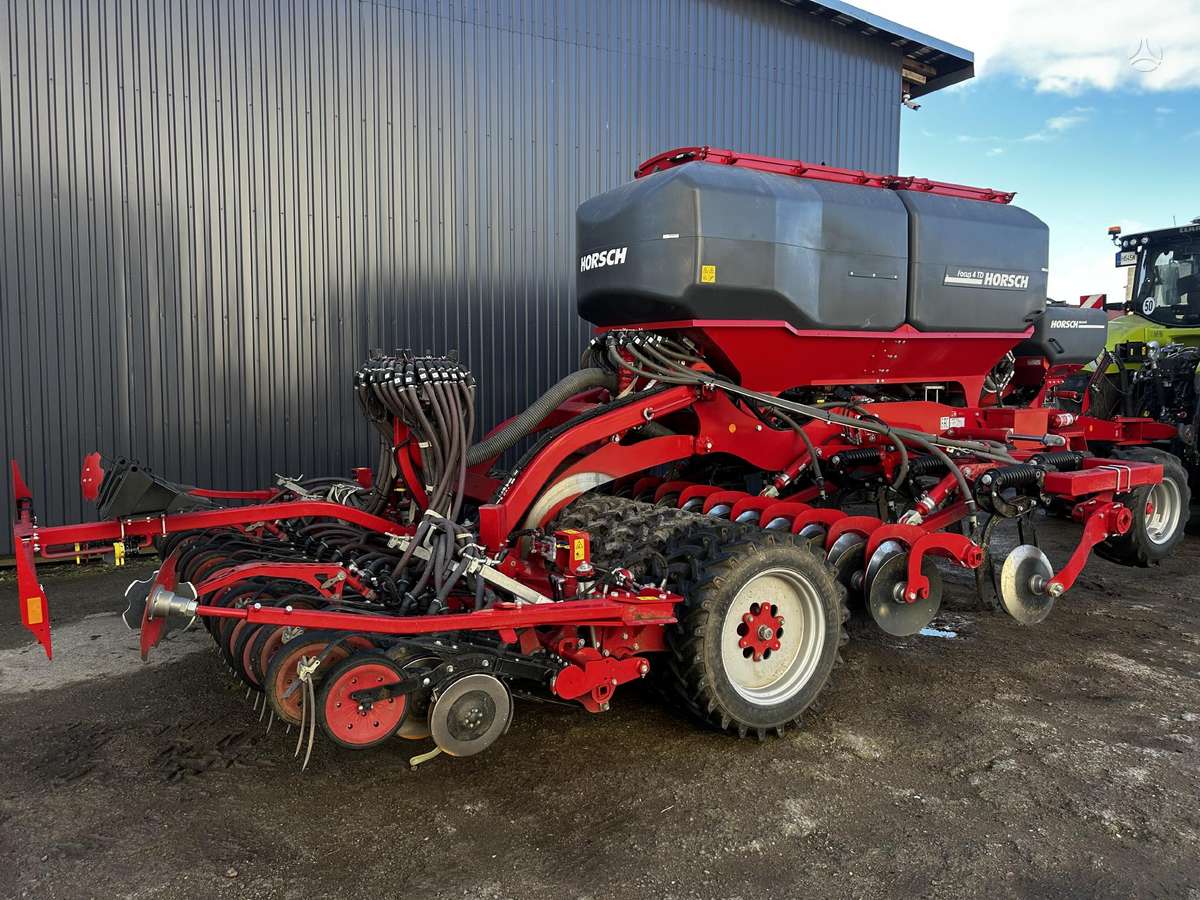

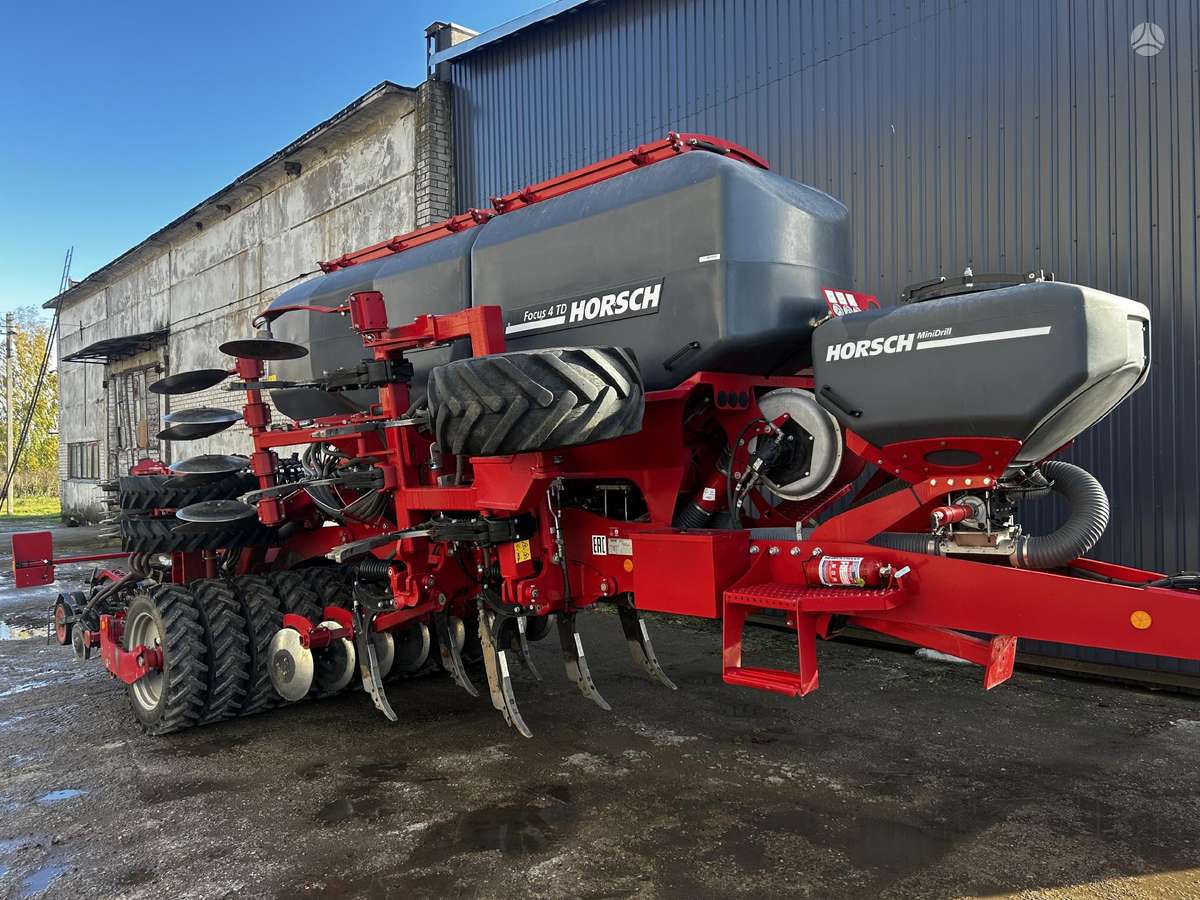

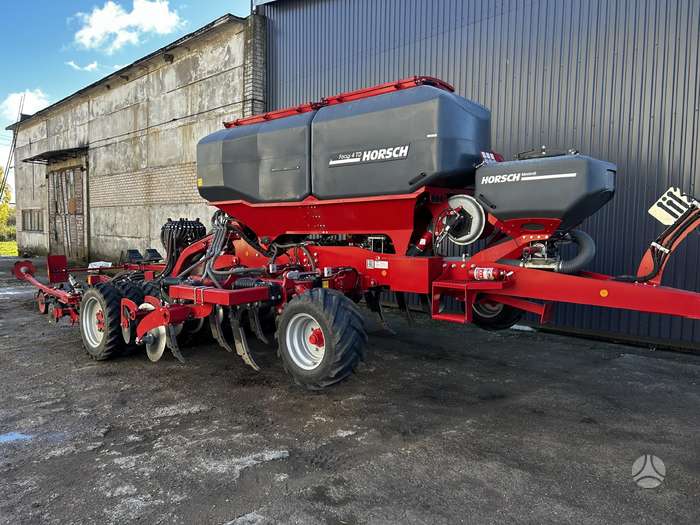

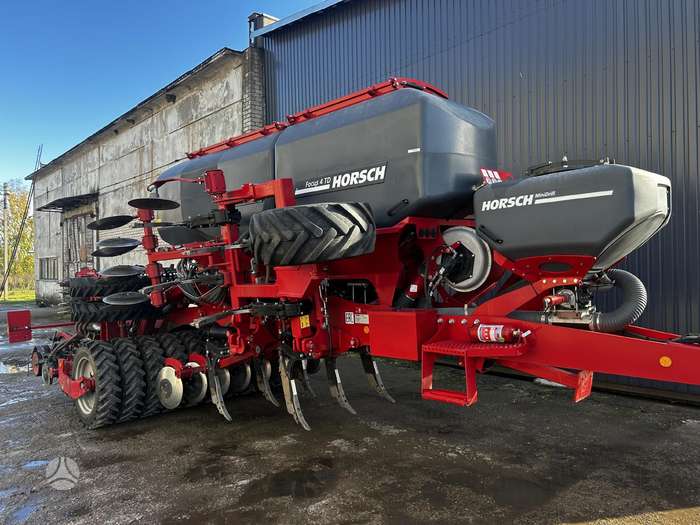

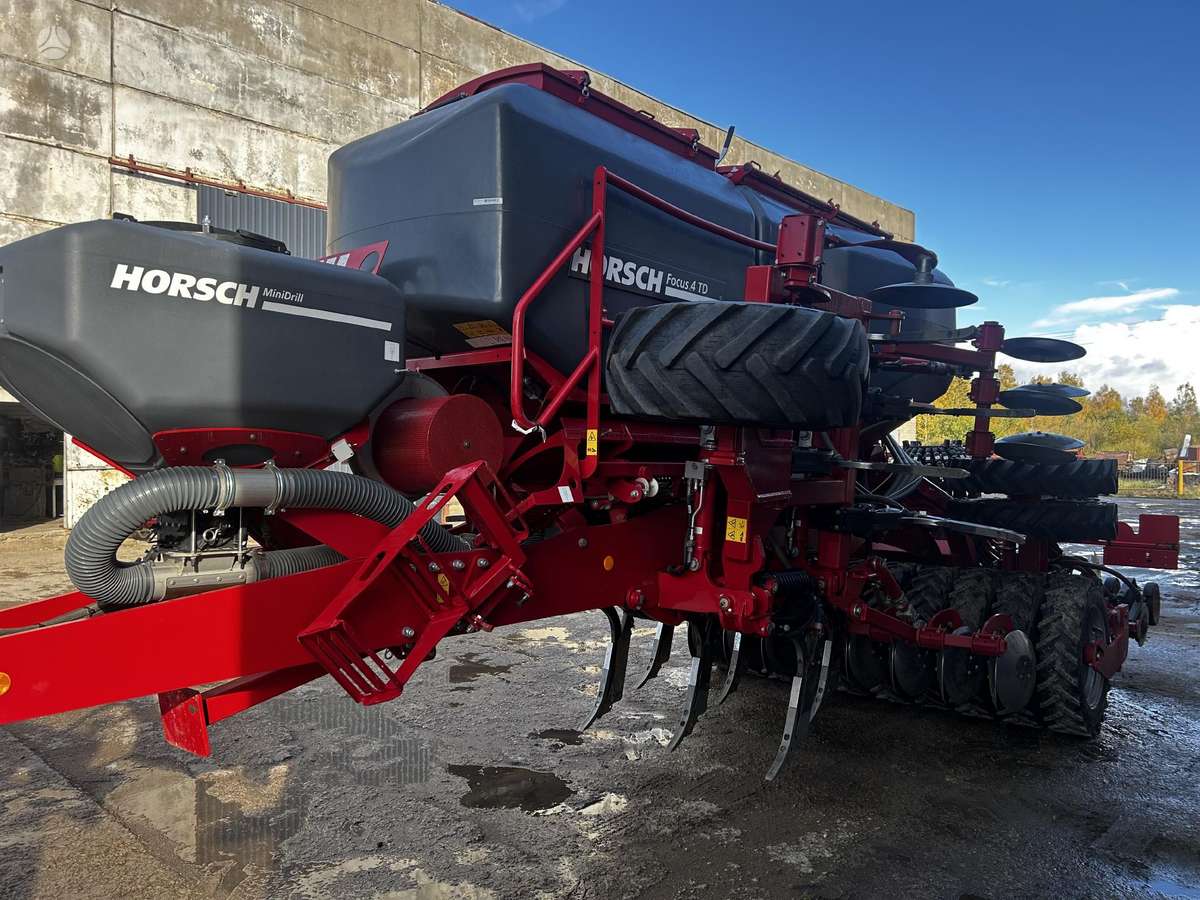

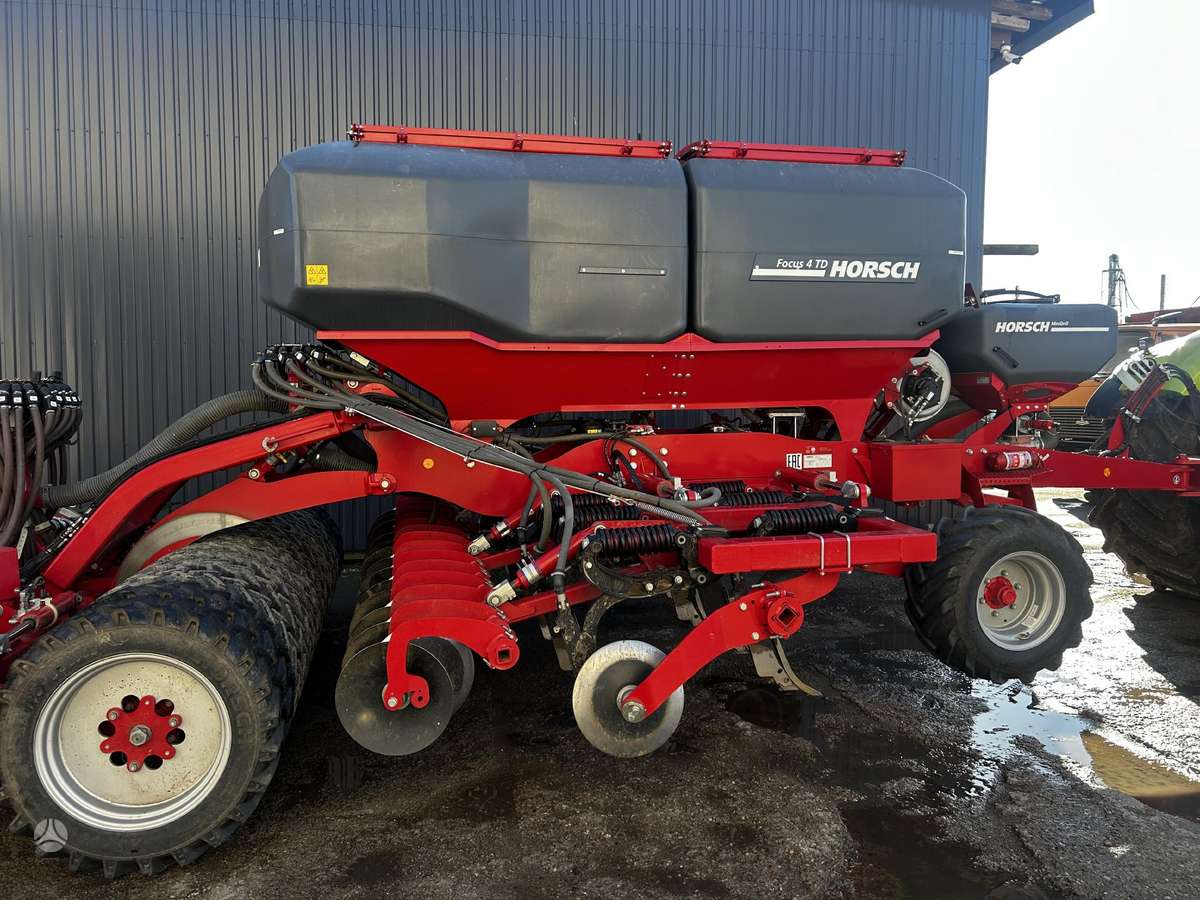

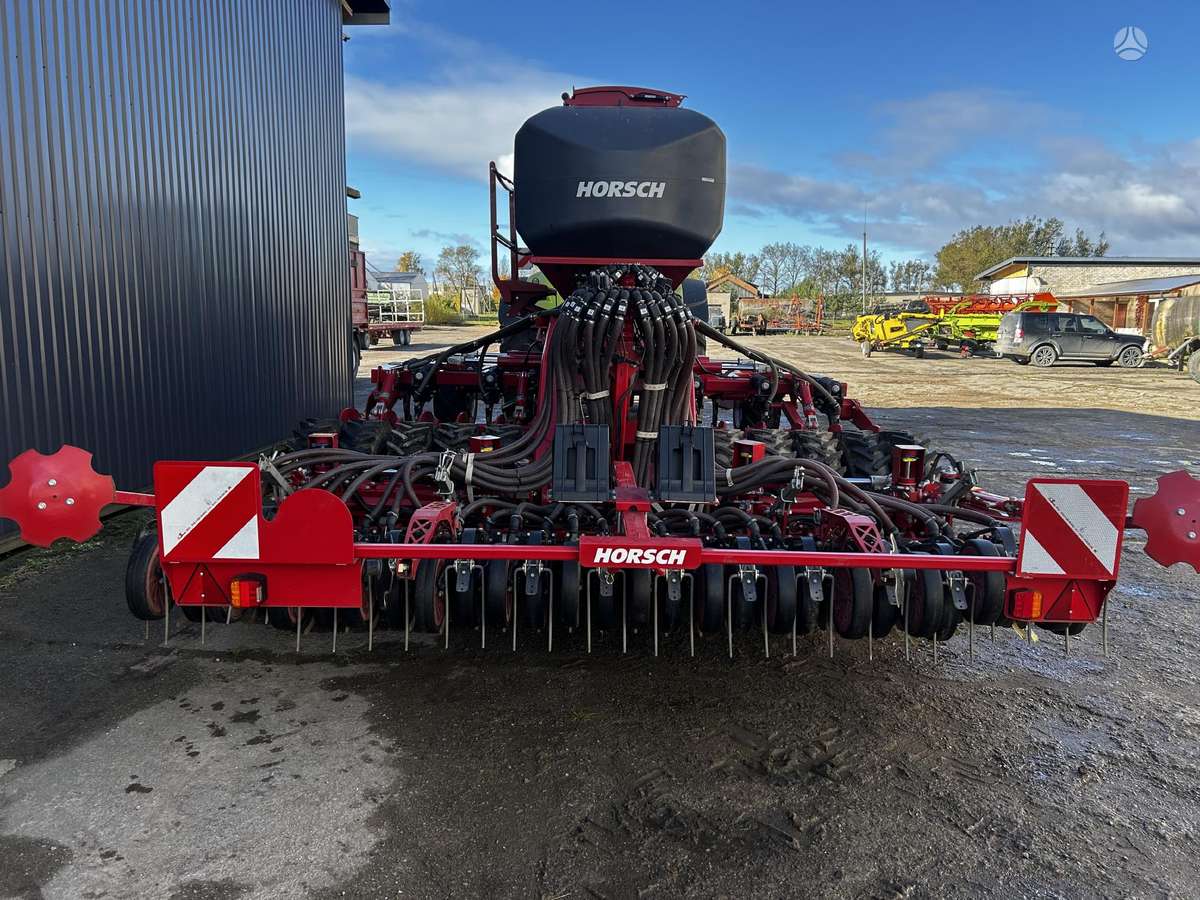

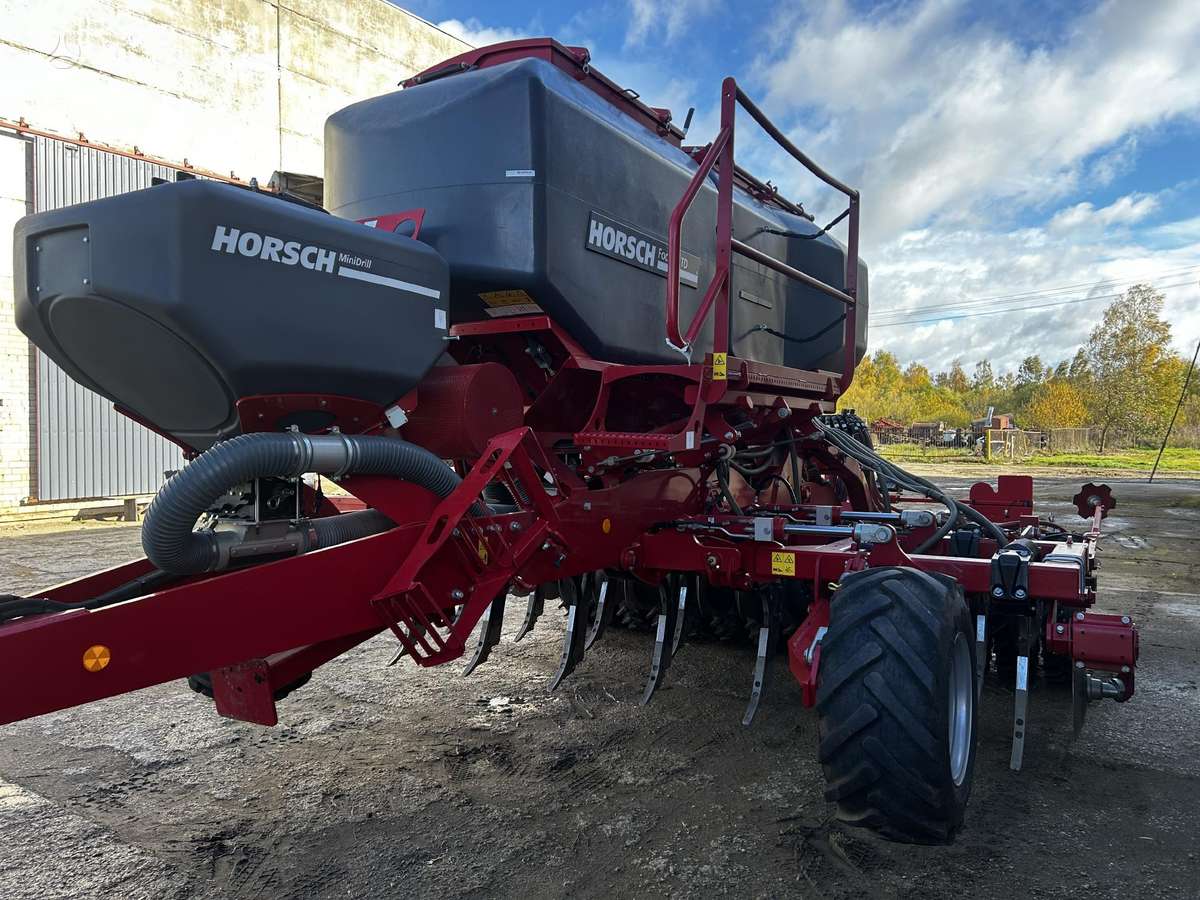

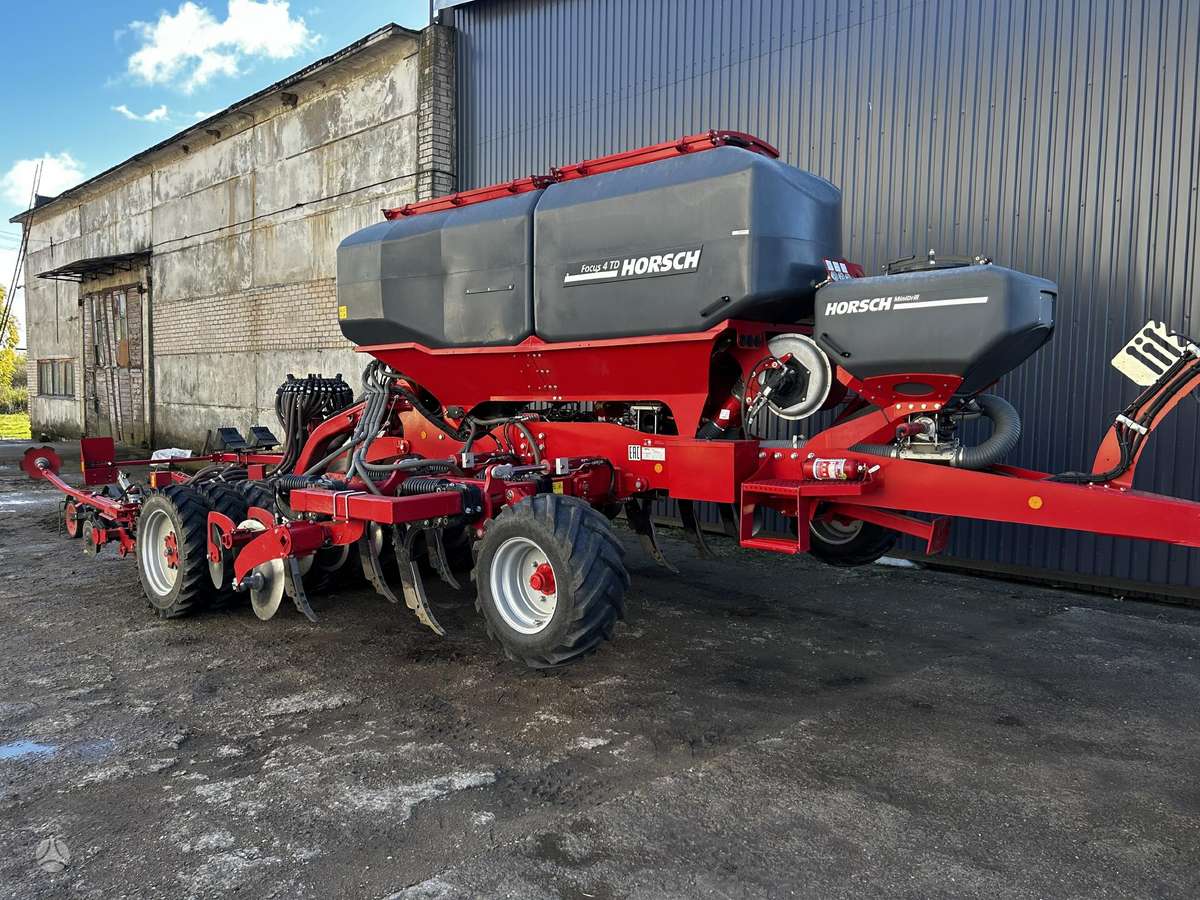

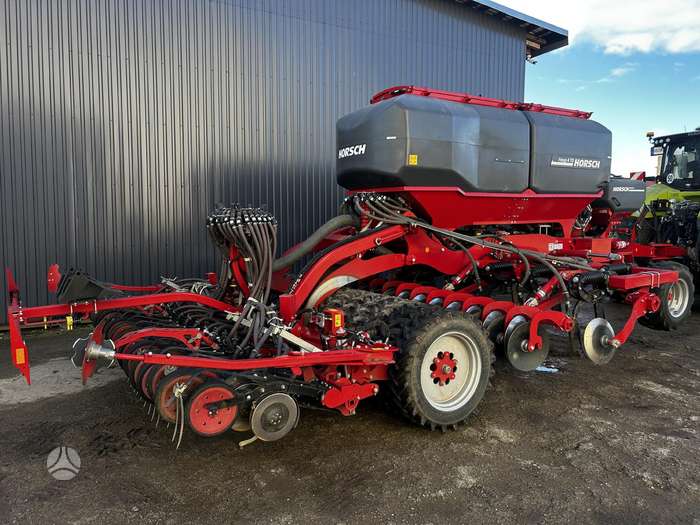

Disc strip-till seeder;
Working width 4.00 m;
Transport height 3.35 m;
Transport width 3.00 m;
Transport length 9.77 m;
Weight 8,240 kg;
Hopper filling height 2.95 m;
Hopper filling opening 0.66x1.22/0.66x1.68;
Category 3 hitch to lower links;
Ladder with platform on the left side;
Support wheels 15.055-17;

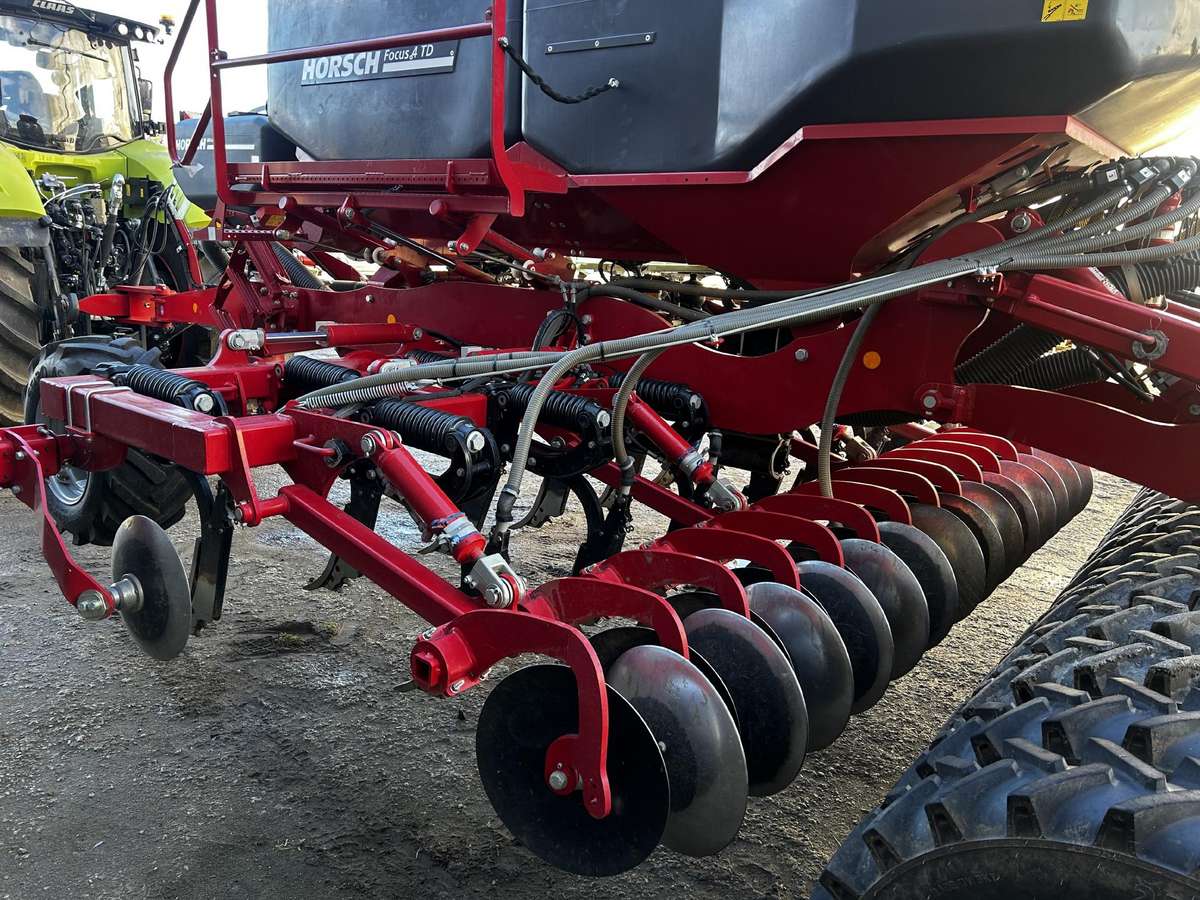

1 row of smooth discs for soil surface leveling;

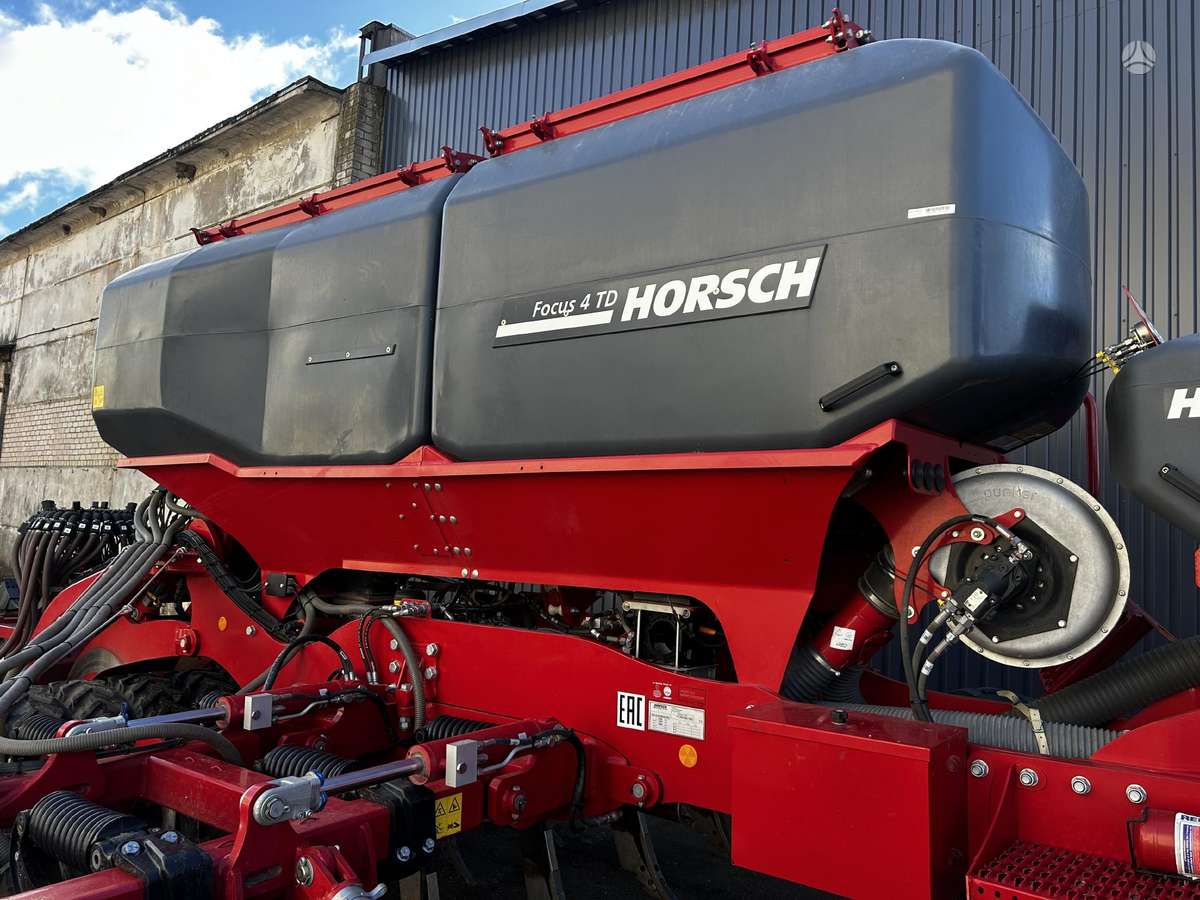

Seed/fertilizer hopper 5,000 l divided into two parts at a 40:60 ratio;
2 rows of fertilizer placement/tillage tines 14 pcs.;
Fertilizer placement in 3 types:
1. Fertilizer placed 100% at 0-5 cm depth,
2. Fertilizer placed 100% at the working depth of the fertilizer placement/tillage tines,
3. Fertilizer placed at two levels, 50/50% ratio at 0-5 cm depth and at the working depth of the fertilizer placement/tillage tines;
Frame clearance 75.0 cm;
Tine spacing in a row 57.2 cm;
Tine working depth up to 30 cm;
TerraGrip maintenance-free spring leg protection;
TerraGrip spring leg protection with 630 kg force;
TerraGrip spring leg protection with 30 cm travel;
TerraGrip spring tine protection;
Tine seed placement coulters 14 pcs.;
TurboDisc seeding system pressure on soil from 5 - 120 kg;
Row spacing 28.6 cm;
Seed rate 0.7-500 kg per ha;
Fertilizer rate 0.7-500 kg per ha;
Large seed adapter;
Press wheels 7.5 cm wide, 34 cm diameter;
Seed covering harrows;
Large diameter rear tire compaction roller across the full working width, 100 cm diameter;
Rear compaction roller with reinforced profile HD tires 10PR, tires 210/95-24 AS;
Computer control language: Lithuanian;
Power requirement from 250 HP;
Working speed 3-14 km/h;
Hydraulic seed flow fan drive from tractor hydraulics;
Required tractor hydraulic sections: 2 pcs.;
Recommended tractor hydraulic pump capacity from 100 l/min;
Lighting;
Additional oil cooler on the seeder;

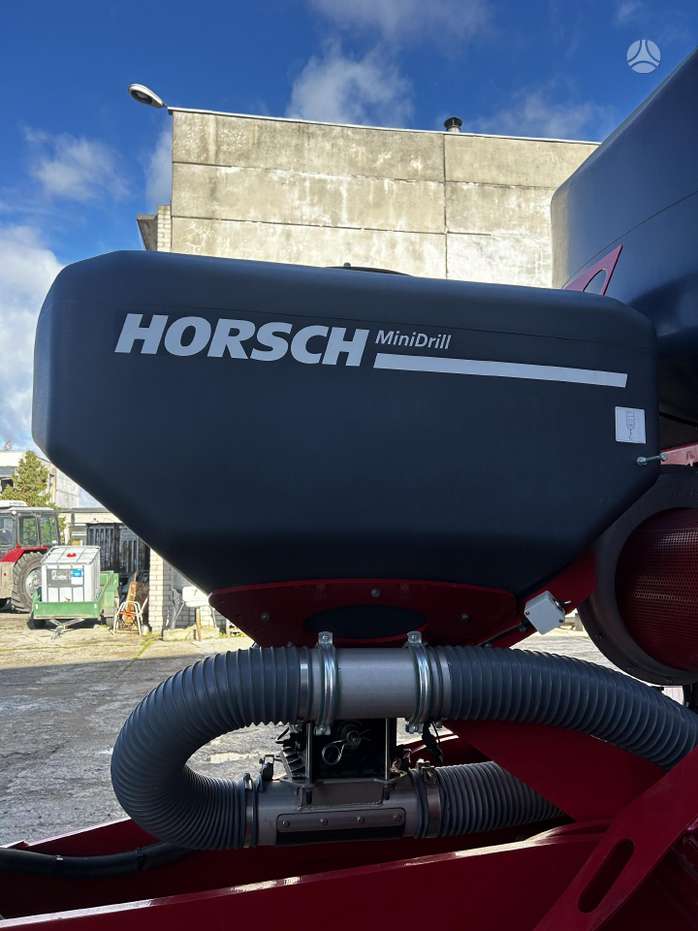

Additional 400 l capacity hopper Horsch Minidrill;
Disc seed placement coulters 28 pcs. with 14.3 cm row spacing;
Electronic seed and fertilizer rate computer with Touch 800 touchscreen;
Electronic blockage control for seed tubes 28 pcs.;
Electronic blockage control for fertilizer tubes 14 pcs.;
Rear leveling board;
ISOBUS connection for the tractor as required;
Side markers;
Pre-emergence markers;
Additional 2 tramline valves; (track width from plant to plant 57.2 cm)
Reinforced 2.5 cm wide ULD chisels;
Country of origin: Germany.

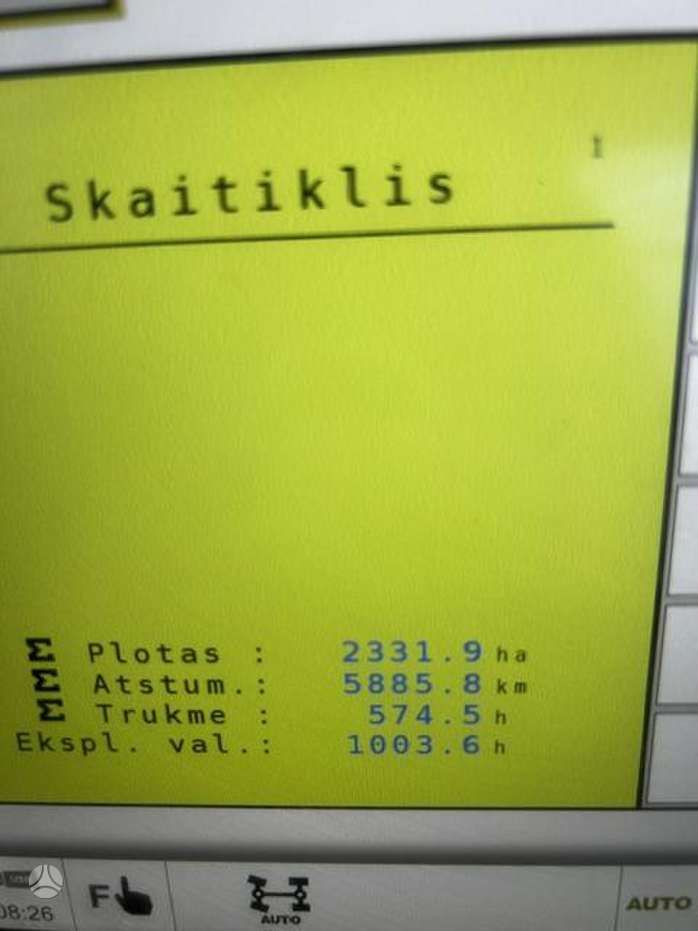

2332 ha
More information tel. +370 640 78339
