DEUTZ TCD 6.1 L06 4V Stage V engine. 4 valves per cylinder, DCR (Deutz Common Rail) injection system. 6 cylinders. Displacement – 6057 cm³. SCR system, EGR (external exhaust gas recirculation) and passive DPF (diesel particulate filter)
Robotized gearbox
Rated engine speed – 2100 rpm.
Rated power (ECE R120): 196 hp / 145 kW.
Maximum power (ECE R120): 216 hp / 159 kW
Viscostatic fan
Hydrostatic steering with independent pump
Electro-hydraulically controlled multi-disc oil-immersed PTO clutch
Electronic battery switch in the cabin
Free hydraulic oil return
Hydraulic distributors with "Push-Pull" quick-connect couplings and oil collection tank
Left and right rear fenders with button control panel for rear linkage and PTO

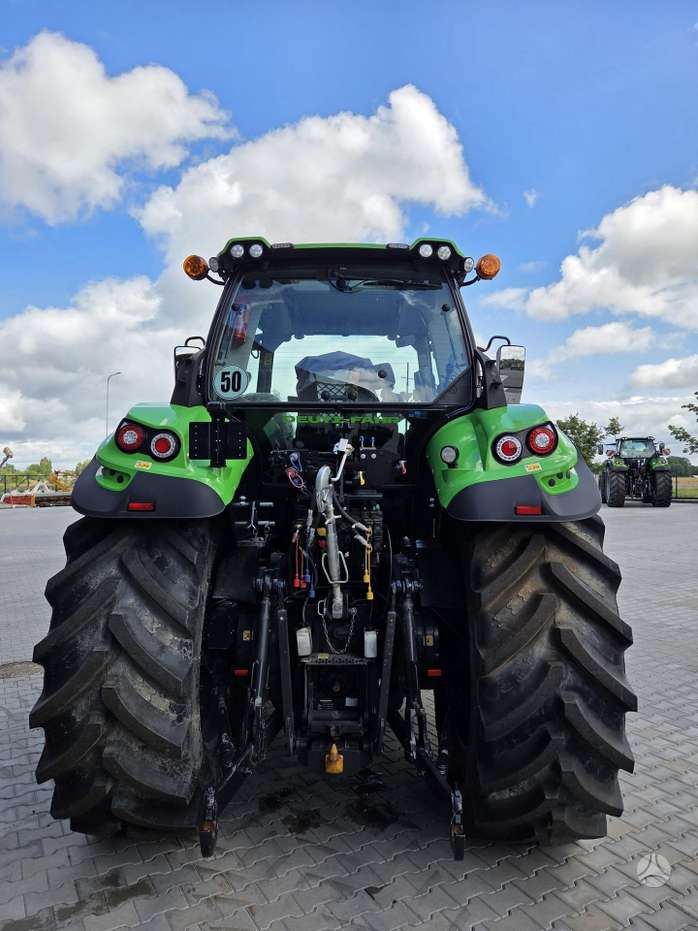

Three-point linkage system (CBM) with automatic lower links.
Electronic rear linkage with ANTIDAMPING (vibration damping) and AUTO PTO functions
Mechanical right and left stabilization links
Telescopic stabilizers
Mechanical automatic rear top link

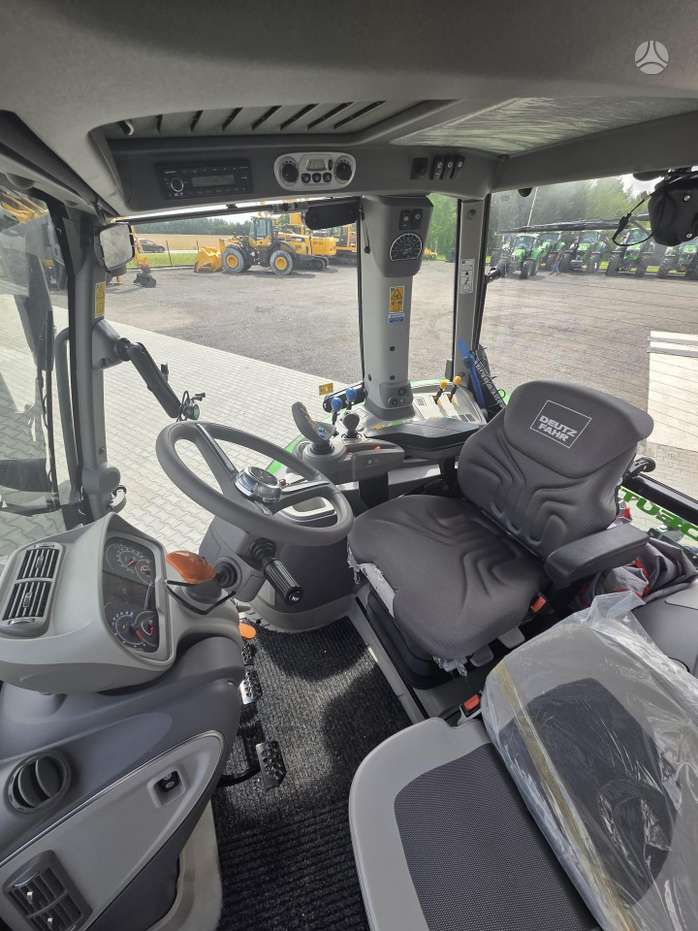

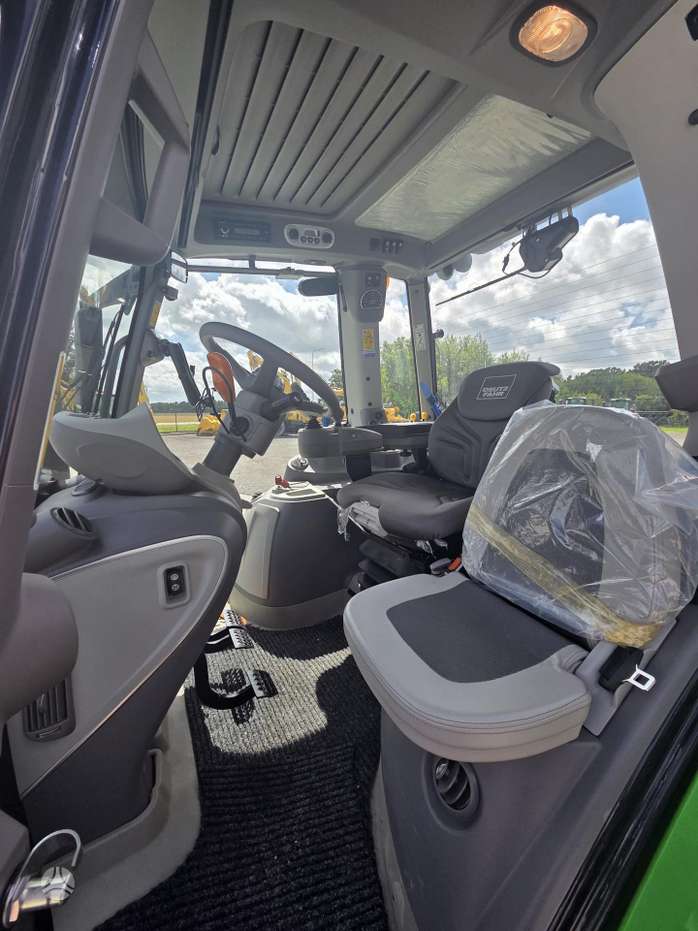

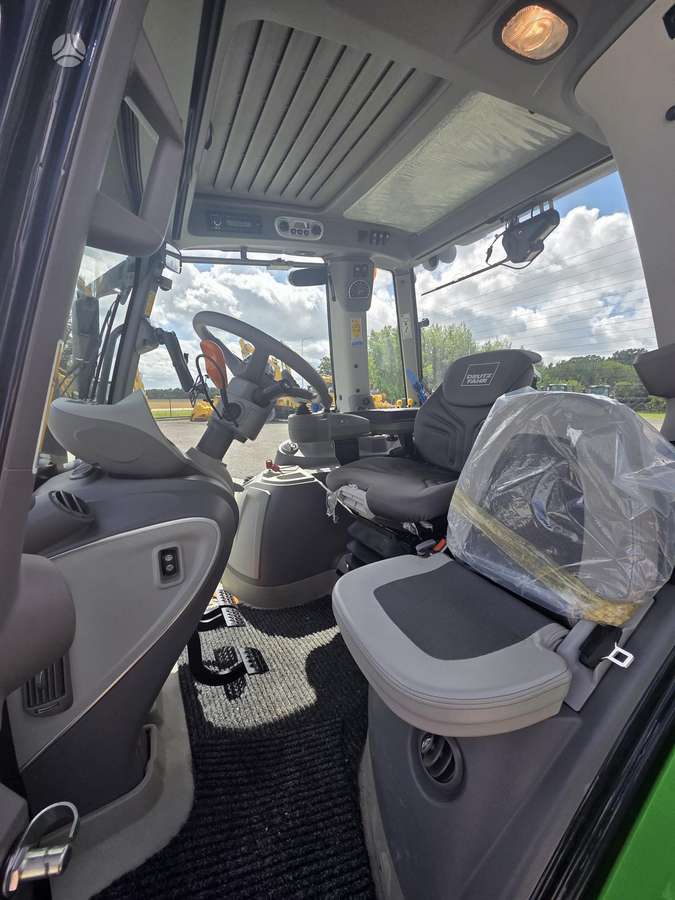

Max-Comfort XL seat (fabric finish) with pneumatic suspension
Automatic adjustment to operator weight
Adjustable seating position
Swivel 10° to the left, 20° to the right
Radio with Bluetooth and integrated functions
Automatic air conditioning
50 km/h transmission with super-economic engine speed mode.

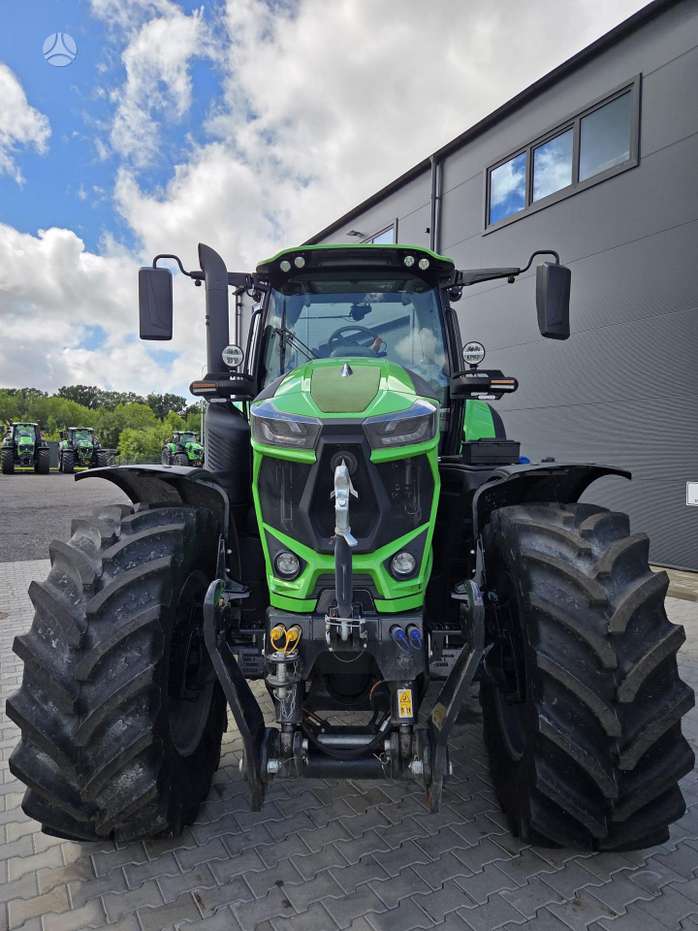

EFFICIENT front linkage with double-acting hydraulic cylinders (3,800 kg lifting capacity)
Closed center hydraulic system with Load Sensing pump, 160 l/min capacity
High-performance rear hydraulic distributors with flow control

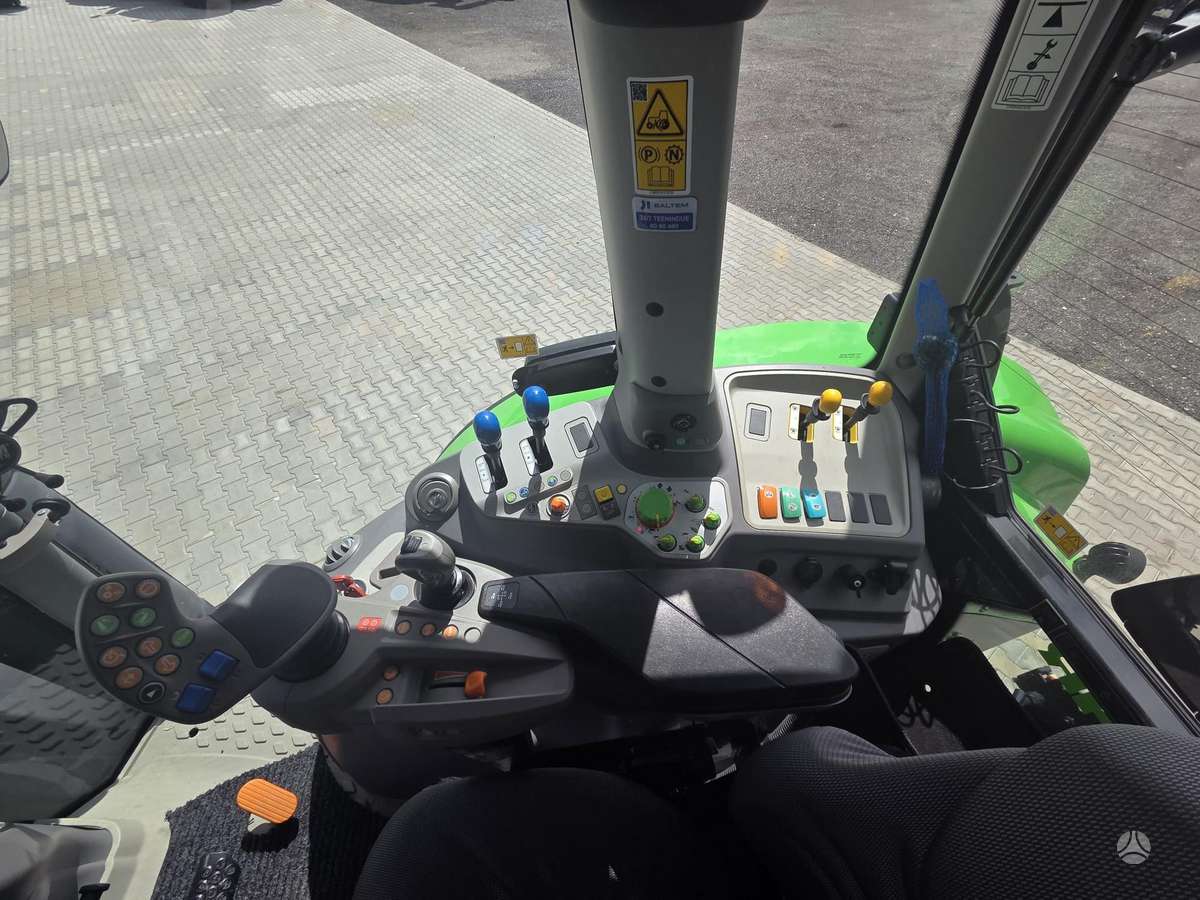

Electronic control of the 1st and 2nd distributors via joystick on the armrest with timer function
Mechanical control of the 3rd and 4th distributors via levers (2 "Float" positions). Total – 8 rear hydraulic connections
Tyres: front – 540/65 R30, rear – 650/65 R42
Speed radar
Pneumatic cabin suspension
Suspended front axle
Hydraulic Pick-Up hitch with mechanical lifting hook
Hydraulic dual-mode trailer braking system
Air brakes for trailers (dual-line)
