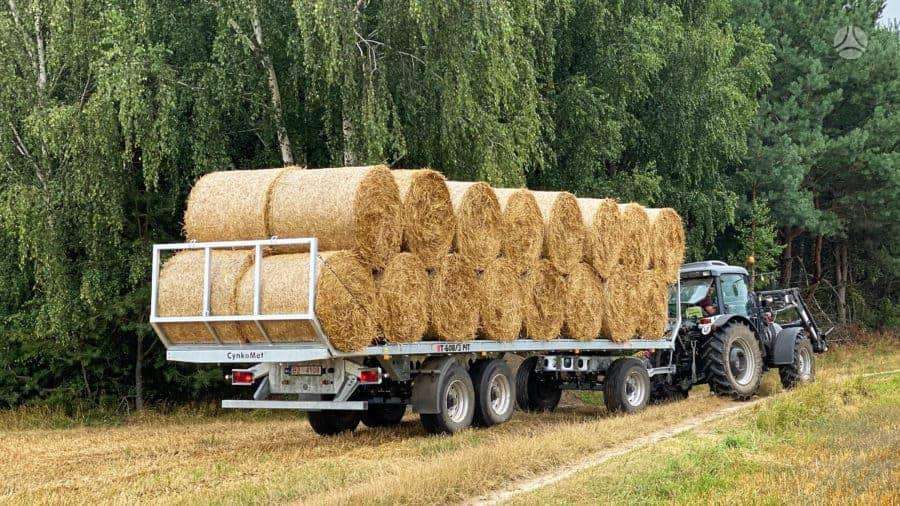

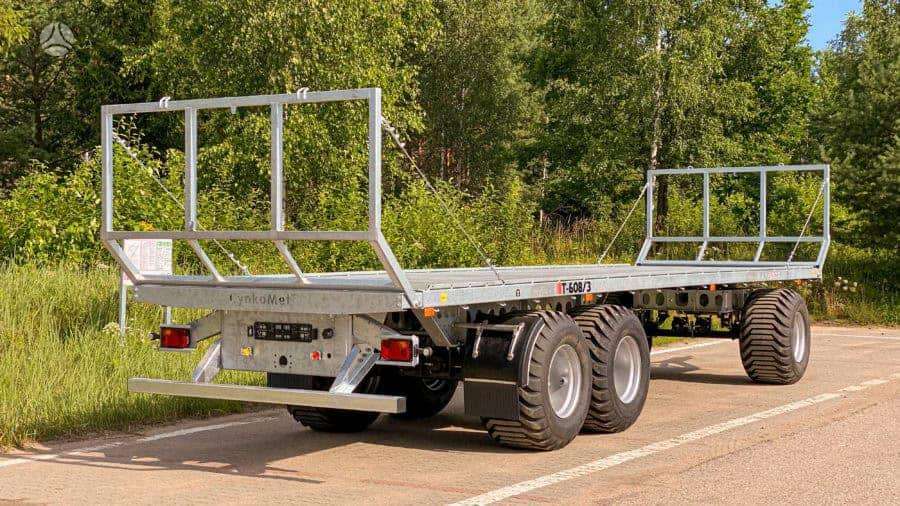

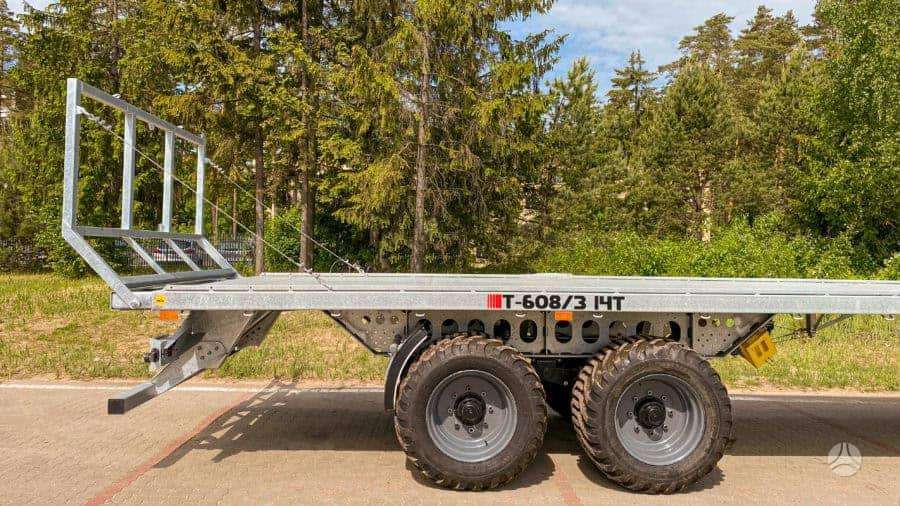

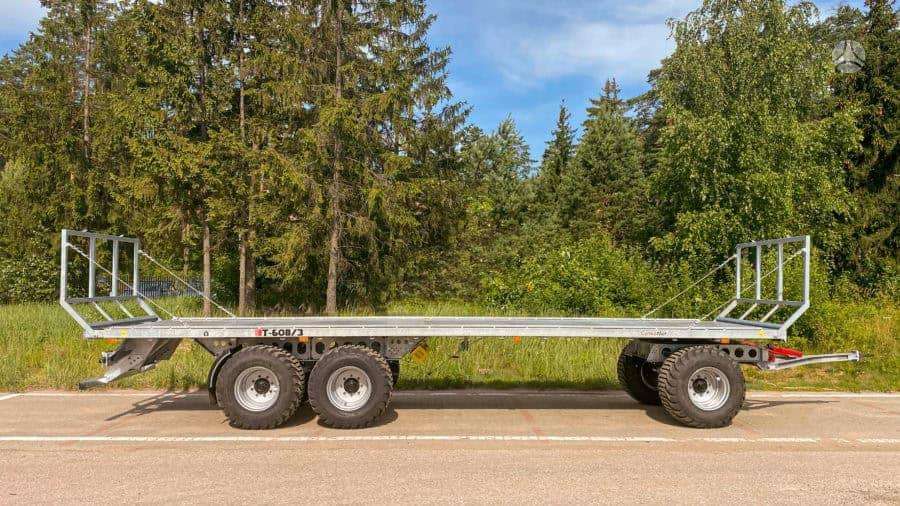

NEW CYNKOMET T-608/3 (EU homologation) – three-axle bale transport platform, 2026 production.

PRICE: 19 400 EUR + VAT.

TECHNICAL DATA:
• Lifting capacity: ~14 360 kg
• Total permissible mass: 19 000 kg
• Curb weight: ~4 640 kg
• Axles: 3 units, ADR, full 90x90 mm beam
• Platform length: 9 300 mm (up to ~10 050 mm with extended rear frame)
• Loading area: 22.8 / 25.3 m²
• Width: 2 540 mm, height: 2 650 mm
• Loading height: ~1 320 mm
• Tires: new 385/65 R22.5
• Suspension: parabolic leaf springs
• Transport speed: 40 km/h
• Required tractor power: from 100 HP

STANDARD EQUIPMENT:
• Hot-dip galvanized frame and ladders, galvanized 4 mm thick sheet metal floor

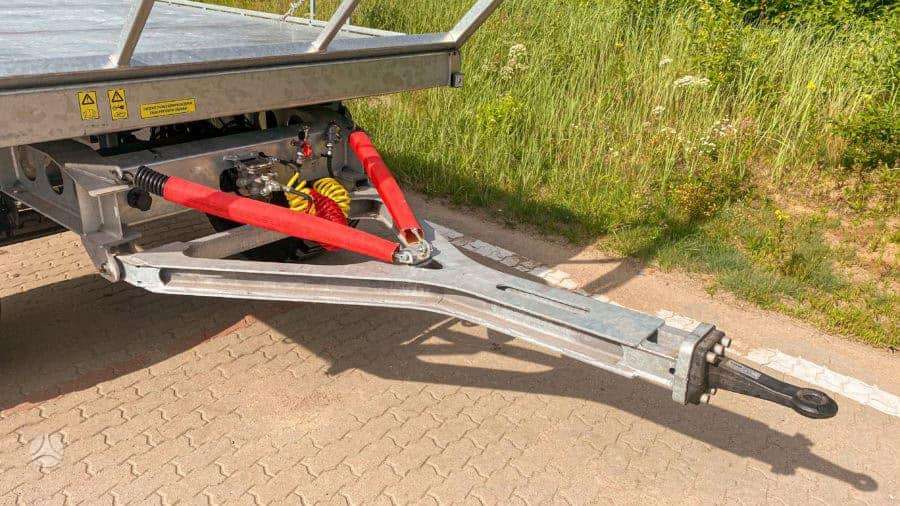

• "Y" type drawbar with replaceable eye (homologated according to UN ECE Reg. 55)
• Extendable rear frame, increasing the loading area by ~1 m
• Raised ladders (1 800 mm from the platform), 4 ladder stays
• Pallet width, cargo fastening loops and holes in the side beams
• Dual-circuit pneumatic brake system with automatic regulator and outlet for a second trailer
• Parking brake with handle
• Full LED lighting, 7PIN 12V connector, rear electrical outlet for a second trailer
• Homologated galvanized rear bumper, wheel chocks, mudguards for the last axle

AVAILABLE OPTIONAL EQUIPMENT (prices upon request):
• Hydraulic side walls for load securing (lowered from one or both sides)
• Homologated dual-circuit hydraulic brake system
• Hydraulic rear frame extension
• Quick hydraulic coupling with pressure eliminator
• Wheels 550/45-22.5 or 600/50-22.5, spare wheels for all sizes
• Spare wheel winch with galvanized holder
• Side underrun protections
• Manual hitch for a second trailer
• 90-degree ladders, central ladder stays, ladder locking bracket
• Drawbar eye 50 mm
• Tool box, water tank with soap dispenser
• Warning triangle, front axle mudguards

More information – by phone.
