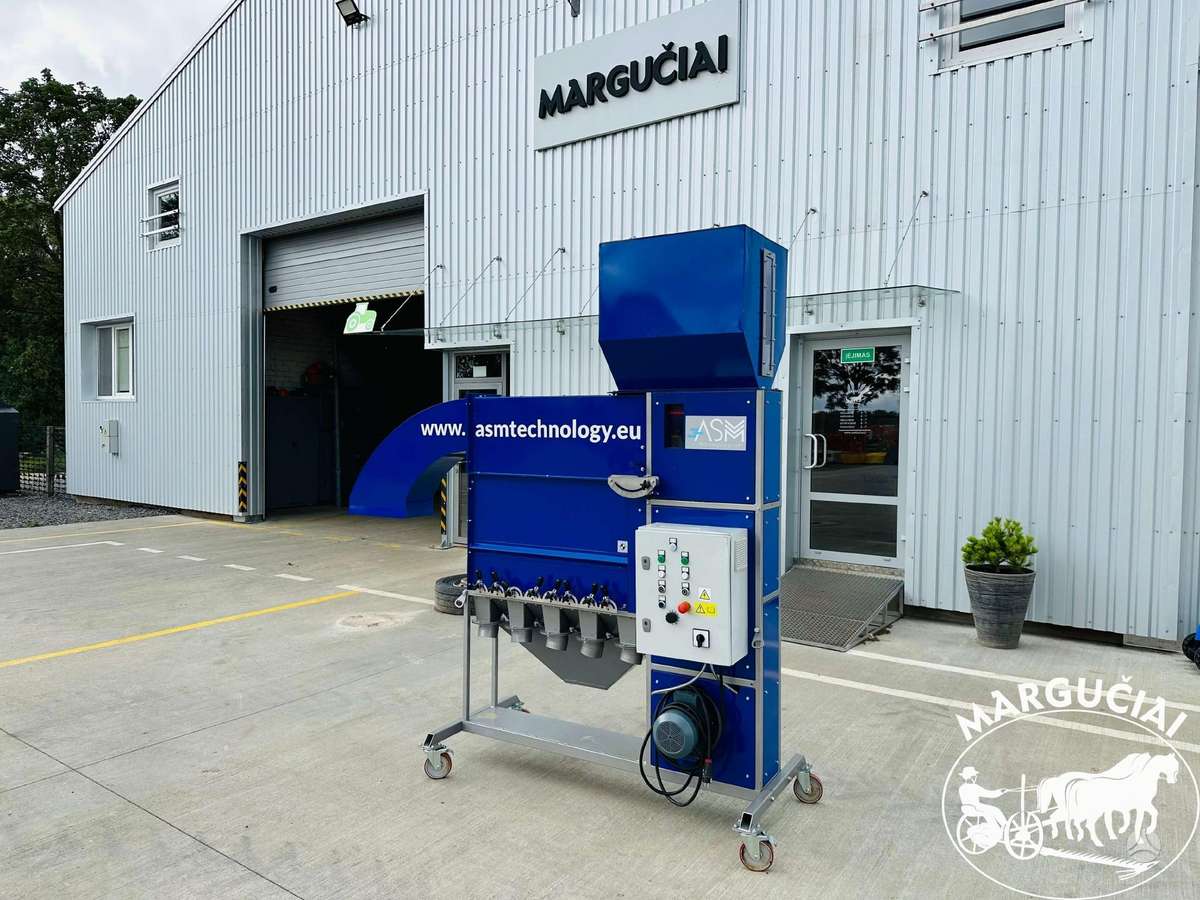

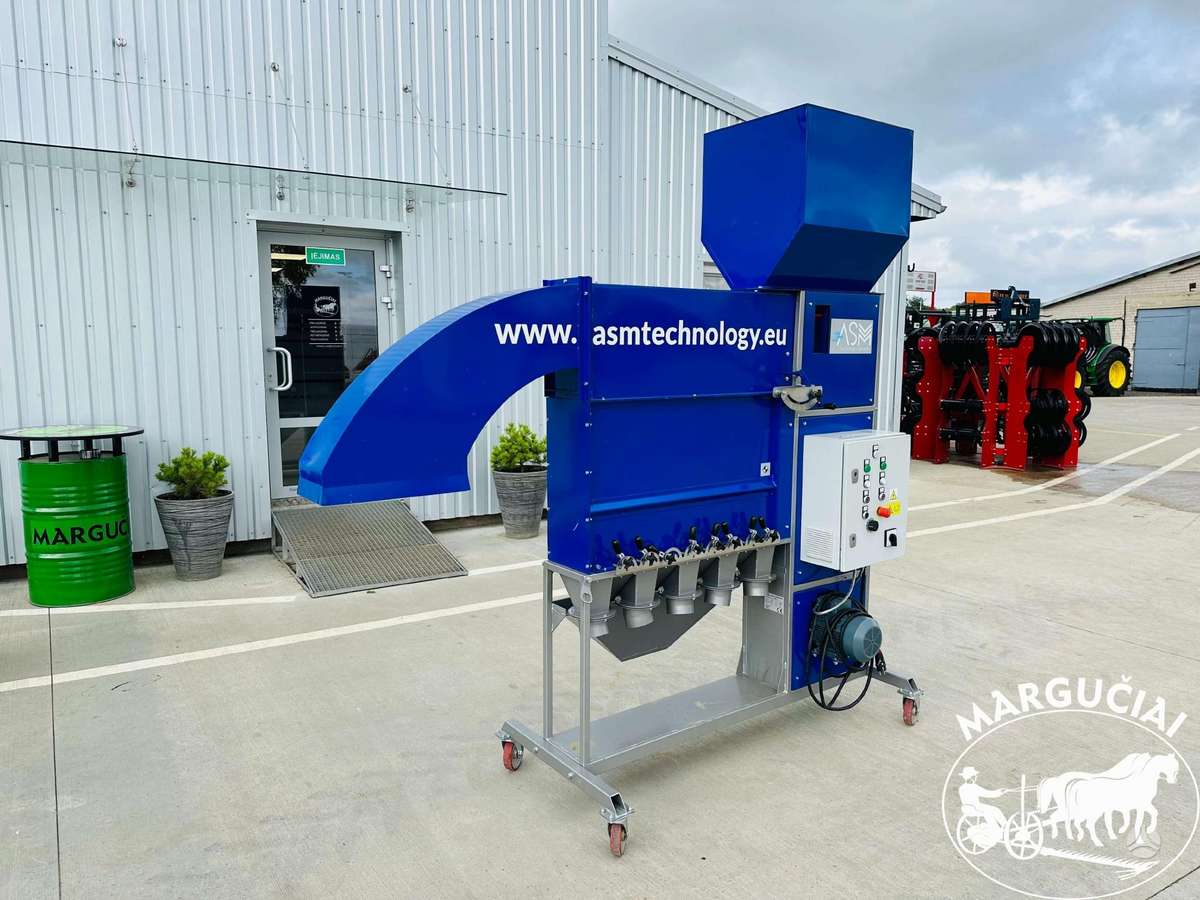

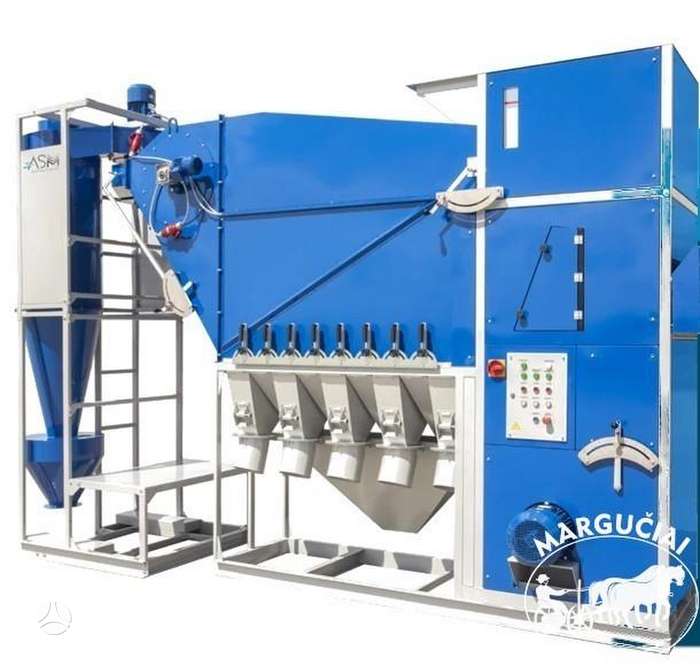

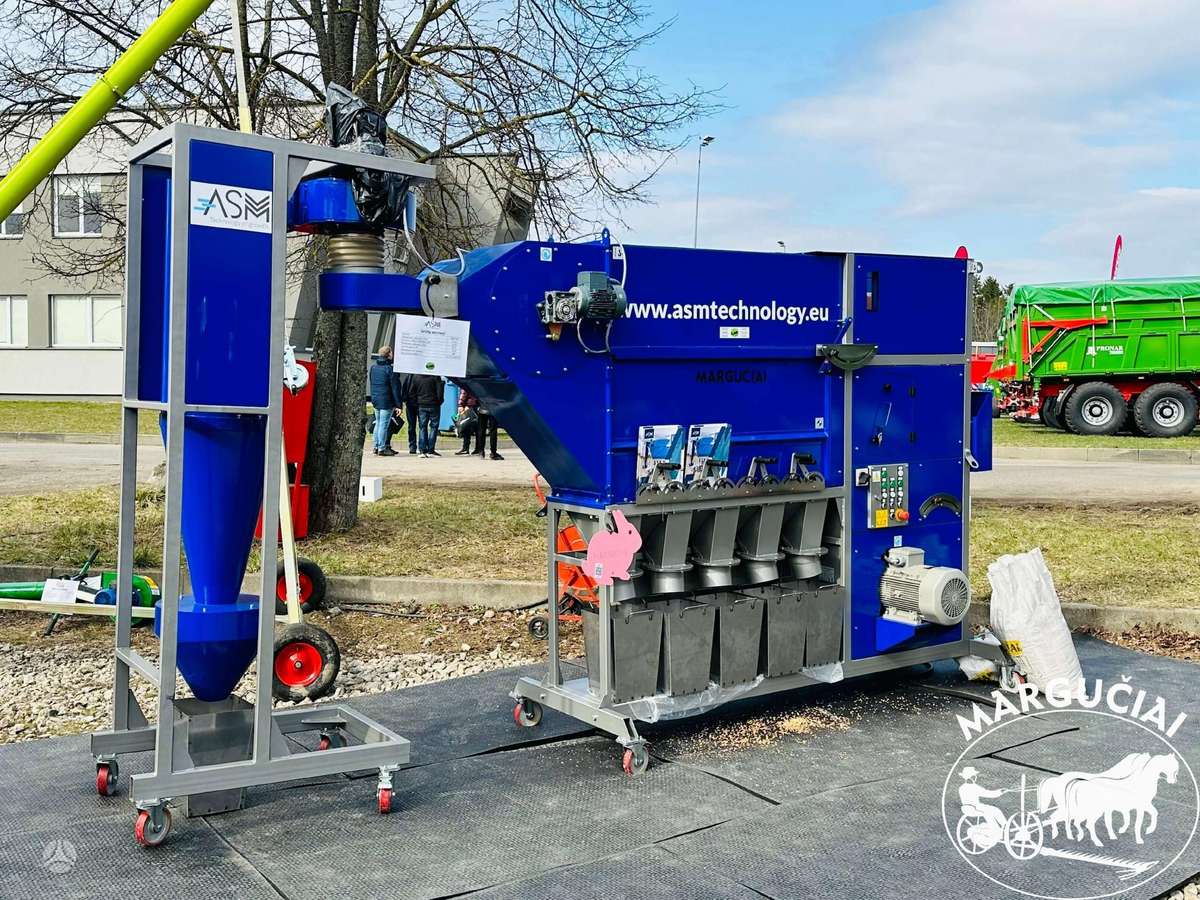

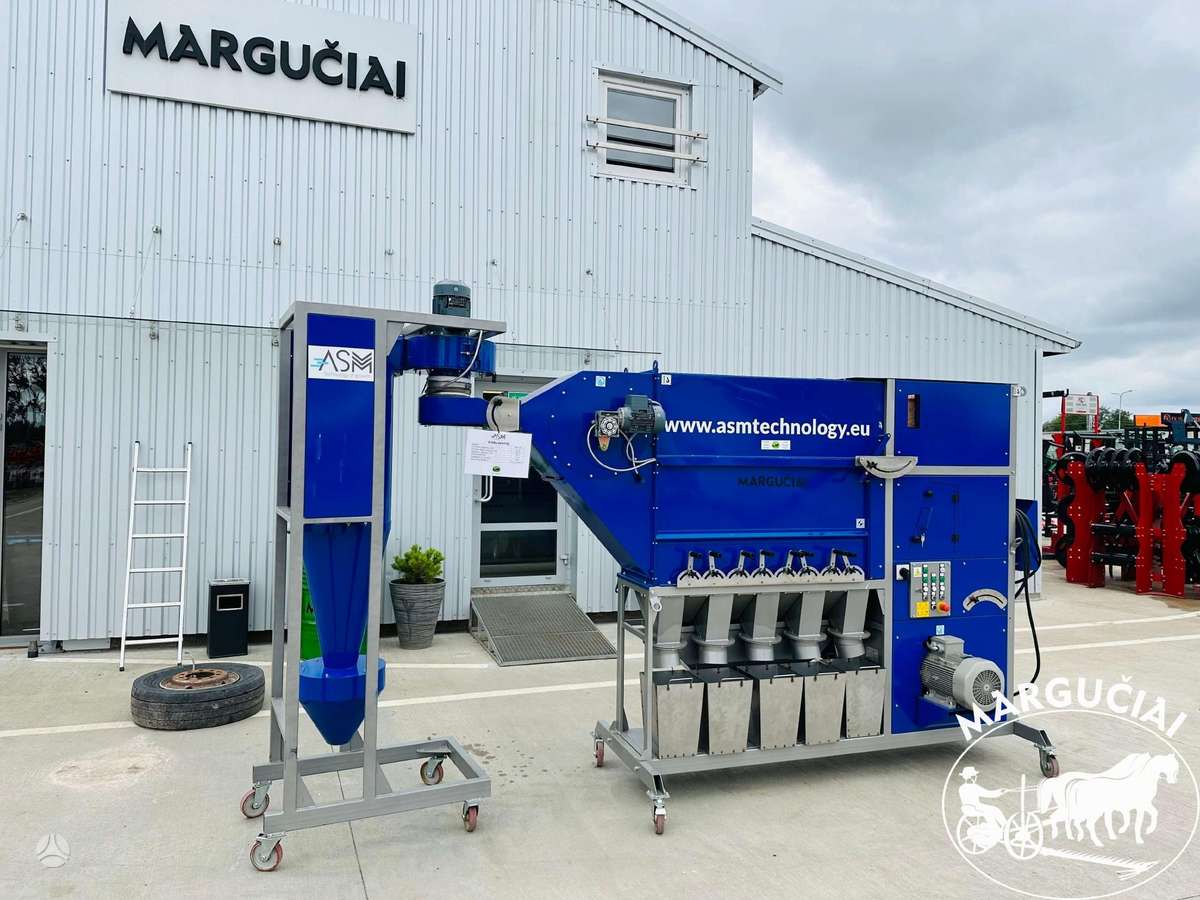

"ASM" grain cleaners are designed for cleaning, drying, and calibrating raw materials. Their operating principle is based on utilizing the differences in aerodynamic properties, weight, and density between the grain and solid impurities. The "ASM" cleaner uses air currents that divide the material into fractions according to its weight. In this way, the grain cleaner removes all minerals (e.g., sand, soil clumps, stones), glass fragments, and metal. Additionally, it removes organic impurities, i.e., straw, husks, stems, weeds, and even their seeds. Furthermore, "ASM" cleaners can separate infected materials during the initial processing stage.

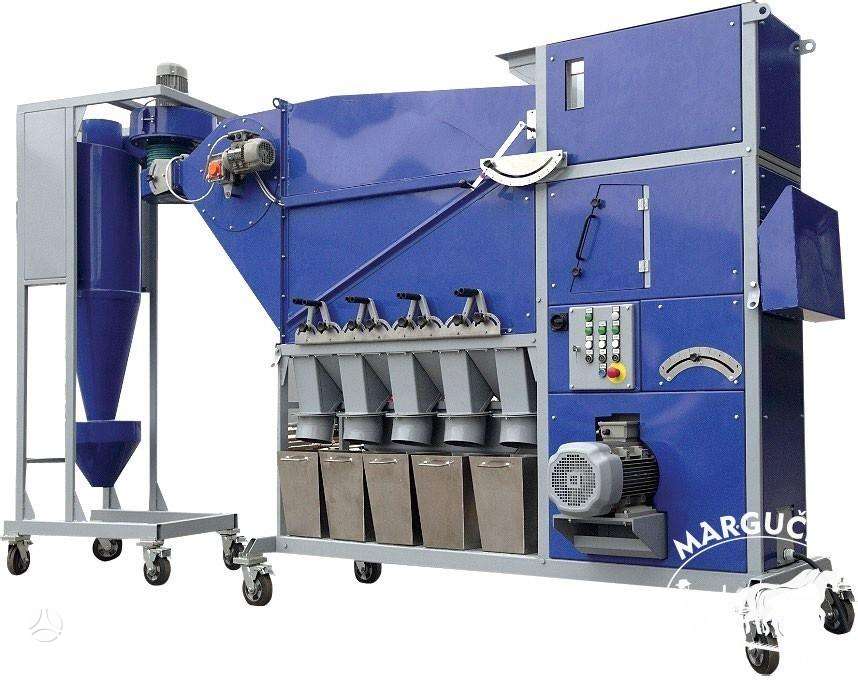

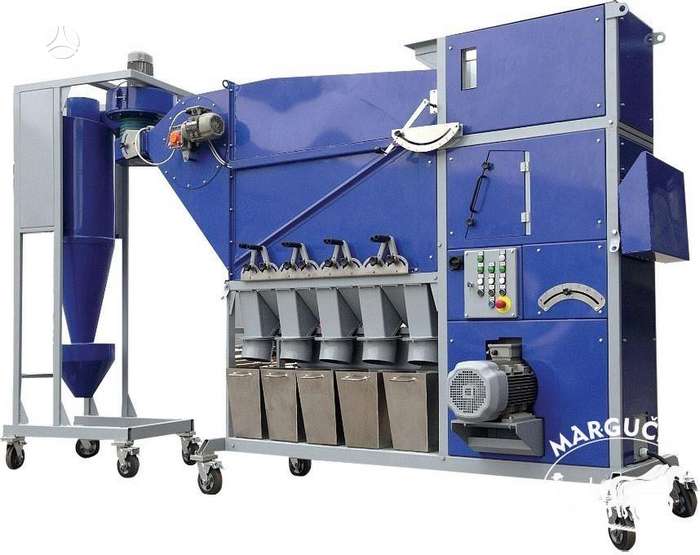

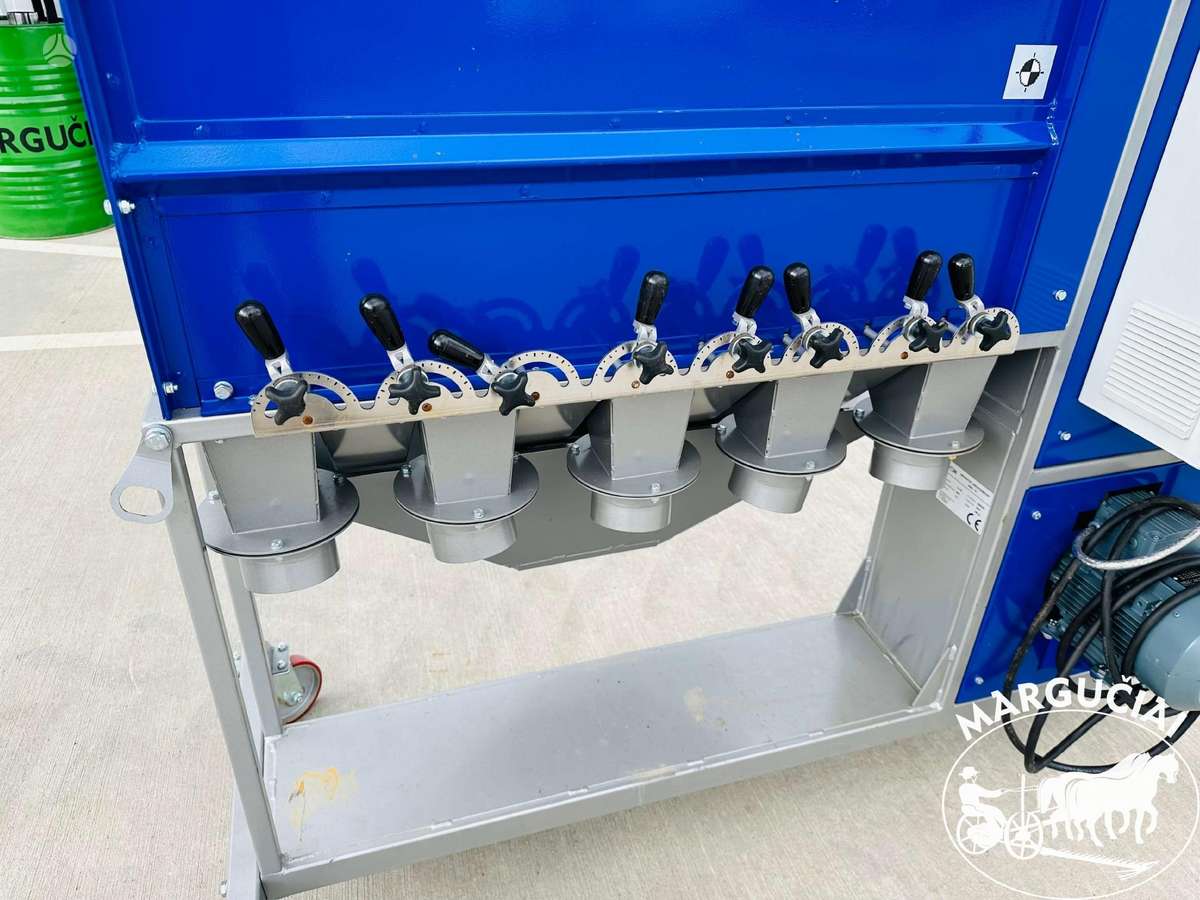

The device operates by dividing the processed material into five parts (fractions), each receiving a specific type of grain or plant. The first fraction collects heavy impurities, such as stones and metal elements that may accidentally enter the cultivation area. The cleaner places the best-grown grains into the second and third grain fractions. The fourth fraction receives small grains along with halves, and the final fraction contains light impurities. The "ASM" cleaner separates dust and dirt. The grain and other crop cleaner is fully configurable, meaning the quality or quantity of raw materials entering individual fractions can be easily adjusted. For example, waste from fractions I and V can end up in the same place as good material from fractions II-IV.

The main advantage of "ASM" cleaners is the ability to configure cleaning according to needs. Three functions can be set. First, high-efficiency pre-cleaning – a mode that successfully replaces primary cleaning, resulting in lower costs. Pre-cleaning of rapeseed, grain, or corn involves collecting external fractions and dividing the raw material before storage.

The second function is fine cleaning with intermediate capacity. At this stage, material from fractions II-IV is used after pre-cleaning. A low-capacity separation (calibration) mode is also available. The "ASM" aerodynamic seed cleaner separates any material of specific density with +/- 3% accuracy, making it ideal for seed production or seed packaging.

The third function – pre-cleaning for the grain cleaner allows for selecting the best material for sowing. The "ASM" cleaner can select grains with a similar germination energy level. Due to seed pre-cleaning, grains ripen evenly during harvest, achieving approximately 92% uniformly ripened grains, which increases the yield by about 12%. Additionally, the grain cleaner protects the field from natural contamination by spilled grains. Seeds are preserved unchanged, requiring no additional sorting or drying, thus accelerating the production process.

Application:
• For cleaning wheat, barley, oats, rye, corn.
• For preparing legumes (peas, beans, broad beans).
• For cleaning oilseed plants (rapeseed, flax).
• For the production of compound feed.
• For preparing seeds for storage or sowing.

Main features:
• Adjustable air flow effectively blows out light impurities.
• Vibro-sieve system separates larger and smaller fractions.
• Ability to change sieve parameters according to the crops.
• Robust and reliable construction, designed for long-term operation.
• Simple operation and easy maintenance.

Technical parameters (depending on the model):
• Pre-cleaning capacity: up to 100 t/h.
• Secondary cleaning capacity: up to 60 t/h.
• Sorting capacity: up to 30 t/h.
• Total motor power: up to 31.96 kW.

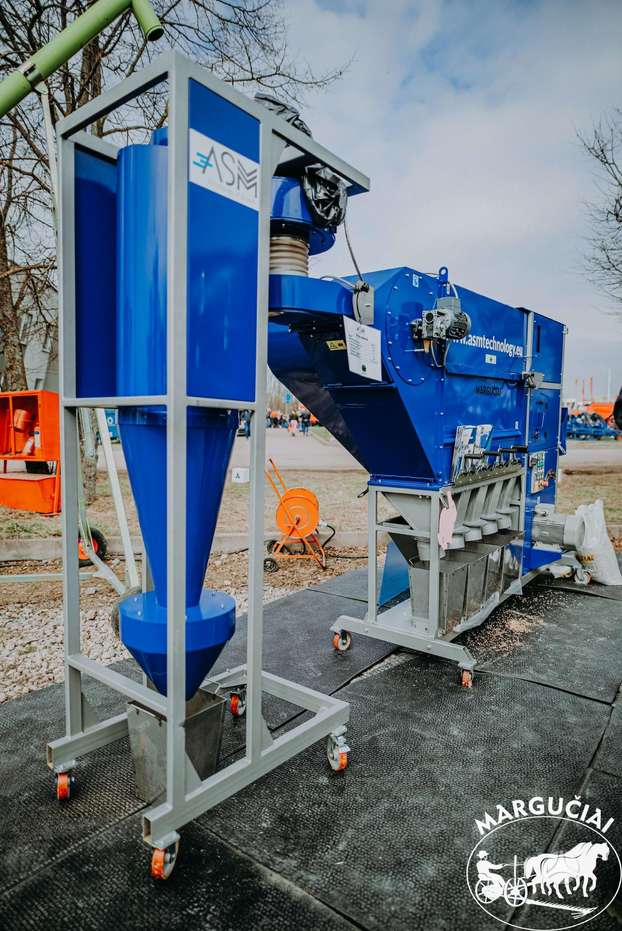

• Air aspiration systems integrated or separate.

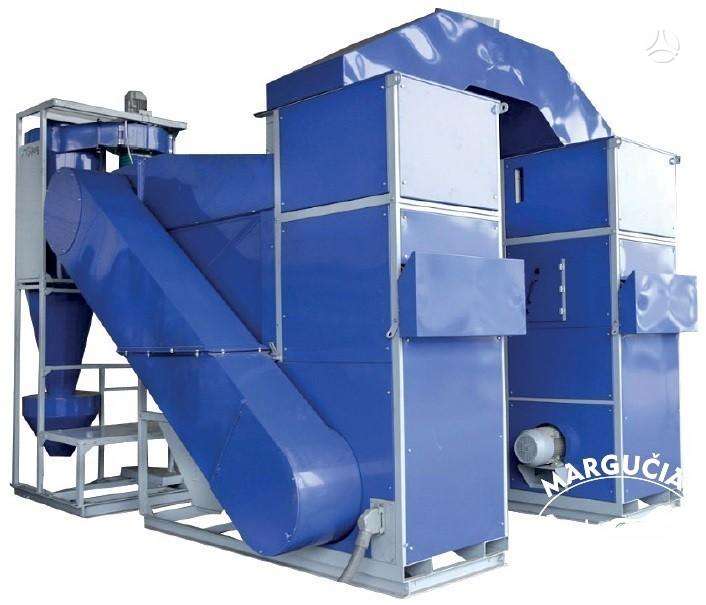

• Available as a standalone unit or for linear connection to a grain processing system.

Advantages for the farmer:
• Improves grain quality and purchase price.
• Reduces the risk of mold and moisture during storage.
• Ensures a cleaner final product.
• Operates economically with low energy consumption.

If interested, please contact us by phone or email.
