Warranty valid until 2027 - 06

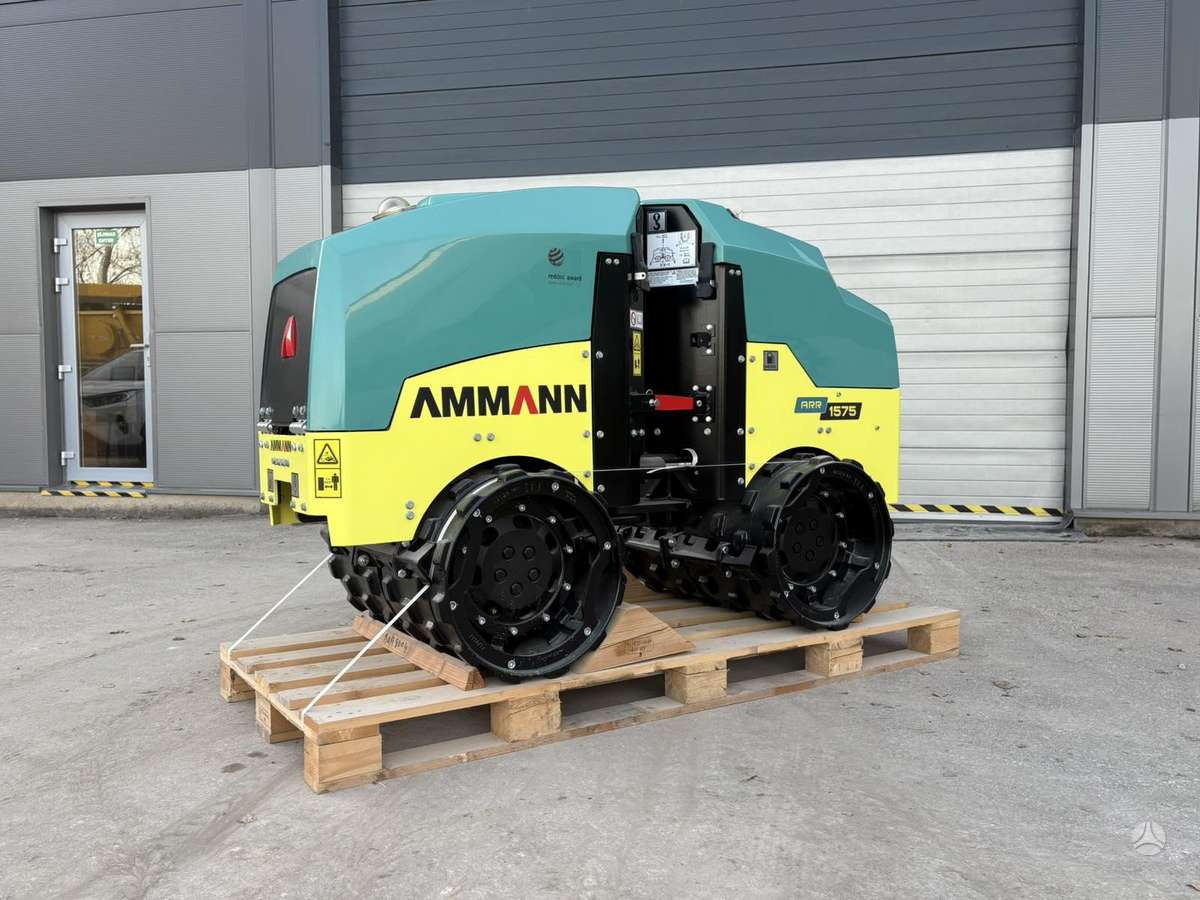

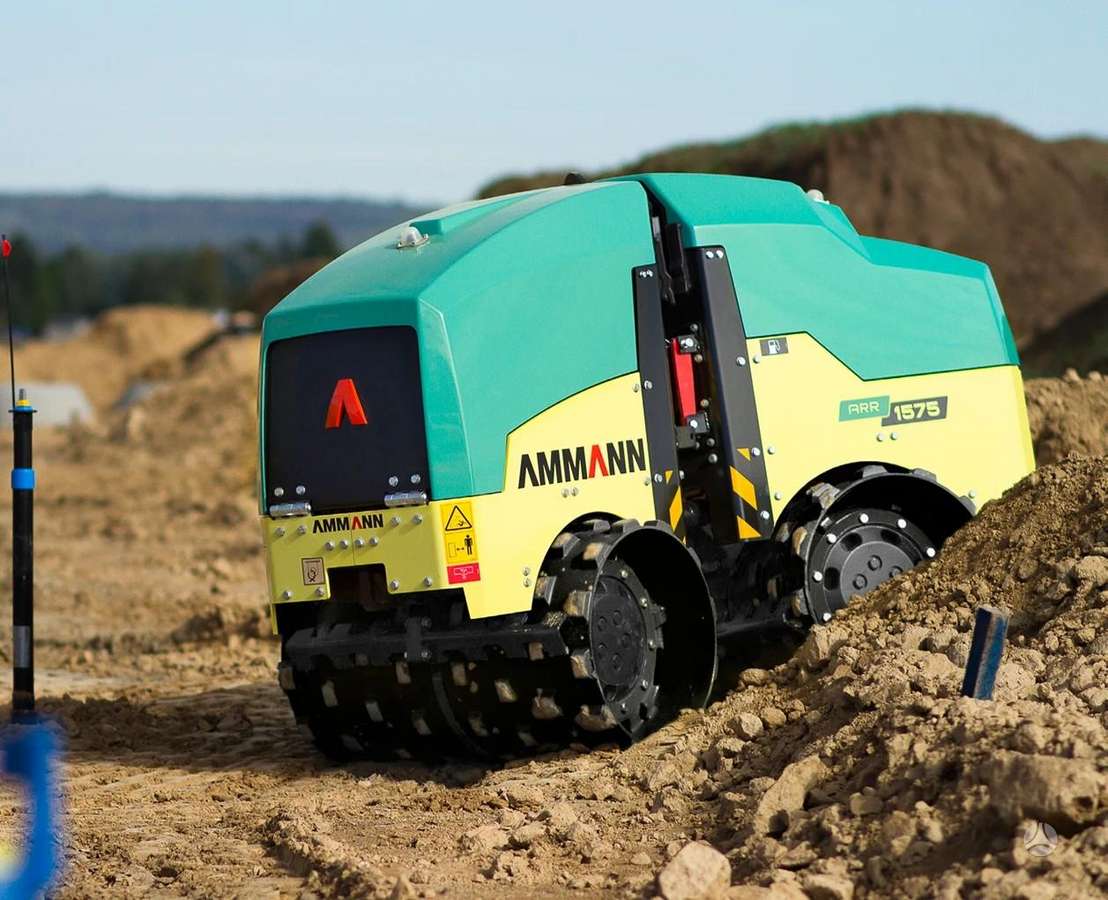

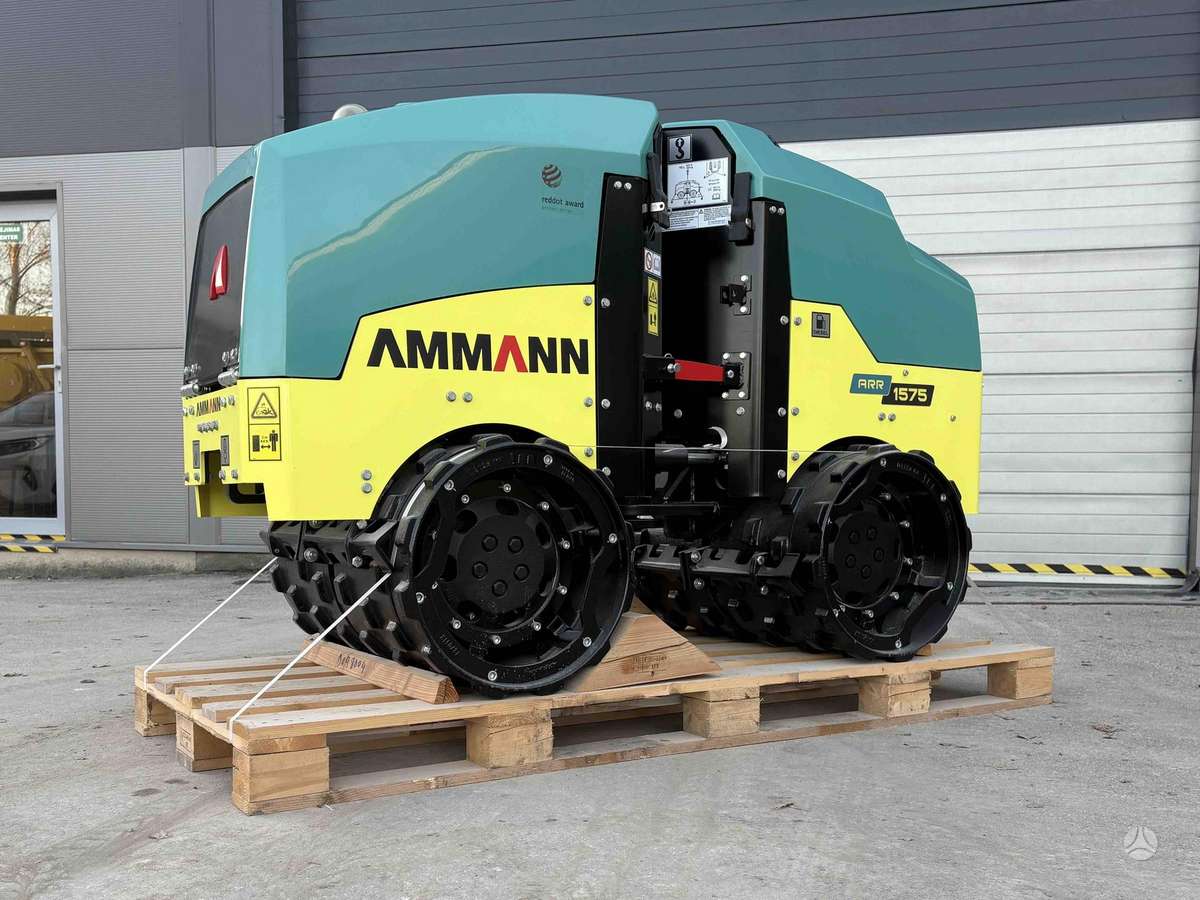

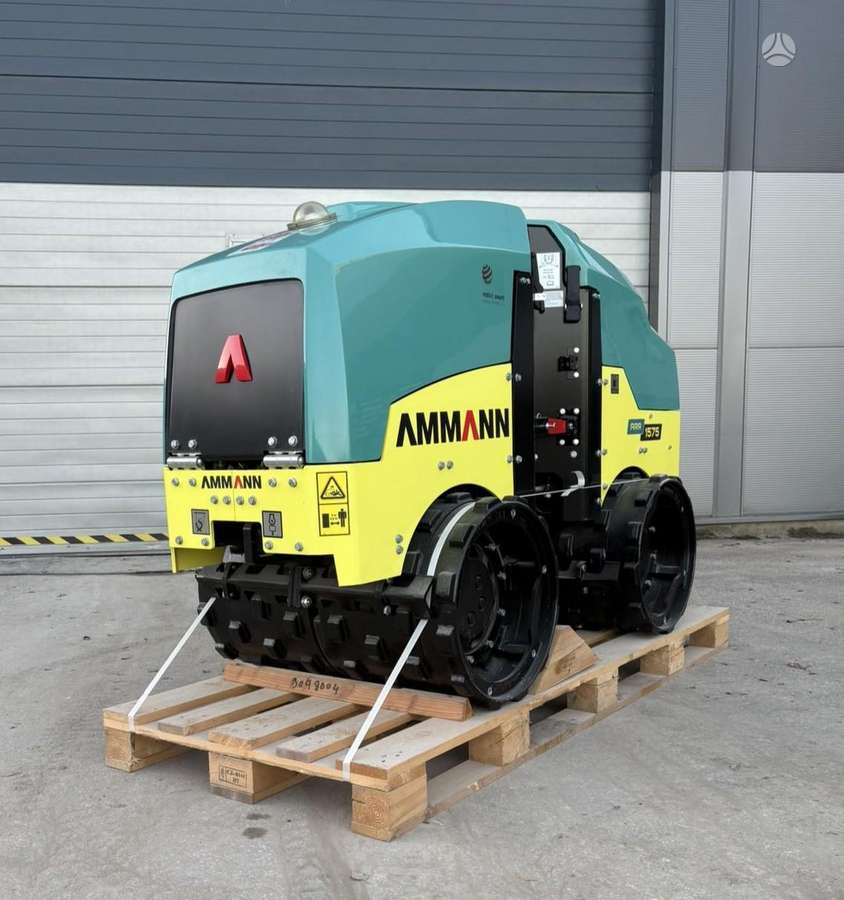

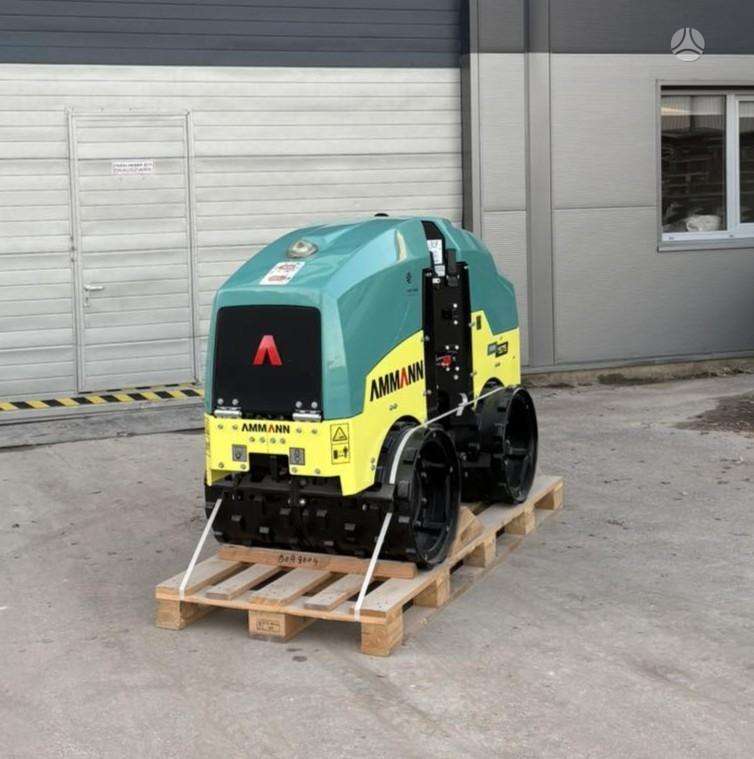

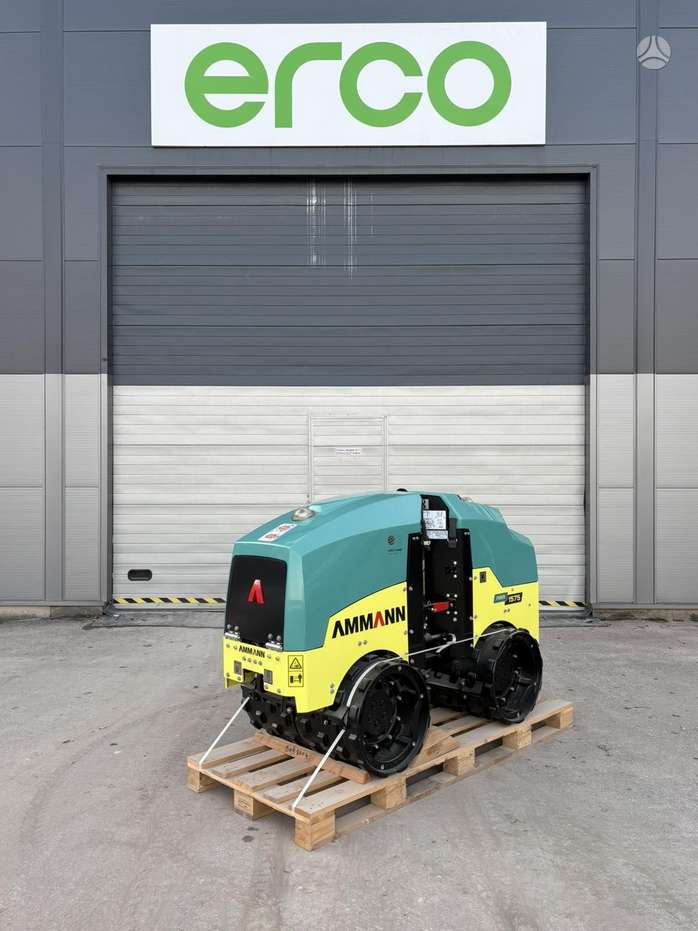

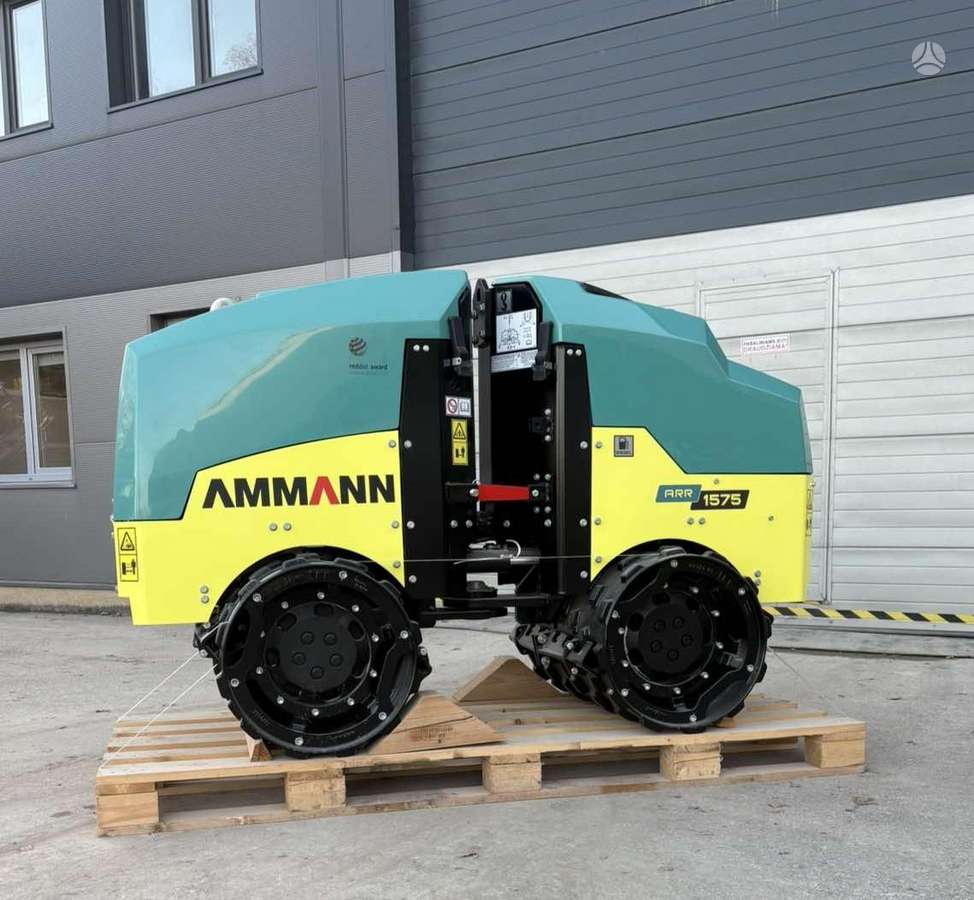

Ammann ARR 1575 – Trench roller

Year of manufacture: 2024
Operating weight: 1440 kg
Maximum weight: 1450 kg
Engine: Yanmar 3TNV80F
Engine power: 14.6 kW / 20 HP
Engine speed: 2400 rpm
Engine emission standard: EU Stage V / US EPA Tier 4f
Fuel tank capacity: 28 l
Hydraulic system capacity: 16 l
Drive: Fully hydraulic, dual drum drive
Drum width: 640 / 850 mm
Drum diameter: 525 mm
Vibration frequency: 40 Hz
Centrifugal force: 36–75 kN
Vibration amplitude: 0.6 / 1.1 mm
Working speed: up to 1.4 km/h
Transport speed: up to 2.8 km/h
Gradeability: 25 % (with vibration) / 30 % (without vibration)
Oscillation angle: ±7°
Turning radius: inner 1.44 m / outer 2.29 m

Equipment:
• Fully hydraulic drive with vibration on both drums
• Articulated frame with oscillation function – ensures excellent ground contact even on uneven surfaces
• Two-stage vibration system – adjustable amplitude level according to working conditions
• Infrared remote control (IR) – the safest working solution, allowing the operator to control the unit from a distance only with a direct line of sight
• Solar cells for remote charging – the remote is always ready for work
• Automatic pairing of controller and machine (automatic frequency selection)
• Robust, bolt-on frame – easy service and maintenance
• Daily inspection without tools
• Centralized lubrication points
• Possibility to install additional drum extensions
• CE certificate

ERCO Technologies – a reliable supplier of road construction machinery in the Baltic States.
To see more rollers, asphalt pavers, milling machines, crushers, screeners, or other machinery – visit our website: www.ercotechnologies.com or browse our other listings on the Autoplius platform.
